Scroll Compressor, 5HP, R404A

The scroll compressor listed here carries 220 V, 380 V, Customized, refrigerant R404A, R449A, R507A, documented exactly as the manufacturer publishes it. Made by Guangzhou Icepoint Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Scroll Compressor

• Voltage: 220 V, 380 V, Customized
• Cooling Capacity: Customized
• Refrigerant: R404A, R449A, R507A
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Compressor Type: semi-hermetic

Technical Specifications

Product Details

Products Description

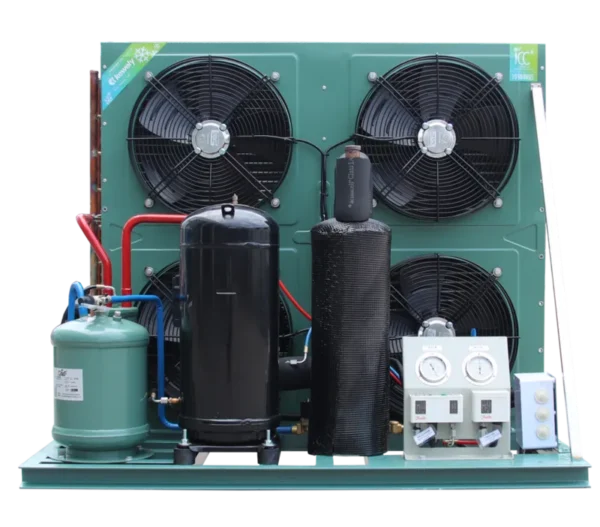

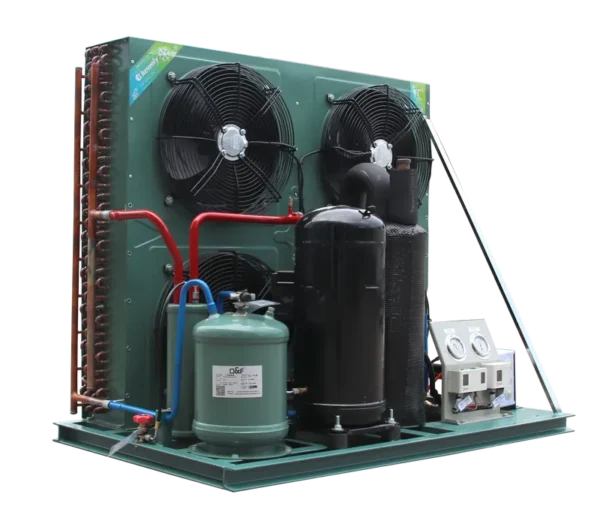

Air-Cooled Condensing Unit — Reliable · Energy-Saving · Low-Noise

High efficiency compressors (Bitzer/Embraco optional) — Up to 30% energy saving.

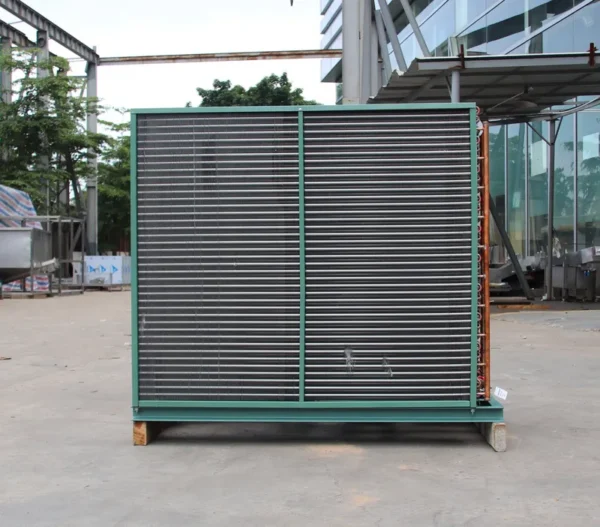

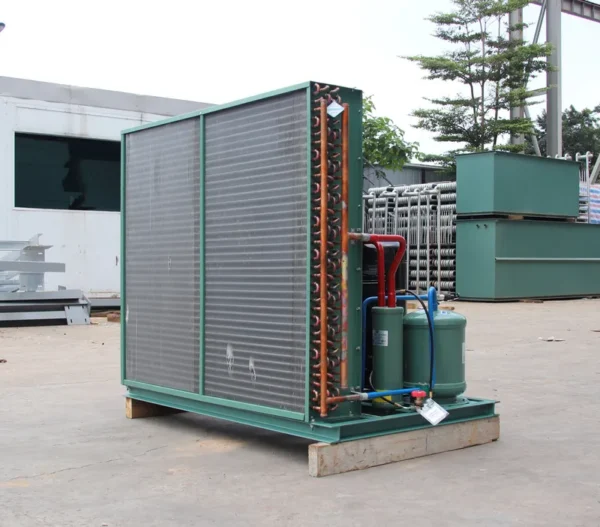

Box-type air condenser with axial fans — Easy outdoor installation.

Wide range: 0.5HP — 50HP, R404A/R449A/R507A options.

Air-Cooled Condensing Unit
Cooling Capacity (Nominal)	1.5 kW – 120 kW (Evap. Temp -10°C / Cond. Temp 40°C)
Application Temperature Range	Medium / Low Temperature Refrigeration
Evaporating Temperature Range	-40°C ~ +15°C
Condensing Temperature Range	30°C ~ 55°C (High-ambient upgrade available)
Heat Rejection Ratio	1.25 ~ 1.35 (approx., depending on refrigerant)
COP (Coefficient of Performance)	1.85–3.20 (standard conditions)
System Type	Air-cooled direct expansion refrigeration system
Supported Refrigerants	R404A/R449A/R507A options
Refrigerant Circuit	Single or Dual circuit depending on model
Refrigeration Oil	POE/PVE depending on refrigerant + temp class
Receiver Tank	Integrated liquid receiver available (optional)
System Protection	HP/LP Protection • Suction Accumulator • Oil Separator • Sight Glass • Filter Drier • Solenoid Valve (optional)
Available Brands	Copeland / Bitzer
Capacity Control	ON-OFF / Step Control / Optional VFD Variable Capacity
Starting Mode	Direct-On-Line / Soft-Start / Inverter Drive
Discharge Temperature Protection	Standard integrated sensor
Condenser Type	Copper Tube + Aluminum Fin Heat Exchanger
Fin Coating Options	Hydrophilic Blue / Golden / Epoxy Anti-Corrosion
Fan Type	Axial Fan (External Rotor Motor)
Fan Quantity	1–8 units depending on model
Fan Diameter	350 / 500 / 630 / 750 / 910 mm
Airflow Capacity	2,000–18,000 m³/h per fan
Fan Speed Control	Multi-speed or EC/Variable-Frequency optional
Power Supply	220V~240V/1Ph/50-60Hz (Small Units) 380V~460V/3Ph/50-60Hz (Medium/Large Units)
Control Method	Digital Thermostat / PLC / IoT Remote Control
Application	Cold rooms, freezer rooms, food processing, distribution centers, supermarkets, seafood storage etc.

Application Scenario

Cold Rooms

Freezer Warehouses

Food & Meat Processing

Food & Meat Processing

Seafood Processing

Fish Processing

3 Key Advantages of Air-Cooled Condensing Unit

1. No Water Required — Lower Installation & Operating Cost

* Requires no cooling tower, pump, or water pipe system
* Zero water consumption → no water treatment, no scaling
* Lower initial investment & lower long-term maintenance

2. Easy to Install & Maintain

* Compact structure, ideal for rooftop or outdoor installation
* Fewer components → faster commissioning and easier service
* Maintenance only requires condenser fin cleaning and periodic checks

3. Strong Performance in Hot Environments

* Efficient heat exchange fin coils + high-air-flow fan system
* Stable performance even in high ambient summer conditions
* Optional EC fan or tropical-grade configuration for hotter regions

Successful Projects Examples

Why Choose Us

Your Reliable Partner for Cold Room & Refrigeration Systems

1) Professional After-Sales & Technical Support
* Remote installation guidance with drawings + video
* One-to-one engineer support for key projects
* Spare parts supply & warranty service available

2) Core Components We Only Use Trusted Brands
* Compressors: Copeland / Bitzer
* EC energy-saving fans, copper-aluminum fin heat exchangers
* Branded valves, controllers, expansion devices

3) Engineering-Based Solutions — Not Only One Product
* Provide complete cold room matching solution
* Calculation support: cooling capacity, room load, refrigerant selection
* Design for chiller/freezer/blast room/custom temperature zones

Company Profile

We are a specialized manufacturer offering one-stop refrigeration solutions for food processing plants.Whether for meat processing, seafood handling, or frozen food production, we provide a complete set of refrigeration equipment—from raw material pre-cooling (flake ice or chilled water systems), workshop temperature control, quick-freezing units,cold storage rooms, to control and monitoring systems.

Our solutions are widely applied in poultry, pork, seafood, and vegetable processing facilities, helping clients build efficient,hygienic, and regulatory-compliant cold chain infrastructures.

Positioning keywords:
Integrated Refrigeration Solutions for Food Processing
Flake Ice, Chiller, Blast Freezer & Cold Room Manufacturer
Supporting End-to-End Cold Chain for Meat and Seafood Industries

Certificate

CE

ISO 9001

Industrial pipeline installation

BITZER authorized dealer

Safety production license

Member unit of Guangdong Refrigeration Industry Association

Member of Guangdong HVAC Association

FAQ

Q1:What is an air-cooled condensing unit?

A1:It is a refrigeration unit that uses ambient air to dissipate heat instead of water. No cooling tower or water circulation system is required, making it easy to install and suitable for regions with limited water supply.

Q2: What is the cooling capacity range of your units?

A2: We supply capacities from 2HP to 120HP+, and we support multi-compressor parallel systems for large cold room projects.Customization available based on temperature range and application.

Q3: What type of compressor do you use?
A3:We use high-efficiency brands such as Copeland / Bitzer, depending on customer requirements. Inverter models are optional for 15–35% energy saving.

Q4: How long is the delivery time?
A4:Standard units ship within 30 days depending on configuration and order quantity. Large customized projects may require additional production time.

Q5: Do you provide installation support?
A5:Yes. We provide installation manual, wiring diagram, online video guidance, and remote troubleshooting service. On-site technical support can be arranged if required.

Contact us

1️⃣Address: Factory Building, NO 778 Shinan Road, Dong Chong, Nansha, Guangzhou

2️⃣ Email: info@icepointech.com, susan@icepointech.com
3️⃣ Telephone: +86 189 2877 7217

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $3000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this scroll compressor?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the scroll compressor be supplied for my local voltage?

The standard configuration is 220 V, 380 V, Customized. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Icepoint Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Icepoint Co., Ltd. range on HVACR Nexus.
