Key specification for this seafood fish contact plate: 380V±5%/440V±5%, 23KW. Everything below is reproduced from the factory data sheet. Made by Fujian Century Sea Power Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Seafood Fish Contact Plate
- Model Number: PZ(Y)-960-B1
- Power(W): 23KW
- Voltage: 380V±5%/440V±5%
- Warranty: 12months after commercial running
- Certification: ISO9001
- Place Of Origin: Fujian, China
Technical Specifications
| Type | Plate Freezer |
|---|---|
| Voltage | 380V±5%/440V±5% |
| Warranty | 12months after commercial running |
| Power(W) | 23KW |
| Place Of Origin | Fujian, China |
| Model Number | PZ(Y)-960-B1 |
| Brand Name | CSCPOWER |
| Dimension(L*W*H) | 2540*1750*2350 |
| Condition | New |
| Certification | ISO9001 |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Packaging Details | Standard plywood packing |
| Port Of Dispatch | FUZHOU |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 30 sets per Month |
Product Details
Product Description

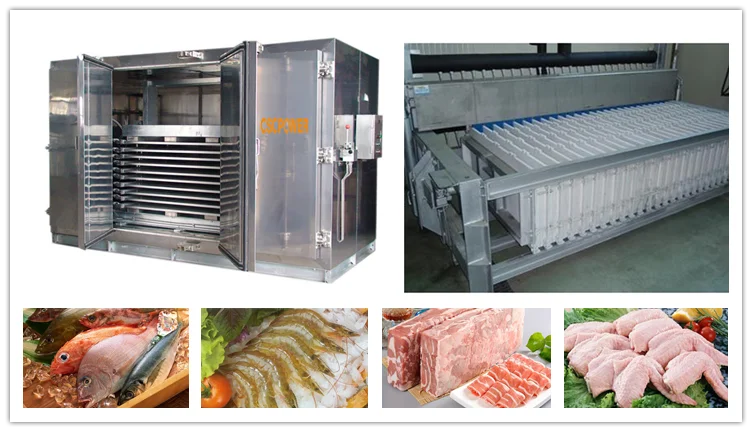

aluminum plate freezer

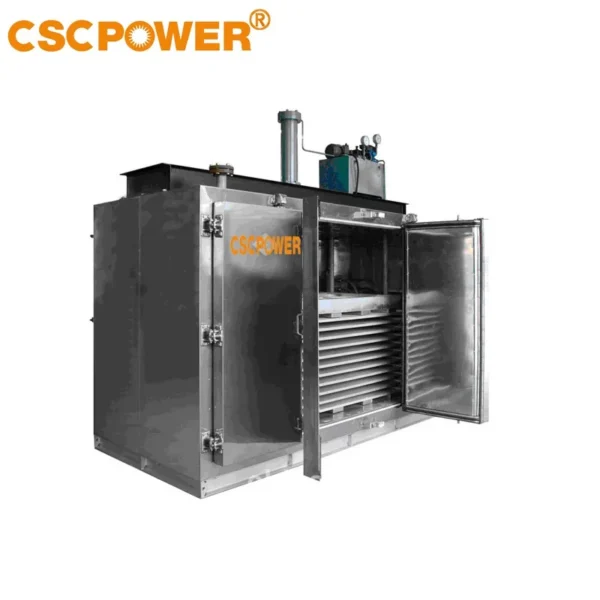

Aluminum alloy contact freezer is composed of Plate evaporator, Electrol Cabinet, Hydraulic Pressure device etc. The Aluminum alloy evaporator is driven by hoist cylinder to contact with frozen foods directly and keep certain pressure. The closed touch, with frozen food forms advantages of high frozen speed, high efficiency energy-saving, sanitation and c ompact. The unit is running under normal temperature to ensure long-ter m life. Adopt contact-type heat conducting, no air flow, which is benefit to decrease foods weight loss.
The Aluminum alloy is complete stainless steel machine housing,attractive appearance,easy cleaning an operation.Electromechanical integral design,less investment is aso very conveienct on installation and operation.
| Basic Data of the Machine | |
| In-take Temp: | +15°C |
| Out-take Temp: | -18°C |
| Ambient Temp: | ≤50°C |
| Condensing temp: | +35°C |
| Evap. Temp: | -35°C |
| Refrigerant: | R22, R404A, R717 or similar. |
| Freezing Time: | Fish: 2-4h/shift, (tray size: 600*400*80mm, 15kg/tray) Shrimp: 2-3h/shift, (tray size: 300*200*70mm, 2kg/tray) Codfish: 2.5h/shift, (tray size: 520*310*60mm, 7.5kg/tray) |
Required Information for Choosing the Contact Freezer
1. Frozen product name
2.Frozen product size (L×W×H mm)
3.Frozen product unit weight (“g/pc”, or “g/box” mentioning box material)
4.Freezing capacity (ton/h)
5.Product inlet temperature and outlet temperature(°C)
6.Installation room space (L×W×H mm)
7.Required freezer type(fully contact/semi-contact/marine plate freezer)
SCOPE OF APPLICATION
The unit is widely applied in cold storage, aquatic foods, meat processing foods quick freezing industry, fish catching boat and fishery processing industry etc.
| Model | Evaporation Plate | Frozen Fish | Frozen Prawn | Frozen Codfish | Dimensions (L*W*H) (mm) |
Weight (Kg) |
||||||
| Effective Layer |
Spacing of Each Layer (mm) |
Effective Dimension (mm) |
Evaporating Area (m2) |
Frrozen Capacity (Kg/Time) |
Consumption(Kw) | Frrozen Capacity (Kg/Time) |
Consumption(Kw) | Frrozen Capacity (Kg/Time) |
Consumption(Kw) | |||
| PZ(Y)-720-B1 | 8 | 58~108 | 1290*1260 | 30 | 720 | 23 | 384 | 15 | 480 | 22 | 2540*1750*2350 | 2300 |
| PZ(Y)-720-B2 | 2710*1750*1685 | 2400 | ||||||||||
| PZ(Y)-960-B1 | 8 | 58~108 | 1680*1260 | 40 | 960 | 31 | 512 | 20 | 720 | 33 | 2960*1750*2350 | 2700 |
| PZ(Y)-960-B2 | 3130*1750*1685 | 2800 | ||||||||||
| PZ(Y)-1200-B1 | 10 | 58~108 | 1680*1260 | 49 | 1200 | 39 | 640 | 24 | 900 | 41 | 2960*1750*2710 | 3000 |
| PZ(Y)-1200-B2 | 3130*1750*1945 | 3100 | ||||||||||
| PZ(Y)-1500-B1 | 10 | 58~108 | 2080*1260 | 60 | 1500 | 48 | 800 | 30 | 1200 | 54 | 3370*1750*2790 | 3600 |
| PZ(Y)-1500-B2 | 3540*1750*1945 | 3700 | ||||||||||
| PZ(Y)-1950-B1 | 13 | 58~108 | 2080*1260 | 76 | 1950 | 63 | 1040 | 39 | 1560 | 70 | 3370*1750*3305 | 4200 |
| PZ(Y)-1950-B2 | 3540*1750*2339 | 4200 | ||||||||||
| PZ(Y)-1980-B2 | 11 | 58~108 | 2530*1260 | 78 | 1980 | 64 | 1056 | 40 | — | — | 3780*1750*2950 | 4250 |
| PZ(Y)-2520-B2 | 13 | 58~108 | 2530*1260 | 91 | 2520 | 81 | 1344 | 51 | — | — | 3780*1750*3305 | 4900 |
| The Products with special type can be designed and manufactured according to the requirement of the customer.The specifications are the frozen goods consumption without water.The pictures are for reference only,the styles can be made to order! | ||||||||||||
Basic Information
FUJIAN CENTURY SEA GROUP CO.,LTD. (CSC GROUP) located in FUZHOU city of FUJIAN province , was founded in 2005, group with total investment of more than 80 million yuan.
CSCPOWER ICE MACHINE CO.,LTD r&d and production of ice machine includes flake ice machine series, tube ice machine series, cube ice machine series, block ice machine series, plate ice machine series and cold room, packing ice machine, ice crusher, cooling system.etc, complete set of refrigeration equipment, formed from pre-sales support, design, production, complete sets of installation and debugging, customer training, etc of a complete set of engineering and technical services.Products are mainly used in fresh supermarket, hospital, dock, chemical industry, concrete mixing, deep-sea fishing, aquatic products processing,Large-scale plant cooled industrial and commercial applications.
Credit Certificate
CSCPOWER credit has been checked by ALIBABA financial.
CSCPOWER has passed a financail assessment(including a credit check)
conducted by ALIBABA financial, including People’s Bank of China credit archives,
business data, Alibaba network behavioral data, corporate and personal balance sheet, court enforcement records.
you can 100% trust us and place the order to us.
you will be satisfied with our quality and service.
Canton fair and Overseas exhibition
Certificate and Partner
1. We are China Leading Ice plant Manufacturer.
2.Alibaba Assessed 5 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price.
If you are interest in other ice machine,please check following picture for link.
…
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this seafood fish contact plate?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12months after commercial running warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this seafood fish contact plate carry?
It is supplied with ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the seafood fish contact plate be supplied for my local voltage?
The standard configuration is 380V±5%/440V±5%. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
