This self-lubricating ptfe sleeve bearing is published with the manufacturer’s full specification — material Bronze cusn8 / cusn6.5, type Sleeve. Made by Jiashan Changsheng Composite Bearing Factory (General Partner) (18 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Self-Lubricating Ptfe Sleeve Bearing
- Model Number: FB090
- Material: Bronze cusn8 / cusn6.5
- Place Of Origin: Zhejiang, China
- Application: Machinery Parts
- Feature: Low Resistance Bush
- Type: Sleeve
Technical Specifications
| Material | Bronze cusn8 / cusn6.5 |
|---|---|
| Type | Sleeve |
| Overall Length | 50 mm |
| Inside Diameter Tolerance | ±0.02 mm |
| Outside Diameter Tolerance | ±0.02 mm |
| Heat Temp | 200℃ |
| Lubrication | Self-Lubricating |
| Mounting Method | Press Fit |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining |
| Place Of Origin | Zhejiang, China |
| Model Number | FB090 |
| Brand Name | Changsheng |
| Product Name | CuSn8 & CuSn6.5 Bronze Bearings Material |
| Standard | IATF 16949:2016 |
| Feature | Low Resistance Bush |
| Application | Machinery Parts |
| Keyword | Flange Cylindrical Bushes Type |
| MOQ | 500PCS |
| Customized | Customized Drawings/Samples |
| Item | Wrapped Bushing |
| Selling Units | Multiple of 80 items |
| Package Size Per Batch | 22X22X22 cm |
| Gross Weight Per Batch | 19.32 kg |
Product Details

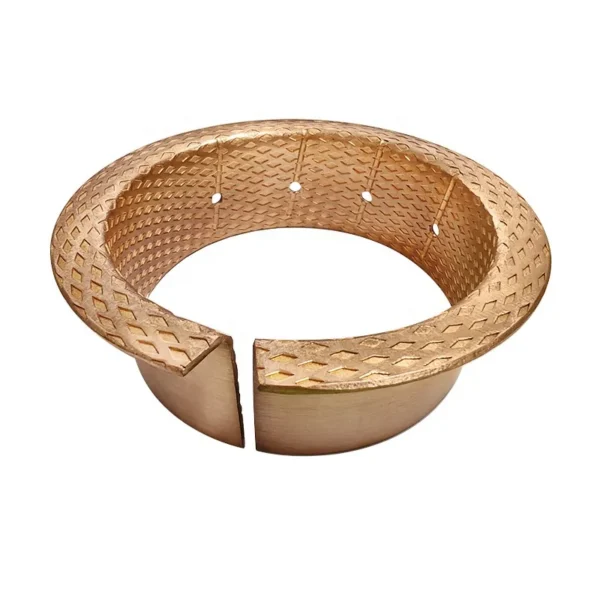

CuSn8 & CuSn6.5 Bronze Bearings Material | Flange Cylindrical Bushes Type | Wrapped Bushing
Specifications
1.All kinds of sliding bronze bushings
2.Full list of sizes
3.Accept customized size
4.Accept small qty order
5.IATF 16949:2016

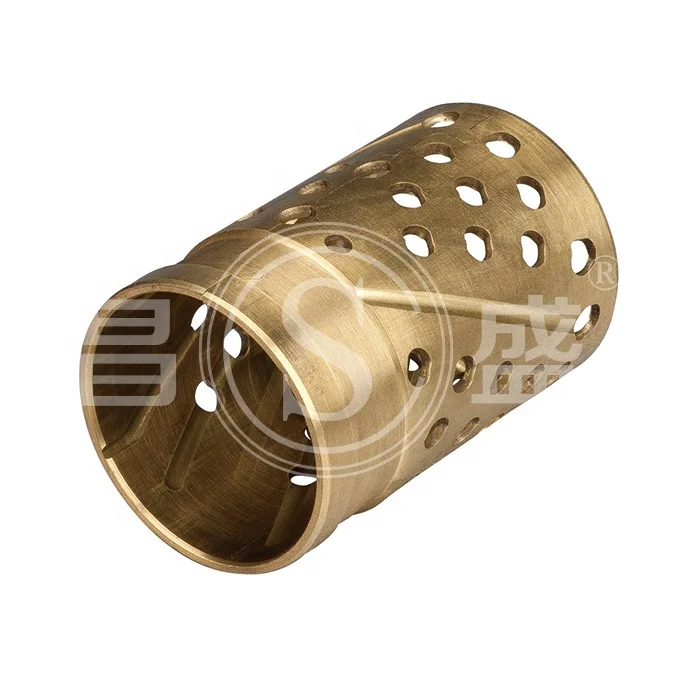

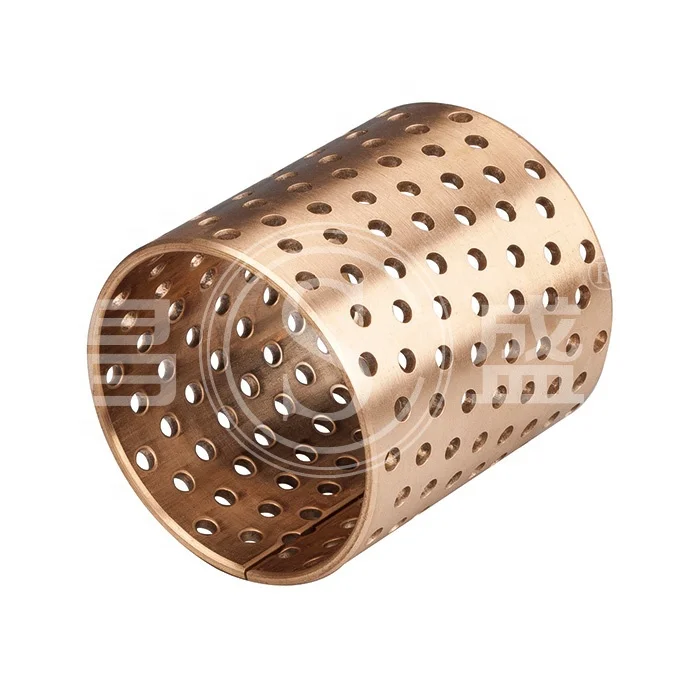

What is FB090 wrapped bronze bearing?
FB090 Wrapped Bronze bearings are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments.

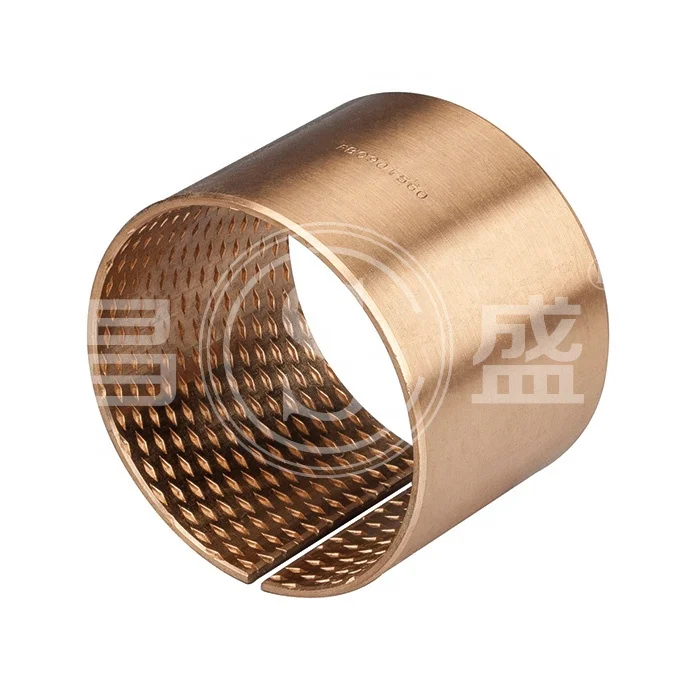

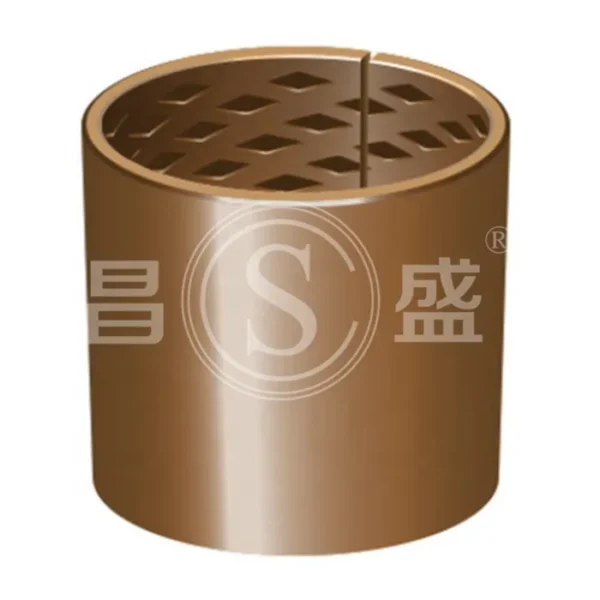

The sliding surface is provided with lubrication pockets, which contribute to the enhanced lubrication performance.
This bushing is produced in accordance with ISO 3547 and DIN 1494.
Where to use FB090 wrapped bronze bearing?
These bearings are suitable for both radial and axial movements.
The bushings are well suited for machinery in dirty environments where shock loads and/or vibrations occur.
Examples of applications are:
Agricultural machinery
Hoisting equipment
Construction machinery
Forest machinery
Why choose wrapped bronze bearing?
Insensitive to dirty environments
Resistant to shock loads and vibrations at slow speeds
Good resistance to corrosive conditions
Data | Grade | FB090 | |||||||||||||
Material | CuSn8 | ||||||||||||||
We can also develop according to customers special request while out of this table. | |||||||||||||||
Density (g/cm3) | 8.8 | ||||||||||||||
Max Dynamic Load (N/mm2) | 40 | ||||||||||||||
Max Linear Velocity（Grease） (m/s) | 2.5 | ||||||||||||||
Max PV value（Grease） (N/mm2·m/s) | 2.8 | ||||||||||||||
Pressure strength (N/mm2) | 460 | ||||||||||||||
Yield Strength (N/mm2) | 260 | ||||||||||||||
Hardness | 90~150 | ||||||||||||||
Mating Axis | Hardness | ≥50 | |||||||||||||
Roughness | 0.4~1.0 | ||||||||||||||
Working Temperature (℃) | （-40，150） | ||||||||||||||
Friction Coefficient | 0.06~0.15 | ||||||||||||||
coefficient of heat conduction （W/m·K） | 58 | ||||||||||||||
Linear expansion coefficient | 18.5×10-6/K | ||||||||||||||
Pertinence application | Construction machinery, hoisting machiery, mining machinery, forest machiery, agricultural machinery, etc. | ||||||||||||||
Specifications
1.Supply to Canada, Europe, Australia and so on.
2.Material: Bronze
3.Professional Perfomance Machinery parts supplier.
Jiashan Changsheng Composite Bearing Factory is located in Dayun Industrial Zone, Jiashan City, with convenient transportation condition to Shanghai . We are a professional manufacturer of auto parts, set design, development, manufacturing as a professional manufacturer.We focus on a series of fashion accessories, a wide range of diversity, reasonable price and on-time delivery.
Our most professional packaging
Sea shipment — Container
Rolls–cartons–pallets
1. OEM Manufacturing welcome: Product, Package…
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Q1. What is your terms of packing?
A: Generally, we pack our goods in roll and then put them into cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB.
Q4. How about your delivery time?
A: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample free of charge, but the customers have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Ordering and Pricing
- Minimum order quantity: 80 piece
- Volume pricing:
- 80+ piece: US $1.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this self-lubricating ptfe sleeve bearing?
The standard minimum order quantity is 80 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiashan Changsheng Composite Bearing Factory (General Partner), based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiashan Changsheng Composite Bearing Factory (General Partner) range on HVACR Nexus.
