Selling Rooftop Air Conditioner, 380V, DHF-D-R-5

This selling rooftop air conditioner is published with the manufacturer’s full specification — type Central Air Conditioners, model number DHF-D-R-5. Made by Rife (Beijing) Artificial Environment Technology Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Selling Rooftop Air Conditioner

• Model Number: DHF-D-R-5
• Warranty: 2 Years
• After Warranty Service: 2 year
• Certification: CE ISO
• Place Of Origin: China
• Application: factories, fire stations, lecture halls, sports halls, service stations, garages, shopping malls, swimming pools

Technical Specifications

Product Details

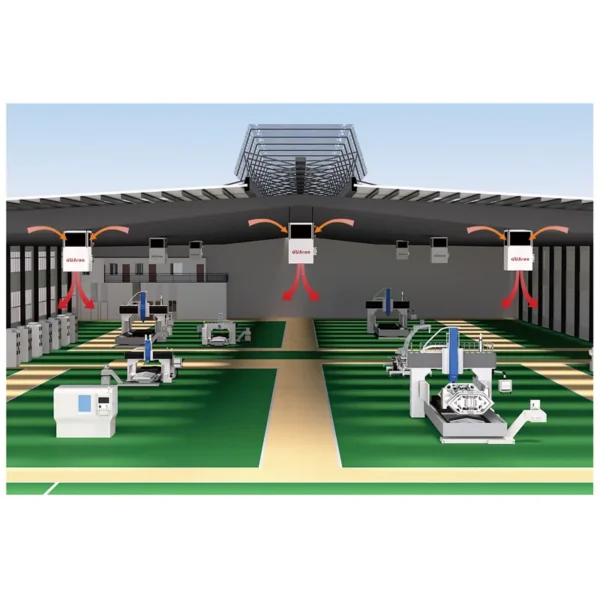

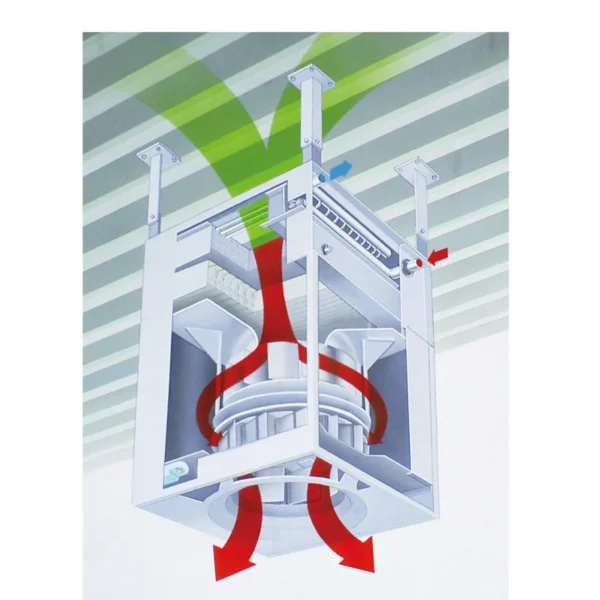

Electric heating unit for high and large space (DH-D/R-5/6/8/11) Product features: Vertical air supply, the max. air supply height can reach 30m; efficient maintenance-free axial fan. Repeated circulating of air to reduce the temperature gradient; recover the temperature at the top of building, to improve the comfort; Single unit can cover 1,000㎡. Applicable to heating of high and large spaces. Reinforce the vertical circulation of indoor air and satisfy the indoor heating demands by means of vertical air supply and PTC electric heating. The max. air supply height is up to 30m; high-efficiency maintenance-free axial fan. The repeated circulating of air can reduce the temperature gradient; recover the temperature at the top of building to save energy; single unit can maximize the coverage area Applicable to the high and large spaces such as workshop, warehouse, station, exhibition hall, stadium, etc. Safety & Comfort: "Provides gentle, widespread warmth for communal halls without hot exposed surfaces. Perfect for elderly care facilities. Engineering Specs: "High-capacity units designed for 8-12 meter ceiling heights. Includes detailed CAD drawings and technical submittals for your project files." Warehouse Efficiency: "Stop heating the ceiling! Our destratification technology ensures your workers are warm while lowering your monthly energy bill."

Move More Air. Spend Less Power.
Cool People. Protect Equipment. Cut Costs.
Industrial Strength. Intelligent Airflow.

Suitable for:

Warehouses & Distribution Centers
Manufacturing & Assembly Plants
Logistics Hubs & Loading Bays
Gymnasiums & Sports Facilities
Agricultural Buildings & Barns
Large Retail & Commercial Spaces

Durable, Industrial-Grade Construction​
Built from corrosion-resistant materials with reinforced hubs and precision-balanced blades, our fans perform reliably in
demanding environments—dust, humidity, and heavy use included.

Wide range of Application :

Item			DHF-D/R-5
Rated Voltage	V	380
Rated Frequency	Hz	50
Rated Air Flow / Rated Air Volume	m³/h	0 ~ 5500
Fan Type		Axial Fan	Centrifugal Fan
Rated Power	kW	0 ~ 0.42	0 ~ 0.7
Rated Current	A	0 ~ 0.85	0 ~ 1.4
Cable Specification	mm²	1.5	1.5
Rated Speed / Rated RPM	r/min	0 ~ 900	0 ~ 1200
Air Outlet Height / Supply Air Height	m	4 ~ 13	14 ~ 30
Noise Level	dB(A)	0 ~ 59	0 ~ 60
Air Velocity at Floor Level / Floor Level Wind Speed	m/s	≤ 0.5
Operating Environment	℃	-40 ~ +20
Max. Heating Coverage	m²	Approx. 560
Unit Spacing	m	10 ~ 20
Cooling Medium	–	Water
Supply/Return Pipe Size	–	DN32
Dimensions (L×W×H)	mm	800×800×1055
Weight	kg	137

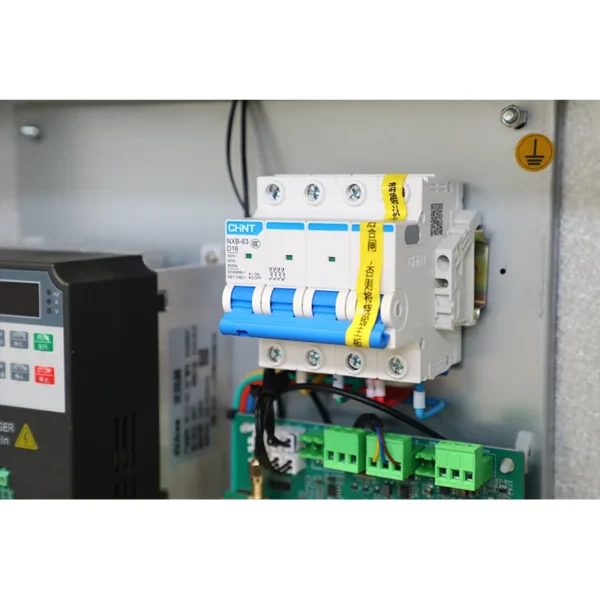

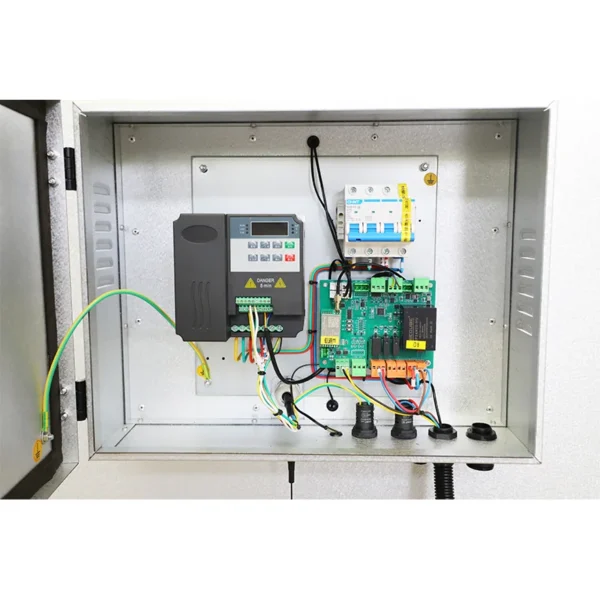

Electric Control System	Wireless / Wired;Centralized Control / Standalone Control;Stepless Speed Regulation;Adjustable Air Temperature and Louver Angle;Touch Scree

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $4500 / piece
  • 10–49 piece: US $3875 / piece
  • 50+ piece: US $3500 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this selling rooftop air conditioner?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this selling rooftop air conditioner carry?

It is supplied with CE ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Rife (Beijing) Artificial Environment Technology Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Rife (Beijing) Artificial Environment Technology Co., Ltd. range on HVACR Nexus.
