This series variable frequency motor is published with the manufacturer’s full specification — 380 V, power source Electric. Made by Yueqing Chenf Electric Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Series Variable Frequency Motor
- Model Number: CFG-80A CFG-100A CFG-160A
- Power Source: Electric
- Power: 52W
- Voltage: 380 V
- Rated Voltage: 380V
- Blade Material: Carbon steel enclosure
Technical Specifications
| Voltage | 380 V |
|---|---|
| Type | Duct Axial Fan |
| Blade Material | Carbon steel enclosure |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | ZHE |
| Brand Name | CHENF |
| Model Number | CFG-80A CFG-100A CFG-160A |
| Product Name | Variable-frequency motor fan |
| Application | 1.5KW motor |
| Color | Red frame Black leaves |
| Model | CFG-100A |
| Electric Current Type: | AC |
| Rated Voltage | 380V |
| Power | 52W |
| Frame Material | Cast Iron |
| Selling Units | Single item |
| Single Package Size | 21X21X26 cm |
| Single Gross Weight | 3.000 kg |
Product Details

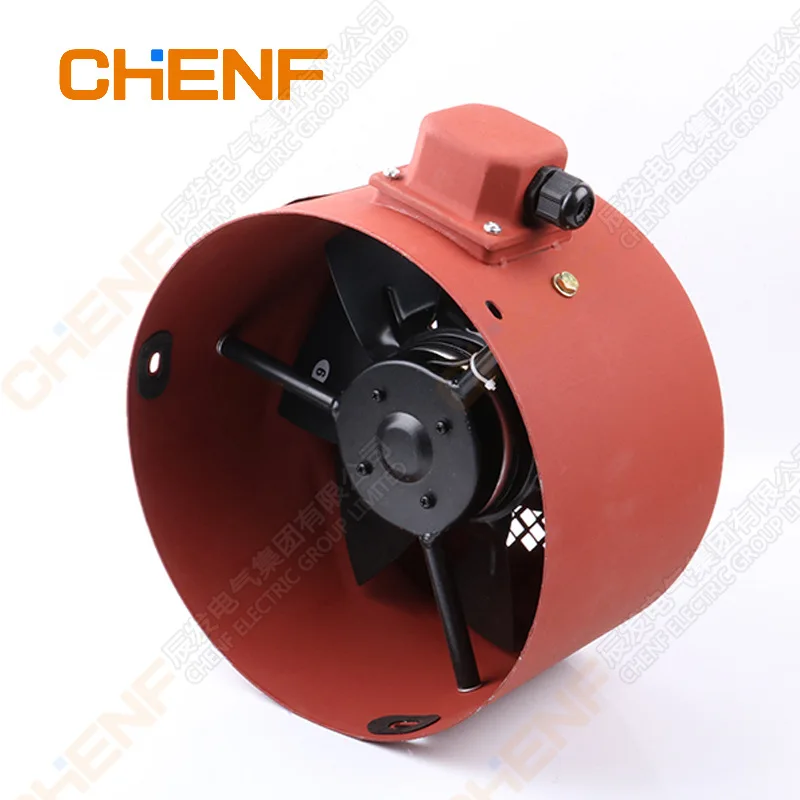

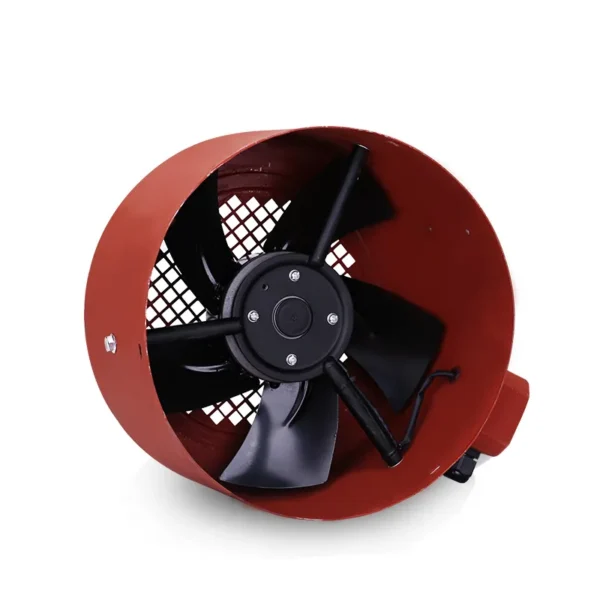

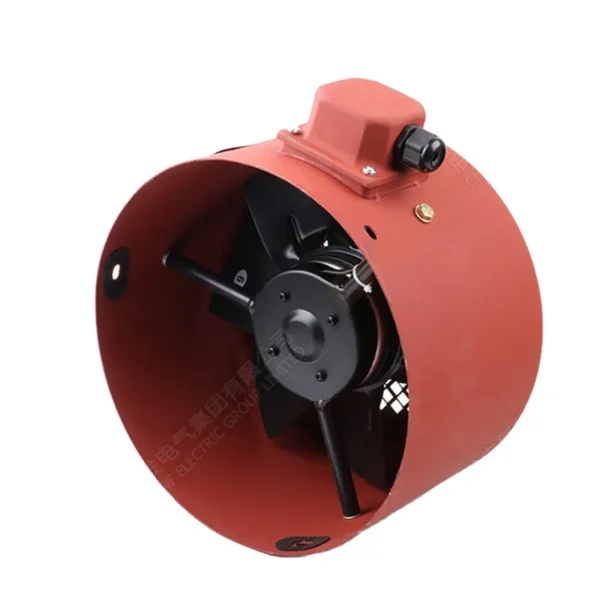

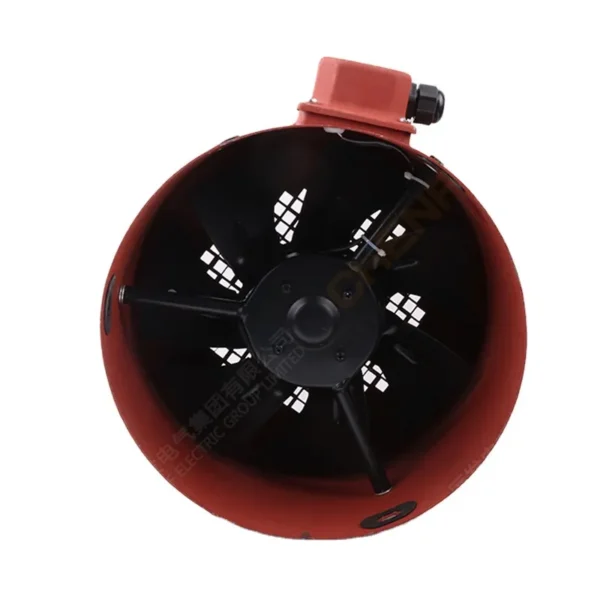

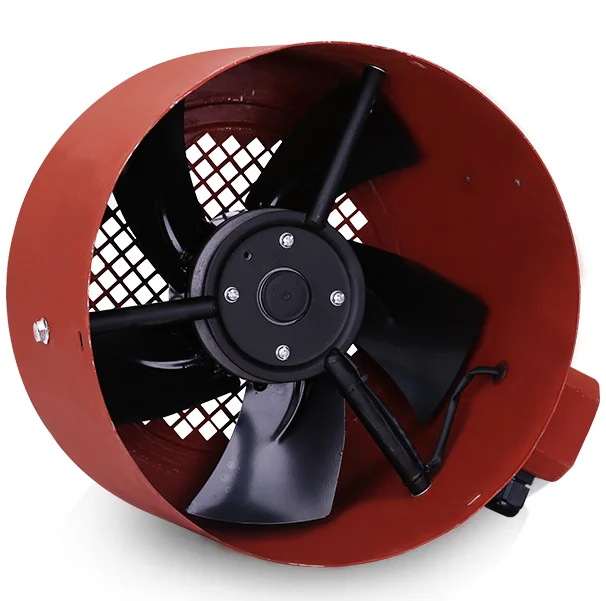

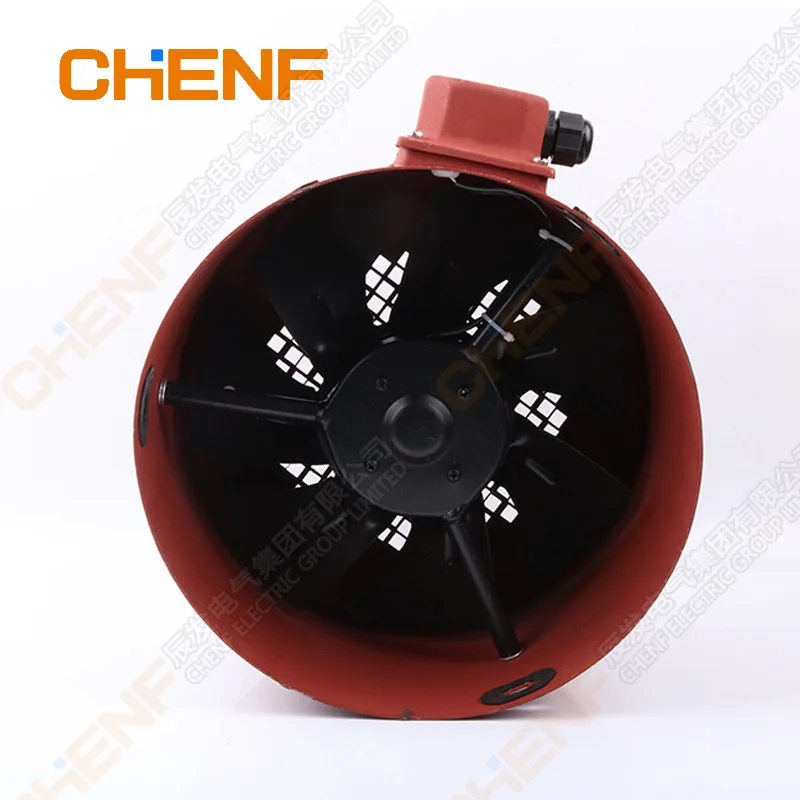

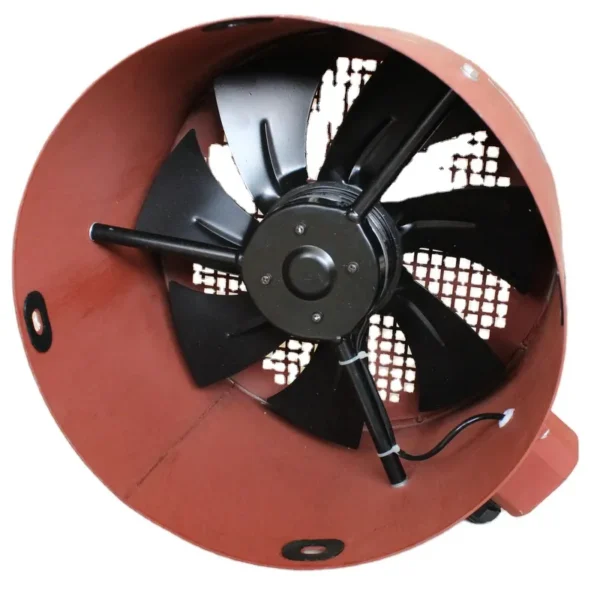

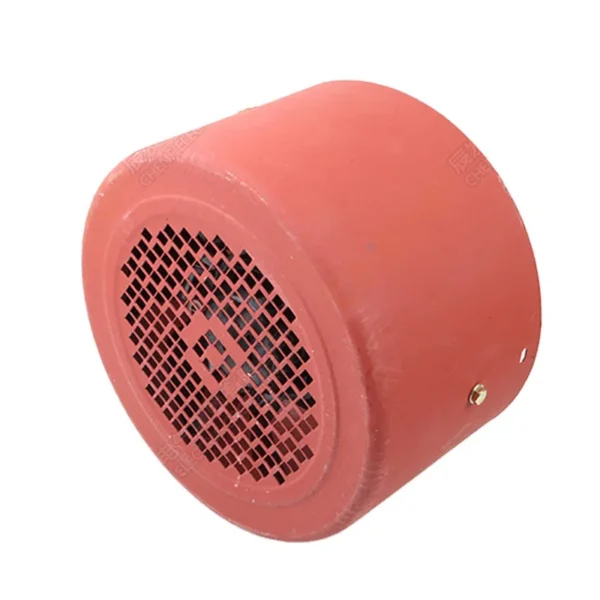

CHENF G series Variable Frequency Motor Cooling Fan Radiator AC 380V Industrial Axial Fans for Three Phase Motor G-100A

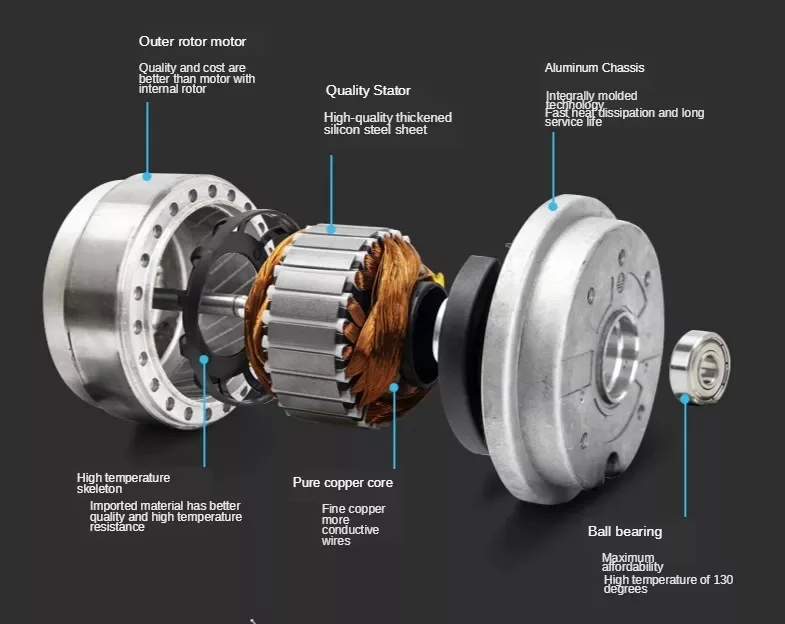

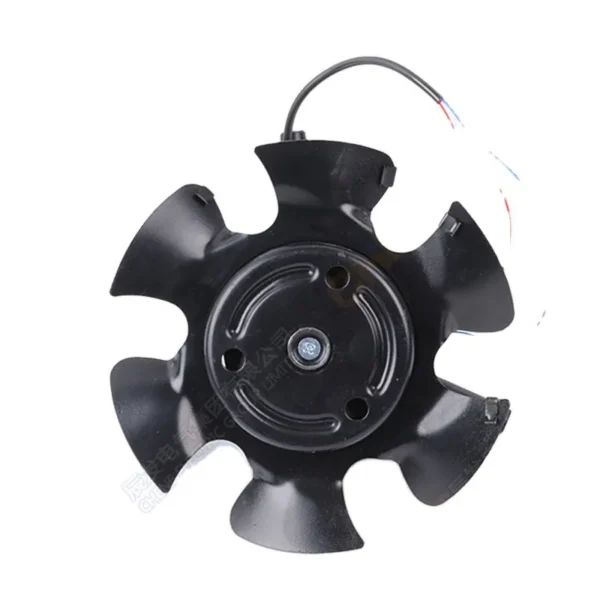

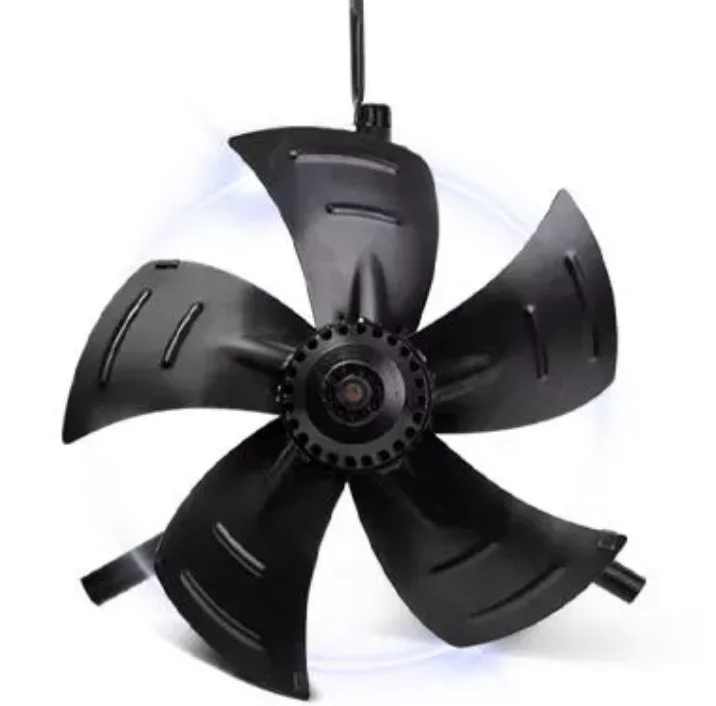

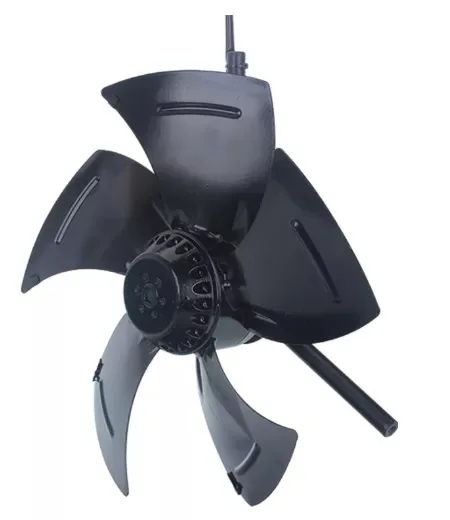

Outer rotor motor Carbon steel fan blade Dynamic balance calibration

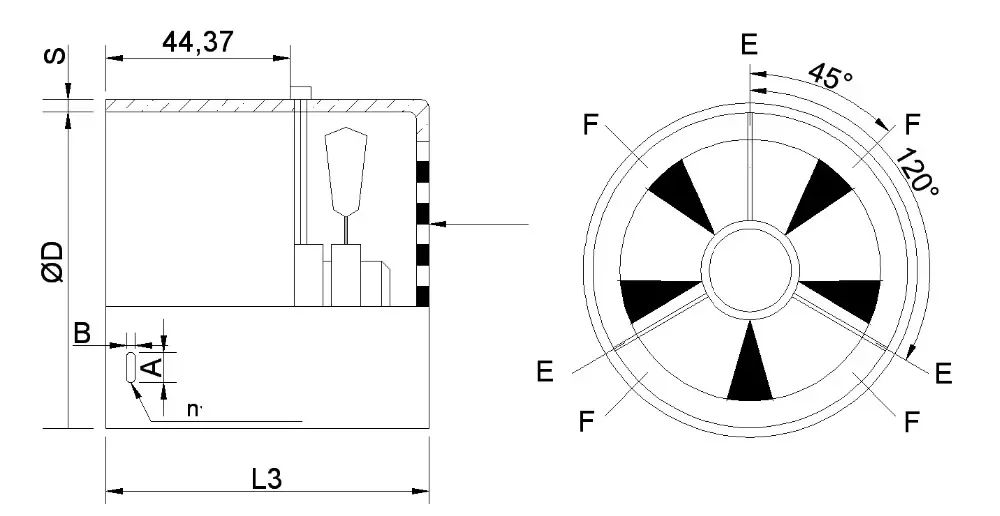

G series variable frequency motor fan is composed of fan cover,fan motor,fan blade,carriage,etc | model | voltage | power(W) | speed (rImin) | CFM (Pa) | dB (dB) |
| CFG-71A | 380V50Hz | 30 | 2300 | 50 | 50 |
| CFG-80A | 380V50Hz | 30 | 2300 | 70 | 52 |
| CFG-90A | 380V50Hz | 42 | 2800 | 80 | 55 |
| CFG-100A | 380V50Hz | 52 | 2800 | 82 | 57 |
| CFG-112A | 380V50Hz | 60 | 2800 | 90 | 60 |
| CFG-132A | 380V50Hz | 40 | 1300 | 50 | 60 |
| CFG-160A | 380V50Hz | 80 | 1350 | 50 | 60 |
| CFG-180A | 380V50Hz | 80 | 1350 | 55 | 60 |
| CFG-200A | 380V50Hz | 150 | 1350 | 100 | 60 |
| CFG-225A | 380V50Hz | 200 | 1350 | 150 | 60 |
| CFG-250A | 380V50Hz | 320 | 1350 | 150 | 62 |
| CFG-280A | 380V50Hz | 370 | 1400 | 150 | 62 |
| CFG-315A | 380V50Hz | 370 | 1400 | 180 | 62 |
| CFG-355A | 380V50Hz | 600 | 1400 | 180 | 80 |
| CFG-400A | 380V50Hz | 600 | 960 | 80 | 72 |
| CFG-450A | 380V50Hz | 800 | 960 | 82 | 75 |
| CFG-500A | 380V50Hz | 1100 | 960 | 85 | 78 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $27 / piece
- 10–99 piece: US $25 / piece
- 100+ piece: US $23 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this series variable frequency motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the series variable frequency motor be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yueqing Chenf Electric Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Yueqing Chenf Electric Co., Ltd. range on HVACR Nexus.
