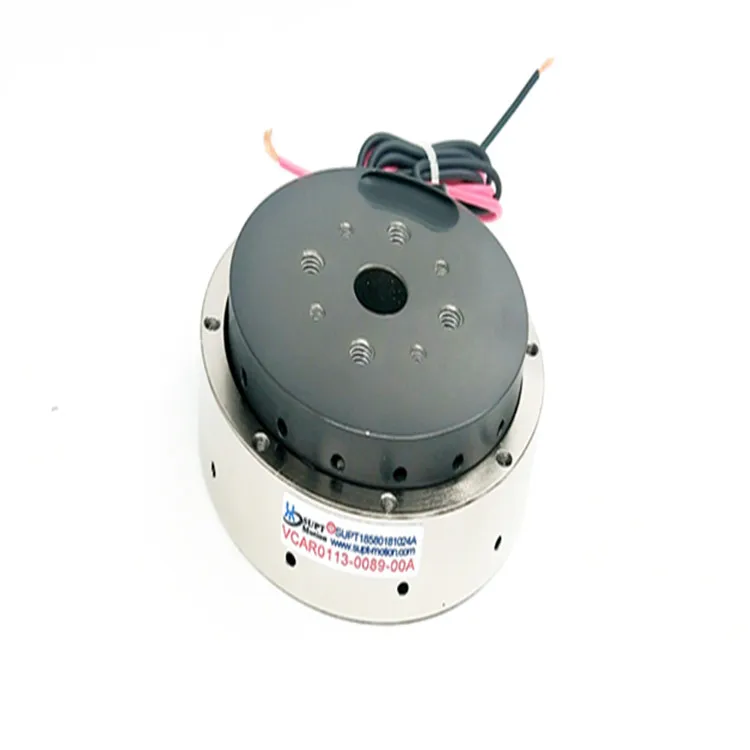

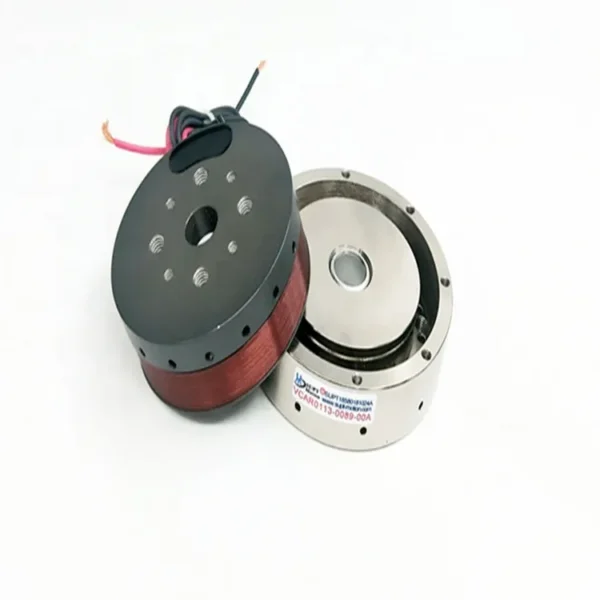

The servo vibration motor listed here carries type 50, model number VCAR0113-0089-00A, documented exactly as the manufacturer publishes it. Made by Suzhou Unite Precision Machinery Technology Co., Ltd. (12 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Servo Vibration Motor
- Model Number: VCAR0113-0089-00A
- Rated Power: 50
- Nominal Voltage: 31
- Rated Speed (R/Min): 50
- Warranty: 3 months ~ 1 year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Velocity | 100Hz |
|---|---|
| Force | 1 G |
| Rated Speed (R/Min) | 50 |
| Phase | Dual Phase |
| Type | 50 |
| Protective Feature | Overload Protection |
| Customized | Yes |
| Warranty | 3 months ~ 1 year |
| Rated Torque | 0.1 nm |
| Model Number | VCAR0113-0089-00A |
| Place Of Origin | Jiangsu, China |
| Brand Name | SUPT |
| Application | 60 |
| Nominal Voltage | 31 |
| Number Of Poles | 2 |
| Rated Power | 50 |
| Peak Force(N): | 113 |
| Maximum Travel(Mm): | 8.9 |
| Voice Coil Motor(V): | 31 |
| Weight Rotor(Kg): | 130 |
| Stator Dia(Mm): | 73 |
| Continuous Force(N): | 35 |
| Selling Units | Single item |
| Single Package Size | 18X16X15 cm |
| Single Gross Weight | 0.600 kg |
Product Details

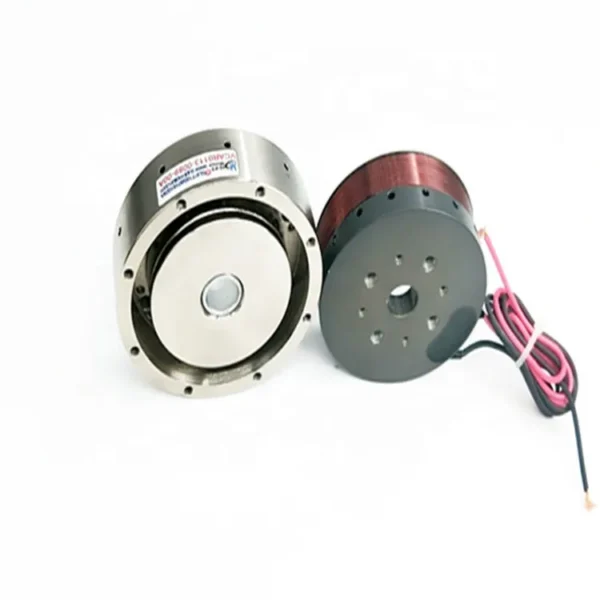

voice coil motor:
Technical indicators & specifications can be customized
Satisfactory after-sales service

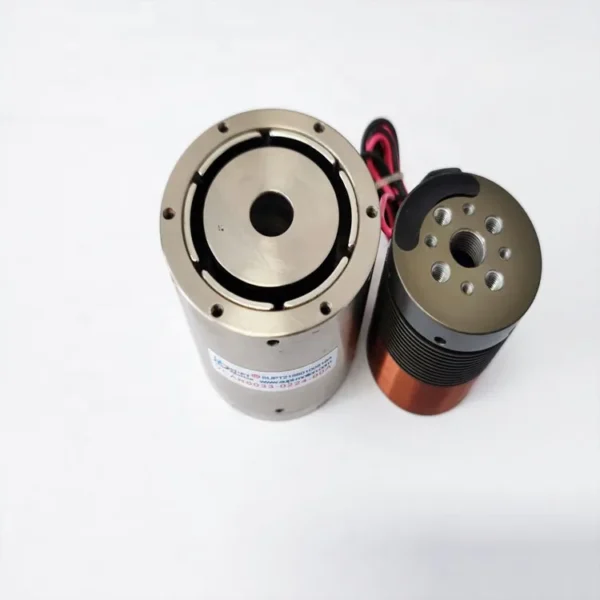

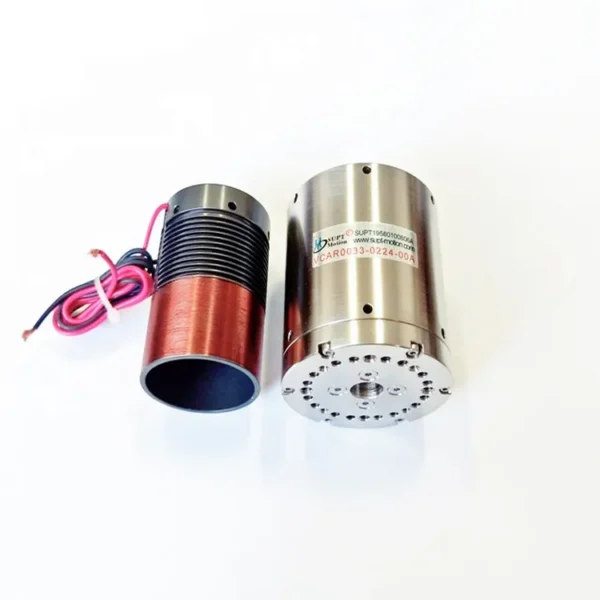

The VCAR series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 0.7N to 3000N.Typically ,their stroke length is less than 50mm The VCAR Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.
| Product Modle | Peak Force (N) | Continious Force 25℃(N) | Total Stroke (mm) | Max voltage (V) | Back EMF Constant (V/m/S) | Weight of the coil (g) | StatorDiameter (mm) | Enter the length of the coil (mm) |
| VCAR0001-0010-00A | 0.73 | 0.42 | 1 | 4.8 | 0.6 | 2.7 | 24 | 11.2 |
| VCAR0006-0039-00A | 6.2 | 1.9 | 3.9 | 6.6 | 1.12 | 7.9 | 20 | 17.2 |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 15.7 | 3.57 | 8.2 | 25 | 18.2 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | 24.7 |
| VCAR0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | 25.6 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | 35 |
| VCAR0022-0448-00A | 22 | 11.4 | 44.9 | 14.3 | 4 | 52 | 48 | 75.7 |
| VCAR0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 51 | 40 | 41.7 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | 26.7 |
| VCAR0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 75 | 58 | 72 |
| VCAR0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 95 | 50 | 67 |
| VCAR0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 45 | 53 | 21.2 |
| VCAR0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | 22 |
| VCAR0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | 35.9 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | 51.3 |

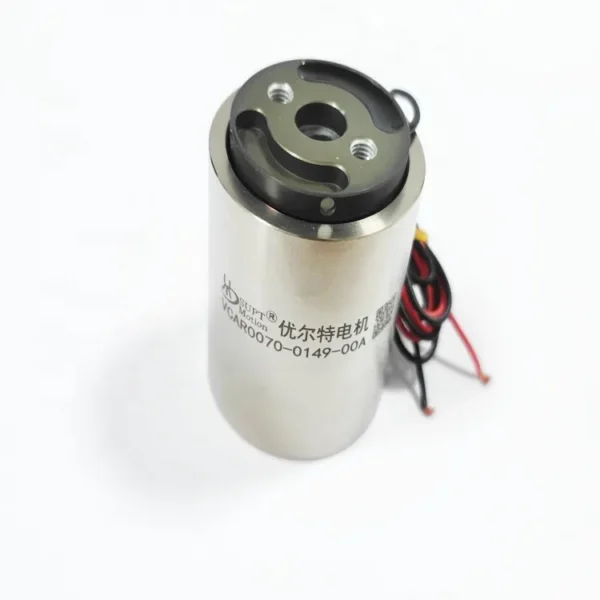

| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | 53.7 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | 34.9 |
| VCAR0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 170 | 72 | 110 |
| VCAR0105-0164-00A | 105 | 35.4 | 16.4 | 20.1 | 11.5 | 150 | 60.4 | 40.4 |
| VCAR0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 130 | 73 | 27.5 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 275 | 71 | 64 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 740 | 66 | 109.1 |
| VCAR0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 700 | 93 | 136.9 |
| VCAR0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 640 | 80.4 | 91 |

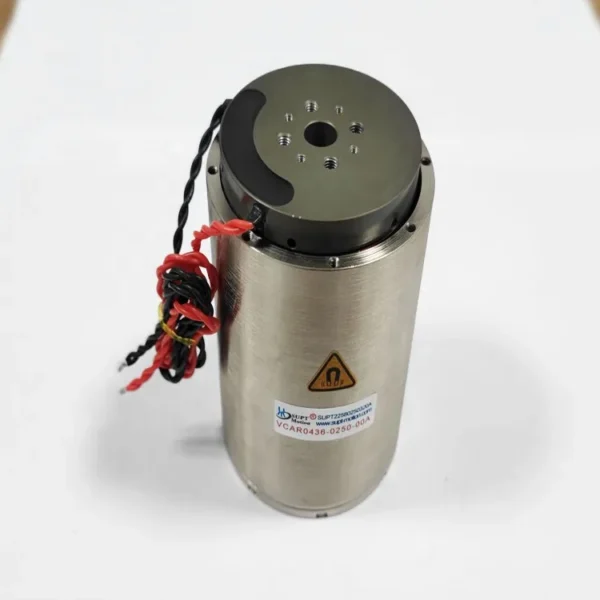

| VCAR0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 770 | 78.4 | 110 |
| VCAR0436-0373-00A | 436 | 142.3 | 37.3 | 38 | 29.8 | 1040 | 76 | 163 |
| VCAR0980-0249-00A | 980 | 605 | 24.9 | 14.5 | 104 | 1390 | 126 | 134.5 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 73.5 | 68 | 1050 | 110 | 143.7 |
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
Certifications
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $110 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this servo vibration motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the servo vibration motor be supplied for my local voltage?
The standard configuration is 31. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
