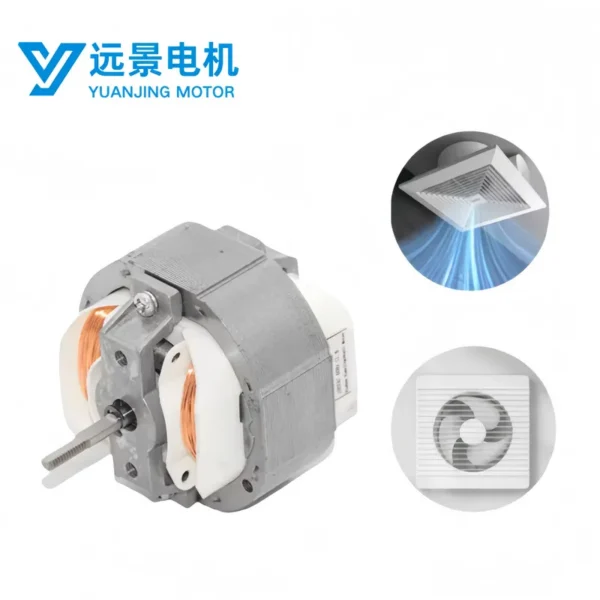

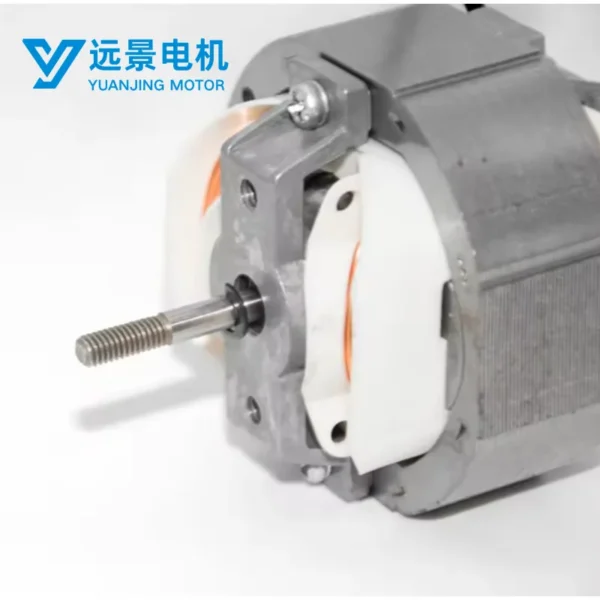

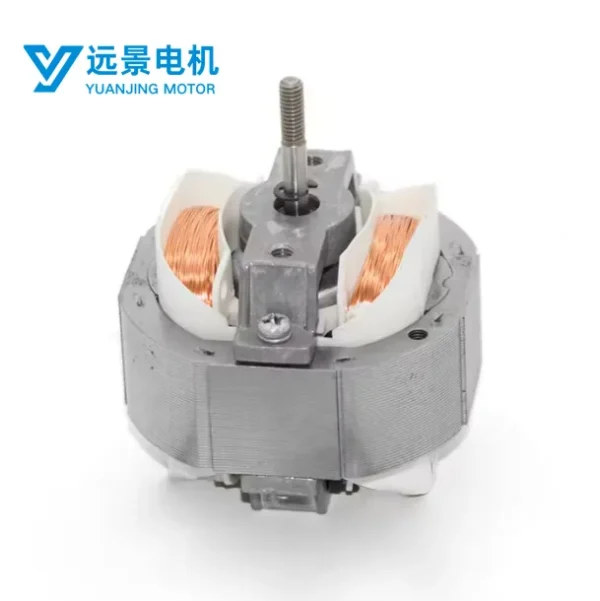

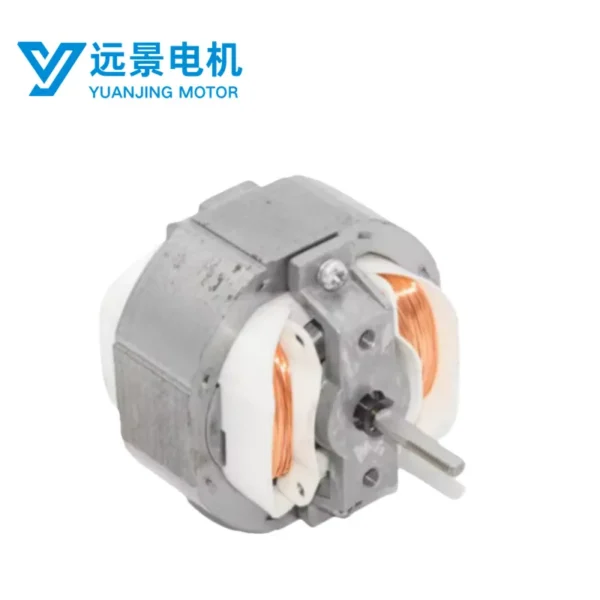

The shaded pole asynchronous motor listed here carries type Brushless Motor, model number YJ-58, documented exactly as the manufacturer publishes it. Made by Zhongshan City Yuanjing Zhuoli Motor Co., Ltd. (2 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Shaded Pole Asynchronous Motor
- Model Number: YJ-58
- Rated Power: 16W
- AC Voltage: 208–230/240 V
- Applied Voltage / Frequency: 220-240VAC / 50Hz
- Input Capacity: 16W
- Rated Speed: 2100 RPM
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | 208–230/240 V |
| Rated Power | 16W |
| Rated Speed | 2100 RPM |
| Type | Brushless Motor |
| Frame | / |
| Motor Mounting Type | Housing |
| Protect Feature | Explosion-proof |
| Efficiency | IE 1 IE 2 IE 3 IE 4 |
| Warranty | 3Years |
| Model Number | YJ-58 |
| Brand Name | YUANJING |
| Place Of Origin | Guangdong, China |
| Frequency | 50Hz |

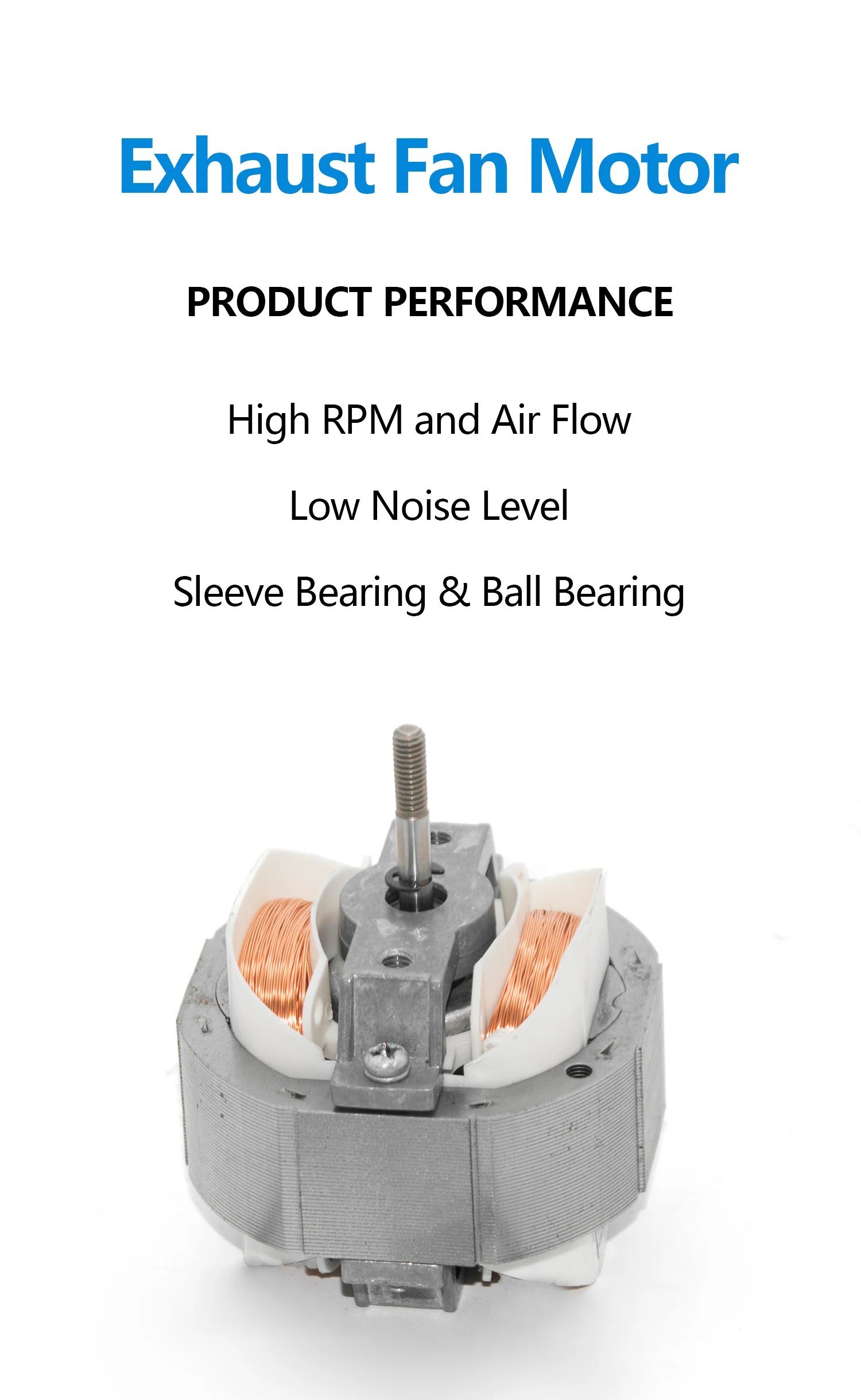

| Product Name | Exhaust Fan Motor |
| Stator Lamination Thickness | A= 12~30mm |
| Applied Voltage / Frequency | 220-240VAC / 50Hz |
| Port | Zhongshan port or Xiaolan port |
| Certification | CE/TUV/UL/VDE/ROHS/REACH / ISO9001 |
| Input Capacity | 16W |
| Product Advantages | High RPM and Air Flow/Low Noise Level/Sleeve Bearing & Ball Bearing |
| Application | Exhaust Fan |
| Selling Units | Single item |
| Single Package Size | 15X16X18 cm |
| Single Gross Weight | 1.0 kg |

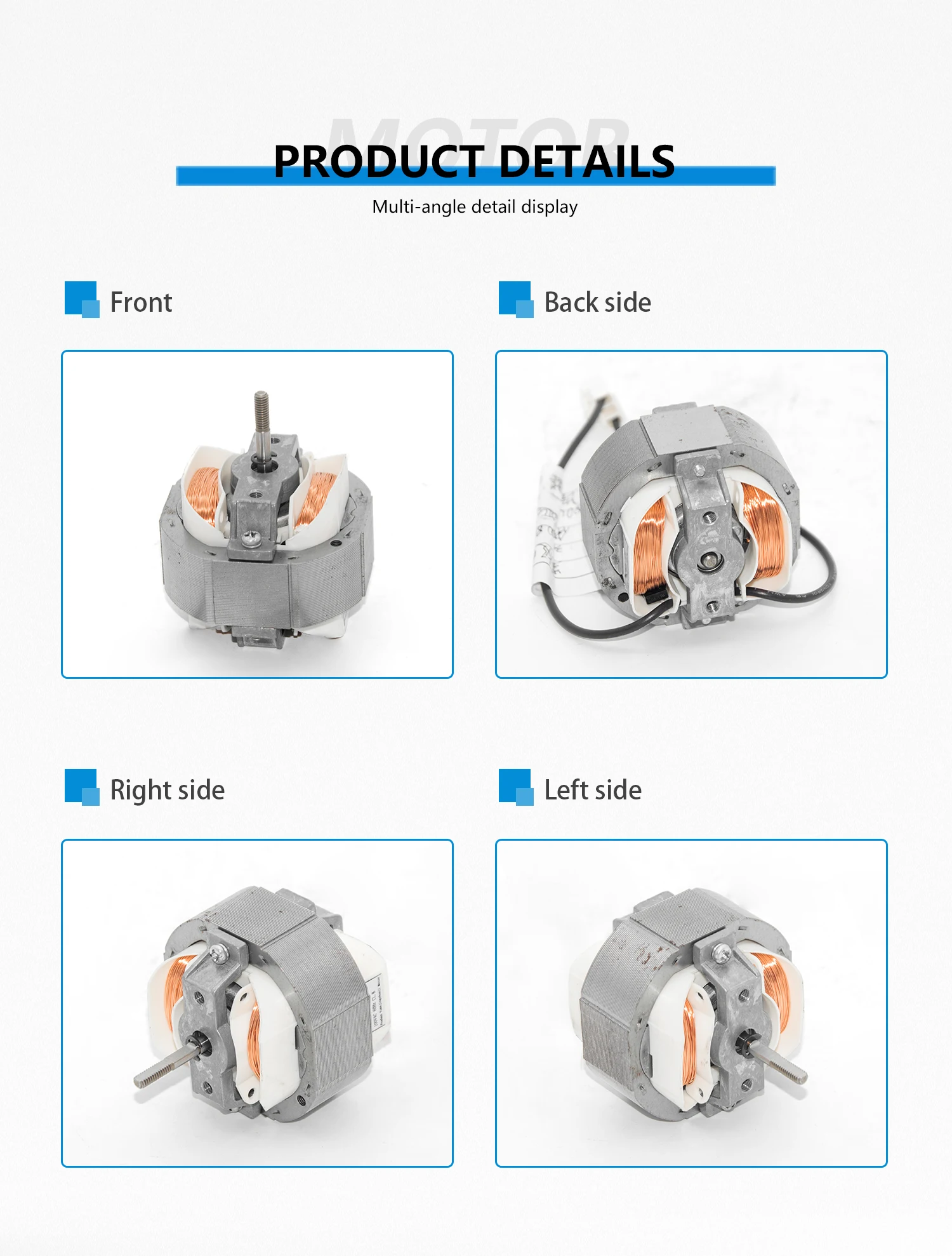

Product Details
MODER | VOLTAGE/V | FREQUENCY/HZ | INPUT POWER/W | RPM | CURRENT/A |
YDK-78 | 100-240 | 50/60 | 3-30 | 800-1500 | / |
YJ58-12 | 127 | 60 | 16 | 2800 | 0.19 |
YJ58-12 | 220-240 | 50 | 15 | 2400 | 0.1 |
YJ58-16 | 127 | 60 | 18 | 2100 | 0.2 |
YJ58-16 | 220-240 | 50 | 16 | 2100 | 0.1 |
YJ58-22 | 220-240 | 50 | 22 | 1900 | 0.13 |
YJ58-25 | 220-240 | 50 | 25 | 2200 | 0.16 |
YJ58-30 | 127 | 60 | 32 | 3100 | 0.4 |
YJ58-30 | 220-240 | 50 | 28 | 2600 | 0.21 |
FAQ
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–4999 piece: US $1.85 / piece
- 5000–9999 piece: US $1.8 / piece
- 10000+ piece: US $1.75 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shaded pole asynchronous motor?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this shaded pole asynchronous motor carry?
It is supplied with CE/TUV/UL/VDE/ROHS/REACH / ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the shaded pole asynchronous motor be supplied for my local voltage?
The standard configuration is 208–230/240 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan City Yuanjing Zhuoli Motor Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhongshan City Yuanjing Zhuoli Motor Co., Ltd. range on HVACR Nexus.
