Shaft Fan, JCZ, CUSOMIZED, JUN XU

This shaft fan is published with the manufacturer’s full specification — model number JCZ. Made by Shandong Junxu Heavy Industry (group) Co., Ltd. (3 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Shaft Fan

• Model Number: JCZ
• Power Source Type: other
• Power: CUSTOMIZED
• Voltage: customized
• Material: CUSTOMIZED
• Blade Material: customized

Technical Specifications

Product Details

Specification

Machine Type	Drying Dedicated Fan
Marketing Type	Popular products
Weight (KG)	Over 50 kilograms
Power (kW)	1.50KW
Key Selling Points	Customized production, efficient and energy-saving, environmentally friendly and green, with large air volume and high temperature durability
Showroom Location	Africa Vietnam
Applicable Industries	Suitable for drying and processing in all small and medium-sized enterprises in production. Heating, drying, and cooling are used in the production of enterprises, with fan circulation and drying heat dissipation, as well as convection circulation

Product Description

Radiator Manufacturer

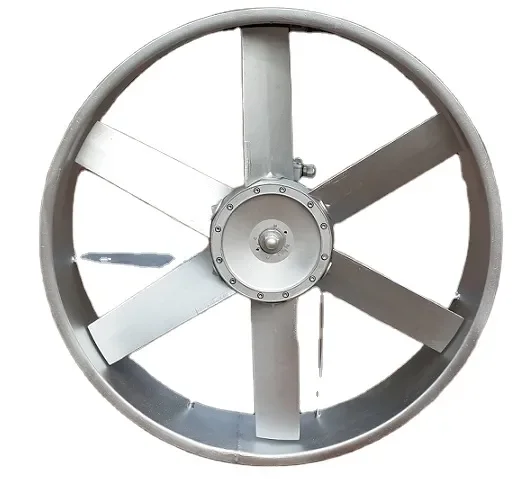

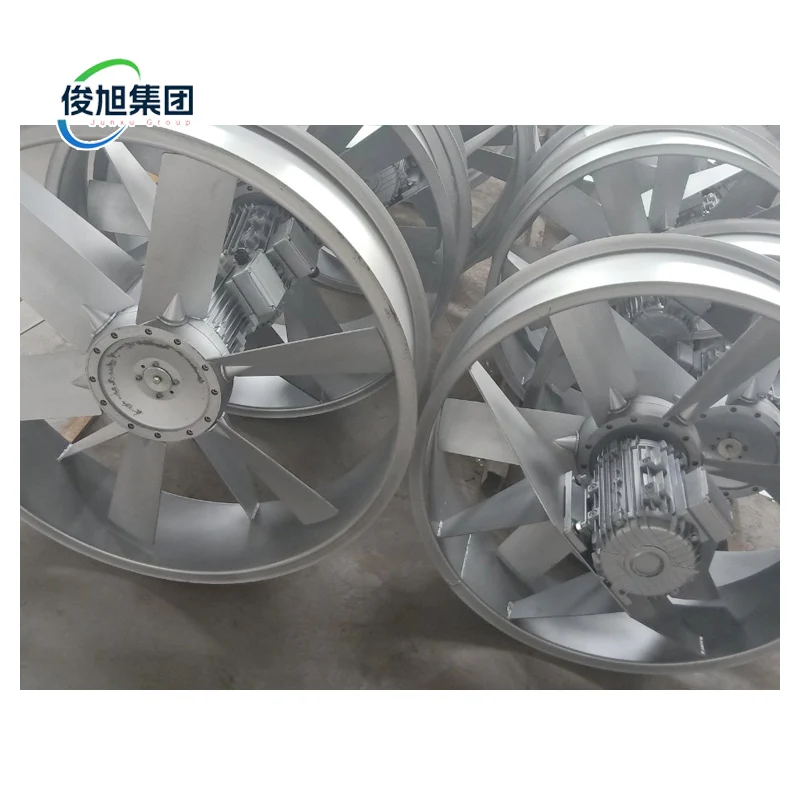

The axial flow ventilation fan for drying kilns is a ventilation fan specially designed for drying kilns that can provide positive and negative air flow. It has the characteristics of high temperature resistance, corrosion resistance, and consistent positive and negative ventilation parameters. The blades are six or eight twisted blade shapes, with an overall aluminum alloy or stainless steel structure. The fan and motor adopt a direct connection structure, and the whole machine has the characteristics of high efficiency, light weight, compact structure, and easy installation.

Ventilation fans are mainly used in the blowing system of dryers and other drying machinery; It can also be used for ventilation equipment in various special environments, such as high temperature, high humidity, and other places The baking axial flow fan is designed for tobacco drying, wood drying, etc. The fan motor adopts F-class and H-class flanges

Features: High temperature resistance, high humidity resistance, high efficiency, large air volume, low noise, energy-saving, etc Blades: The fan adopts four arc-shaped aluminum blades, and the angle of the blades can be adjusted according to user needs for air volume Usage: High temperature and high humidity places such as tobacco drying and wood drying kilns

This series of products is divided into ten machine numbers according to different impeller diameters, arranged in order as NO.2.5, 3, 3.5, 4, 5, 5.5, 6, 7, 8, and 9.

The blades of each machine number can be installed at the angle required by the customer

Under allowable conditions, the circumferential speed of the impeller is matched with the following three revolutions: 2900 r/min, 1450 r/min, 960 r/min

The impeller rotates counterclockwise when facing the direction of the air inlet

Due to differences in machine number size, impeller diameter, adjustable blade installation angle, and spindle speed, the air volume, air pressure, and power consumption also vary.

Wind pressure: 50Pa~400Pa Air volume: 1000m3/h~4500m3/h.

Recommend Products

Company Profile

Certifications

Exhibition

Packing & Delivery

FAQ

Q: How could I get a sample?
A: Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to
you with in your first order.

Q: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

Q: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.

Q: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2)Strict sampling inspection on products before shipment and intact product packaging ensured.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $85 / set
  • 2–2 set: US $80 / set
  • 3+ set: US $75 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this shaft fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the shaft fan be supplied for my local voltage?

The standard configuration is customized. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
