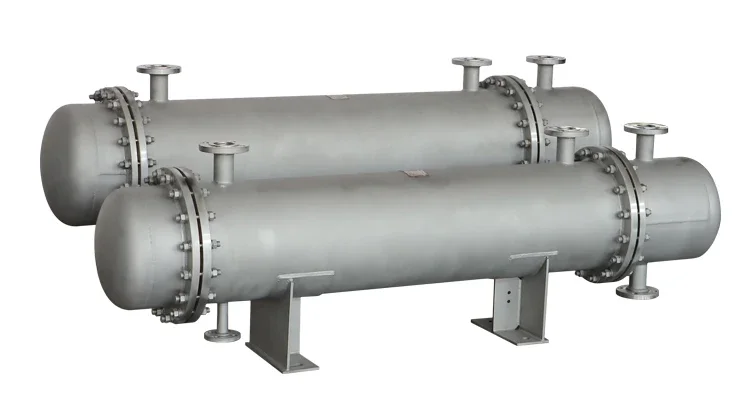

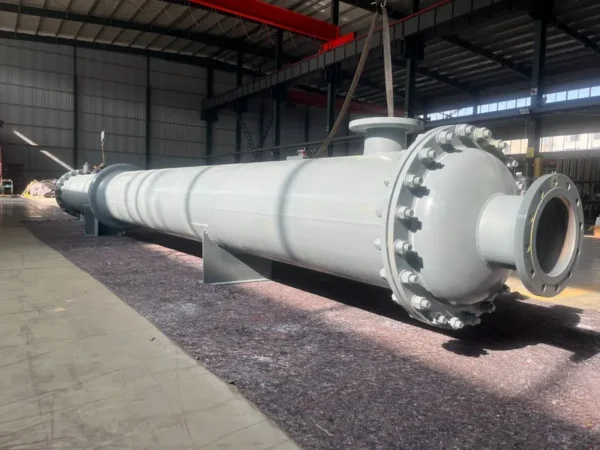

The shell and tube heat exchanger listed here carries material Stainless Steel, heat exchanger type Tube Heat Exchanger, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Shell And Tube Heat Exchanger
- Flow Capacity: Customized according to working conditions
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Heat Exchanger Type: Tube Heat Exchanger
- Single Package Size: 220X70X60 cm
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Flow Capacity | Customized according to working conditions |
| Material | Stainless Steel |
| Maximum Operating Temperature | customizable |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Low Maintenance Cost, Long Service Life |
| Working Temperature Range | -20℃~300℃ (customizable) |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 100 |
| Brand Name | JIANGGONG |
| Liquid Flow Rate | 3m/s (customizable) |
| Maximum Pressure Rating | customizable |
| Dimension(L*W*H) | 2000*500*400(customizable) |
| Selling Units | Single item |
| Single Package Size | 220X70X60 cm |
| Single Gross Weight | 200.0 kg |
Product Details

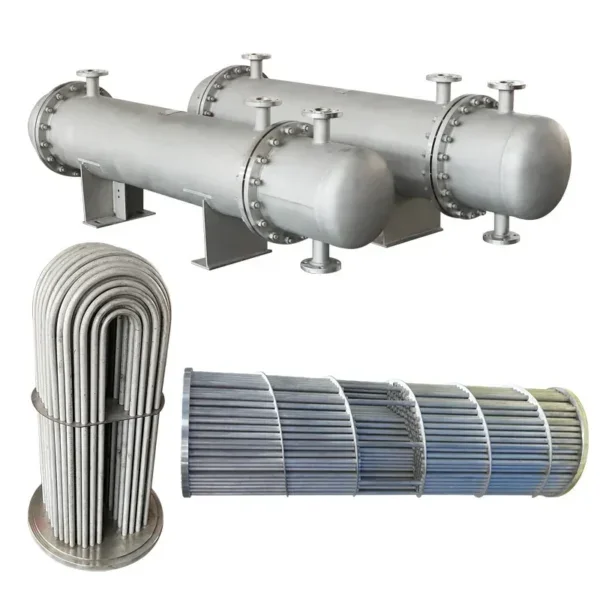

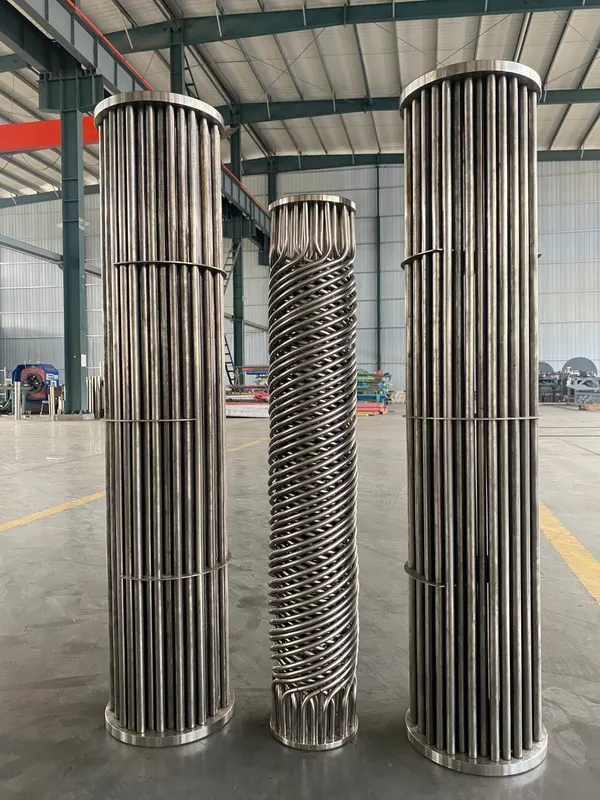

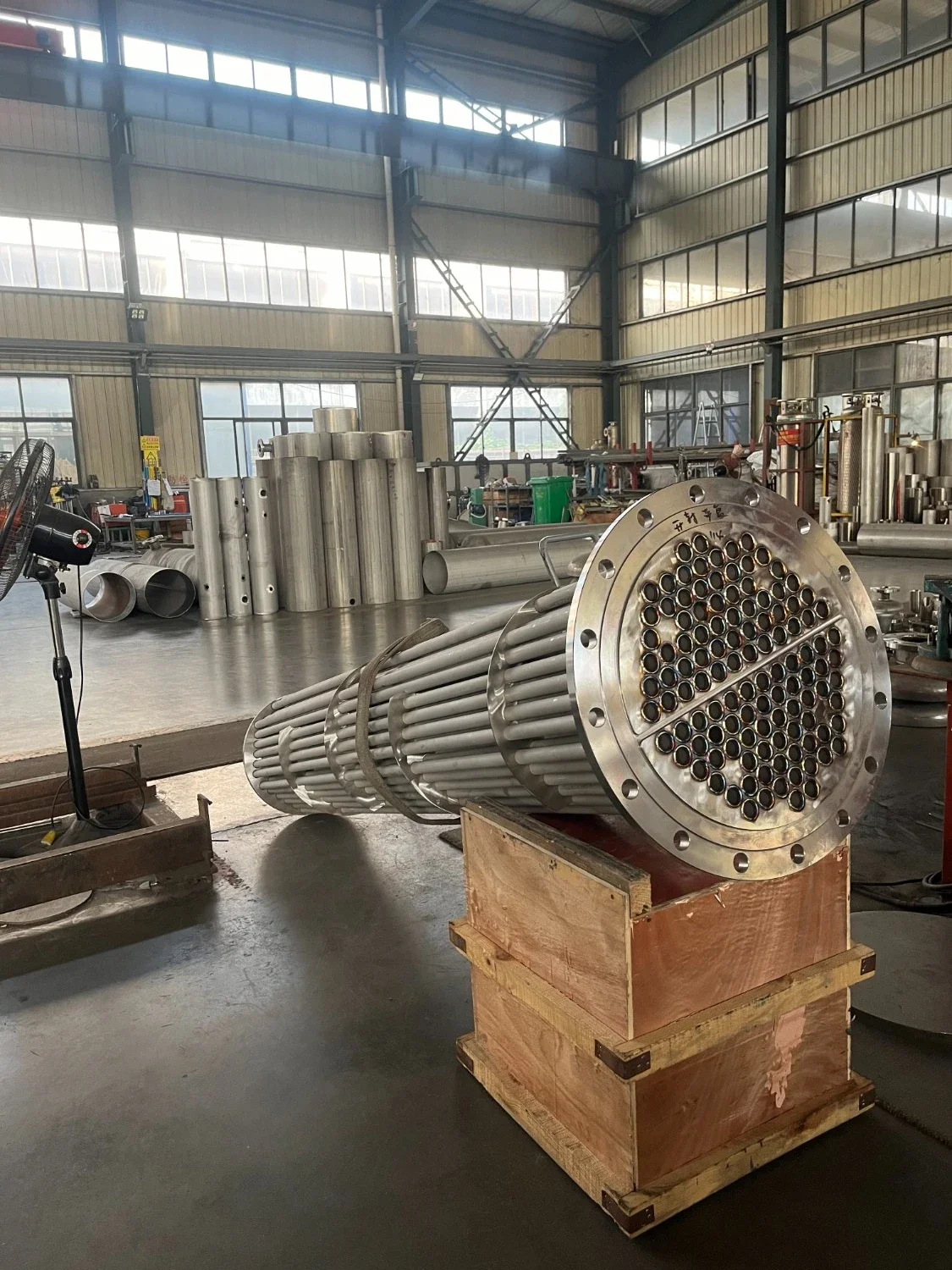

（3）The U-tube heat exchanger adopts a single tube sheet design and has no thermal shrinkage stress.
（4）There is a clear national standard: GB151 – Shell and Tube Heat Exchanger
Product tepy | Tube heat exchanger |
Fluid flow rate | The liquid phase design flow rate can reach 3m/s, (customizable) |
Materials | carbon steel 304&316L stainless steel, titanium, 2205 duplex steel |
Size | According to design requirements |
Maximum working pressure | 4Mpa (customizable) |

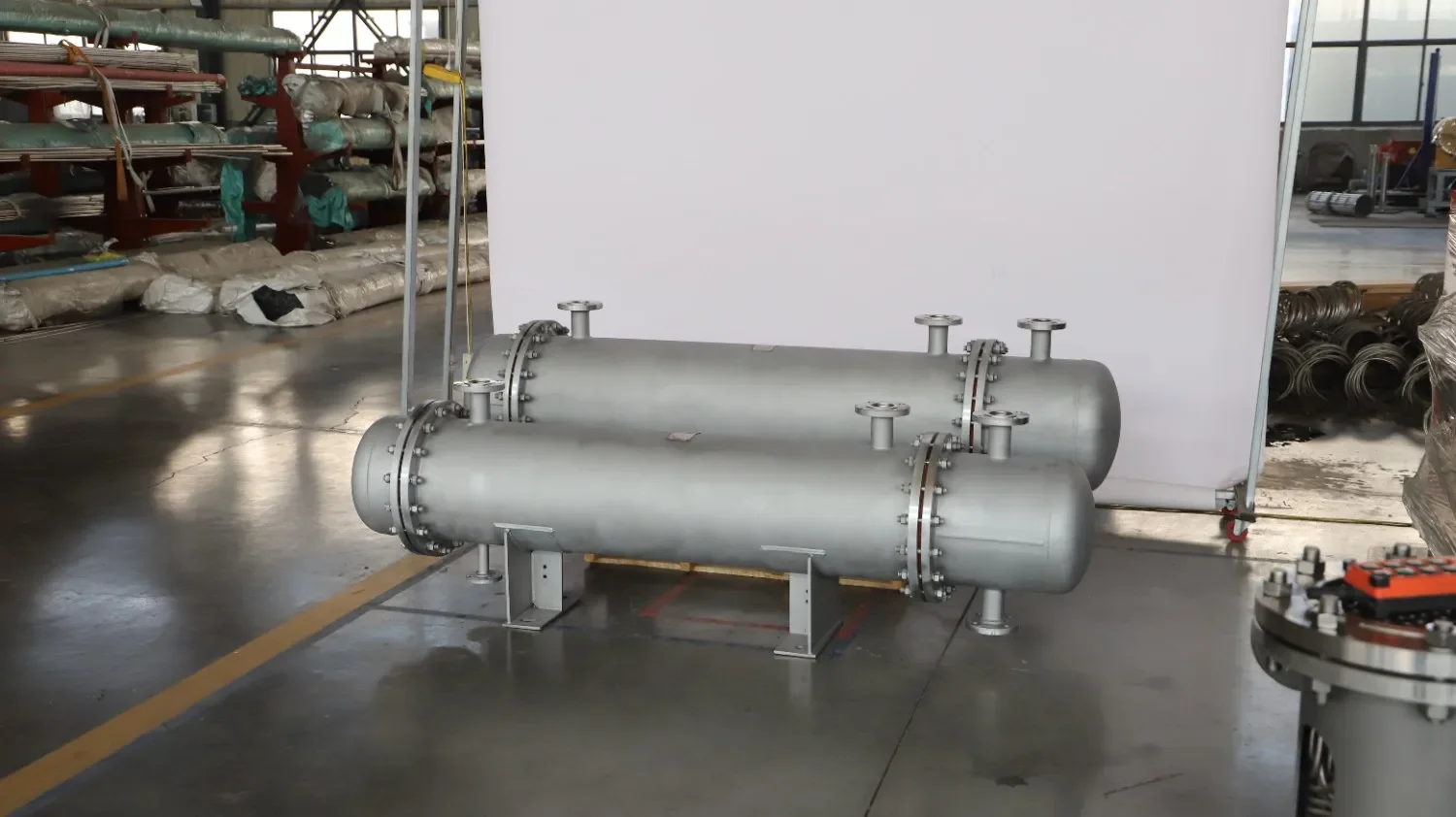

Installation | Horizontal/Vertical |
Working temperature range | – 20℃~300℃ |
Surface treatment | sandblasting, polishing (customizable) |
Pipe specifications | Ф12、Ф16、Ф19、Ф25 |
A:Of course, we have a professional R & D design team, according to your specific use scenario, technical parameters and other requirements, customized heat exchanger products.
Q: What mode of transport is used?
A:We cooperate with a number of internationally renowned logistics companies and can choose sea, air or international express according to your needs to ensure safe and efficient delivery of goods.
Q:Is your company an industry and trade integrated enterprise?
A:Yes, we set research and development, production and sales in one, control product quality from the source, effectively reduce costs, to provide you with cost-effective products and quality services.
Q:What are the guarantees after the product sale?
A:We provide a 1-year warranty period, during which if the product quality problems, will be free of charge repair or replacement. At the same time, we provide you with technical support and consulting services at any time.
Q: How long is the delivery time?
A:Because customized products need to go through the design confirmation, exclusive production process and other links, the delivery time is usually 10 working days after the confirmation of the customized solution
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–5 piece: US $3500 / piece
- 6–9 piece: US $3300 / piece
- 10+ piece: US $3100 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shell and tube heat exchanger?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tengzhou Jianggong Machinery Equipment Manufacturing Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Tengzhou Jianggong Machinery Equipment Manufacturing Co., Ltd. range on HVACR Nexus.
