Key specification for this spiral wound tube: material Stainless Steel, heat exchanger type Tube Heat Exchanger. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Spiral Wound Tube
- Flow Capacity: Customizable
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Heat Exchanger Type: Tube Heat Exchanger
- Size: Customizable
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Flow Capacity | Customizable |
| Fluid Compatibility | Customizable |
| Material | Stainless Steel |
| Maximum Operating Temperature | 203c |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life, Low Maintenance Cost, Eco-Friendly |
| Working Temperature Range | -20℃~203℃ |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 100 |
| Brand Name | JIANGGONG |
| Liquid Flow Rate | customizable |
| Maximum Pressure Rating | 4Mpa,customizable |
| Dimension(L*W*H) | customizable |
| Pipe Specifications | 8 and 12 |
| Size | Customizable |
| Selling Units | Single item |
| Single Package Size | 165X45X45 cm |
| Single Gross Weight | 100.0 kg |
Product Details

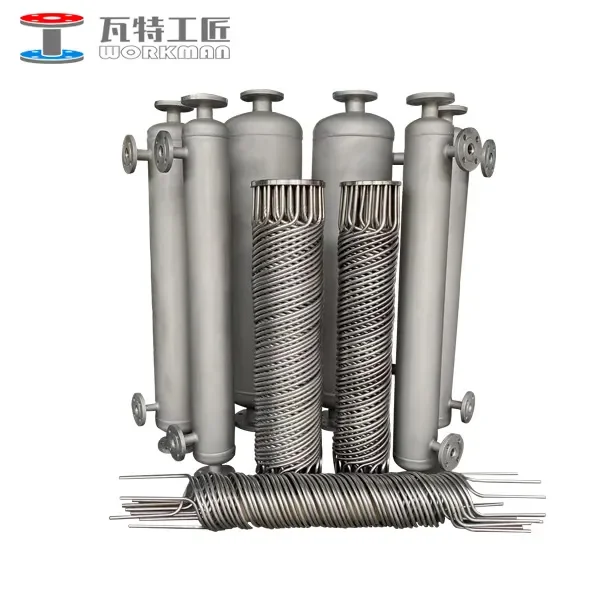

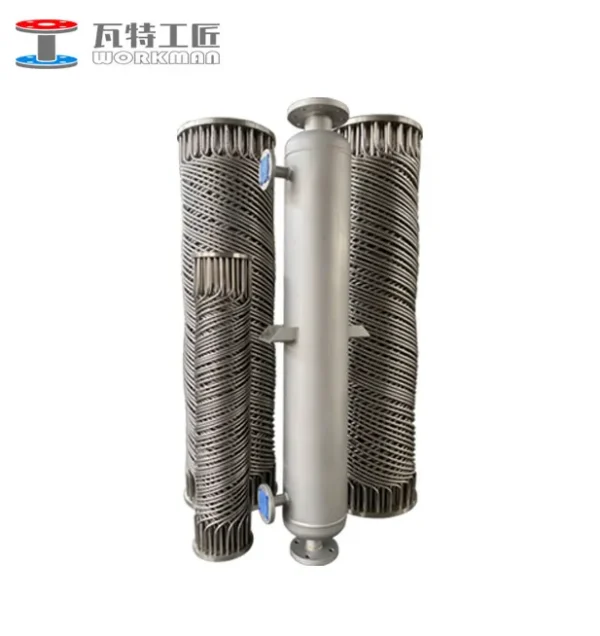

（1）The precisely designed spiral-wound tube bundles enable the medium to form intense turbulence in both the tube side and the shell side. Compared with traditional straight-row tube heat exchangers, the unit area heat transfer capacity is significantly enhanced, and the heat transfer and condensation recovery rates are higher.
（2）The unique spiral-wound tube bundle is elastic, effectively alleviating the stress of tube and tube plate separation caused by temperature difference and vibration, and significantly prolonging the service life.
（3）The maximum heat exchange area per unit volume is achieved. Under the same working conditions, its volume is only one fifth of that of traditional heat exchangers. It can be directly connected to the pipeline, occupies less space, and has low installation and maintenance costs.
（4）It is not easy to scale: the liquid phase design flow rate can reach 5.5m/s, the scale deposition rate is low, and the scaling tendency is low.
（5）Multi-material options: 304&316L stainless steel, 2205 duplex steel, titanium, Hastelloy (high temperature and pressure resistance, corrosion resistance, long service life）
（6）Low operating costs, energy saving: due to high heat exchange efficiency, heating conditions can save heat energy. The cooling condition can improve the recovery rate or reduce the refrigerant consumption.
（6）Low operating costs, energy saving: due to high heat exchange efficiency, heating conditions can save heat energy. The cooling condition can improve the recovery rate or reduce the refrigerant consumption.
Product tepy | Spiral Wounded Heat Exchanger |
Fluid flow rate | The liquid phase design flow rate can reach 5.5m/s, (customizable) |
Materials | 304&316L stainless steel, titanium, 2205 duplex steel |
Size | According to design requirements |
Maximum working pressure | 4Mpa (customizable) |
Installation | Horizontal/Vertical |
Working temperature range | – 20℃~203℃ |
Surface treatment | sandblasting, polishing (customizable) |
Pipe specifications | Ф8、Ф12 |
Tengzhou Jiang Gong Machinery Equipment Manufacturing Co., Ltd. focuses on the develop-ment, design and manufacturing of heat exchangers, evaporative condensation equipment andpipeline fluid machinery. jiang Gong adheres to the spirit of craftsmanship and builds corecompetitiveness by virtue of product quality and technical accumulation. lt strives to providecustomers with first-class products and technical support, and become a trusted partner forcustomers.
Q:Can you provide product customization service?
A:Of course, we have a professional R & D design team, according to your specific use scenario, technical parameters and other requirements, customized heat exchanger products.
Q: What mode of transport is used?
A:We cooperate with a number of internationally renowned logistics companies and can choose sea, air or international express according to your needs to ensure safe and efficient delivery of goods.
Q:Is your company an industry and trade integrated enterprise?
A:Yes, we set research and development, production and sales in one, control product quality from the source, effectively reduce costs, to provide you with cost-effective products and quality services.
Q:What are the guarantees after the product sale?
A:We provide a 1-year warranty period, during which if the product quality problems, will be free of charge repair or replacement. At the same time, we provide you with technical support and consulting services at any time.
Q: How long is the delivery time?
A:Because customized products need to go through the design confirmation, exclusive production process and other links, the delivery time is usually 10 working days after the confirmation of the customized solution
A:Of course, we have a professional R & D design team, according to your specific use scenario, technical parameters and other requirements, customized heat exchanger products.
Q: What mode of transport is used?
A:We cooperate with a number of internationally renowned logistics companies and can choose sea, air or international express according to your needs to ensure safe and efficient delivery of goods.
Q:Is your company an industry and trade integrated enterprise?
A:Yes, we set research and development, production and sales in one, control product quality from the source, effectively reduce costs, to provide you with cost-effective products and quality services.
Q:What are the guarantees after the product sale?
A:We provide a 1-year warranty period, during which if the product quality problems, will be free of charge repair or replacement. At the same time, we provide you with technical support and consulting services at any time.
Q: How long is the delivery time?
A:Because customized products need to go through the design confirmation, exclusive production process and other links, the delivery time is usually 10 working days after the confirmation of the customized solution
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–5 piece: US $400 / piece
- 6–9 piece: US $380 / piece
- 10+ piece: US $360 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this spiral wound tube?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tengzhou Jianggong Machinery Equipment Manufacturing Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Tengzhou Jianggong Machinery Equipment Manufacturing Co., Ltd. range on HVACR Nexus.
