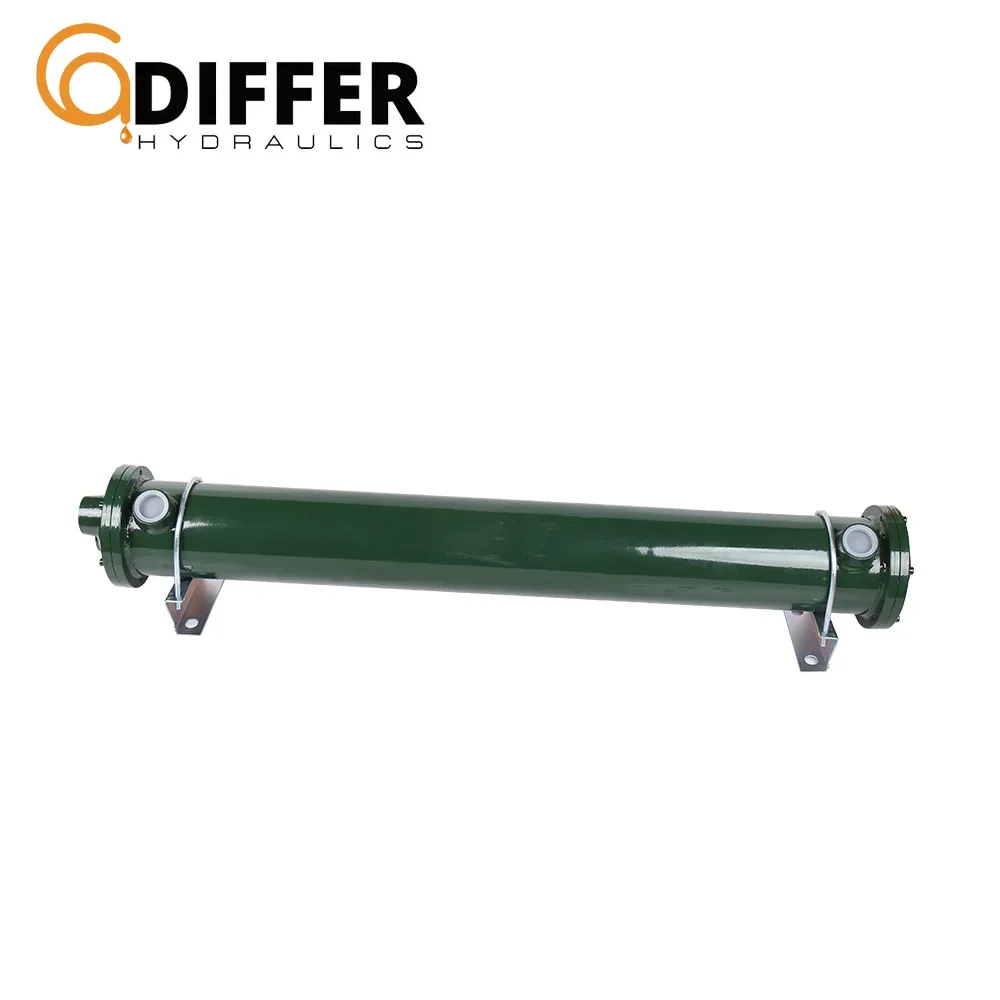

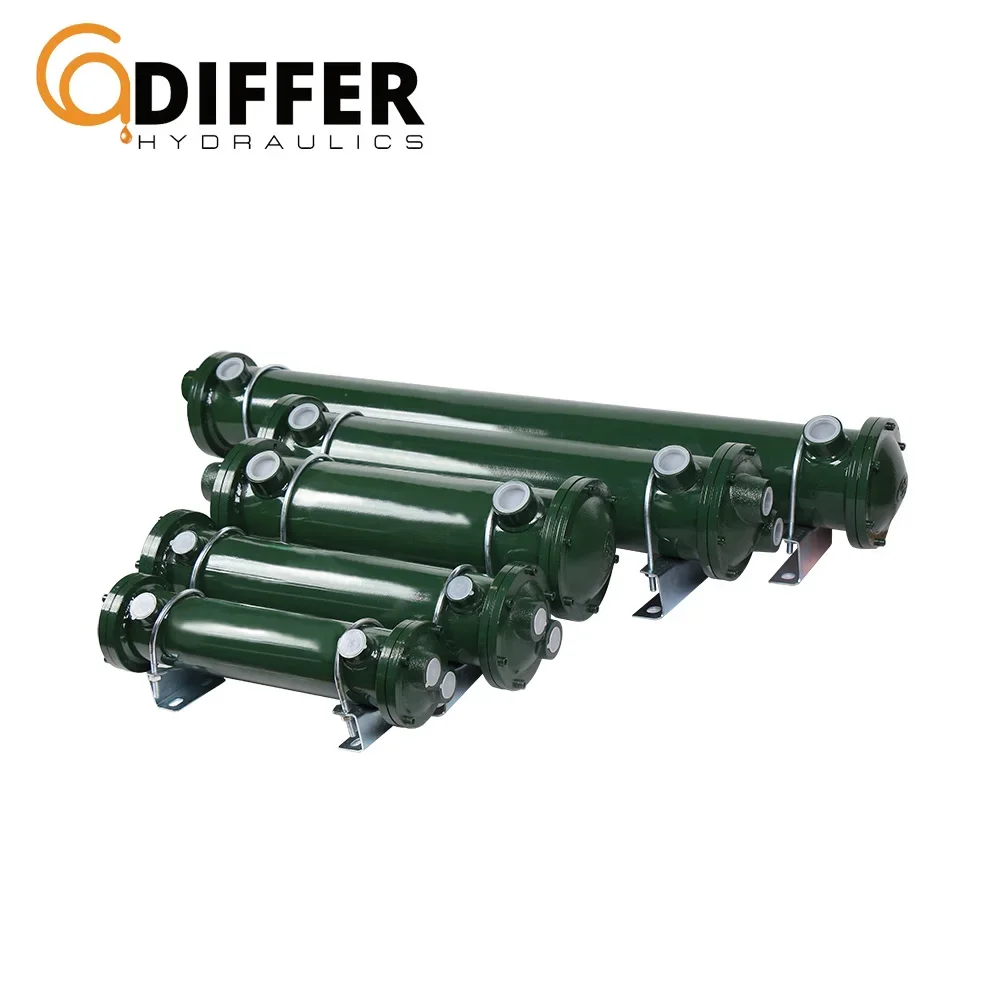

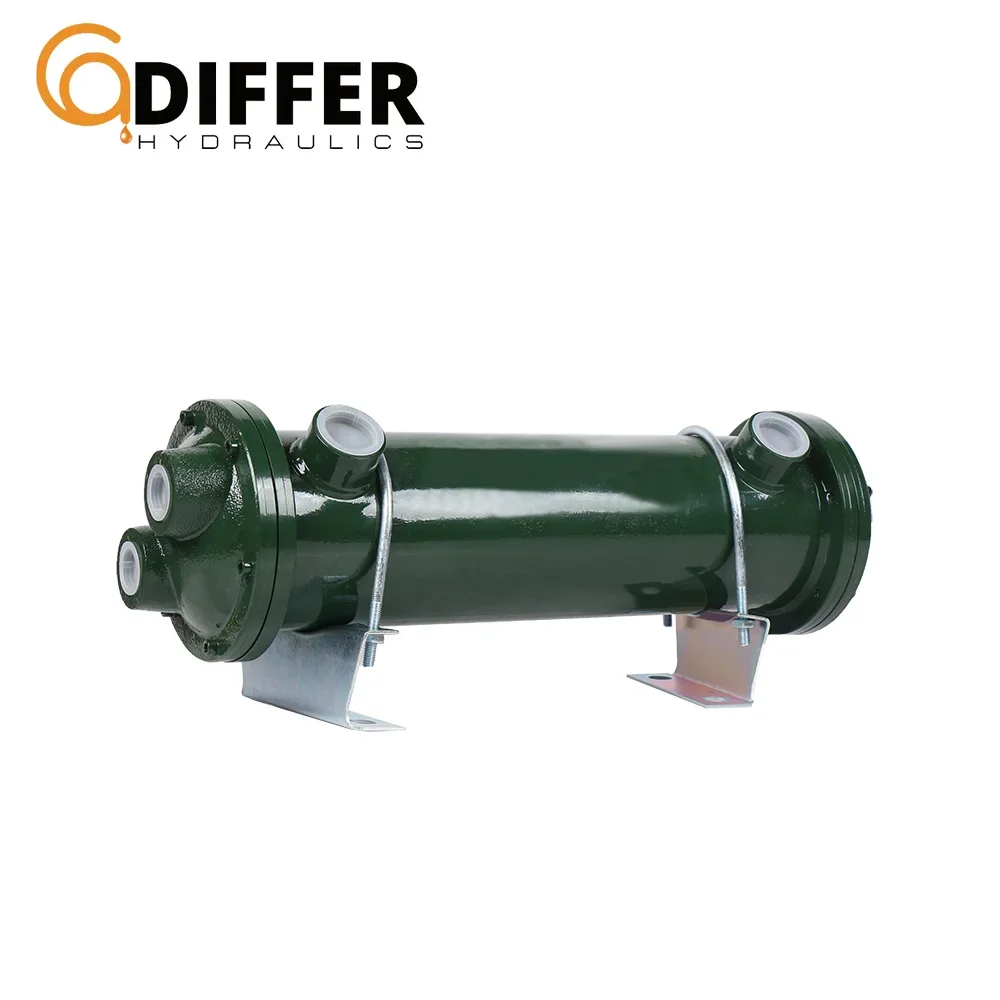

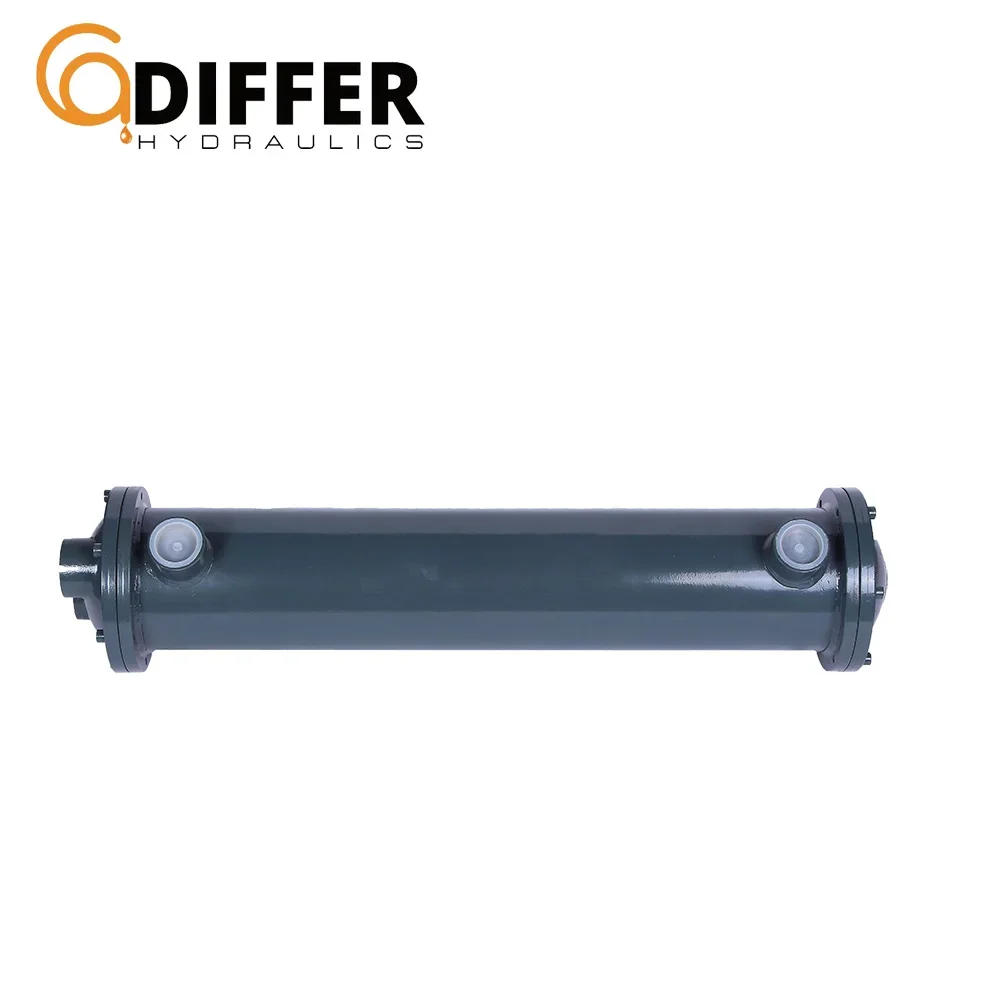

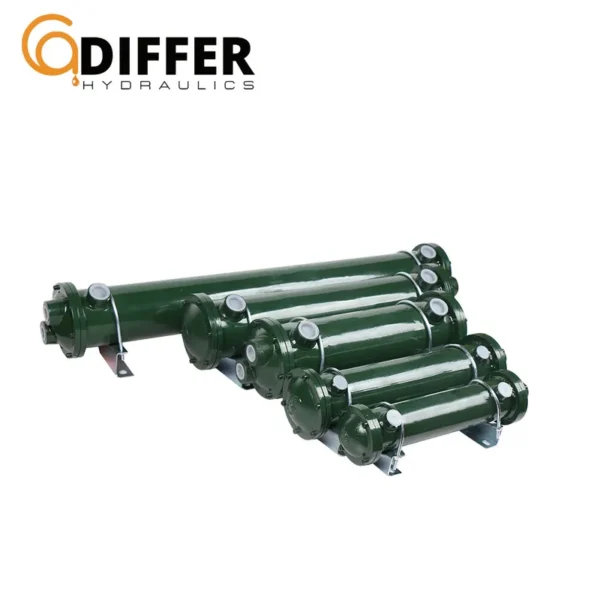

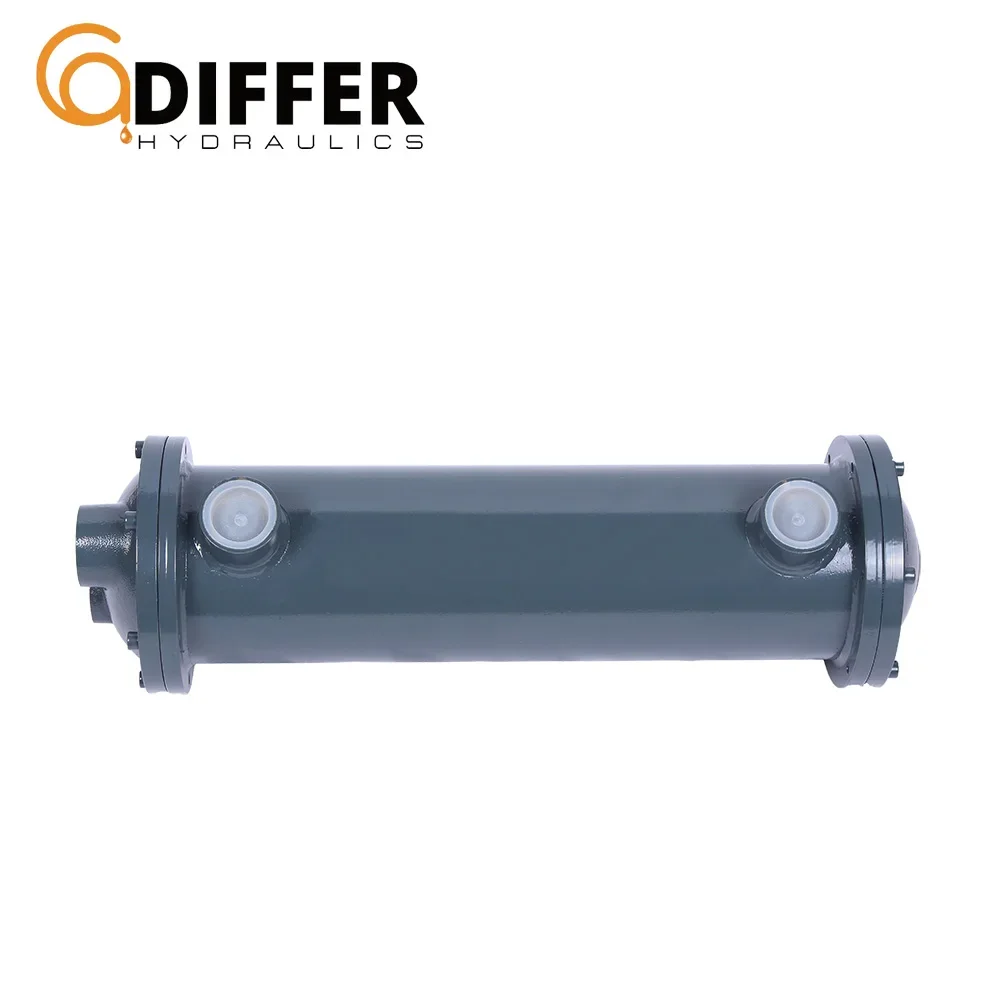

The shell and tube heat exchanger listed here carries voltage AC220V/AC380V/DC12V/DC24V, material Copper, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Shell And Tube Heat Exchanger
- Voltage: AC220V/AC380V/DC12V/DC24V
- Material: Copper
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Applications: Other, Automotive Industry, Biofuel Industry, Commercial
- Heat Exchanger Type: Tube Heat Exchanger
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Voltage | AC220V/AC380V/DC12V/DC24V |
| Core Components | Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Working Temperature Range | -40°C~140°C |
| Place Of Origin | Zhejiang, China |
| Brand Name | DI-FONG |
| Liquid Flow Rate | 60-1200L/M |
| Maximum Pressure Rating | 2MPa(290.08psi) |
| Dimension(L*W*H) | none |
| Color | Green |
| Material | Copper |
| Pressure | Low Pressure |
| Customized Support | OEM |
| Applications | Other, Automotive Industry, Biofuel Industry, Commercial |
| Packaging Details | standard export package |
| Advantages | The unit volume effect is very good |
| Product Name | Shell Tube Heat Exchanger |
| Selling Units | Single item |
| Single Package Size | 81X20X22 cm |
| Single Gross Weight | 21.0 kg |
| Supply Ability | 50000 pieces per Month |
Product Details

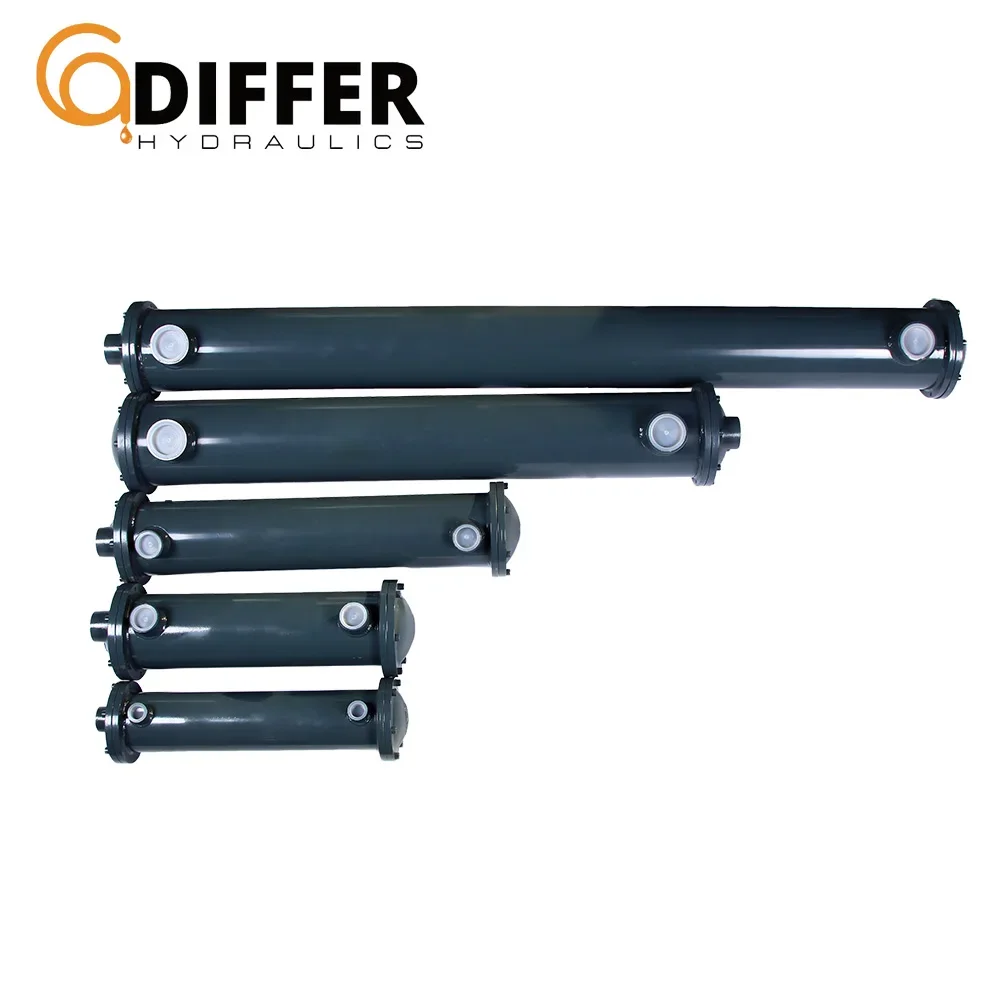

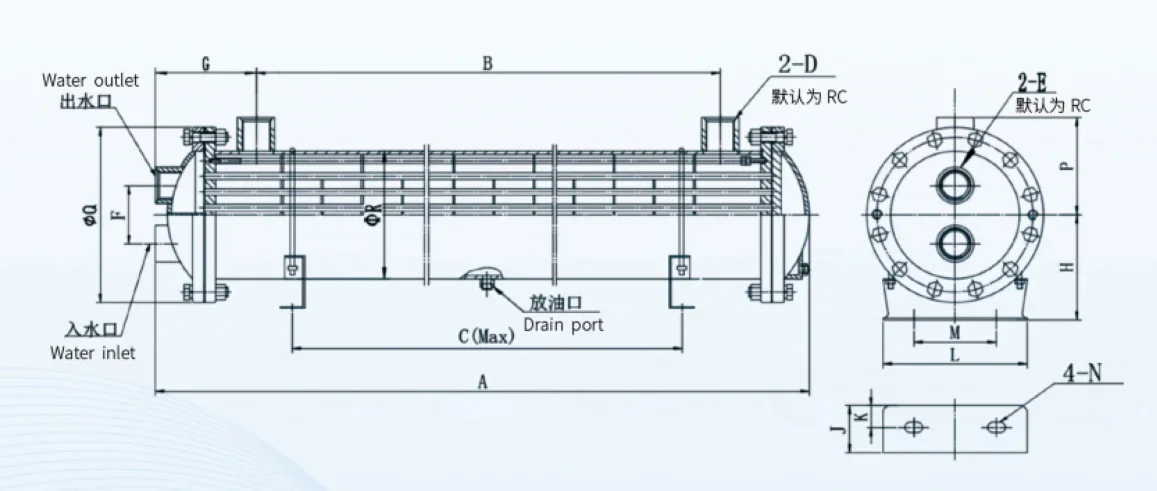

型号 Model | A (总长） Total length | B （油口距离） Oil port distance | F （水口距离） Nozzle distance | ΦR (管筒直径） Tube diameter | ΦQ （管板直径） Tube plate diameter | D （油口） Oil port | E （水口） Water inlet | 最大流量 Maximum flow （L/min) |
OR-60 | 450 | 305 | 45 | 89 | 120 | 3/4" | 3/4" | 60 |
OR-100 | 555 | 370 | 68 | 114 | 150 | 3/4" | 3/4" | 100 |
OR-150 | 575 | 385 | 85 | 140 | 180 | 1-1/4" | 1" | 150 |
OR-250 | 780 | 585 | 85 | 140 | 180 | 1-1/4" | 1" | 250 |
OR-300 | 1180 | 990 | 85 | 140 | 180 | 1-1/4" | 1" | 350 |
OR-600 | 1175 | 950 | 90 | 165 | 200 | 2" | 1-1/4" | 600 |
OR-800 | 1700 | 1490 | 90 | 165 | 200 | 2" | 1-1/4" | 800 |
OR-1000 | 2140 | 1890 | 90 | 165 | 200 | 2" | 1-1/4" | 1000 |
OR-1200 | 2530 | 2270 | 90 | 165 | 200 | 2" | 1-1/4" | 1200 |
Q:What’s the mode of payment you support?
Q:Which transport modes do you support?
Q:Do you support to customize the Logo and package?
Q:How long can you send the products?
Q:Do you support to supply sample before official order?
Q:Do you support to customize?
Q:What’s the Minimum quantity？
Hydraulic shell and tube heat exchanger Copper Tube |
Hydraulic shell and tube heat exchanger Copper Tube |
Hydraulic shell and tube heat exchanger Copper Tube |
Hydraulic shell and tube heat exchanger Copper Tube |
Ordering and Pricing
- Minimum order quantity: 5 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shell and tube heat exchanger?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the shell and tube heat exchanger be supplied for my local voltage?
The standard configuration is AC220V/AC380V/DC12V/DC24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Differ Imp & Exp Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Differ Imp & Exp Co., Ltd. range on HVACR Nexus.
