Plate heat exchanger — 380 V, 220 V, material Titanium. The complete factory specification follows. Made by Nanjing Aidea Heat Exchange Equipment Co., Ltd. (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Plate Heat Exchanger
- Voltage: 380 V, 220 V
- Flow Capacity: 25GPM
- Material: Titanium
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: Heat Transfer Cooling
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Flow Capacity | 25GPM |
| Fluid Compatibility | Steam |
| Material | Titanium |
| Maximum Operating Temperature | 400-600c |
| Voltage | 380 V, 220 V |
| Core Components | PLC, Engine, Bearing |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Competitive Price, Low Maintenance Cost |
| Working Temperature Range | -196~200℃ |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 50 |
| Brand Name | Aidea |
| Maximum Pressure Rating | 4.5Mpa(652.67psi) |
| Dimension(L*W*H) | customized |
| Applicable Industries | Plant |
| Product Name | Swimming Pool Heat Exchanger |
| Application | Heat Transfer Cooling |
| Feature | High Heat Transfer Efficiency |
| Keyword | High Efficiency Clean Stream Heat Exchanger |
| Function | High Efficient Heat Transfer |
| Name | OEM/ODM |
| Medium | Steam-steam.liquid-liquid |

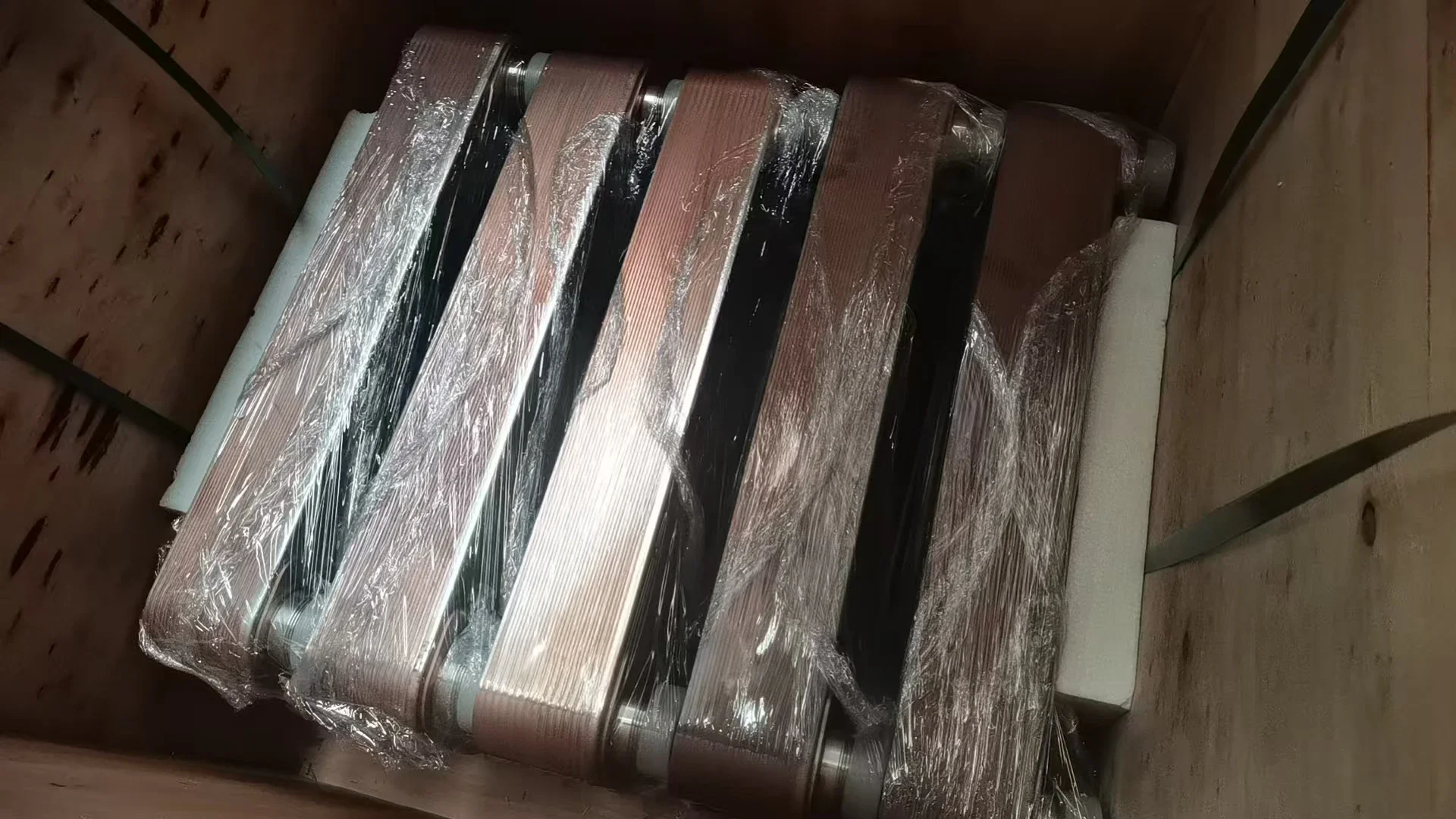

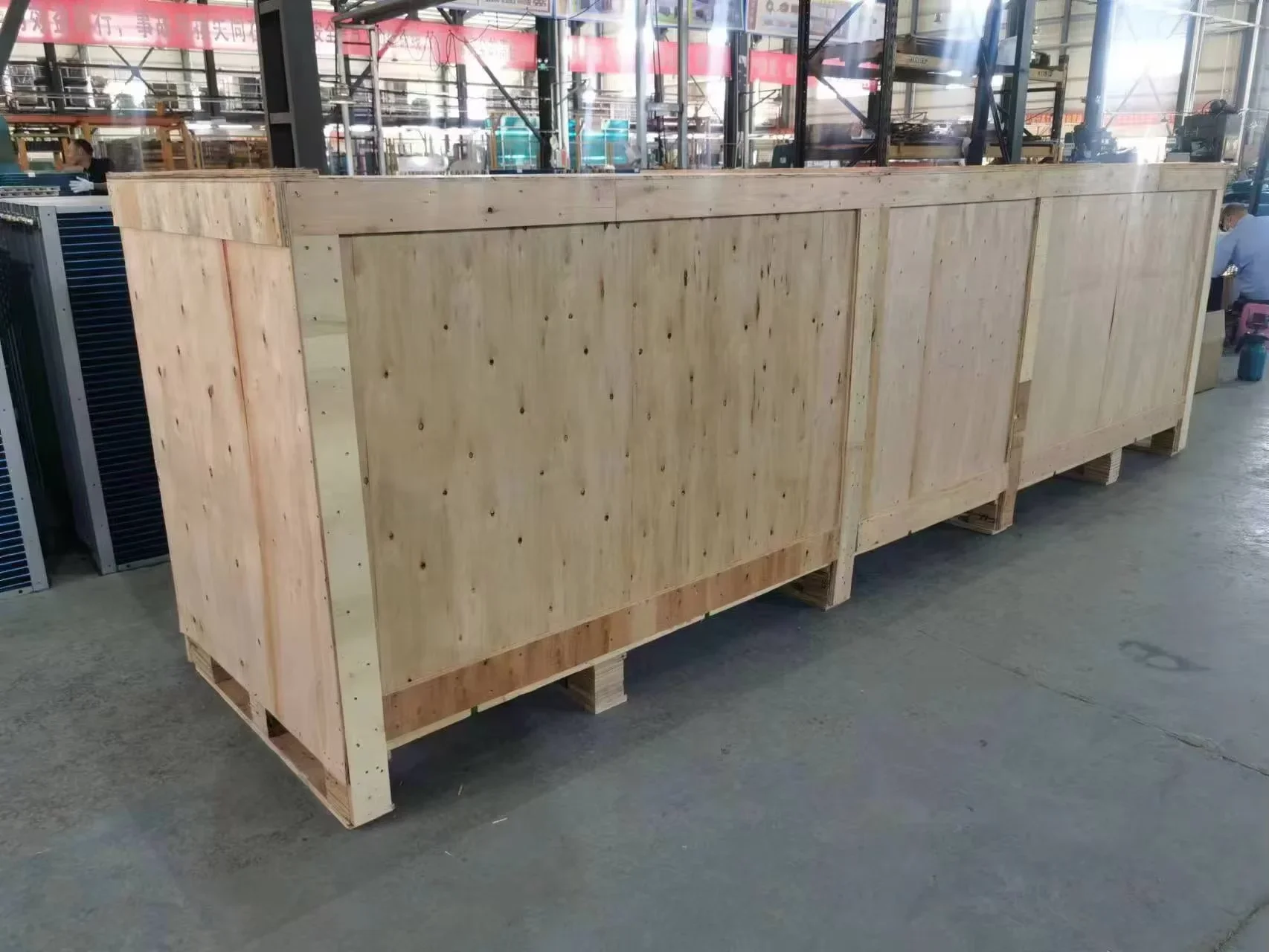

| Packing | Wooden Case Package |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description

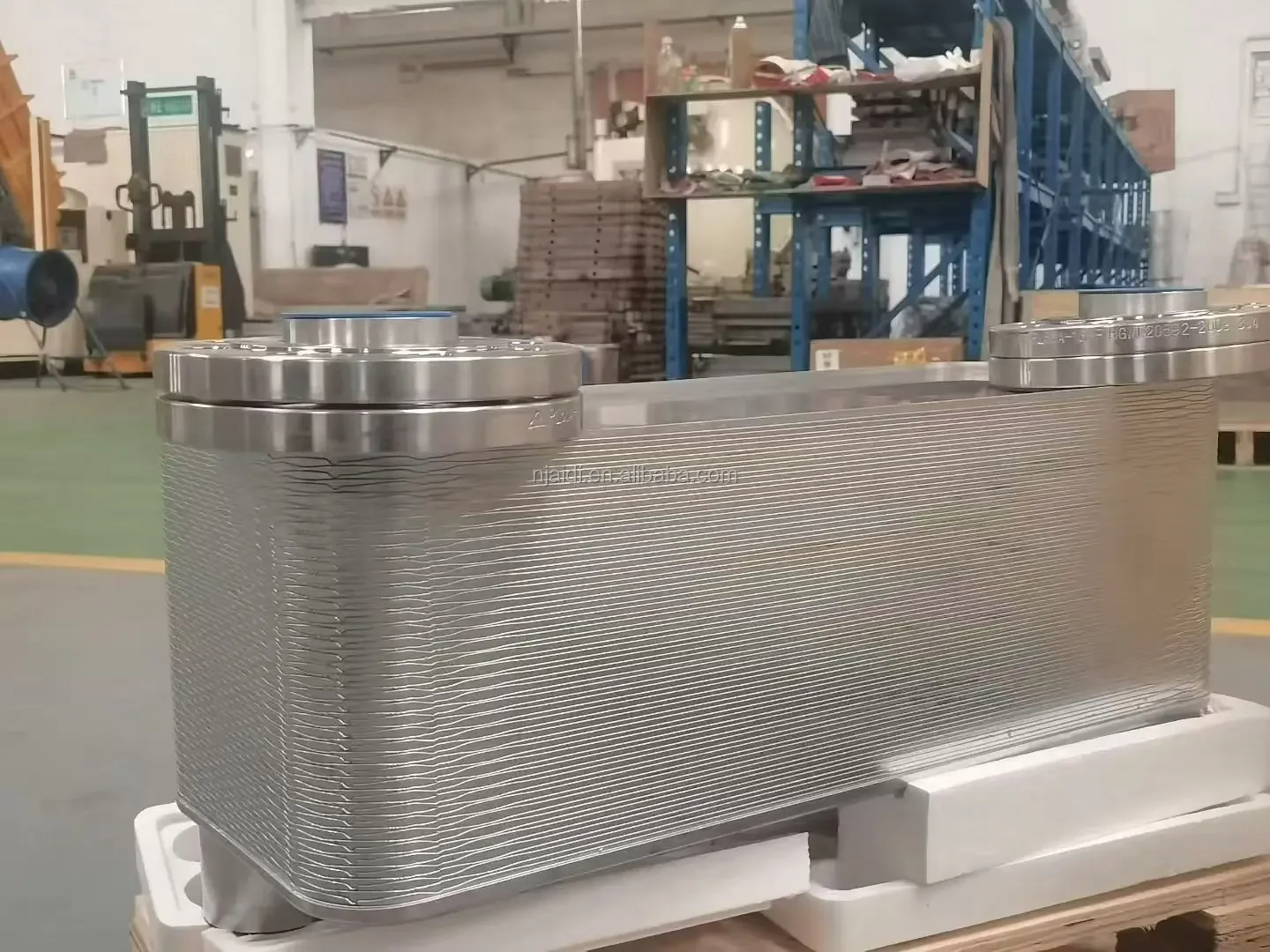

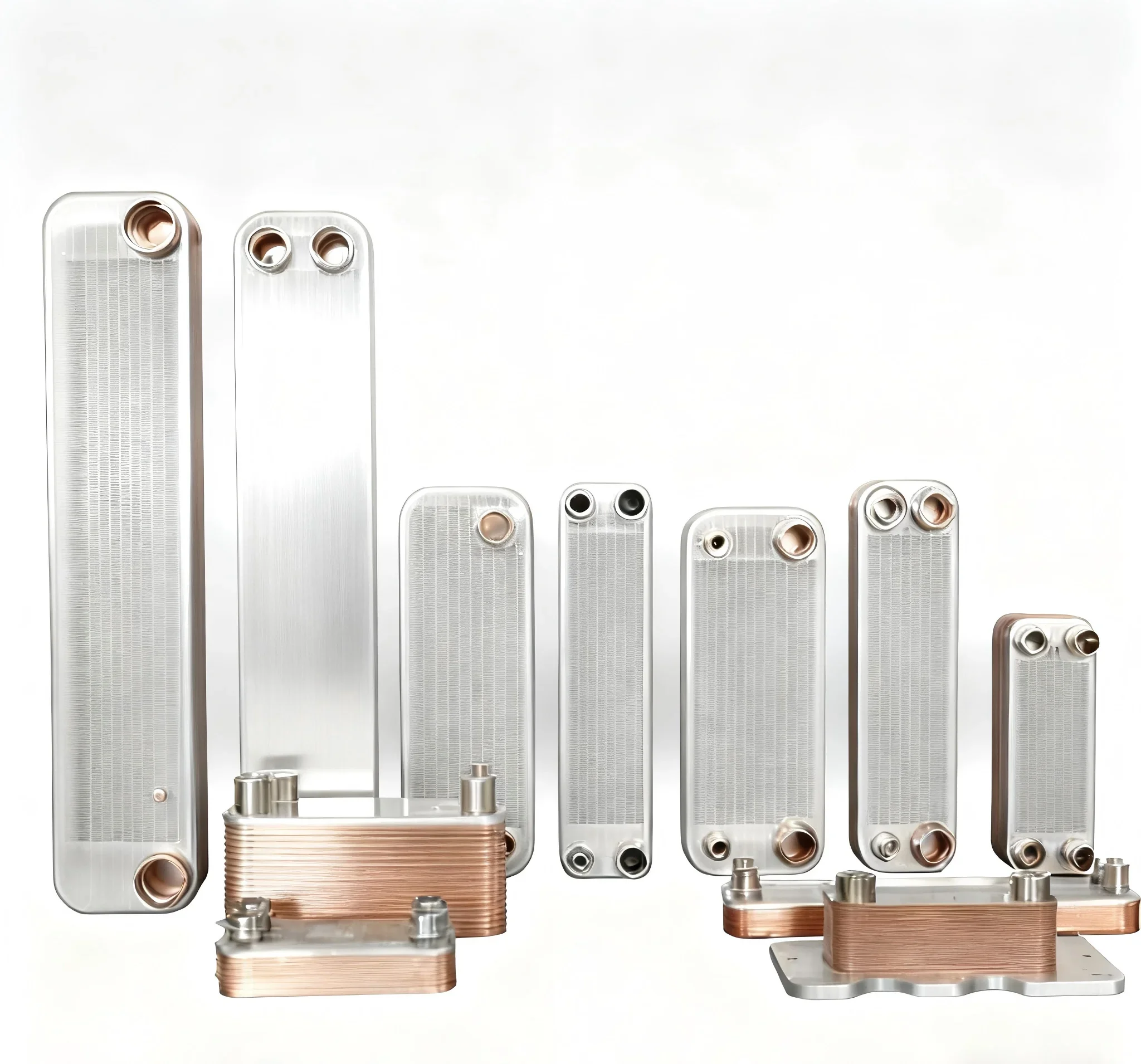

Brazed Heat Exchanger
Brazed Heat Exchanger is one of Our Main Products.

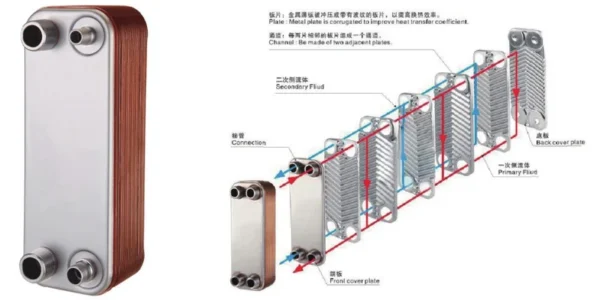

A brazed plate heat exchanger (BPHE) comprises a stack of thin, corrugated stainless steel plates. A thin copper foil is

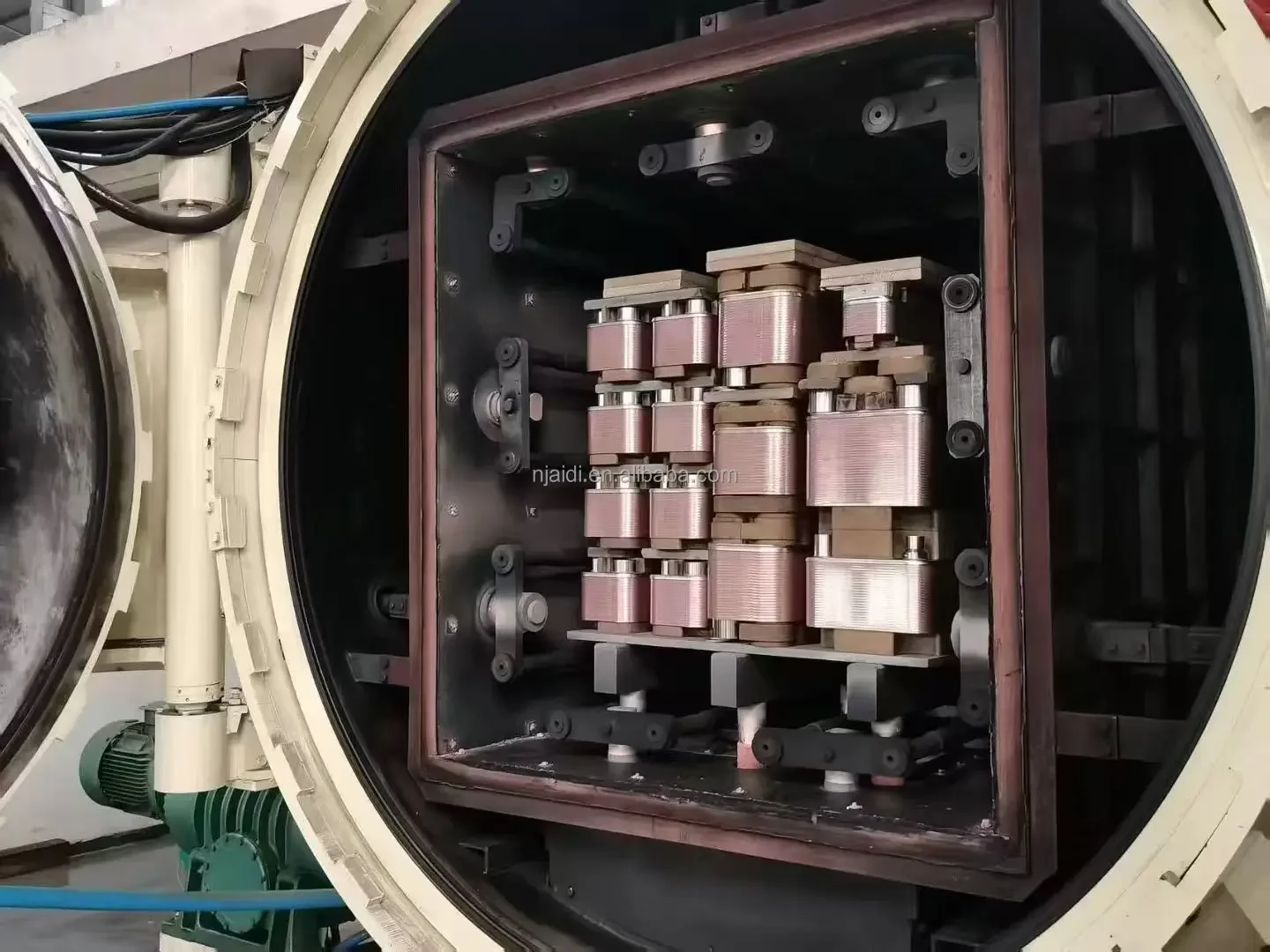

interposed between each pair of adjacent plates. The entire assembly is then subjected to a high-temperature vacuum brazing
process, during which the copper foil melts and metallurgically bonds the adjoining plates together. The molten copper
simultaneously forms a hermetic seal along the flow channels defined between the plates. To withstand elevated internal
pressures,thicker front and rear cover plates are typically brazed onto both ends of the plate pack.Our Factory offers the most
suitable solutions with its wide range of heat exchangers manufactured with high quality components.
A brazed plate heat exchanger (BPHE) comprises a stack of thin, corrugated stainless steel plates. A thin copper foil is
interposed between each pair of adjacent plates. The entire assembly is then subjected to a high-temperature vacuum brazing
process, during which the copper foil melts and metallurgically bonds the adjoining plates together. The molten copper
simultaneously forms a hermetic seal along the flow channels defined between the plates. To withstand elevated internal
pressures,thicker front and rear cover plates are typically brazed onto both ends of the plate pack.Our Factory offers the most
suitable solutions with its wide range of heat exchangers manufactured with high quality components.
Features of Our Brazed Heat Exchanger :
1.High Pressure Resistance: Rated up to 45 Bar2.Space-Saving Design: More Compact Than Gasketed Heat Exchangers
3.Wide Temperature Adaptability: -180°C (MIN) to 250°C (MAX)
4.Multi-Functional Application: Usable as Subcoolers & Condensers
5.Premium Material Options: Crafted from AISI 304/AISI 316 Plates
6.Cooling System Compatibility: Suitable for Evaporator Applications
4.Multi-Functional Application: Usable as Subcoolers & Condensers
5.Premium Material Options: Crafted from AISI 304/AISI 316 Plates
6.Cooling System Compatibility: Suitable for Evaporator Applications
Professional Applications of Brazed Heat Exchangers :
1.Chemical Reactors – Precise Feed Gas & Liquid Preheating
2.HVAC Systems – Space Heating, Cooling & Heat Recovery
3.Refrigeration & Chiller Systems – Condensers and Evaporators
4.Industrial Process Cooling – Equipment & Fluid Temperature Control
5.Heat Pump Systems – Energy-Efficient Heat Transfer
6.Food & Beverage Processing – Hygienic Heating and Cooling
7.Renewable Energy Systems – Solar & Waste Heat Utilization
8.And more…
2.HVAC Systems – Space Heating, Cooling & Heat Recovery
3.Refrigeration & Chiller Systems – Condensers and Evaporators
4.Industrial Process Cooling – Equipment & Fluid Temperature Control
5.Heat Pump Systems – Energy-Efficient Heat Transfer
6.Food & Beverage Processing – Hygienic Heating and Cooling
7.Renewable Energy Systems – Solar & Waste Heat Utilization
8.And more…
Our Brazed Heat Exchanger Product Servies have 3 flow paths:
H-Type: higher heat transfer efficiency, higher pressure loss
L-Type: Lower heat transfer efficiency, lower pressure loss.
L-Type: Lower heat transfer efficiency, lower pressure loss.
M-Type: medium heat transfer efficiency, medium pressure loss

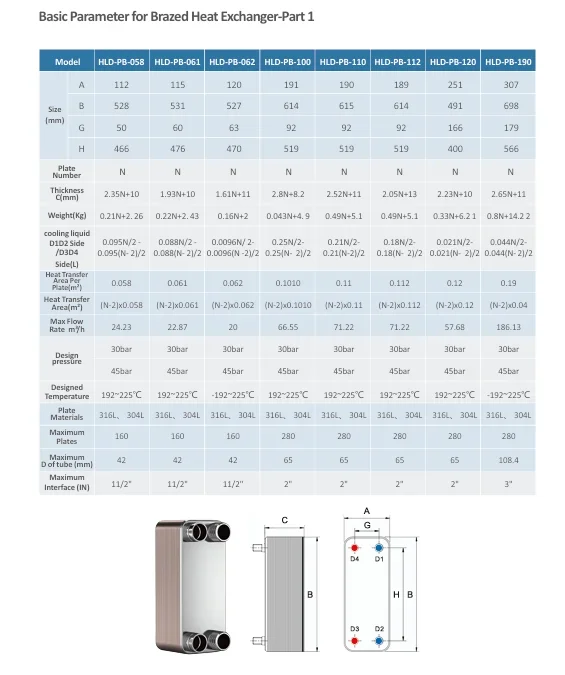

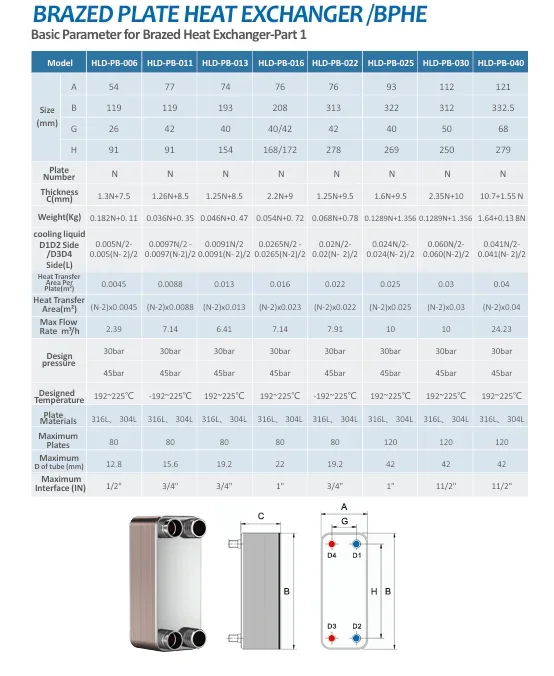

1.Plate Material :AISI304 or AISI316L
2.Brazing Material:Nickel or Copper
3.Design Parameter: •Brazing design pressure3.0Mpa
•Testing pressure 4.5Mpa
•Design temperature -160 °C-225 °C
1.Plate Material :AISI304 or AISI316L
2.Brazing Material:Nickel or Copper
3.Design Parameter: •Brazing design pressure3.0Mpa
•Testing pressure 4.5Mpa
•Design temperature -160 °C-225 °C
Industry Coverage & Product Offerings :
We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.
Brazed Heat Exchangers units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.
Brazed Heat Exchangers units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.

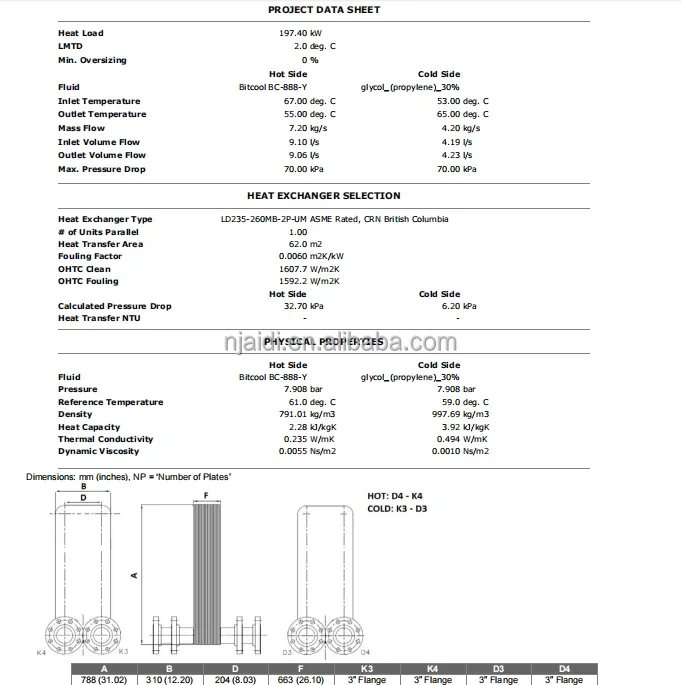

Engineering Design
We exclusively utilize HTRI and EDR design software from a renowned European software provider.
With 18 years of strategic partnership, we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.

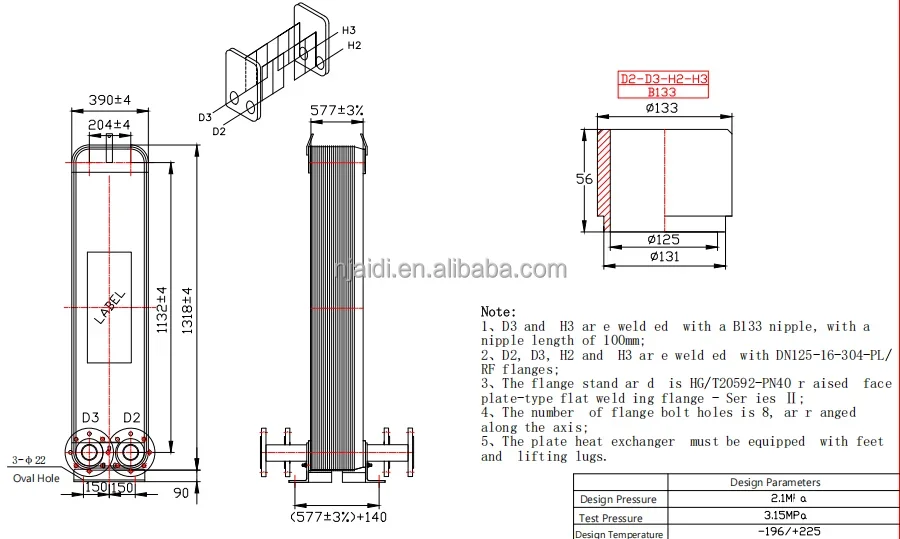

We can provide detailed drawing after your order.We can also provide Custom services.
With 18 years of strategic partnership, we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.
Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.
We can provide detailed drawing after your order.We can also provide Custom services.

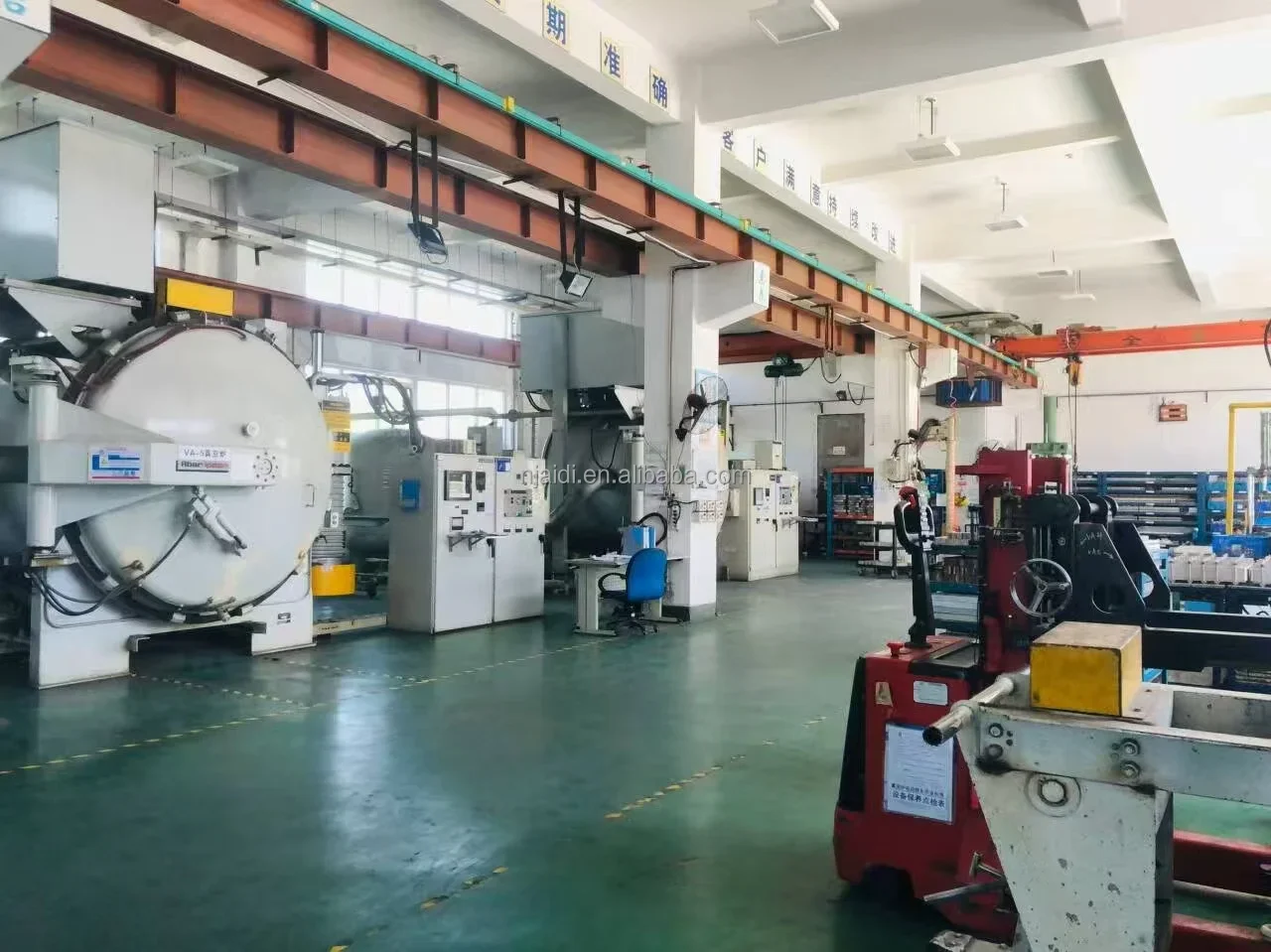

Company Profile
FAQ
1 Q: I haven't done business with you so we want to make online order to protect me,is it Ok for you ?
1 A: Our company has been in filed for 10 years, Your Alibaba online order is welcome, we we will provide good service to you.
2 Q: What is the MOQ? Can I place small order please ?
2 A: Small order is also welcome in our company.
3 Q: How long warranty can we have for my orders
3 A: Finned Tube Heat ExchangerOne year warranty for all products, 2 years warranty available for some specific orders.
4 Q: What service can you provide ?
4 A: We will confirm all details with you before payment, any changes will let you know in advance, any progress will show you
photos and video for your reference and will let you know your order’s status. Will send draft documents for your reference before
issuing official document.
5 Q: How do you control quality ?
5 A: Our produces heat exchangers since 2015 and we passed ISO 9001 in 2017. We are serving hundreds customers whom from
40+countries around the world. All products will be 100% tested before shipping out.
6 Q: What are your main products ?
6 A: We mainly produce air heat exchangers, surface coolers, evaporator coils, condenser coil, shell and tube heat exchangers,
plate heat exchangers and other heat exchange equipment and all kind of finned tubes, heat exchange accessories, etc.
1 A: Our company has been in filed for 10 years, Your Alibaba online order is welcome, we we will provide good service to you.
2 Q: What is the MOQ? Can I place small order please ?
2 A: Small order is also welcome in our company.
3 Q: How long warranty can we have for my orders
3 A: Finned Tube Heat ExchangerOne year warranty for all products, 2 years warranty available for some specific orders.
4 Q: What service can you provide ?
4 A: We will confirm all details with you before payment, any changes will let you know in advance, any progress will show you
photos and video for your reference and will let you know your order’s status. Will send draft documents for your reference before
issuing official document.
5 Q: How do you control quality ?
5 A: Our produces heat exchangers since 2015 and we passed ISO 9001 in 2017. We are serving hundreds customers whom from
40+countries around the world. All products will be 100% tested before shipping out.
6 Q: What are your main products ?
6 A: We mainly produce air heat exchangers, surface coolers, evaporator coils, condenser coil, shell and tube heat exchangers,
plate heat exchangers and other heat exchange equipment and all kind of finned tubes, heat exchange accessories, etc.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $187 / set
- 100+ set: US $157 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plate heat exchanger?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the plate heat exchanger be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
