Shrimp Quick Frozen Plate, ARKREF, 150-1000kg, Plate Freezer

Key specification for this shrimp quick frozen plate: capacity 150-1000kg/h, type Plate Freezer. Everything below is reproduced from the factory data sheet. Made by Shandong Shenzhou Refrigeration Equipment Co., Ltd. (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Shrimp Quick Frozen Plate

• Capacity: 150-1000kg/h
• Warranty: 1 Year
• Place Of Origin: Shandong, China
• Application: Seafood
• Type: Plate Freezer
• Marketing Type: New Product 2020

Technical Specifications

Product Details

Technical Data

Freezing capacity (kg)	Freezing time(min)	Installed power (kw)	Cooling capacity (kw)	Size(cm)	Transmission bandwidth（m）
150	6~60 Adjustable	13.95	34	96*25*25	1.219
200	6~60 Adjustable	13.95	41	126*25*25	1.219
250	6~60 Adjustable	19.5	52	96*25*25	1.219
300	6~60 Adjustable	20.2	64	146*25*25	1.219
500	6~60 Adjustable	24.2	100	196*25*25	1.219
500	6~60 Adjustable	27	100	126*39.8*26	2*1.219
1000	6~60 Adjustable	40.4	175	126*39.8*26	2*1.219

Customization Process

Need to provide the following information:

1.Types of frozen products

2.Quantity of quick-frozen products
3.Freezing time
4.The temperature of the food before quick freezing
5.The core temperature of the goods after quick freezing

Products Details

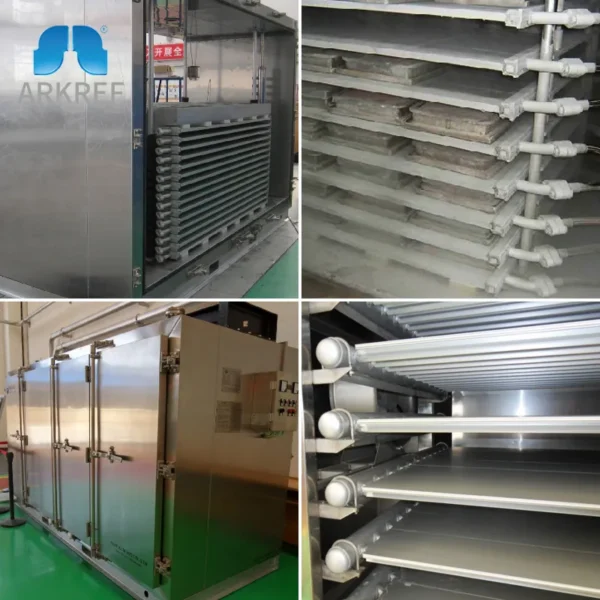

Freezing Plate

^{The freezing plate is a professionally designed plate evaporator, ensuring uniform and smooth flowing of refrigerant, making the surface temperature of the plate uniform and consistent and realizing high heat transfer efficiency.}

^{Low energy consumption because
of no need for fans in the equipment.}

Good Insulation Performance

The warehouse board uses double-sided stainless steel structure, which has good heat preservation and energy saving.

The Control System

The control components are manufactured by well-known manufacturers such as chneider and Siemens.The operation of the control
system is reasonable. simple and reliable.The control cabinet is designed with stainless stee moisture-proof structure

Small Equipment Volume And Small Floor Area

Equipment delivery as a whole so as to save the customer' s construction cost

Related Products

Stronger freezing capacity

Stronger Freezing Capacity

Specifically designed for the application of quick-freezers, two-stage compression + frequency conversion speed increase +
electronic expansion valve control.the lower the temperature required by the quick-freezer, the greater the advantage of its
freezing capacity.

Control System

It adopts advanced dedicated quick freezing visual controller and monitor, which can memorize the relevant parameters of the
machine's operation, and the button can switch the quick-freezing category, which is convenient for querying faults and providing
references for solving problems.

Sucessful Cases

Company Profile

Shandong Shenzhou Refrigeration Equipment Co.Ltd is a company specialized in research, design, production, sales and services of refrigeration equipments. It has obtained ISO9001quality system certification and CE and other certificates.

Our factory is located in Shengjing High-tech Park of Zhangqiu, Jinan city, China. Its main products include reciprocating and screw parallel compressor units, low-temperature brine units, condensinq units, purity CO2: systems, secondary refrigerant systems, CO2 cascade systems,digital scroll compressor units, flooded pump units and supporting electronic control systems, etc.

FAQ

Q1: Are you a factory or a trading company? A1: We are one of the largest refrigeration equipment manufacturers in China. Q2: Where is your factory located? A2: Our factory is located in Xuehua Street, Zaoyuan Street, Zhangqiu District, Jinan City, Shandong Province, China. Q3: Do you guarantee safe and secure delivery of products? A3: Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge. Q4: Can the product be customized according to specifications? A3: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made. Q5: What are the payment terms? A5: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $30000 / set
  • 2–10 set: US $21000 / set
  • 11+ set: US $15000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.
