The side blowing air cooler listed here carries 380V/3P/50Hz, cooling capacity From 1800W to 95600W, documented exactly as the manufacturer publishes it. Made by Guangzhou Cryo Systems Refrigeration Equipment Co., Ltd. (16 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Side Blowing Air Cooler
- Horse Power: From 1HP to 50HP
- Voltage: 380V/3P/50Hz
- Cooling Capacity: From 1800W to 95600W
- Refrigerant: R22, R404A, R134A, R407, R449,R448, R507
- Warranty: 1 Year
- After Warranty Service: Video technical support
Technical Specifications
| Compressor Brand | Original world famous compressors |
|---|---|
| Refrigerant | R22, R404A, R134A, R407, R449,R448, R507 |
| Voltage | 380V/3P/50Hz |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Feature | Low power consumption |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel, Motor, Pump, Engine |
| Key Selling Points | Energy Saving, Easy To Operate, Long Service Life |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 200 |
| Brand Name | Cryo Systems |
| Dimension(L*W*H) | as per different models |
| Horse Power | From 1HP to 50HP |
| Temperature | From +10 to -45 °C |
| Cooling Capacity | From 1800W to 95600W |
| Cooling Type | Air cooled |

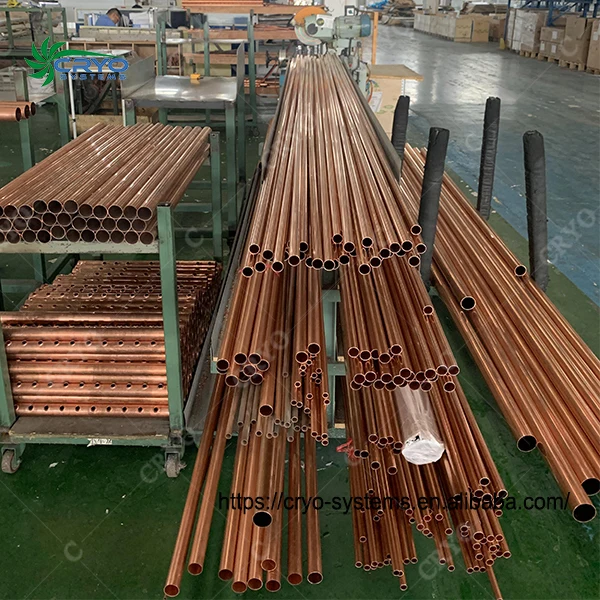

| Condenser | Copper pipe |
| Climate Class | SN, N, ST, T |
| OEM Service | Yes |
| After Warranty Service | Video technical support |
| Selling Units | Single item |
| Single Package Size | 240X200X200 cm |
| Single Gross Weight | 515.0 kg |
Product Details

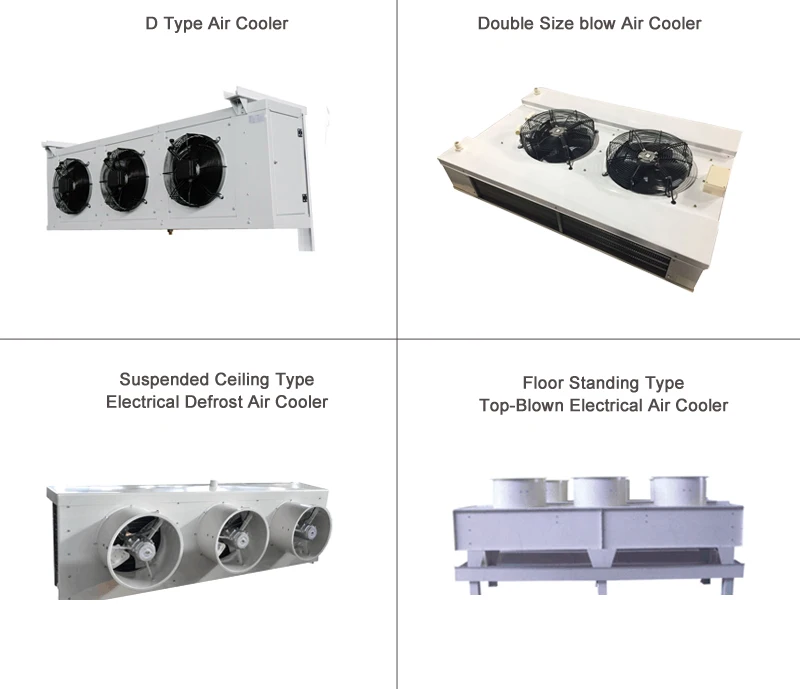

DL air cooler for -5~+5 degree C, mainly used for chiller room.
DD for -15~-25 degrees C, mainly used for freezer room.
DJ for -25~-40 degrees C, mainly used for blast freezer room
Material | Cabinet of magnalium steel, corrosion-proof |

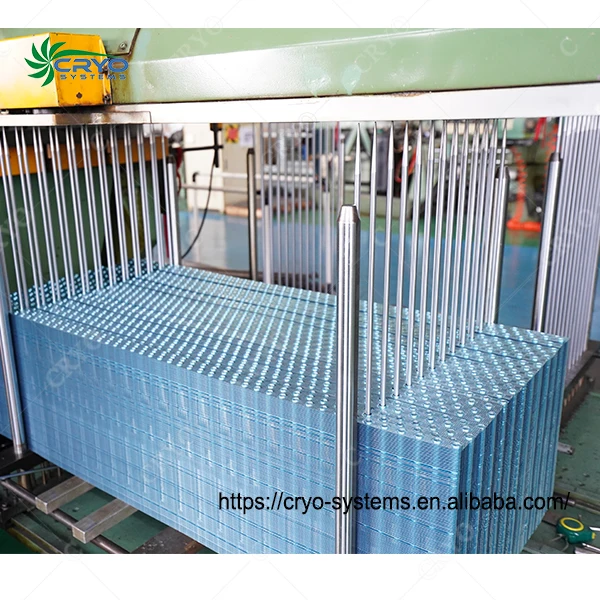

Fin | Mechanically expanded pipes with Aluminium fins |
Fin space | 4.5mm, 6.0mm and 9.0mm |
Refrigerant | R22, R404A, R507A, etc |
Defrosting | Electric, water & hot gas defrost |
Capacity | 4775 to 300250BTUH（DD）; 7500 to 41600BTUH（DL）; 5800 to 197900BTUH（DJ） |
2. High efficiency staggered fin pattern design
4. Optimized airflow to reach max Capacity
5. Double drip tray design, avoid water condensation
6. Inner groove tube can improve heat transfer efficiency
7. Long distance air throw is optional
8. Double water receivers, more stable

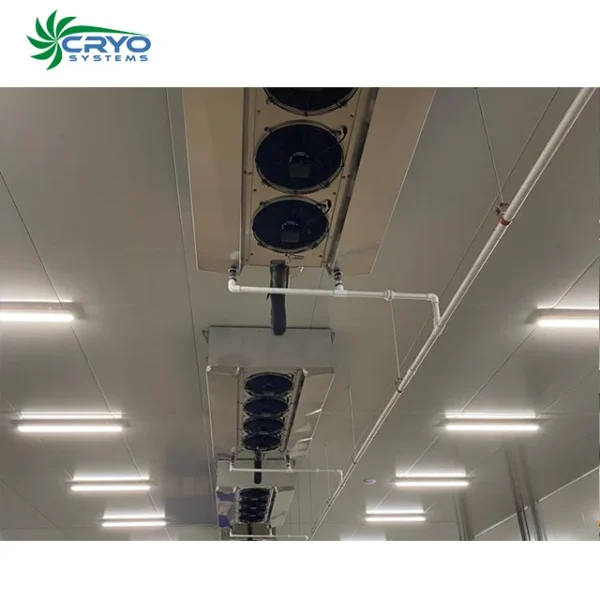

Cold room with 12 HP Air cooler in Tanzania

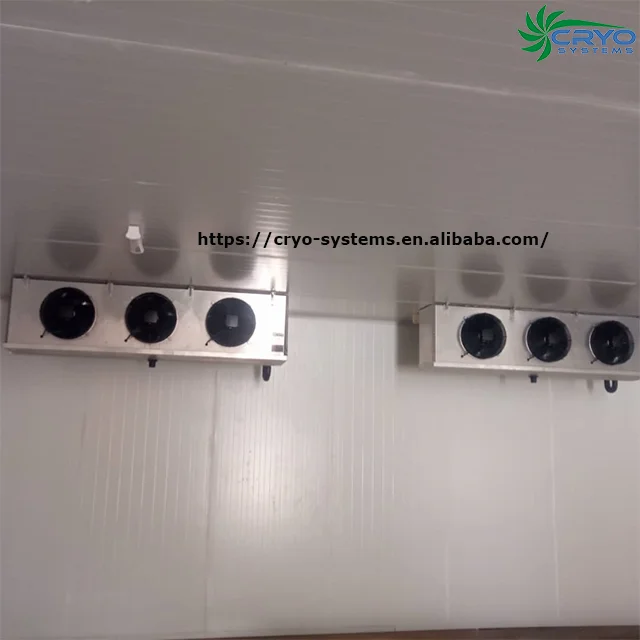

Small cold room in Pakistan with air cooler

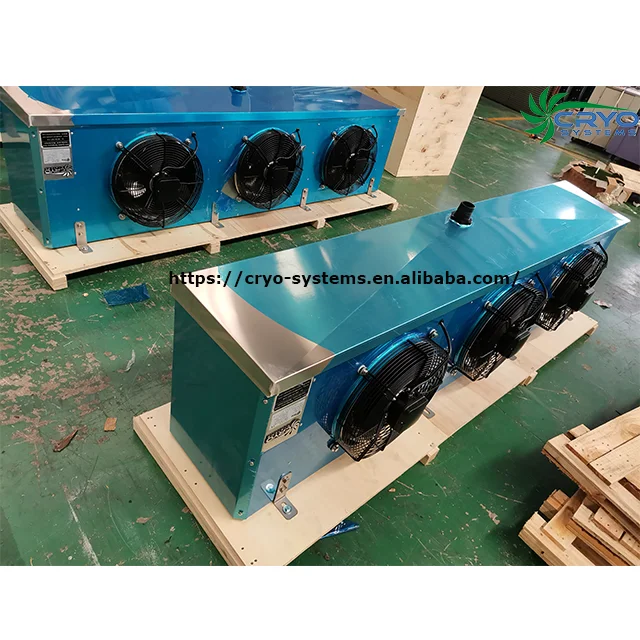

95% of the units are with standard plywood package. XQ series condensing unit, small evaporator and condensers are with carton package. Can be updated to plywood.
Packaging details: in plywood box
Delivery details: 28 days after deposit received.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $4500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this side blowing air cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the side blowing air cooler be supplied for my local voltage?
The standard configuration is 380V/3P/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
