Source pool heat pump — power supply 220-240V/1Ph/50~60Hz;380-400V/3Ph/50~60Hz, power source Electric. The complete factory specification follows. Made by Guangzhou Pool World Environmental Technology Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Source Pool Heat Pump
- Model Number: PW30-DY-DC
- Power Source: Electric
- Power Supply: 220-240V/1Ph/50~60Hz;380-400V/3Ph/50~60Hz
- Housing Material: Metal Casing
- Refrigerant: R32
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Application | Outdoor, Hotel, Commercial, Household |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Metal Casing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Private Mold | Yes |
| Place Of Origin | Guangdong, China |
| Brand | Pool World |
| Model Number | PW30-DY-DC |
| Working Ambient Temperature | -15~43℃ |
| Feature | Top Air Outlet |
| Refrigerant | R32 |
| COP | 5.5~8.0 |
| Heat Exchanger | Titanium Heat Exchanger |
| Sound Level | 40~49dB(1m) |
| Certification | CB/CE/EMC/Emf/GS/LFGB/RoHS/SASO, etc |
| Power Supply | 220-240V/1Ph/50~60Hz;380-400V/3Ph/50~60Hz |
| Controller | LCD Control Panel + WiFi App Remote Control |
| Heat Source | Air Source 75%+electricity25% |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

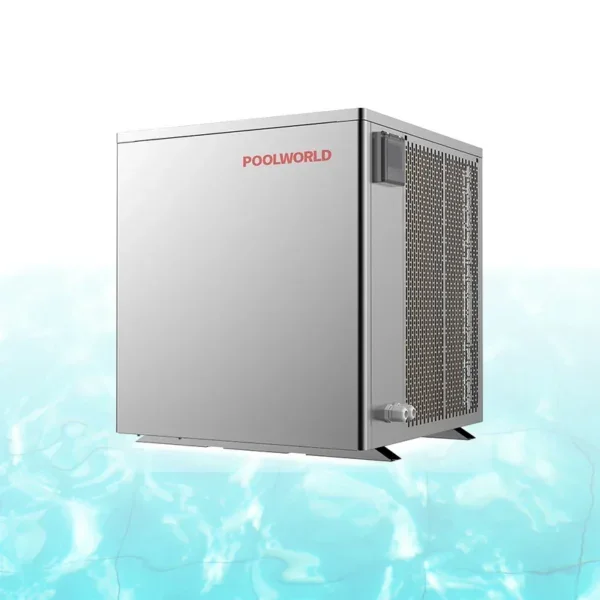

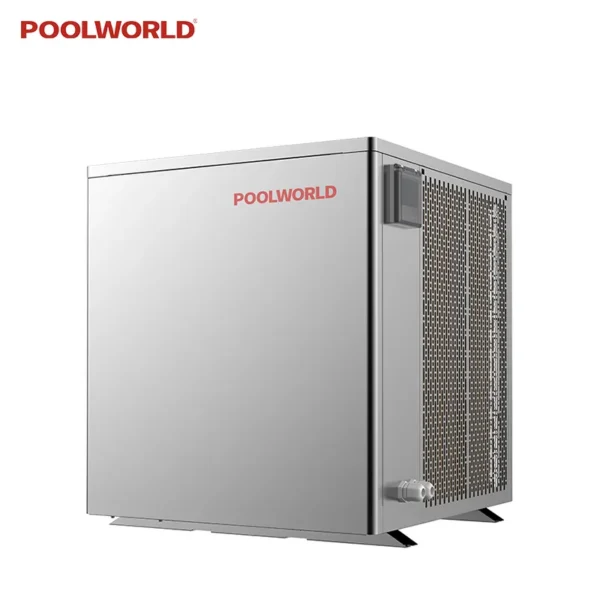

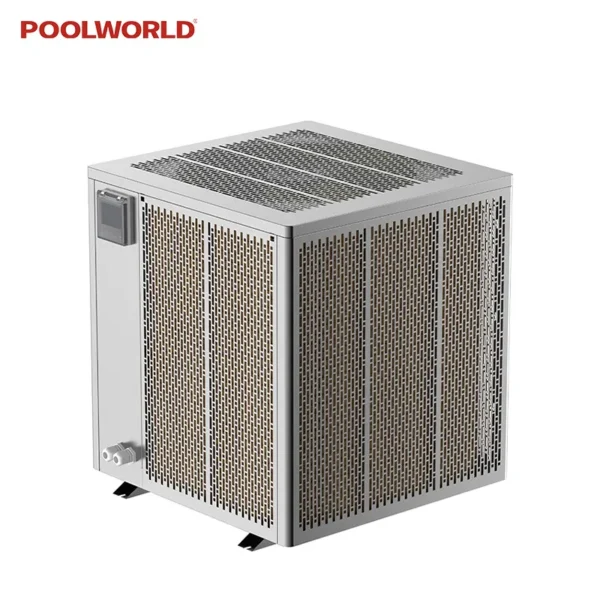

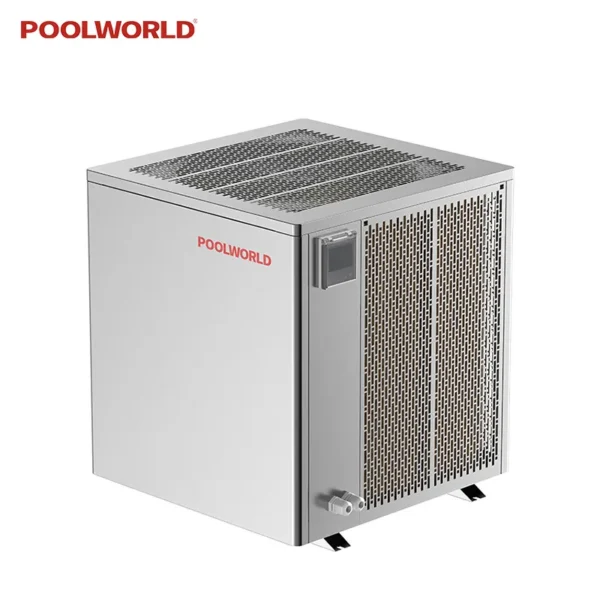

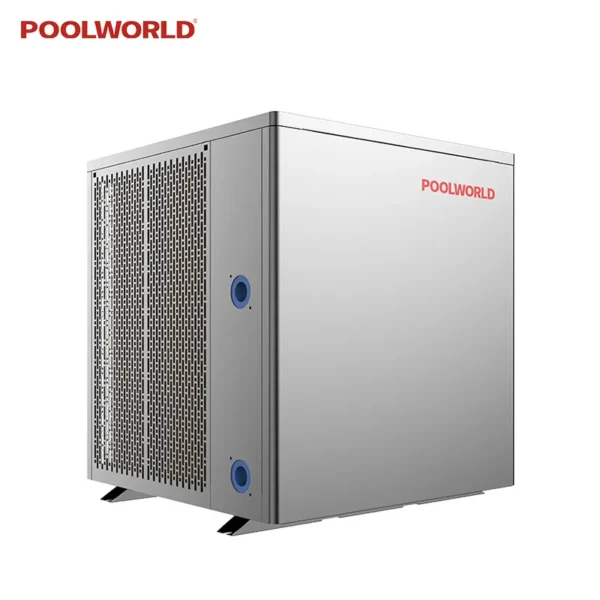

Pool World Ultra series is full inverter heat pump designed for fast heating and cooling of indoor/outdoor swimming pools 25m³ to 120m³, top blowing with much high efficiency.
Features:
1. INVERTER Version (Top Discharge)
2. Heating and Cooling
3. COP as High as 16.2
4. Frosted Silver Sheet Metal Casing & Anti-corrosion
5. R32 Gas Environmentally-friendly & Energy-saving
6. Five-button LCD Display with Waterproof Box
7. APP Control with WIFI Function Standard
8. Silent Operation
9. Intelligent Defrosting
10. Min Working Temperature -10℃
11. Max.Output Temp.:45℃
12. Patent Design
Details Images
Product Paramenters
Model | PW30-DY-DC | PW40-DY-DC | PW50-DY-DC | PW60-DY-DC | PW70-DY-DC | PW70-DY-DC | PW80-DY-DC | |||||||||
Advised pool volume (m³) | m³ | 25~50 | 30~60 | 40~75 | 50~90 | 60~100 | 60~100 | 70~120 | ||||||||
Performance condition: Air 27°C, Water 26°C, Humidity 80% | ||||||||||||||||
Heating capacity | kW | 14.0~3.20 | 17.50~3.50 | 21.5~5.00 | 24.50~5.50 | 28.50~7.00 | 28.50~7.00 | 32.50~7.5 | ||||||||
BTU | 47600~10880 | 59500~11900 | 73100~17000 | 83300~18700 | 96900~23800 | 96900~23800 | 110500~25500 | |||||||||
Power Input(kW) | 1.94~0.20 | 2.50~0.22 | 3.10~0.31 | 3.65~0.34 | 4.20~0.44 | 4.20~0.44 | 5.00~0.48 | |||||||||
COP | 7.2~16.0 | 7.0~15.9 | 6.9~16.1 | 6.7~16.2 | 6.8~15.9 | 6.8~15.9 | 6.5~15.6 | |||||||||
COP at 50% capacity | 12.00 | 12.00 | 12.00 | 12.00 | 12.00 | 12.00 | 11.50 | |||||||||
Performance condition: Air 15°C, Water 26°C, Humidity 70% | ||||||||||||||||
Heating capacity | kW | 10.51~2.48 | 13.0~2.57 | 16.25~3.60 | 19.10~4.2 | 22.5~5.0 | 22.5~5.0 | 25.5~5.5 | ||||||||
BTU | 35734~8432 | 44200~8738 | 55250~12240 | 64940~14280 | 76500~17000 | 76500~17000 | 87720~18700 | |||||||||
Power Input | kW | 1.91~0.31 | 2.40~0.32 | 3.05~0.45 | 3.54~0.53 | 4.17~0.62 | 4.17~0.62 | 4.90~0.69 | ||||||||
COP | 5.5~8.0 | 5.4~8.0 | 5.3~8.0 | 5.4~7.9 | 5.4~8.1 | 5.4~8.1 | 5.2~8.0 | |||||||||
COP at 50% capacity | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 | 7.00 | 6.80 | |||||||||
Power supply | V/Ph/hZ | 220-240 / 1 / 50-60 | 220-240 / 1 / 50-60 | 220-240 / 1 / 50-60 | 220-240 / 1 / 50-60 | 220-240 / 1 / 50-60 | 380-400 / 3 / 50-60 | 380-400 / 3 / 50-60 | ||||||||
Heat exchanger | Spiral titanium in PVC | Spiral titanium in PVC | Spiral titanium in PVC | Spiral titanium in PVC | Spiral titanium in PVC | Spiral titanium in PVC | Spiral titanium in PVC | |||||||||
Fan Direction | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | |||||||||
Compressor Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||||||||
Compressor | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic | |||||||||
Ambient temp. range(℃) | -15~43 | -15~43 | -15~43 | -15~43 | -15~43 | -15~43 | -15~43 | |||||||||
Wifi Module | Include | Include | Include | Include | Include | Include | Include | |||||||||
Sound level at 10m dB(A) | 18.5~27 | 22.0~27.5 | 22.5~29.5 | 23~30 | 23.5~31 | 23.5~31 | 24~32 | |||||||||
Sound level at 1m | dB(A) | 40~49 | 40~50 | 42~51 | 43~52 | 43~53 | 43~53 | 43~54 | ||||||||
Sound level at 1m (50% capacity) | dB(A) | 44 | 45 | 45 | 46 | 46.5 | 46.5 | 47 | ||||||||
Water Connection | mm | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||||||||
Advised water flux | m³/h | 4~6 | 6~8 | 7~9 | 8~10 | 9~11 | 9~11 | 10~12 | ||||||||
Shipping dimension (L*W*H) | mm | 700*708*752 | 745*824*852 | 895*904*912 | ||||||||||||
Recommend Products
Company Profile
Guangzhou Pool World Environmental Technology Co., Ltd.
Guangzhou Pool World Environmental Technology Co., Ltd. specializes in heat pump R&D, manufacturing and providing comprehensive energy-saving heating solutions to worldwide market since 2008, complied with ISO9001 and ISO14001 quality management certificates. Located in Dongguan, China, our factory manufactures all kinds of heat pumps including swimming pool heat pumps, Heating & Cooling & DHW heat pumps, heat pump water heater, etc. Covering an area of 30,000 square meters, the factory has 4 international laboratories with EN14511 certificates (TUV certificated) and more than 50 R&D professional engineers. We always focus on technical innovation and quality management. As of today, Pool World has obtained 416 patents and been certified by CE, CB, ROHS, and passed the European EN14825 and EN14511 energy efficiency certificate which is complied strictly based on the latest EHPA requirement.
With over 13 years of export experience, working together with suppliers and distributors in their markets, Pool World has rich experience and good knowledge with our professional, worldwide and customer-oriented team are trained to support our partners in finding the right solution that satisfies their requirements. We are conscious that our customers are the most valuable part of our business. Therefore, we focus on giving the product quality and service that exceeds your expectations, with integrity, professionalism, and a teamwork approach.
Pool World will strive to exceed expectations, boost enterprise energy conservation and promote environmental protection as we insist all the time.
Certifications
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory with 30,000 sq meters modern factory.
A: We are R&D and manufacturer factory with 30,000 sq meters modern factory.
Q: Do you accept OEM & ODM?
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can provide product certification requirements for local markets; provide catalogs,technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: How about the channel management?
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: How about the channel management?
A: We are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer Pool World’s own brand products and services to dealers.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9 piece: US $952 / piece
- 10–49 piece: US $928 / piece
- 50+ piece: US $869 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this source pool heat pump?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this source pool heat pump carry?
It is supplied with CB/CE/EMC/Emf/GS/LFGB/RoHS/SASO, etc documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the source pool heat pump be supplied for my local voltage?
The standard configuration is 220-240V/1Ph/50~60Hz;380-400V/3Ph/50~60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
