This air handling units is published with the manufacturer’s full specification — 4 kW, power source Electric. Made by Guangzhou Pool World Environmental Technology Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Air Handling Units
- Model Number: PW08-CY-F
- Power Source: Electric
- Heating Capacity: 4 kW
- Housing Material: Galvanized Sheet
- Material: Galvanized Sheet
- Refrigerant: R32
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 4 kW |
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | Instant / Tankless |
| Compressor | Scroll Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Galvanized Sheet |
| Feature | Eco-Friendly, Easy Installation, Energy-Saving, Easy Operation, Safe, High Efficiency |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Logo/Graphic Design | Silk Screen Printing, Laser Printing, Hot Stamping, Inkjet Printing, UV printing, Heat-Transfer Printing, 3D Printing |
| Packaging Types | Corrugated Box, Color Box, Gift Box |
| Place Of Origin | Guangdong, China |
| Brand | Pool World |
| Model Number | PW08-CY-F |
| Function | Swimming Pool Heating Cooling |
| Heat Exchanger | Titanium Heat Exchanger |
| COP | 5 |
| Heat Source | Air Source 75%+electricity25% |
| Sound Level | 52dB(1m) |
| Material | Galvanized Sheet |
| Evaporator | Finned Tube Heat Exchanger |
| Controller | WIFI Control |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

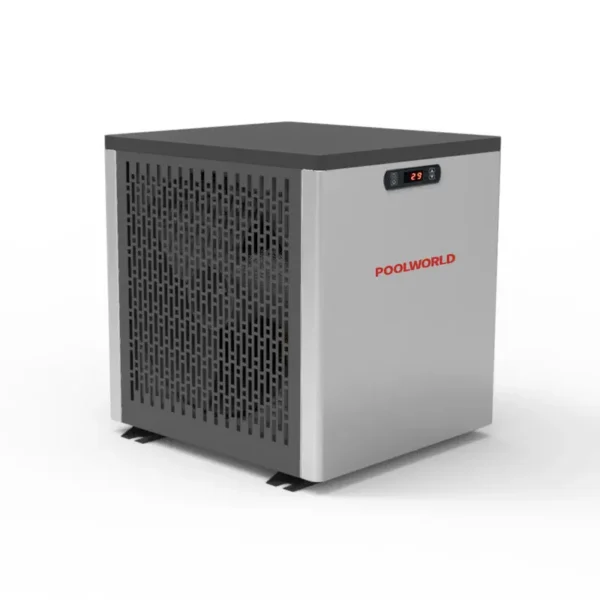

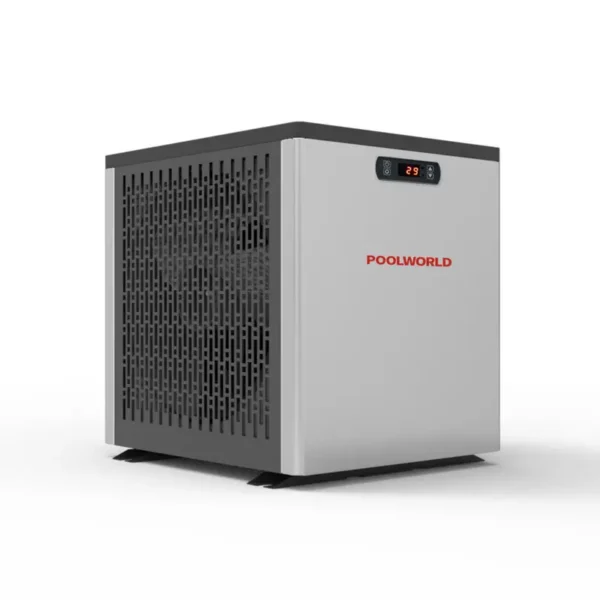

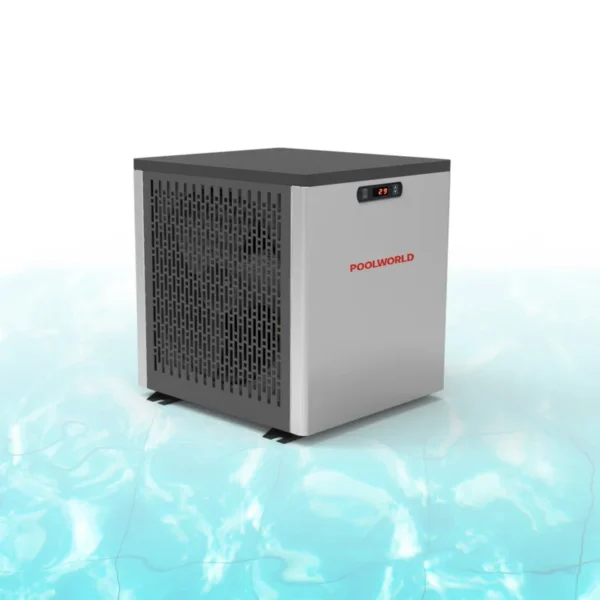

Mini Pro Series Swimming Pool Heat Pump
The Mini Pool Heat Pump is a new model available in the pools & spa market. It is featured by quick installation without previous installation or specifying a by-pass.
It is a Plug & Play product that is placed on the same circuit as the pool filtration.
They are very economic and effective pool heat pumps.
The range of ON/OFF Mini Pro Series, which is featured by quick start & fast heating, is composed of 4 models for pools & spas up to 15m³, 20m³, 22m³, and 25m³. It can be installed for any type of pool: wood, steel, composite, inflatable, or tubular and also adapts to small and medium pools.
Main Features
INVERTER VS ON/OFF
* Different control panel, ON/OFF model is a rectangular design, while INVERTER model is an oval design.
* Different COP, ON/OFF model reaches as high as 5.4, INVERTER model reaches as high as 9.6.
* Different frequency, ON/OFF model can only be 50Hz, while INVERTER model can reach 60Hz.
* Different noise level, ON/OFF model is 45dB, while INVERTER model is 46 dB.
* Different COP, ON/OFF model reaches as high as 5.4, INVERTER model reaches as high as 9.6.
* Different frequency, ON/OFF model can only be 50Hz, while INVERTER model can reach 60Hz.
* Different noise level, ON/OFF model is 45dB, while INVERTER model is 46 dB.
Our Advantages
Thanks to the patented silent design, it makes a quieter swimming environment and a friendly neighborhood for you. The sound level is only 45 dB.
ANTI-CORROSION CASING
The product adopts a screwless design as a whole. The color of the unit is uniform, which means a minimalist design style. Regarding the color of the unit, it also provides customers with several colors of anti-corrosion spraying materials to choose from. With the precise spraying process, the galvanized steel unit has ultra-high corrosion resistance.
PLUG & PLAY
With the compact size and powerful LED panel, the plug & play and quick installation & start of this product bring a more comfortable and more convenient experience to our customers.
APP CONTROL
The Wi-Fi function is built into the control panel.
When you want to adjust the temperature of the swimming pool from a certain distance, as long as you configure the network for the unit when you use it for the first time, just click on the APP on your phone, and then you can control it from anywhere on the earth, but you need to make sure that your phone is connected to the Internet, and then you can change the temperature or other settings as needed.
Product Paramenters
Model | PW08-CY-DCF | PW15-CY-DCF | ||
Advised pool volume (m3) | 10~20 | 15~25 | ||
Operating air temp. (℃) | -5~43℃ | |||
Performance Condition: Air 27°C, Water 26°C, Humidity 80% | ||||
Heating capacity (kW) | 4.0~1.0 | 5.5~1.4 | ||
Heating capacity(Btu) | 13600~3400 | 18700~4760 | ||
Consumed power (kW) | 0.8~0.11 | 1.1~0.15 | ||
COP | 5.0~9.5 | 5.0~9.6 | ||
Performance Condition: Air 15°C, Water 26°C, Humidity 70% | ||||
Heating capacity (kW) | 2.5~0.65 | 3.7~0.8 | ||
Heating capacity(Btu) | 8500~2210 | 12580~2720 | ||
Consumed power (kW) | 0.6~0.1 | 0.9~0.13 | ||
COP | 4.0~6.1 | 4.0~6.0 | ||
Performance Condition: Air 35℃,Water 28℃, Humidity 80% | ||||
Cooling capacity (kW) | 2.0 | 3.3 | ||
Sound pressure at 1m dB(A) | 46 | 48 | ||
Sound pressure at 10m dB(A) | 30 | 32 | ||
Heat exchanger | Spiral titanium tube in PVC | |||
Casing | Metal Casing | |||
Power supply | 220 ~240V/1Ph/50Hz~60Hz | |||
Water connection (mm) | Φ32 | |||
Rated input current at air 15℃(A) | 2.6~0.4 | 3.9~0.57 | ||
Water flow volume(m³/h) | 1.5-2.0 | 2.0-2.5 | ||
Water pressure drop (max) kPa | 2 | 4 | ||
Net weight/Gross weight(kg) | 26/28 | 34/37 | ||
Net size(mm) | 394*444*435 | 498*499*500 | ||
Package size(mm)(carton) | 420*510*485 | 555*576*542 | ||
Package size(mm)(Polywood) | 437*510*475 | 572*576*545 | ||
Loading QTY (20GP/40GP/40HQ) | 208/416/520 | 144/288/288 | ||
Refrigerant consumption(g) | 180 | To be pending | ||
Refrigerant | R32 | |||
Compressor type/QTY | Rotary type/1 | |||
Defrosting | By four-way valve | |||
Throttle device | Electronic expansion valve | |||
Operating water temp. (℃) heating | 9 ~43 | |||
Operating water temp. (℃) cooling | 9 ~35 | |||
Note: The data above is for reference only. Please refer to the nameplate on the unit for more specific data. | ||||
Recommend Products

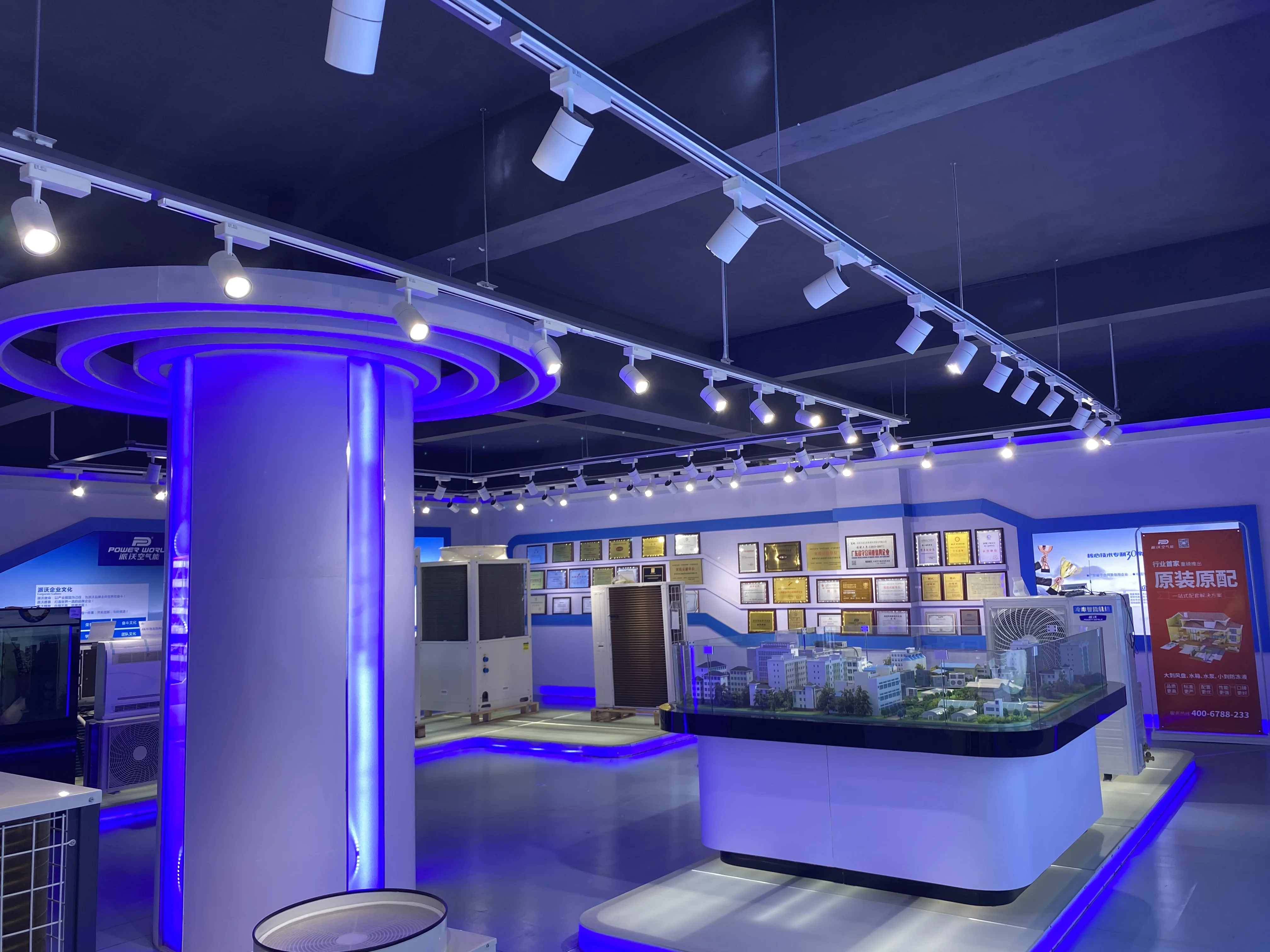

Company Profile
