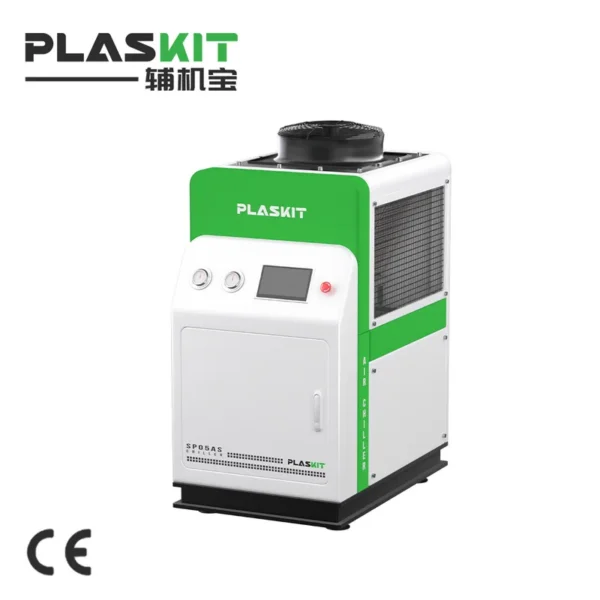

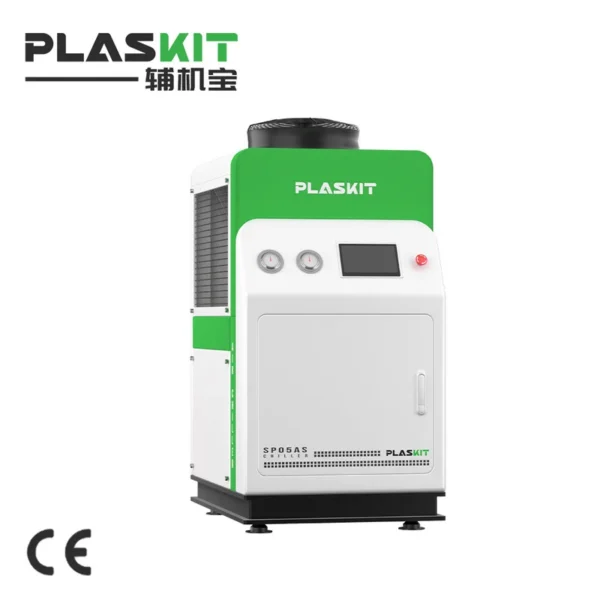

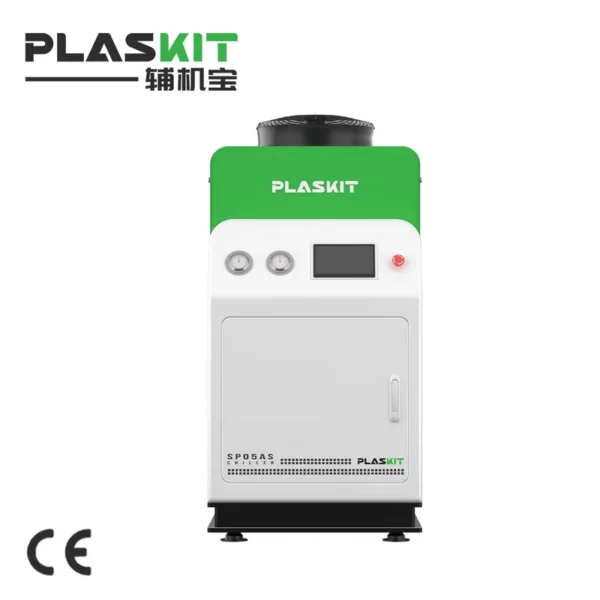

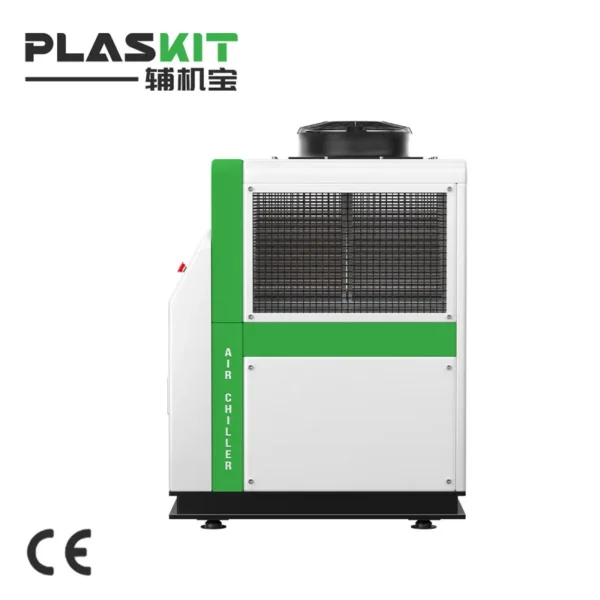

Sp-05 Air Cooled Chiller, 5HP, Plastic

Key specification for this sp-05 air cooled chiller: 380 V, 110 V, 220V Electrical Equipment, power 15.9, 31.7, 46, 63.4, 95.1, 130.0, 150.0. Everything below is reproduced from the factory data sheet. Made by Plaskit Equipment (suzhou) Co., Ltd. (1 year on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Sp-05 Air Cooled Chiller

• Model Number: SP-05, Accessories
• Power: 15.9, 31.7, 46, 63.4, 95.1, 130.0, 150.0
• Voltage: 380 V, 110 V, 220V Electrical Equipment
• Material: Stainless Steel
• Refrigerant: R407C
• Warranty: 1 Year

Technical Specifications

Product Details

Products Description

INDUSTRIAL WATER CHILLER

PLASKIT Box-Type Industrial Water Chiller is a high-performance refrigeration device designed for demanding industrial environments. Available in both air-cooled and water-cooled configurations, it achieves rapid cooling and precise temperature control through advanced heat exchange technology.Engineered for durability, it features world-renowned brand components, a stainless steel water tank,and high-lift dedicated pumps.

Box-type Air cooled chiller is an industrial refrigeration device that uses air as the cooling medium. Its core function is to achieve rapid cooling and precise temperature control through the principle of heat exchange, eliminating the need for external cooling towers and supporting outdoor installation and operation, making it adaptable to various industrial scenarios.

Box-type water cooled chiller is an industrial refrigeration device that integrates a shell-and-tube condenser with a built-in water tank. It achieves precise temperature control through water-cooled heat exchange and is widely used in fields such as plastic processing and CNC machine tools.

Specification

Air Cooled Chiller
Type					PC-05WSZ	PC-10WSZ	PC-15WSZ	PC-20WDZ	PC-30WTZ	PC-40WQZ	PC-50WQZ
Nominal cooling capacity			kW	15.9	31.7	46.0	63.4	95.1	130.0	150.0
				104kcal/h	1.4	2.7	4.0	5.5	8.2	11.2	12.9
Machine power(kW)					3.8	7.2	11.2	14.5	21.6	28.9	33.3
Machine operating current(A)					8.0	14.1	23.1	28.2	42.1	56.3	62.4
Compressor	Quantity			1	1	1	2	2	4	4
		(kW) Refrigeration input power			3.2	6.5	10.1	13.0	19.4	25.9	29.3
		(A) Rated Current			6.9	12.6	20.9	25.2	37.7	50.3	54.4
Evaporator	Type			Pipe dry high efficiency heat exchanger
		(L/min) Flow			46	91	132	182	273	373	430
		Interface size			DN32	DN40	DN50	DN50	DN65	DN65	DN65
Condenser	Type			Pipe dry high efficiency heat exchanger
		(L/min) Flow			55	109	161	219	328	447	514
		Interface size			DN32	DN40	DN50	DN50	DN65	DN65	DN65
Chilled water pump	Type			High efficiency,low noise centrifugal water pump
		(kW) Input power			0.55	0.75	1.10	1.50	2.20	3.00	4.00
		(mH20) Head			22	22	23	22	22	22	22
Nominal tank volume(L)					80	130	210	230	310	330	370
Overall dimensions	(mm) Length			1300	1350	1570	1900	2300	2800	2800
		(mm) Width			750	850	1000	1100	1300	1500	1500
		(mm) Height			1000	1200	1100	1300	1580	1550	1550
weight	(kg) Machine weight			150	285	450	830	1250	1350	1550
		(kg) Operating weight			230	415	660	1060	1560	1680	1920

Water Cooled Chiller
Type					PC-05ASZ	PC-10ASZ	PC-12ASZ	PC-15ASZ	PC-20ADZ	PC-30ADZ	PC-40AQZ
Nominal cooling capacity			kW	14.4	29.0	32.7	41.1	58.0	82.2	116.0
				104kcal/h	1.2	2.5	2.8	3.5	5.0	7.1	10.0
Machine power(kW)					4.7	9.7	10.9	14.3	19.4	29.1	38.2
Machine operating current(A)					9.4	17.8	19.5	27.1	35.6	54.2	69.6
Compressor	Quantity			1	1	1	1	2	2	4
		(kW) Refrigeration input power			4.0	8.1	9.1	12.4	16.2	24.7	32.4
		(A) Rated Current			7.7	14.6	16.1	22.7	29.2	45.4	58.4
Evaporator	Type			Pipe dry high efficiency heat exchanger
		(L/min) Flow			41	83	94	118	166	236	333
		Interface size			DN32	DN40	DN40	DN50	DN50	DN65	DN65
Condenser	Type			Efficiency copper pipe and aluminum foil wing heat exchanger
Condensationaxial fan	Quantity of fans			1	2	2	2	4	4	8
		(kW) Fans power			0.2	0.9	1.1	1.1	1.7	2.2	3.6
		(A) Operating current			0.6	1.7	1.9	2.3	3.4	4.6	6.8
Chilled water pump	Type			High efficiency,low noise centrifugal water pump
		(kW) Input power			0.55	0.75	0.75	1.10	1.50	2.20	2.20
		(mH20) Head			22	22	25	23	22	22	22
Nominal tank volume(L)					80	130	130	210	230	310	330
Overall dimensions	(mm) Length			1050	1450	1450	1570	1650	1950	2900
		(mm) Width			700	1000	1000	1000	1450	1450	1500
		(mm) Height			1090	1410	1410	1510	1750	1750	1980
Weight	(kg) Machine weight			180	450	500	700	830	1250	1350
		(kg) Operating weight			260	580	630	910	1060	1560	1680

Process Demonstration

The air-cooled box-type chiller operates through a closed-loop refrigeration cycle. Hot water from external equipment is pumped into the evaporator, where it is cooled by refrigerant flowing through separate tubes. The cooled water returns to the machinery,while the refrigerant absorbs heat and vaporizes.
The vaporized refrigerant is compressed into a high-temperature, high-pressure state and sent to the condenser. Fans dissipate the heat into the surrounding air, causing the refrigerant to condense into a liquid. It then passes through an expansion valve,forming a liquid-vapor mixture that re-enters the evaporator to repeat the cycle.
This integrated design ensures precise temperature control, requires no external cooling towers, and supports outdoor installation—ideal for industrial applications.

The water-cooled box-type chiller uses a closed-loop refrigeration cycle with an external condenser and integrates all other components in a compact box, ensuring efficient heat exchange and precise temperature control without external cooling infrastructure.

The water-cooled box-type chiller uses a closed-loop refrigeration cycle. Hot water is pumped into the evaporator, where it is cooled by refrigerant, and then returns to the external system.
The refrigerant absorbs heat, vaporizes, and is compressed into a high-pressure gas. It enters the external condenser, where cold water removes the heat, causing the refrigerant to condense. The liquid then passes through an expansion valve and re-enters the evaporator to cool more water.

Core Component Highlights

Scroll Hermetic Compressor

International brand fully hermetic scroll compressor delivers exceptional performance with minimal maintenance requirements.

• High energy efficiency ratio (EER)

• Ultra-low noise & vibration

• Maintenance-free operation

• Extended service life > 80,000 hours

Shell & Tube Evaporator

High-efficiency shell-and-tube evaporator ensures maximum heat transfer between the refrigerant and process water.

• Large heat exchange surface area

• Copper tube construction

• Easy maintenance and cleaning

• Resistant to fouling and corrosion

High-Efficiency Condenser

The finned condenser, made of copper tubes and hydrophilic aluminum foil fins, removes excess heat from the system.

• Copper tubes, aluminum fins

• Increased heat exchange area

• High thermal conductivity

• Anti-corrosion coating

Expansion valve

Throttling reduces refrigerant to low-temp, low-pressure mixture; flow regulation adjusts based on superheat to prevent issues.

• Throttling and pressure reduction

• Converts liquid to gas-liquid mixture

• Prevents slugging, damage

• Ensures optimal cooling at all loads

Packing & Delivery

Company Profile

FAQ

Q: About your factory ?
A: We are a high-tech enterprise specializing in the research, development, manufacturing, and export of industrial temperature control and material handling auxiliary equipment.

Q: How can we visit Plaskit company and machines?
A: Our factory is in Zhangjiagang City, Jiangsu Province, China. About one hour from Shanghai Pudong International Airport.

Q: Can I use our own brand logo on the products?
A: Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.

Q: How can we guarantee quality?
A: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. Always a pre-production sample before mass production;Always final Inspection before shipment;

Q: May I know the status of my order?
A:Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.

Q: How is your price?
A: We have our own factory not the trading company. There is no middleman between clients and us. We give customers the most favorable price.

Q: What price terms you offer?
A: FOB, CIF, EXW ,LC and other price terms based on your kind request.

Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.

Q: What is the standard of the package?
A: Conventional Export Wooden Crate Packaging or special package according to customer requirements.

Q: Is there after-sales support?
A: 12 Months after B/L date. Any failure occurred within the period due to our responsibility, we'll supply you the spare parts for free, also permanent technical support and consultation all life long for the machines.

Product Paramenters

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–9 unit: US $5000 / unit
  • 10+ unit: US $500 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this sp-05 air cooled chiller?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the sp-05 air cooled chiller be supplied for my local voltage?

The standard configuration is 380 V, 110 V, 220V Electrical Equipment. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Plaskit Equipment (suzhou) Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Plaskit Equipment (suzhou) Co., Ltd. range on HVACR Nexus.
