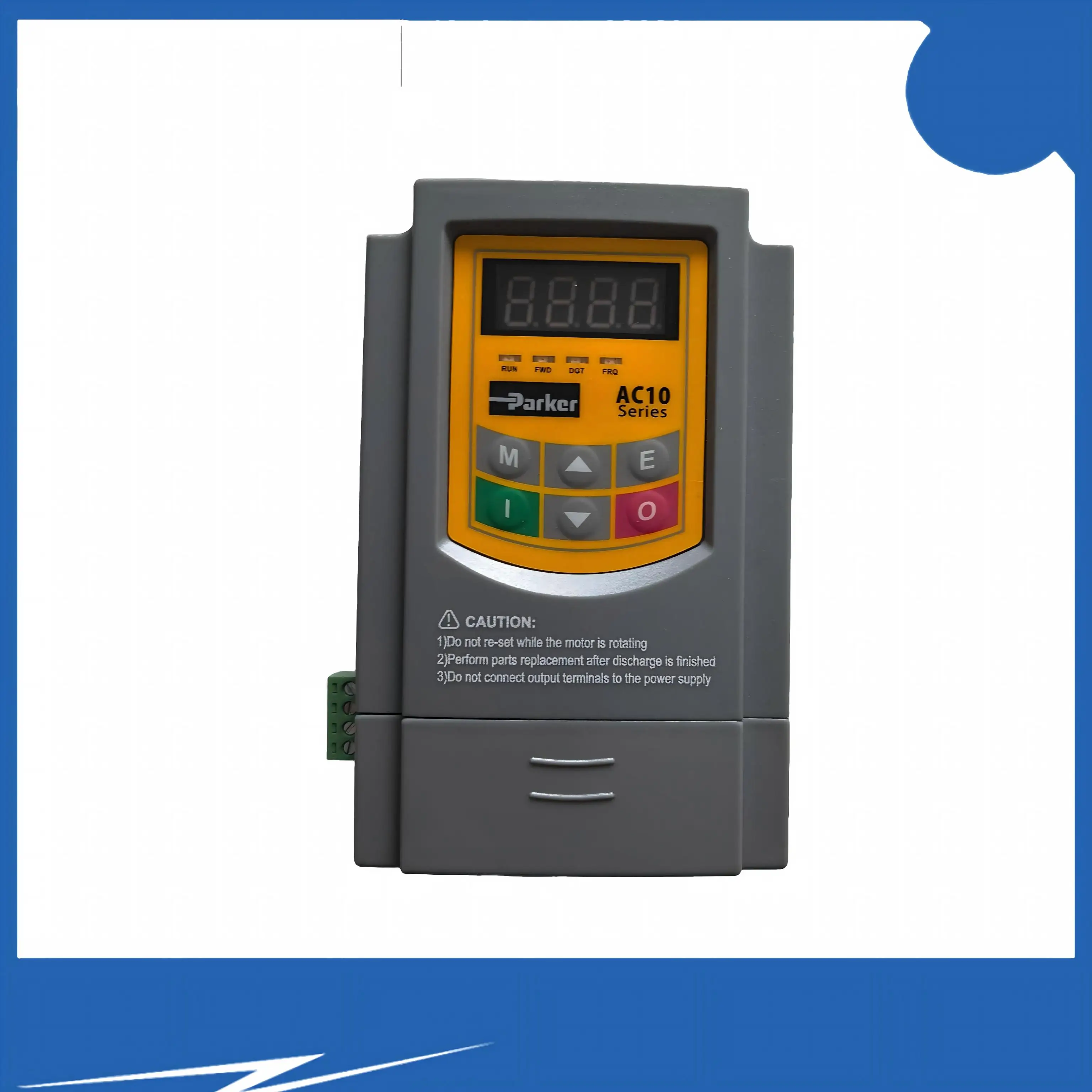

Speed Controllers Regulators, AC10, Inverter, 480V/400V, 1500W

Speed controllers regulators — power phase number Three Phase, type AC Drive. The complete factory specification follows. Made by Sailing Commercial (Tianjin) Co., Ltd. (1 year on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of These Speed Controllers Regulators

• Model Number: 10g-41-0040-Bf-C11
• Power Phase Number: Three Phase
• Rated Power: 1500 W
• Output Power: 2 HP, 1.5 kW
• Nominal Voltage: 400 V, 480V
• Input Voltage: 3*400/480VAC

Technical Specifications

Product Details

Detail picture

Feature

InputRated Voltage Range3-phase 380-480V(+10%,-15%)
1-phase 220-240V(±15%)
3-phase 220-240V(±15%)Rated Frequency50/60HzOutputRated Voltage Range3-phase 0-INPUT(V)Frequency Range0.50～590.0HzControl Mode
Carrier Frequency800~10000Hz;Fixed carrier-wave and random carrier-wave
can be selected by F159.Input Frequency
ResolutionDigital setting:0.01Hz,analog setting:max frequency×
0.1%Control ModeSensorless vector control(SVC),V/Hz controlStart Torque0.5Hz/150%(SVC)Speed-control Scope1:100(SVC)Steady Speed
Precision±0.5%( SVC)Torque Control Precision±5%(SVC)Overload Capacity150%rated current,60 seconds.Torque ElevatingAuto torque
promotion,manual torque promotion
includes 1-20 curves.VHZ Curve3 kinds of modes:quadratic type,square type and user-
defined V/Hz curve.DC BrakingDC braking frequency:0.2-5.00 Hz,braking time:
0.00~30.00sJogging ControlJogging frequency range:min frequency~max
frequency,jogging acceleration/deceleration time:
0.1~3000.0sAuto Circulating Running
and multi-stage speed
runningAuto circulating running or terminals control can realize
15-stage speed running.Built-in PID adjustingEasy to realize a system for process closed-loop controlAuto voltage regulation
(AVR)When source voltage changes,the modulation rate can
be adjusted automatically,so that the output voltage is
unchanged.Operation FunctionFrequency SettingAnalog signal (0～5V,0～10V,0～20mA);keypad
(terminal)▲/▽ keys,external control logic and
automatic circulation setting.Start/Stop ControlTerminal control,keypad control or communication
control.Running Command
Channels3 kinds of channels from keypad panel,control
terminals or RS485Frequency SourceFrequency sources:User terminals,from the MMI(Man-
Machine Interface)or via RS485.Auxiliary frequency Source5 optionsOptionalBuilt-in EMC filter,built-in braking unitProtection
FunctionInput phase loss,Output phase loss,input under-voltage,DC over-voltage,over-
current,inverter over-load,motor over-load,current stall,over-heat,external
disturbance,analog line disconnected.MMI
DisplayLED seven segment display showing output frequency,rotate-speed(rpm),output
current,output voltage,DC bus voltage,PID feedback value,PID setting value,linear-
velocity,types of faults,and parameters for the system and operation;LED indicators
showing the current working status of inverter.Environment
ConditionsEquipment LocationIn an indoor location,Prevent exposure from direct
sunlight,from dust,from caustic gases,flammable
gases,steam or other contamination.Environment Temperature-10℃~+40℃ (50℃ with derating)Environment HumidityBelow 90%(non
condensing)Vibration StrengthBelow 0.5gHeight above sea level1000m or below(3000m with derating)Environment3C3 conformance
Protection levelIP20Applicable Motor0.2～180kW

Item Information

Refer to following figure for the overall connection for AC10 series inverters. Various wiring
modes are available for the terminals whereas not every terminal needs to be connected in
each mode when applied.
Note:
1. Only connect power terminals L1/R and L2/S to supply voltage for single-phase inverters.
2. The contact capacity for 22kW and below 22kW is 10A/125VAC、5A/250VAC、5A/30VDC.
The contact capacity for above 22kW is 10A/125VAC、NO/NC: 3A 250VAC/30VDC.

Markets:

• Miscellaneous Industrial
• Primary Metal Refining/Process
• Rubber & Tire Processing
• Plastic Processing
• Food & Beverage
• Converting
• Web Transfer
• Factory Automation
• Test Rigs
• Miscellaneous Processing
• Ventilation
• Other HVAC
• Water

Applications:

• Extrusion
• Rolling mills
• Metal finishing
• Coating lines
• Forming rolls
• Fan & pump control
• Paper & pulp processing
• Printing
• Hoists and Winches

Datasheet

Input Voltage	3*400/480VAC
Aux Supply Input Voltage:	None
Output kW Rating (Normal Duty):	1.5
Product Type:	AC Drive
Series:	AC10+ Multi-Axis Drive Module
Drive Axis Type:	Single Axis Technology, Multi-Axis Technology
Brake Switch Option:	No
Product Series:	AC10+
Input Voltage:	3*400/480VAC
Special Options:	None
Output Power:	1.5 kW
Compatible Motor Type	Brushless Servo, Frameless Servo, Induction, Spindle, Torque, Permanent Magnet AC (PMAC)
Compatible Feedback Device:	Resolver, Incremental Encoder
Modes of Control:	V/Hz, Sensorless Vector, Closed Loop Vector, Active Front End, Speed Control of Permanent Magnet Motor
Communication Interface	RS232/RS485, CANopen, ControlNet, DeviceNet, Profibus, Profinet, Ethernet TCP/IP
Operating Temperature:	0 to 45 °C for Frames B-F (derate up to 50°C max.), 0 to 40 °C for Frames G-K (derate up to 50°C max.), 32 to 113 °F for Frames B to F (derate up to 122°F max.), 32 to 104 °F for Frames G to K (derate up to 122°F max.)
Operating Altitude:	up to 1000 m ASL (derate > 1000m)
Overload Rating:	Heavy Duty Rating (Constant Torque) : 150% for 60s %, Normal Duty Rating (Variable Torque) : 110% for 60s %, Servo Mode Rating (Frames B-D) : 200% for 4s %, Servo Mode Rating (Frames E-J) : 150% for 60s %
Specifications Met:	CE (EMC & LVD), UL Listed, cUL Listed

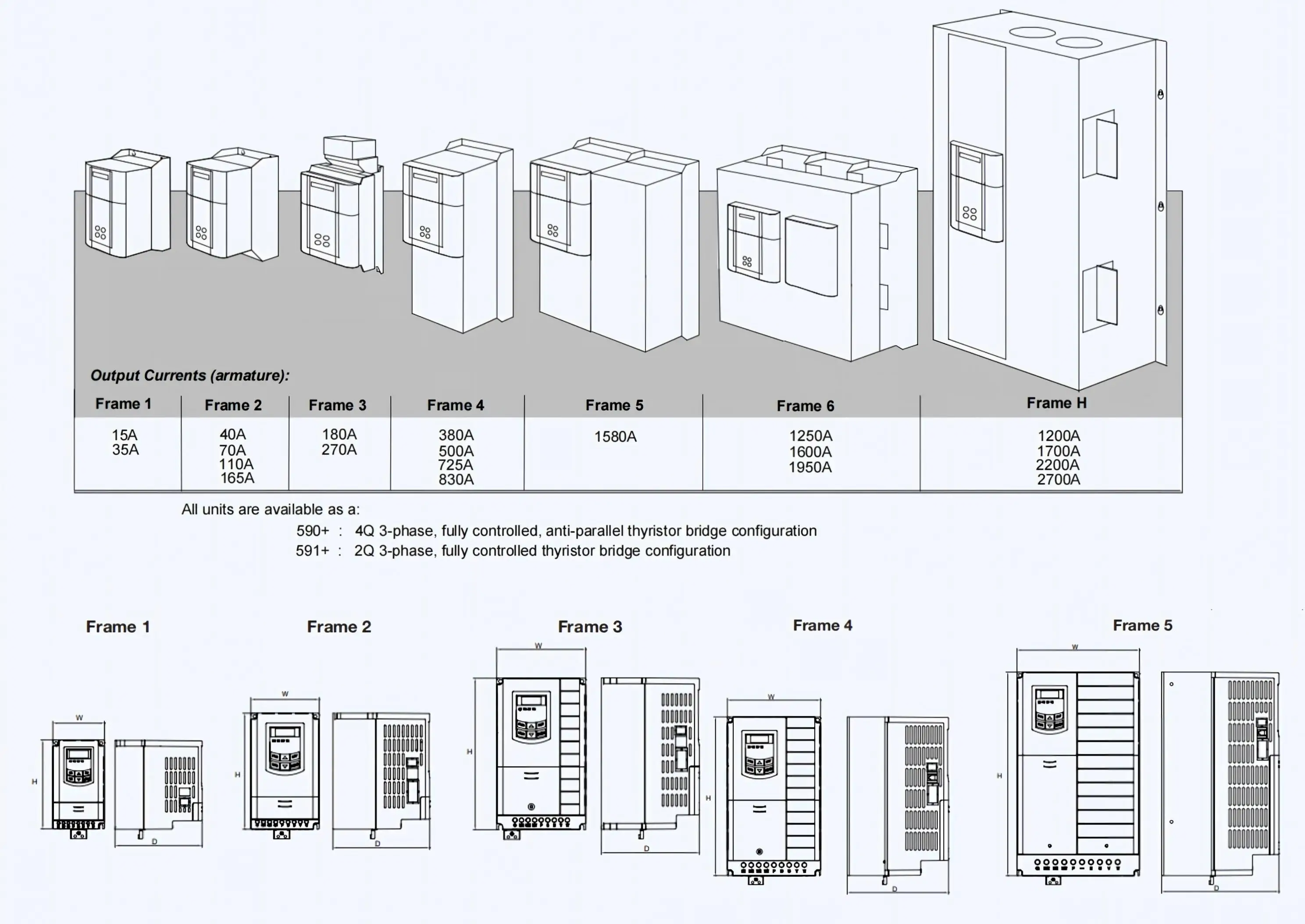

Outline Size

Company Profile

Our Advantages

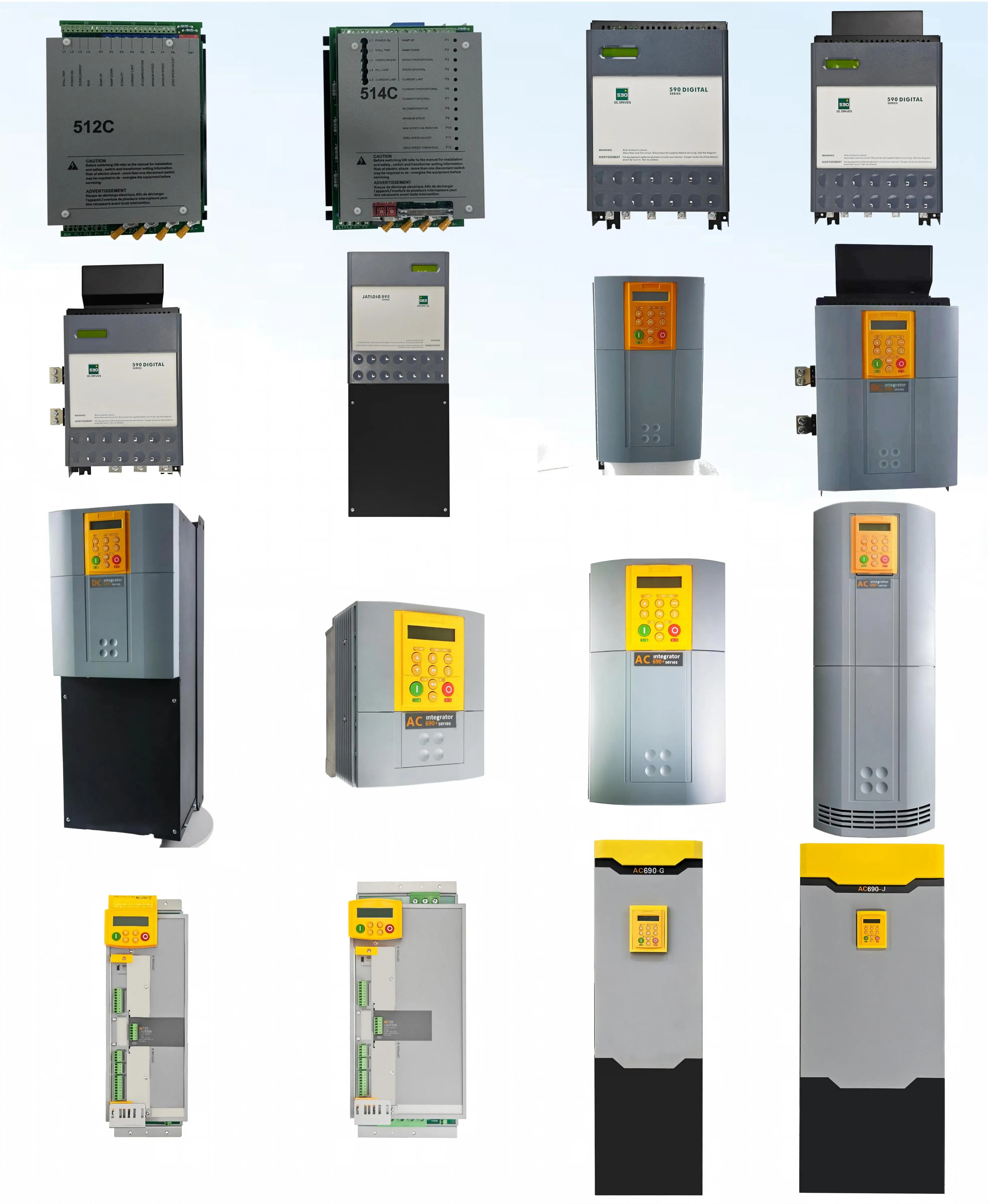

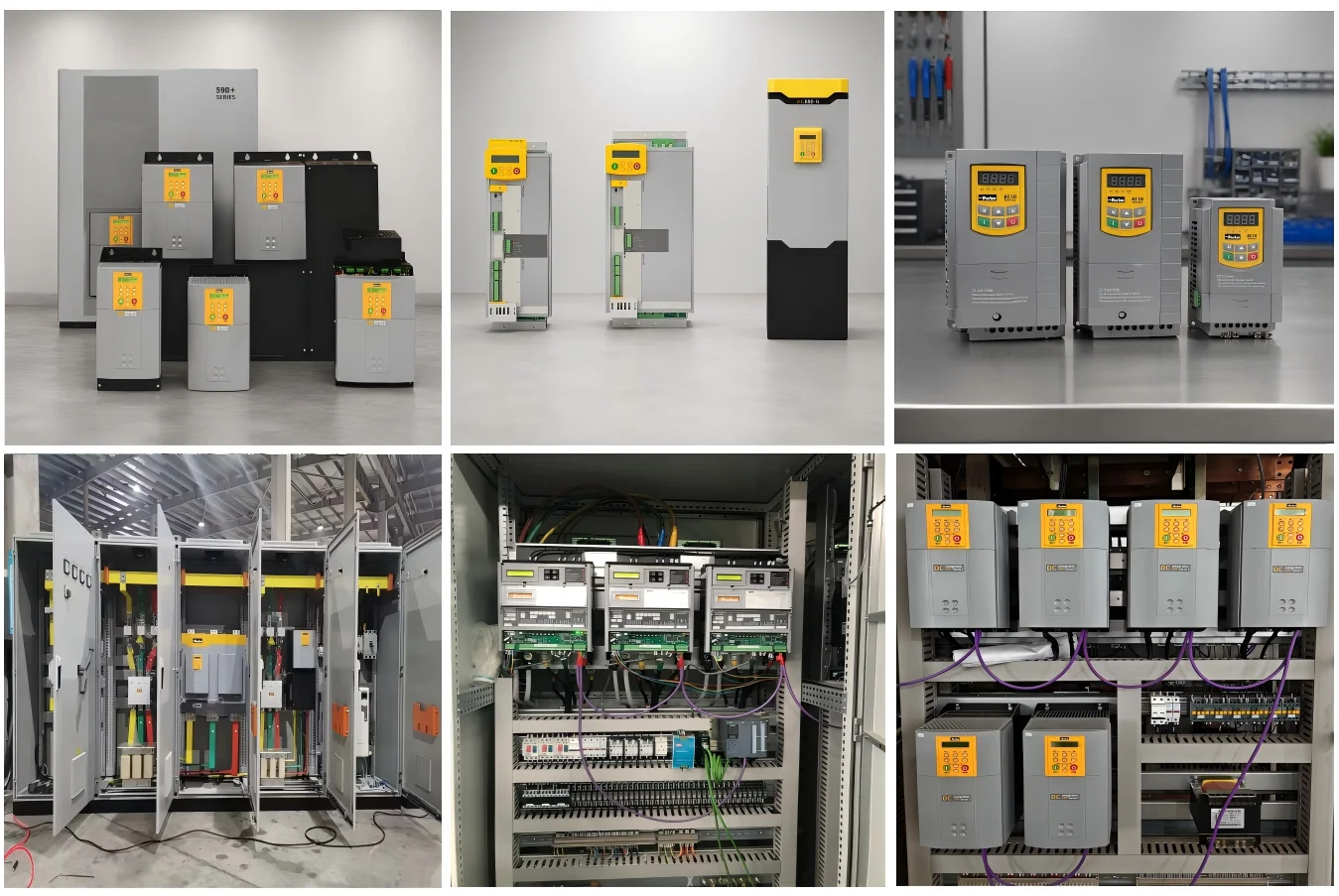

Product Showcase

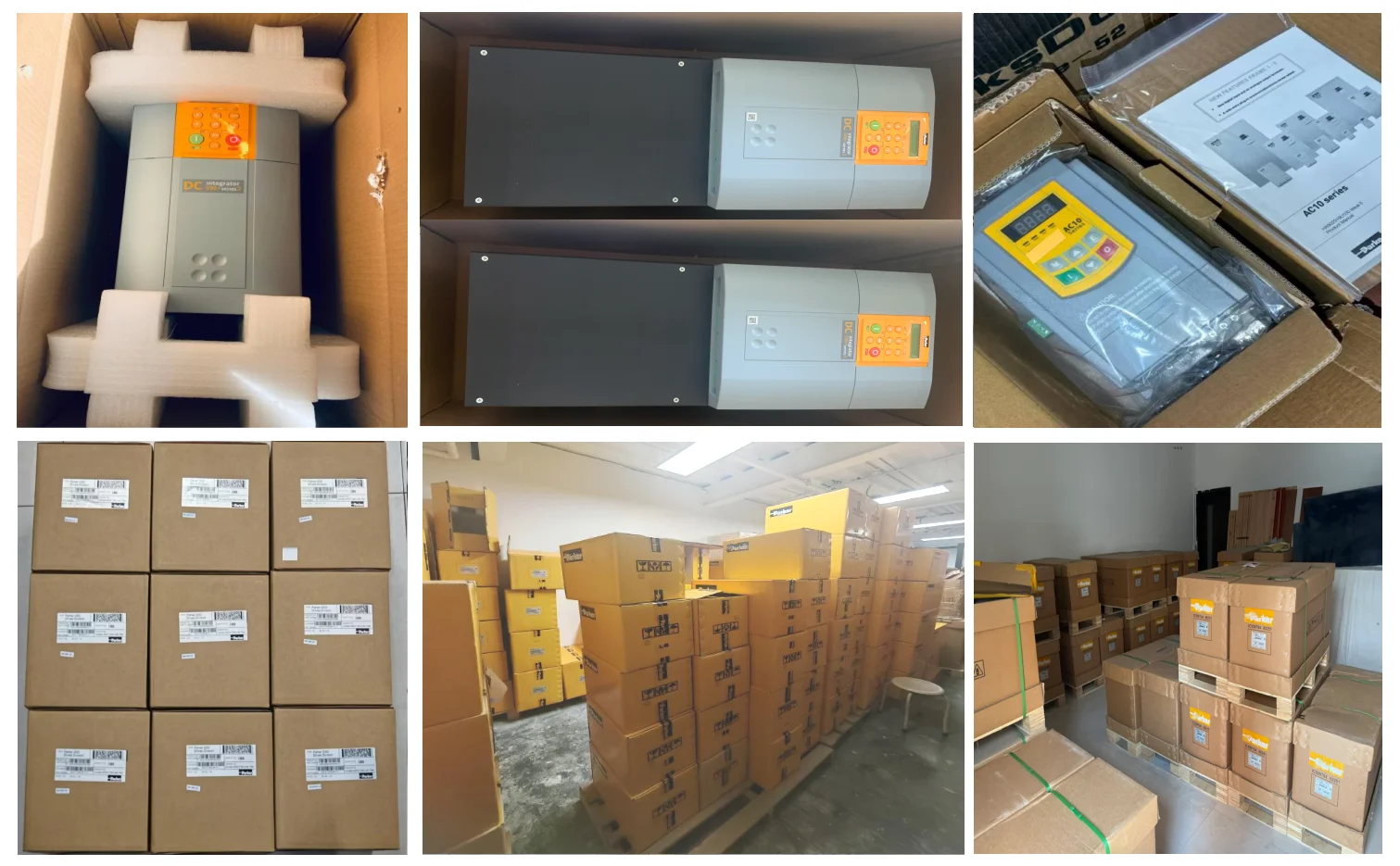

Packing & Delivery

FAQ

1.What information do I need to provide for a quotation?

To give you an accurate quote, please provide: Motor type (AC or DC),Motor power (kW or HP) and voltage rating,For DC motors: armature current and field current,Your required communication protocol (if any), Quantity needed,Destination country and port.

2.What is your lead time?

Standard lead time is typically 3 days after order confirmation, depending on the model and quantity. Custom configurations may take longer. We will confirm the exact delivery date upon order placement.

3. What are your payment terms?

We accept T/T (bank transfer), L/C at sight, and Alibaba Trade Assurance. The products available for immediate purchase usually require 100% advance payment for delivery. For bulk orders, flexible payment terms (including partial deposit) can be discussed. Long-term partners may qualify for flexible terms.

4. What shipping methods are available?

We support sea freight, air freight, express (DHL, FedEx, UPS), and rail freight. You can choose based on cost and delivery time. We also work with forwarders for door-to-door service if needed.

5. What communication protocols are available?

Yes, we fully support OEM/ODM services, including logo printing, packaging design and function modifications. Please share your requirements for a customized solution.

6. Is on-site technical support available?

We provide remote technical support via video call, email, or phone. For large projects, on-site commissioning support may be arranged separately—please discuss with our sales team.

7. Do you provide spare parts and long-term after-sales support?

Yes, we maintain a long-term inventory of spare parts and provide ongoing technical support. Please keep the serial number of your unit for faster service when you contact us.

8. What is the warranty period?

We offer a standard 12-month warranty from the date of manufacture. During this period, we provide free repair or replacement for non-artificial defects.

Ordering and Pricing

• Minimum order quantity: 1 carton
• Volume pricing:
  • 1–9 carton: US $330 / carton
  • 10+ carton: US $310 / carton
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this speed controllers regulators?

The standard minimum order quantity is 1 carton. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Can the speed controllers regulators be supplied for my local voltage?

The standard configuration is 400 V, 480V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
