This speed fan is published with the manufacturer’s full specification — model number MC6-FF1, FF2. Made by Beijing Brade Controls Tech Co., Ltd. (11 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Speed Fan
- Model Number: MC6-FF1, FF2
- Place Of Origin: Beijing, China
- Fan Type: 3 speed FAN
- Valve Type: 0-10V Modulating valve
- Single Gross Weight: 0.0 kg
- Brand Name: BRADE
Technical Specifications
| Model Number | MC6-FF1, FF2 |
|---|---|
| Place Of Origin | Beijing, China |
| Brand Name | BRADE |

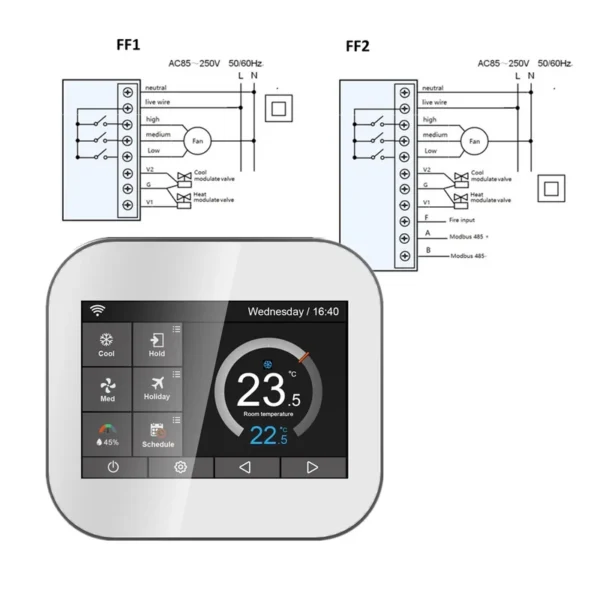

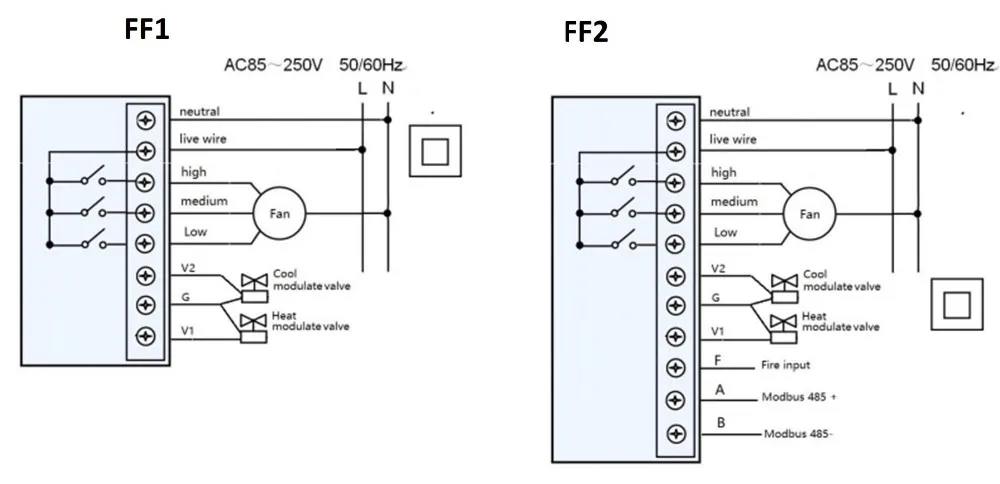

| Pipe Number | 4 pipe cooling and heating |
| Wifi | WiFi connectivity(Option) |
| Fan Type | 3 speed FAN |
| Valve Type | 0-10V Modulating valve |
| Communications | Modbus RTU/TCP (Option) |
| Upgrade | Upgrade On Air |
| Other | Window/Door/Occupy/Fire input(Option) |
| Packaging Details | Packing: 1 Unit / Box Size : 11.0*10.0*6.5 CM 50 Unit/Carton Size : 55*35*27 CM |
| Port Of Dispatch | Tianjin |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 60000 pieces per Month |
Product Details
The MC6 Smart Thermostat has the ability to allow your home even more comfortable and energy efficient. It connects via your router to your Smartphone allowing control of your Comfort-cooling, Heat-pump, Boiler or most other heating and cooling devices, often replacing your existing controls. Using your phone's location, the GEO function automatically pre-cools or pre-heats whilst on your way home and even turns the cooling or heating system temperatures down when everybody has left. You can also manually control your cooling or heating system from wherever you are in the world with the Mobile App on your Smartphone or Tablet. Daily and weekly personalised Timer schedules allow automatic fixed Times and Temperatures to be programmed for easy day to day operation and energy saving.

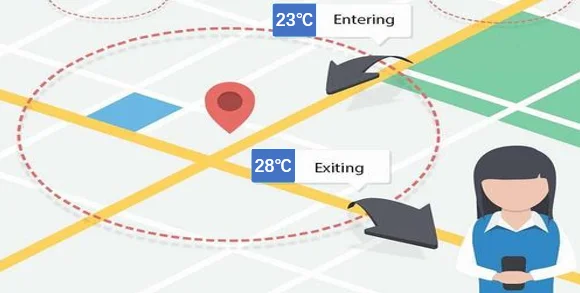

Geo-fencing
Uses your phone's location to automatically adjust the room temperature before you get home and reducing the room temperature when you are away.
Smart Schedule
Set personalised schedules with different temperatures at various times of the day to suit your needs.
Open Window function
The MC6 can detect an open window by registering a rapid drop in temperature. With the function enabled, the thermostat shuts off the heating for 30 minutes if an open window is detected.
Statistic Reports
Track your home temperature, humidity, and device activity with our live App reports.
Multi-room
Control multiple rooms separately or all together with the MC6 App.
Energy Saving Optimum Start
The MC6 calculates the amount of heat up time required to ensure your home is comfortable when you awake in the morning or return home. This is automatically optimised throughout the year to save money
Easy Upgrade
The MC6 has a firmware upgrade function via your internet connection. When a new update is available, your MC6 thermostat will auto/manually download and upgrade.
Auto Dimming
The MC6 Display can be programmed to automatically dim in low light – making the MC6 perfect for bedrooms.
Thermostat or Timer mode
The MC6 can work as a Timer and Room Thermostat or Timer (the MC6 ignores the room temperature and works as a ON/OFF Scheduled Timer – for example, to control multiple rooms or zones with their own independent temperature controls).

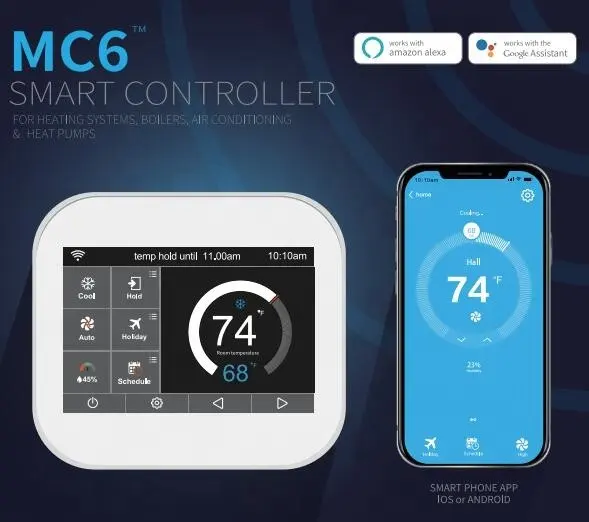

APP Easy operation
The MC6 controls the home heating/AC/heat pump system via connecting to your home Wi-Fi. Simply operate on the App ( For iOS 10, Android 5, or above)
Compatibility
The MC6 thermostat can control multiple systems: For example: Boilers, Automatic Valves, Underfloor Heating, Radiator systems, Water heating, Electric heating, Fan Coils and Heat Pumps.

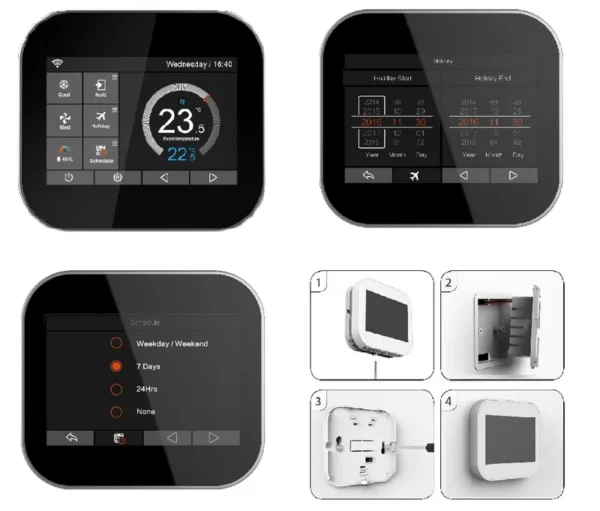

Multi Installation type
MC6 supports both surface mounted and flush mounted.

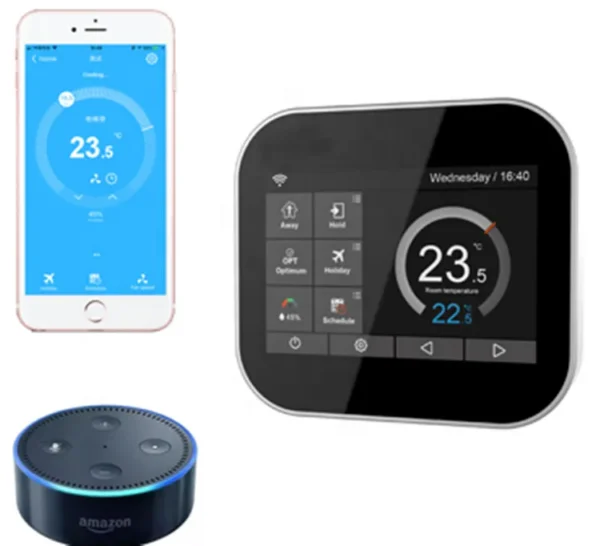

Smart Home Integration
MC6 can also be connected to other devices and services. Control, using Amazon Alexa and Google Assistant ,Modbus RTU is an option for BA systems
Certifications | CE/ISO9001/RoHS, recyclable packaging |
Power supply | AC 24/120/240V 50/60 Htz |
Interface | TFT LCD/320*480/3.5 inches/Capacitive touch |
Sensors | temperature/humidity/ambient light/remote probe |
Relay rating | 240V @ 16amp max |
Smart Schedule | 7days/weekday, weekend/24hours |
Dimensions (W x H x D) | 96 * 86 * 31.5 mm / 3.78 x 3.38 x 0.52 inches |
Plastic | ABS / poly blend – UV stabilised and fire rated |
Weight | 85g / 0.187 lbs |
Warranty | 36 months |
Wireless connectivity | via the local Wi-Fi network with any 802.11 b/g/n, 2.4GHz router |
Communications | Modbus RTU 9.6K, 1 stop bit, 8 data bits, 1 start bit. No parity. |
Data encryption | TLS 1.2 (SSL) |
Product material | PC + ABS plastic, PC plastic |
Languages | English / Chinese / Spain / Italian / Russian / Polish / Czech / German / French/ Slovenski/Swedish/Portuguese |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–999 piece: US $48 / piece
- 1000+ piece: US $35 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this speed fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Brade Controls Tech Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company. Browse the full Beijing Brade Controls Tech Co., Ltd. range on HVACR Nexus.
