Key specification for this spiral freezer: 380 V, 220 V, 110 V, capacity Clients’ Requirements. Everything below is reproduced from the factory data sheet. Made by Zhucheng Huaran Tengye Machinery Technology Co., Ltd (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Spiral Freezer
- Voltage: 380 V, 220 V, 110 V
- Capacity: Clients’ Requirements
- Freezeing Capacity: 100-3000KGHavailable
- Refrigerant: R507
- Warranty: 1 Year
- Certification: ISO9001 CE
Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Temperature Control | -45-0°c |
| Refrigerant | R507 |
| Voltage | 380 V, 220 V, 110 V |
| Compressor Brand | Performer, Sanyo, Fusheng, Copeland, Hitachi, Daikin, TECUMSEH, Frascold, Bitzer, Xumei, DORIN, Maneurop, Emerson, Bristol |
| Warranty | 1 Year |
| No. Of Trays | 1, 3, 5, 7, 10, 12, 14 |
| Door | multiple doors |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Competitive Price, High Productivity, Other, Remote Monitoring, Famous Brand Low Voltage Components, Long Service Life, Remote Control, Patented Product, Energy Saving, Famous Brand Motor, Famous Brand PLC, Low Maintenance Cost, Voice Navigation, Accurate Temperature Control, R410A, Digital, IOT |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 2000 |
| Brand Name | HRTY |
| After-Sales Service Provided | Video Technical Support Online Support |
| Capacity | Clients’ Requirements |
| Compressor | International Famous Compressor |
| MOQ | 1 Set |
| Certification | ISO9001 CE |
| Freezing Techniques | Continuous Freezing |
| Freezeing Capacity | 100-3000KGHavailable |
| Defrost Method | Water Defrost |
| Keywords | Fast Freeze Equipment |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

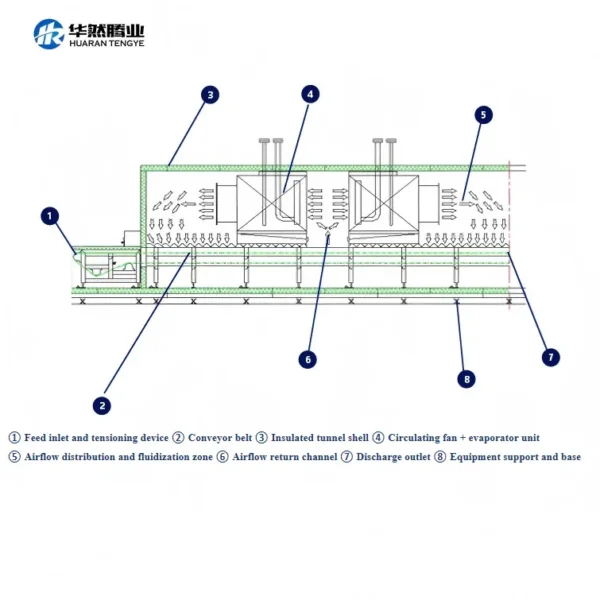

Working Principle: Mechanical vibration + rated air pressure → floating on mesh belt, realizing IQF with no adhesion.
Freezing capacity: 300kg/h to 3000kg/h. It can be adjusted according to your needs.
Frozen berries: blueberry, strawberry, raspberry, blackberry Frozen small vegetables: green peas, sweet corn, broccoli, diced carrot, chopped spinach Seafood: peeled shrimp, scallop, squid ring Potato products: french fries, hash brown, diced potato Diced poultry: chicken dices, chicken popcorn, chicken nuggets Prepared food: dumpling, wonton, spring roll, meat ball
We offer comprehensive after-sales services including on-site installation, equipment commissioning, and professional operation training to ensure our customers can use the equipment properly and efficiently

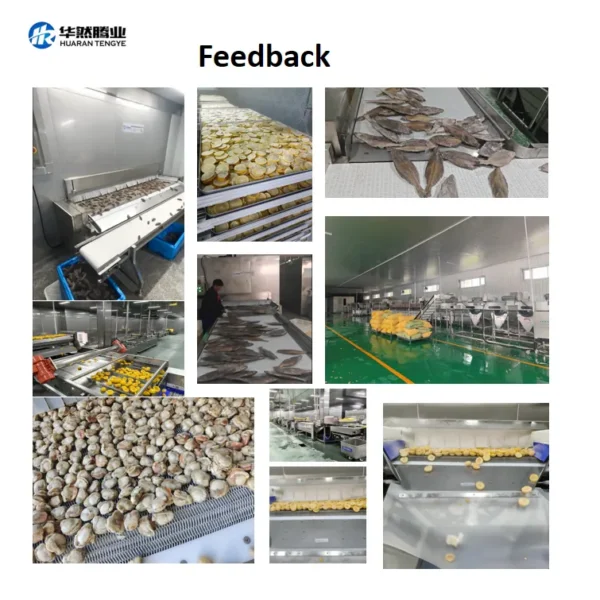

The pictures shown above are feedback shared by our clients.
You can tell us the materials you need to freeze, and we will offer a tailored solution for you.
Product Paramenters
model | capacity(kgh) | size(mm) |
SLD-300 | 300 | 6900*4200*3200 |
SLD-500 | 500 | 8200*4200*3200 |
SLD-1000 | 1000 | 11200*4300*3300 |
SLD-1500 | 1500 | 14200*4300*3300 |
SLD-2000 | 2000 | 17200*4300*3300 |
SLD-3000 | 3000 | 21500*4500*3300 |
Details Images
Insulated storage body and insulated door
1.120mm double-sided stainless steel PU panels, great insulation and hygiene.
2.Tongue-and-groove connection, wind hood avoids cold air loss.
3.Adjustable door, durable and well-sealed.
Mesh Belt & Drive System
1.SUS304 food-grade mesh belt, smooth and durable
2.With vibration device and support rails 3.Stable chains & tension device to avoid
slack and deviation
slack and deviation
4.Fangte gear motor, IP55, variable frequency speed control
5.Direct or chain & sprocket drive
Air Supply & Fans
1.Axial fans with low-temp motors, energy-saving, low noise, stable.
2.Uniform cold air ensures fast, high-quality freezing.
3.Horizontal air supply for better heat exchange.
3.Horizontal air supply for better heat exchange.
4.Evaporator and fans separated for easy maintenance.
5.Die-cast aluminum blades, 304
air duct, IP55 motor.
air duct, IP55 motor.

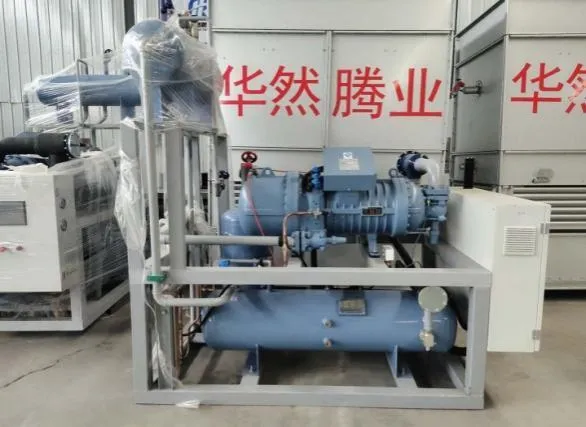

Compressor Unit
1.Equipped with Refcomp screw compressor Complete safety protections & emergency stop 2.High reliability, long service life 3.Easy operation, unmanned running 4.Stable, foundation-free operation 5.Wide adaptability & high efficiency 6.Resists liquid impact 7.Ergonomic design 8.Siphon oil cooling

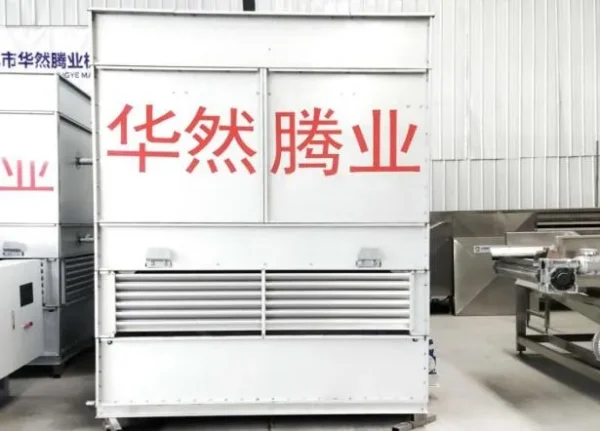

Condenser
1.Energy saving: 15% lower power consumption than other water-cooled condensers. 2.Water saving: Only 10% water usage compared to conventional condensers. 3.Space saving: All-in-one design, small footprint, easy installation. 4.Lower maintenance: Lower condensing temperature extends compressor life.
Company Profile
Zhucheng Huaran Tengye Machinery Technology Co., Ltd
Zhucheng Huaran Tengye Machinery Technology Co., Ltd. is a modern food machinery manufacturer integrating R&D, manufacturing,sales and service.
Its main products include vacuum freeze dryers, quick-freezing equipment, vegetable processing equipment, steaming and thawing equipment, and pasteurization equipment.We also provide complete food processing solutions and turnkey projects.
Why Choose Us
■ 10+ years of professional manufacturing experience ■365-day warranty and lifetime maintenance service ■20,000㎡ studio, 300+ professional production equipment ■100 professional workers, producing over 1500 units per year ■18 professional engineers, 20+ new products/renovations ■200+ customers worldwide ■50 after-sales service specialists ■304 food-grade stainless steel material ■24/7 online service and 30-minute response
The company focuses persistently on R&D and owns dozens of independent patents in the fields of quick freezers, freeze dryers and customized food machinery.
It has also obtained authoritative certifications including ISO 9001, ASME, PED and CE, demonstrating its strong commitment to quality and compliance with international standards.
Its products are exported to Europe, the Americas, Central Asia, the Middle East and other markets, winning wide recognition from customers around the world.
It has also obtained authoritative certifications including ISO 9001, ASME, PED and CE, demonstrating its strong commitment to quality and compliance with international standards.
Its products are exported to Europe, the Americas, Central Asia, the Middle East and other markets, winning wide recognition from customers around the world.
Customer Photos
FAQ
1.Date of delivery:60-90 working days
2.Voltage:Customize according to the needs of different countries
3.Payment Tems:T/T, Alibaba Trade assurance, L/C, WU, PayPal, Alipay, WeChat Pay etc
4.Packing:Exporting standard fumigation wooden box
5.Transportation:Shipping by railway and sea
6Port City:Qingdao
7.Warranty:1 year
8.OEM:Customization of nameplate, material, motor brand, packaging, etc
2.Voltage:Customize according to the needs of different countries
3.Payment Tems:T/T, Alibaba Trade assurance, L/C, WU, PayPal, Alipay, WeChat Pay etc
4.Packing:Exporting standard fumigation wooden box
5.Transportation:Shipping by railway and sea
6Port City:Qingdao
7.Warranty:1 year
8.OEM:Customization of nameplate, material, motor brand, packaging, etc
Contact Us
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this spiral freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this spiral freezer carry?
It is supplied with ISO9001 CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the spiral freezer be supplied for my local voltage?
The standard configuration is 380 V, 220 V, 110 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhucheng Huaran Tengye Machinery Technology Co., Ltd, based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhucheng Huaran Tengye Machinery Technology Co., Ltd range on HVACR Nexus.
