Spiral individual tunnel freezer — voltage custom made, type Spiral Freezer. The complete factory specification follows. Made by Shandong Xindaxin Food Industrial Equipment Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Spiral Individual Tunnel Freezer
- Power(W): custom made
- Voltage: custom made
- Refrigerant: customized
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Type: Spiral Freezer
Technical Specifications
| Type | Spiral Freezer |
|---|---|
| Temperature Control | -80℃ to 0℃, -20℃ to 0℃, -40℃ to 0℃, -60℃ to 0℃, -45-0°c |
| Refrigerant | customized |
| Voltage | custom made |
| Compressor Brand | customized |
| Warranty | 1 Year |
| Door | customized |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Engine |
| Key Selling Points | Accurate Temperature Control |
| Power(W) | custom made |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 800 |
| Brand Name | TCA |
| Dimension(L*W*H) | custom made |
| Product Name | Blast Chiller |
| Freezer Type | Belt IQF Freezer |
| Compressor | French Tecumesh 7P |
| Selling Units | Single item |
| Single Package Size | 620X270X240 cm |
| Single Gross Weight | 800.0 kg |
Product Details

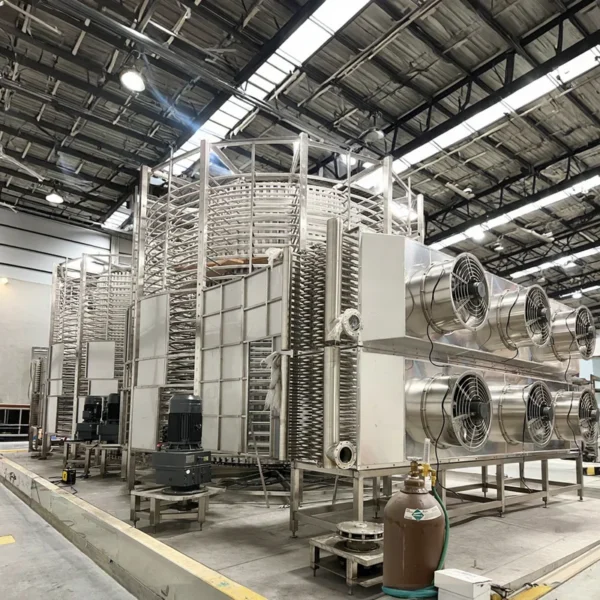

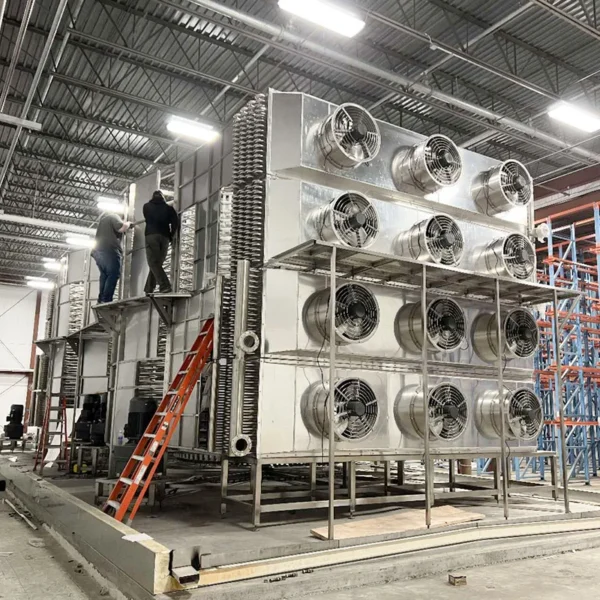

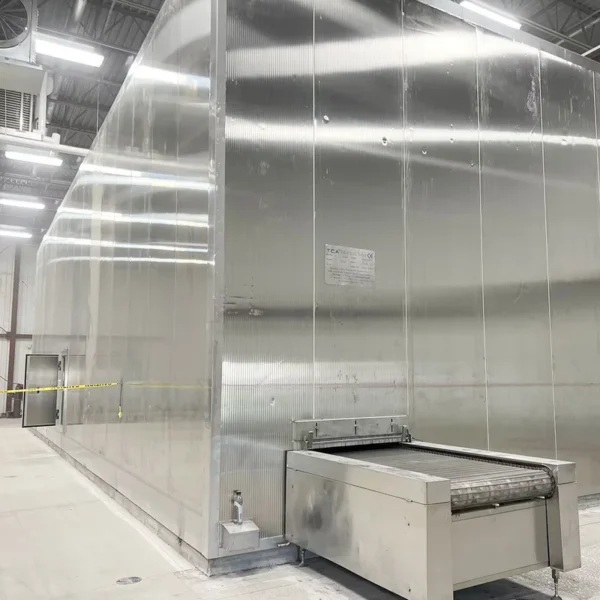

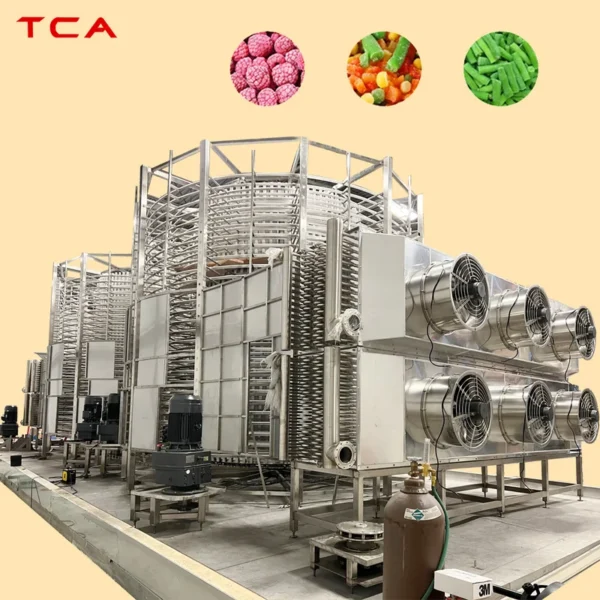

Spiral Freezer
and other main structural parts of our series of screw quick freezers are independently manufactured by our company. The materials are exquisite and the production is excellent. In particular, the long-life design and operation reliability of the products have been recognized by many customers.
Main feature
■The internal components fully meet the hygienic requirements of HACCP processing
■Long life design, assembly type internal structure (different from welded structure), easy to repair, replace or move
■Very convenient installation
■Reliable transmission control technology

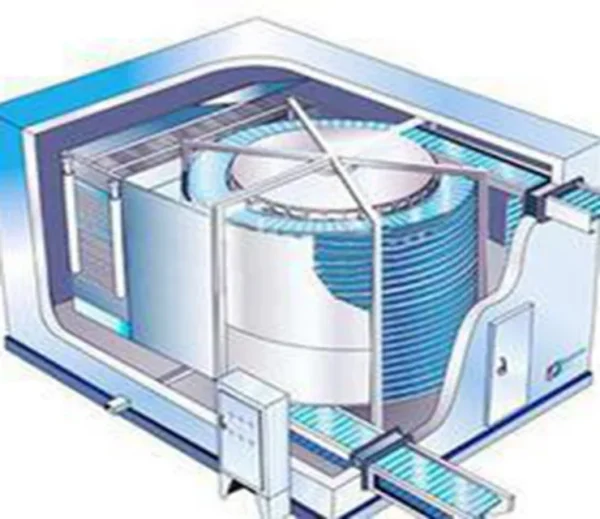

■Symmetrical and smooth circular air duct design, no cold running at the inlet and outlet
■High efficiency evaporator, super large fins with air turbulence structure, latest stamping process
■The bottom plate of the warehouse will never leak, and there is no risk of frost cracking of the bottom plate and the ground.
■Automatic cleaning and drying device for mesh belt (user's choice)
■The new gear reducer with hard tooth surface has high efficiency and long service life
Number of spiral layers | 16 * 2 floors | Cold consumption | 225KW (-42°C/+35°C) |
Diameter of rotating cage | 2300mm | Installed capacity | 32KW |
Clear height between floors | 100mm | Refrigerant | R717 |
Total width of mesh belt | 650 mm | Defrosting method | Water defrost once every 16-24 hours |
Freezing time | Stepless adjustable | Import and export mode of frozen products | Low feed and low discharge |
food , cake baking ,vegetable processing,corn processing and so on. We provide a compete production line to our customers, corn processing. Company’s products have been certified by CE and ISO9000(1)-2000 international quality management systemcertification, and in accordance with the QS standard food enterprise. After many years of efforts and innovation, “TCA”brand foodequipment has been exported to Russia,Canada,Australia, USA, Britain, France and other 80 countries, enjoy a high reputation inthe same industry.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this spiral individual tunnel freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the spiral individual tunnel freezer be supplied for my local voltage?
The standard configuration is custom made. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
