This stage screw refrigerant compressor is published with the manufacturer’s full specification — material Metal, type Compressor. Made by Yantai Guangwei Food Cold-Chain Technology Co.,Ltd. (6 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Stage Screw Refrigerant Compressor
- Material: Metal
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application: Refrigeration Parts
- Type: Compressor
- Fan Type: Axial Flow Fan
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Compressor |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shandong, China |
| Brand Name | AOWID |
| Color | Silver |
| Material | Metal |
| Use | Industrial Cooling System |
| Refrigerating Fluid | Ammonia |
| Fan Type | Axial Flow Fan |
| Oil Cooler Type | Water cooling |
| Whether The Economizer Required | with economizer |
| Protection Level | IP55 |
| Exhausting Oil Content | <5ppm |
| Packaging Details | container |
| Port Of Dispatch | Qingdao port |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10 sets per Month |
Product Details
Product Description

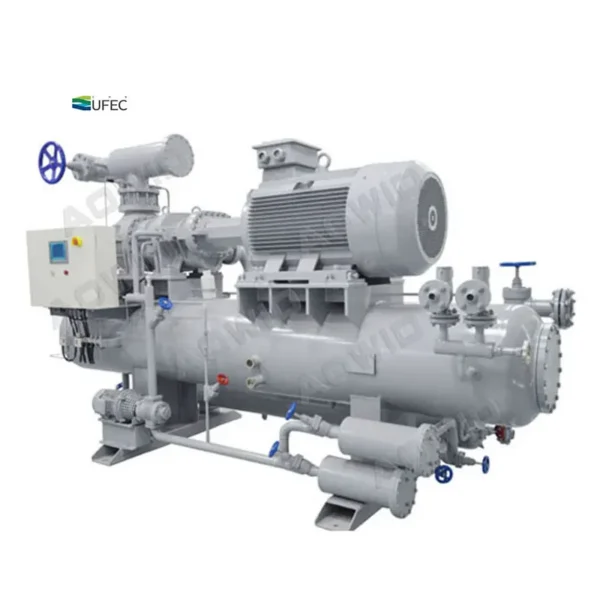

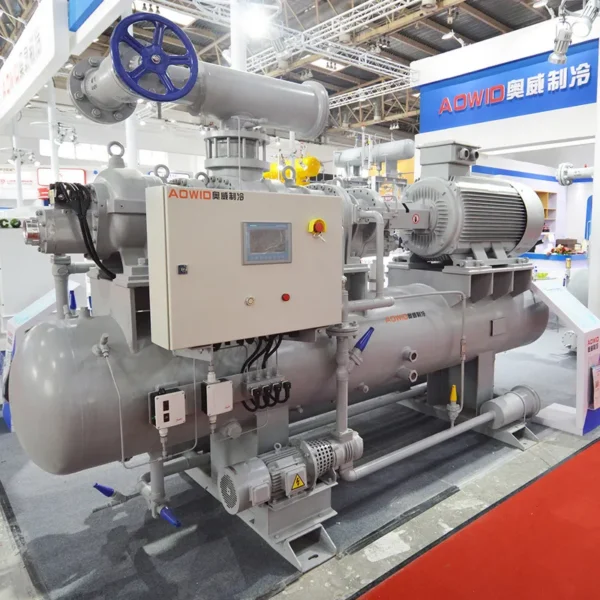

U Series Open-type Single-stage Screw Compressor Unit
U series open-type single-stage screw compressor unit is applicable for multiple refrigerants such as R717、R22、R404A、R134A、R507A to compress.It is widely used in process refrigeration、food process、refrigeration and air conditioning field. Outstanding performance： A new generation of bilateral asymmetric screw rotor profile, polishing process, high efficiency, low noise. Base on the design of the 3D cavity body and the flow channel, the flow resistance is small. Special thrust bearing for compressor, high precision and long lifetime. Crane mechanical seal, reliable and durable. Efficient oil and gas processor, exhaust oil content is not more than 5ppm.
Open-type Single-stage Screw Compressor Unit
Product parameter & Applicable conditions：
Model | UA12MTE |
Series | Simple stage, With economizer |
Refrigerant | R717 Ammonia |
Capacity | 50.70kW |
Absorbed power | 38.40 kw |
Condensing Temp. | +35℃ |
Evaporating Temp. | -40℃ |
COP | 1.32 |
Discharge Volume | 289m3/Hr. |
Revolution | 2970RPM |
Motor power | 55kW |
Starting method | Soft starter/star-delta |
Oil pump power | 1.5kW |
Dimensions | 2515*1160*1915mm |
Operating Weight | about 3180Kg |
Oil temperature ℃ | 20~65 |

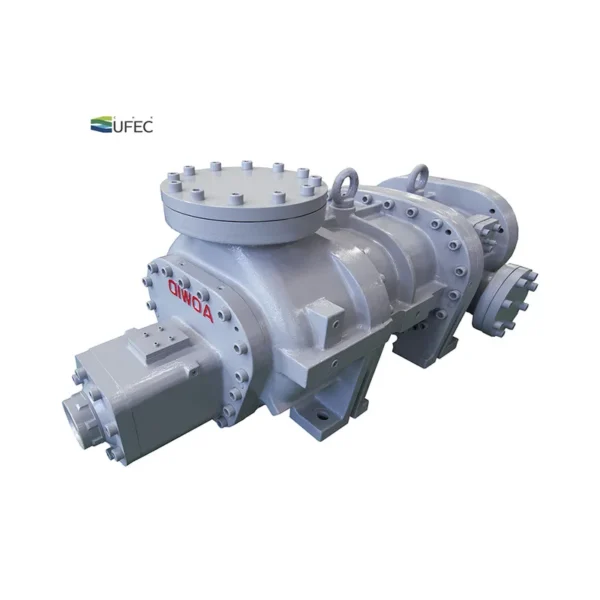

Screw Compressor :
Compressor Type | AOWID Screw Compressor |
Refrigeration oil | L-DRA46 or similar |
Unit Type | Ground floor Indoor type |
Capacity Control | 15 ~ 100% stepless, automatic |
Oil Pump | AOWID Oil Pump |
Oil Cooler | Thermosyphon Oil Cooler |
Oil Separator | Four impinges, big diameter, separate the liquid by gravity, molecular sieve filter |
Bearing | NSK |
Shaft seal | JOHN CRANE |
Sealing elements | DICHTOMATIT |
Pressure sensor | JUMO |
Complete auto protection device | Low Suction Pressure Protection; Discharge Pressure Superhigh Protection; Oil Pressure Difference Ultralow; Host Current Protection; Oil Temperature Superhigh Protection. |
Others | Suction Strainer |
Suction and discharge check valve | |
Coupling and coupling cover |
Intelligent control：
Automatic control system ,unmanned check-in. Intelligent automatic energy regulation. Friendly man-machine communication interface, easily achieve personalized parameter settings. The communication interface can easily realize the remote monitoring and data transmission.
Open-type Single-stage Screw Compressor Unit
Other model parameters reference
Model | refrigerant | refrigeration capacity kW | Motor rated power kW | ||||||||
High temperature condition | Middle temperature condition | Low temperature with economizer | temperature condition | Middle temperature condition | temperature with economizer | ||||||
UA12M | R717 | 317 | 172 | 62 | 65 | 65 | 55 | ||||
UA16S | 470 | 257 | 95 | 90 | 90 | 75 | |||||
UA16M | 681 | 380 | 138 | 132 | 132 | 110 | |||||
UA16L | 805 | 441 | 161 | 160 | 160 | 132 | |||||
UA20S | 952 | 521 | 191 | 185 | 185 | 160 | |||||
UA20M | 1305 | 719 | 265 | 250 | 250 | 200 | |||||
UA20L | 1560 | 853 | 310 | 315 | 315 | 250 | |||||
UA25S | 2135 | 1175 | 437 | 400 | 400 | 315 | |||||
UA25M | 2695 | 1483 | 553 | 500 | 450 | 400 | |||||
UA25L | 3360 | 1850 | 690 | 630 | 560 | 500 | |||||
Model | refrigerant | refrigeration capacity kW | Motor rated power kW | ||||||||
High temperature condition | Middle temperature condition | Low temperature with economizer | High temperature condition | Middle temperature condition | temperature with economizer | ||||||
UF12M | R507A | 281 | 162 | 70 | 65 | 65 | 55 | ||||
UF16S | 425 | 244 | 107 | 90 | 90 | 75 | |||||
UF16M | 615 | 371 | 156 | 132 | 132 | 110 | |||||
UF16L | 726 | 420 | 182 | 160 | 160 | 132 | |||||
UF20S | 849 | 491 | 220 | 185 | 185 | 160 | |||||
UF20M | 1162 | 675 | 298 | 250 | 250 | 220 | |||||
UF20L | 1390 | 806 | 357 | 315 | 315 | 250 | |||||
UF25S | 1910 | 1107 | 500 | 400 | 400 | 355 | |||||
UF25M | 2421 | 1403 | 625 | 500 | 500 | 450 | |||||
UF25L | 3025 | 1755 | 780 | 600 | 600 | 560 | |||||
Note: ①Can provide other products in addition.
