Stainless steel fan — 380V, 220V, 415V, 230V or as your request, power source Electric. The complete factory specification follows. Made by Shandong Xingmuyuan Agriculture And Animal Husbandry Technology Co., Ltd. (5 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Stainless Steel Fan
- Model Number: XMY-E1380
- Power Source: Electric
- Power: 750w
- Voltage: 380V, 220V, 415V, 230V or as your request
- Blade Material: Stainless Steel
- Frame Material: Galvanized Sheet/Stainless Steel430
Technical Specifications
| Voltage | 380V, 220V, 415V, 230V or as your request |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Material | Stainless Steel |
| Mounting Type | Shop Window |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | XINGMUYUAN |
| Model Number | XMY-E1380 |
| Product Name | Exhaust fan |
| Size | 1000*1000*450mm |
| Belt | Japanese Mitsuboshi |
| Frame Material | Galvanized Sheet/Stainless Steel430 |
| Motor Brand | China motor/Siemens motor/WEG motor/ABB motor |
| Blade Diameter | 900mm |
| Balde Rpm | 610rpm |
| Application | Poultry Farms,Animal Husbandry,Greenhouse, Factory workshop |
| Power | 750w |
| Opening Device | Centrifugal Push-Pull |
| Selling Units | Single item |
| Single Package Size | 230X230X180 cm |
| Single Gross Weight | 700.0 kg |
Product Details
Product Description

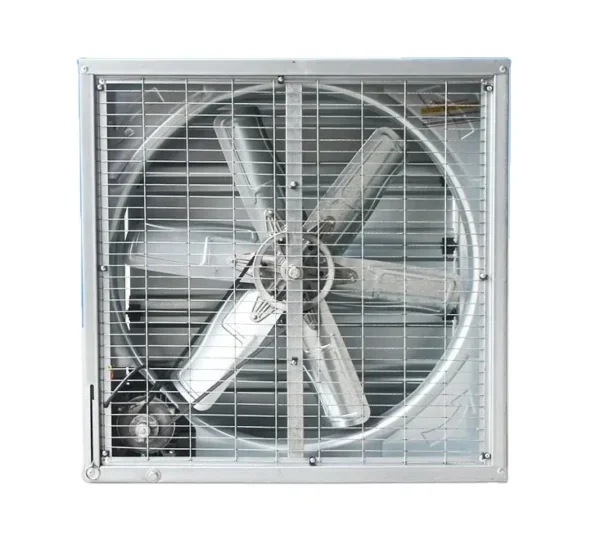

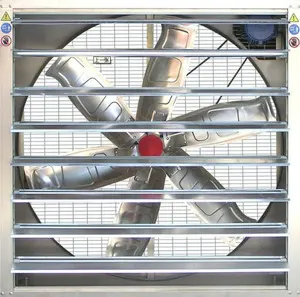

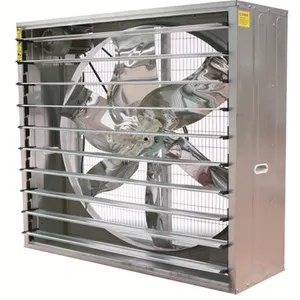

Industrial Wall Mounted Ventilation Fan Poultry Exhaust Fan For Poultry Farm And Greenhouse
Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Fully customizable fan housing including galvanized steel, 304stainless steel and 430 stainless steel, precisely prefabricated stainless steel blades for higher durability.
The standard wall mount box type wall mount industrial ventilation exhaust fan sizes range from 200mm to 1750mm.
It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile plant, warehouse etc..
Model | Blades Diameter (mm) | Dimension(mm) | Blades Speed(rpm) | Motor Speed(rpm) | Air flow (m³/hr) | Input power (KW) |
XMY800 | 710(28inch) | 800*800 | 660 | 1400 | 18000 | 0.37 |
XMY900 | 750(30inch) | 900*900 | 630 | 1400 | 22000 | 0.55 |
XMY1000 | 900(36inch) | 1000*1000 | 610 | 1400 | 25000 | 0.75 |
XMY1100 | 1000(40inch) | 1100*1100 | 600 | 1400 | 32500 | 0.75 |
XMY1220 | 1100(44inch) | 1220*1220 | 460 | 1400 | 38000 | 0.75 |
XMY1380 | 1270(50inch) | 1380*1380 | 439 | 1400 | 44000 | 1.1 |
XMY1530 | 1400(56inch) | 1530*1530 | 325 | 1400 | 55800 | 1.5 |
Main Features
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
XINGMUYUAN Exhaust fan are widely used in Agriculture and industry ventilation and cooling.
It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc..
Details Images
Motor
Motor Protection Grade: IP55
Advantage: Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
Belt pulley
Fan belt pulley made of high strength aluminum-magnesium alloy by die-casting. Blast-sanding treatment for attractive appearance,eliminate internal stress to improve its own rigidity and stability.
Belt
Belts are Japanese Mitsubishi brand and Sanlux brand for option. Belt type: A and B. wear-resistant and longe service life.Long service life and no repair Modified B type belt,so that service life increase 3times than Type A.

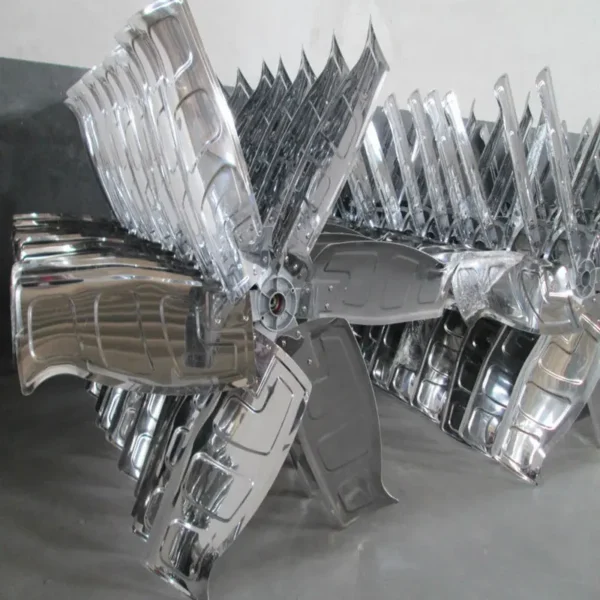

Fan blade.
The material of the blade is Krupp stainless steel, thickness 1.2mm. Large air flow, no deformation, no fracture, no dust, attractive and durable
Fan safe net
Bearing.
Imported double-row bearing with special waterproof design.
Advantage: High strength, low noise, free maintenance and long service life.
Company Profile
Xingmuyuan is a professional and comprehensive company engaged in the R&D, production and sales of temperature control equipment. we devotes ourselve to the scientific and technological development of ventilation and cooling equipment, heating equipment , workshop ventilation and cooling,greenhouse ventilation and cooling,animal husbandry machinery. Five series of more than 20 specifications, the main products include cooling pad, animal husbandry fan, poultry and greenhouse exhaust fan, circulation fan, roof exhaust fan, FRP fan and so on, which can be widely used in agriculture, animal husbandry, plant, textile, mining,greenhouse and other industries. We strive to create products with good performance, good in quality,complete in variety and excellent price.
Our overseas customers are mainly concentrated in Southeast Asia, Middle East,West Asia, South Asia and other regions and established good cooperative relations and widely recognized and trusted by users. We do OEM or ODM service,no matter customize pattern, logo, package,all welcome. We have a professional international trading team and complete testing equipment and strong technical advantage.All of our products have passed strict quality control and been issued certification of CE, ISO. We welcome partners both at home and abroad contact and visit us.
Our overseas customers are mainly concentrated in Southeast Asia, Middle East,West Asia, South Asia and other regions and established good cooperative relations and widely recognized and trusted by users. We do OEM or ODM service,no matter customize pattern, logo, package,all welcome. We have a professional international trading team and complete testing equipment and strong technical advantage.All of our products have passed strict quality control and been issued certification of CE, ISO. We welcome partners both at home and abroad contact and visit us.
Our Factory
1）.95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality，utmost cost-effective globally.
2).ventilation equipment manufacturer in China, equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
Our Production Lines
Supporting over 200 employees, our 20,000 square meter factory is top-notch, XINGMUYUAN Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
Steel coil sliding and cutting line, steel pipe cutting line. Aluminum Die Cast Tooling & Casting; Plastic Molding & Injection workshop; Metal Stamping & Laser Cutting; Motor Copper Coil Winding Line;Motor Assembly Workshop;Exhaust Fan Assembly Workshop;Cooling pad Assembly Workshop.
Steel coil sliding and cutting line, steel pipe cutting line. Aluminum Die Cast Tooling & Casting; Plastic Molding & Injection workshop; Metal Stamping & Laser Cutting; Motor Copper Coil Winding Line;Motor Assembly Workshop;Exhaust Fan Assembly Workshop;Cooling pad Assembly Workshop.
Certifications
Professional Trustworthy
The products of our company have been granted certificates such and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”XINGMUYUAN”.our Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate".
The products of our company have been granted certificates such and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”XINGMUYUAN”.our Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate".
Package And Shipping
Our have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.Global service, Annual sales over $ 30 million
Exhibition
XINGMUYUAN Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers
Why Choose Us
Long Standing History
15 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped.
Equipped with over 50 automatic machines and 10 production lines, lower product cost for our customers.
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
15years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 400mm to 1530mm, ventilation capacity ranges from 1000CFM to 40000CFM
Fast Delivery
The production efficiency is high. Our daily output is 1000 pieces. Most of our customers can deliver within 7 days, and some can deliver within one day or three days.
Our Team
XINGMUYUAN has 20+ years of professional design and production experience, more than 300 efficient
R & D and production team.
FAQ
Q1. Are you a factory or trading company?
A1:We are a professional and comprehensive poultry farm equipment supplier integrating R&D, production and sales founded on 2015. OEM and ODM are welcomed.
Q2. What payment methods do you accept?
A2:We accept T/T, Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3:Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can buy a sample to check our quality and need to take the express fee. The freight cost will be very high,but If you are satisfied with our samples and place an order again, we will deduct the expenses you paid for this sample.
Q5:May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6:Can you guarantee your quality?
A6:Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production,fastidious materials ,exquisite workmanship as well as strict QC. we put a high value on our reputation.
Q7:How do you ensure my right if I’m going to place the order?
A7:Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Q8:Can you open our own brand?
A8:Yes, we can offer OEM and ODM service and put your logo for the produce. We would like to custom your products as you need. We always insist on customer's benefit first. We don't show any of customer's info on website. Welcome to contact us！
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–49 set: US $118 / set
- 50+ set: US $108 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stainless steel fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the stainless steel fan be supplied for my local voltage?
The standard configuration is 380V, 220V, 415V, 230V or as your request. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Xingmuyuan Agriculture And Animal Husbandry Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shandong Xingmuyuan Agriculture And Animal Husbandry Technology Co., Ltd. range on HVACR Nexus.
