This stainless steel freezer is published with the manufacturer’s full specification — 380V/50HZ/3P or customized, capacity 500-2000kg/batch. Made by Yantai New Way Environmental Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Stainless Steel Freezer
- Power(W): 1.5KW or customized
- Voltage: 380V/50HZ/3P or customized
- Capacity: 500-2000kg/batch
- Panel Material: Stainless Steel
- Refrigerant: R-404A, R-22, R134a, CO2
- Warranty: 1 Year
Technical Specifications
| Type | Plate Freezer |
|---|---|
| Temperature Control | -40℃ to 0℃ |
| Refrigerant | R-404A, R-22, R134a, CO2 |
| Voltage | 380V/50HZ/3P or customized |
| Compressor Brand | Bristol, Copeland, Emerson |
| Warranty | 1 Year |
| Door | two doors |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Engine, Pressure Vessel, Gear |
| Key Selling Points | Competitive Price, Energy Saving, Famous Brand Motor, Easy To Operate, Automatic |
| Power(W) | 1.5KW or customized |
| Place Of Origin | Shandong,China |
| Weight (Kg) | 3000 |
| Brand Name | NEW WAY |
| Dimension(L*W*H) | customized |
| Color | Silver |
| Panel Material | Stainless Steel |
| Cooling System | Water cooling |
| Effective Layers | 7-12 |
| Condition | New |
| Capacity | 500-2000kg/batch |
| Product Name | Marine Plate Freezer |
| Ceritification | CE |
| Customized Ltems | customized specification/logo/packing/ |
| After-Sales Service Provided | 12months after commercial running |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
PRODUCT OVERVIEW

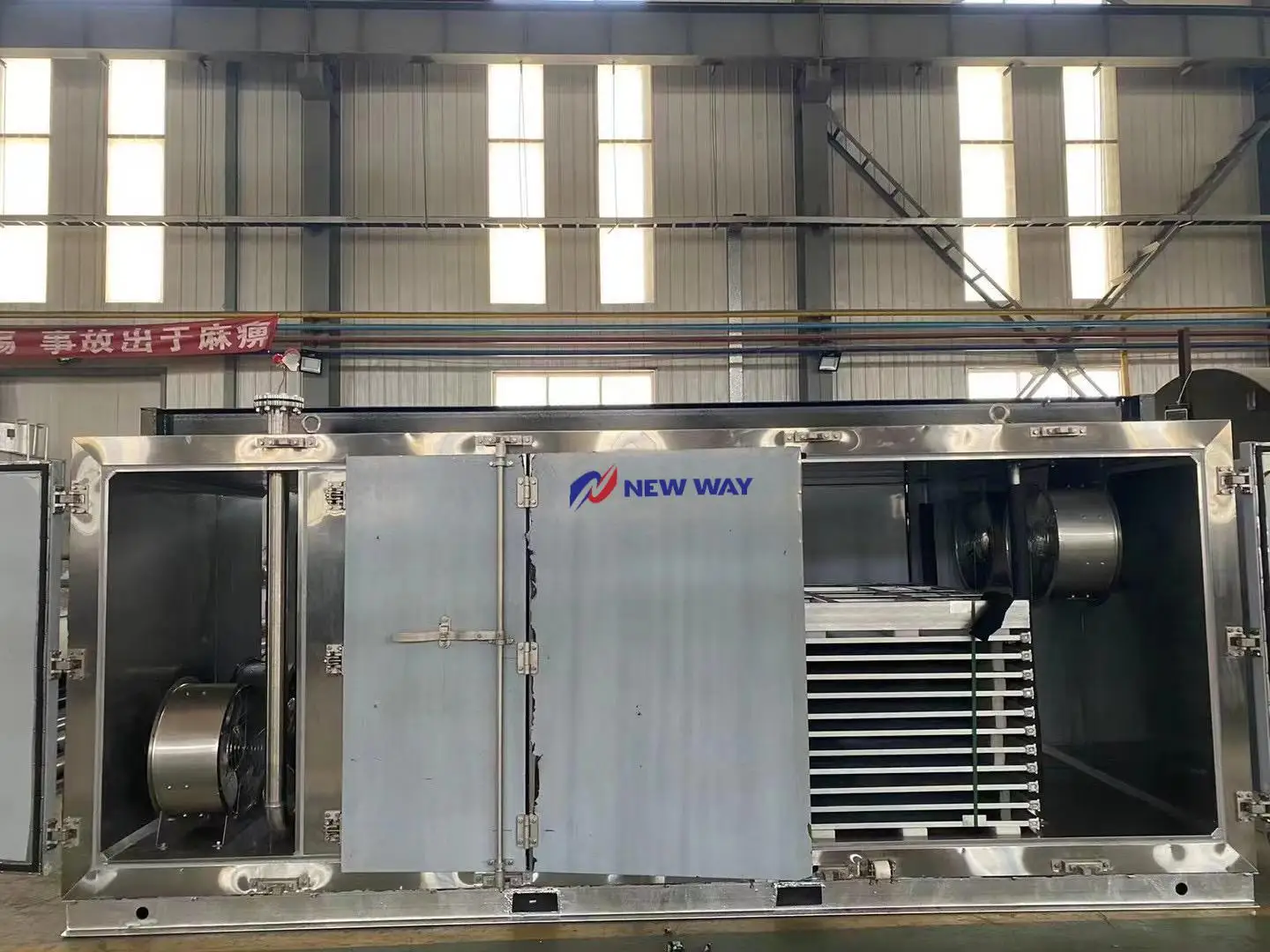

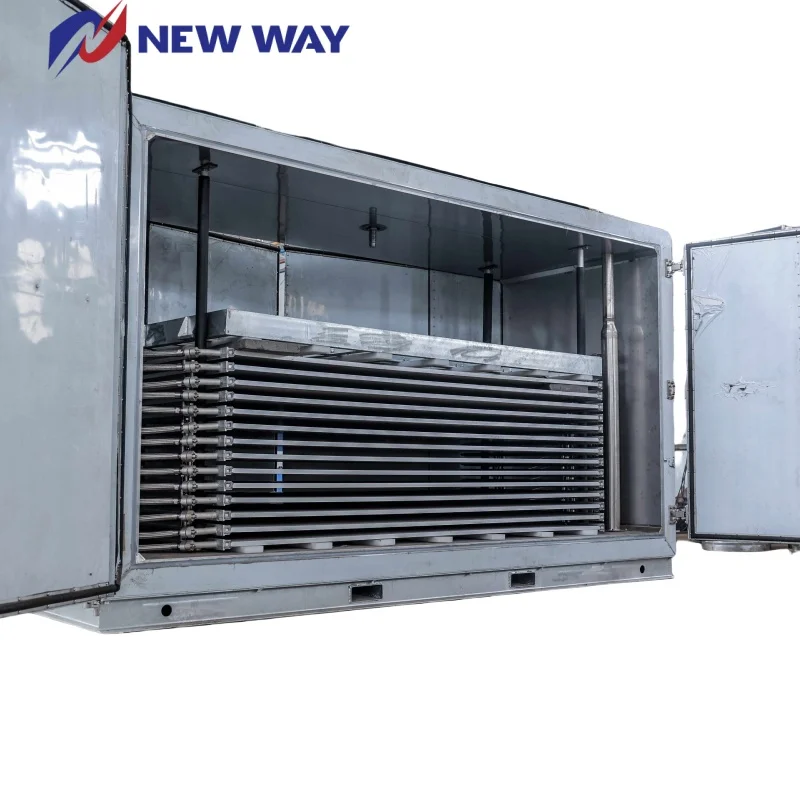

Semi-contact Plate Freezer

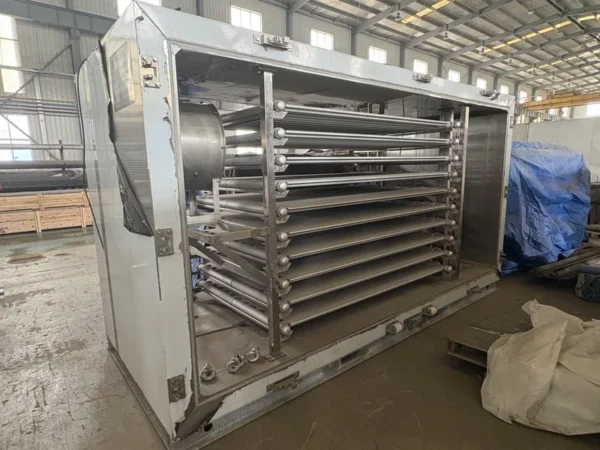

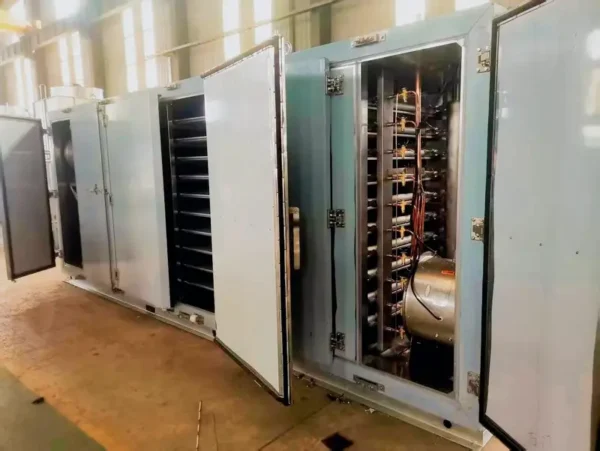

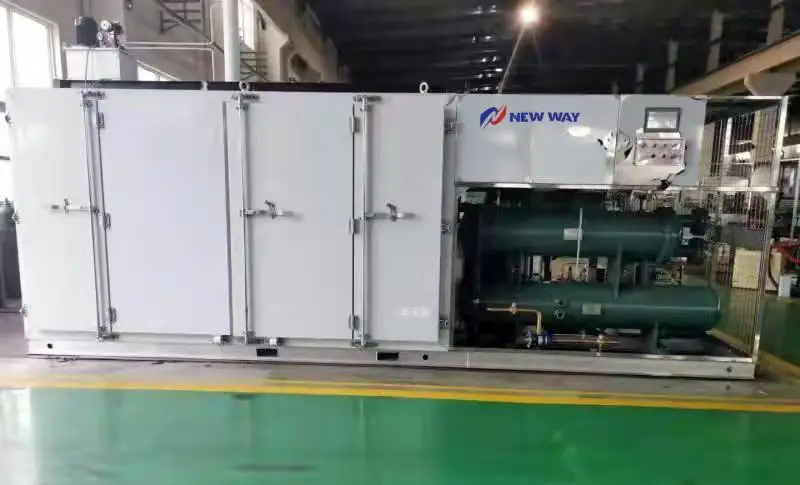

Shelf Plate Freezers are fitted with integral refrigeration plantor without. And it is similar to
the horizontal plate freezer inthe structure, but the plates of Shelf Plate Freezers are
fixed.Double freezing modes of single-contact and blast double mark its better freezing effect
than normal blast freezer.
the horizontal plate freezer inthe structure, but the plates of Shelf Plate Freezers are
fixed.Double freezing modes of single-contact and blast double mark its better freezing effect
than normal blast freezer.
FEATURES AT A GLANCE
Our Advantage:
Quick freeze
Large space
Uniform defrost
Energy efficient
Good insulation proformance
Easy to operate
More envionment-friently
Classification:
Hydraulic Contact Plate Freezer
Shelf Plate Freezer
Self-contained Plate Freezer
Horizontal Plate Freezer for Marine

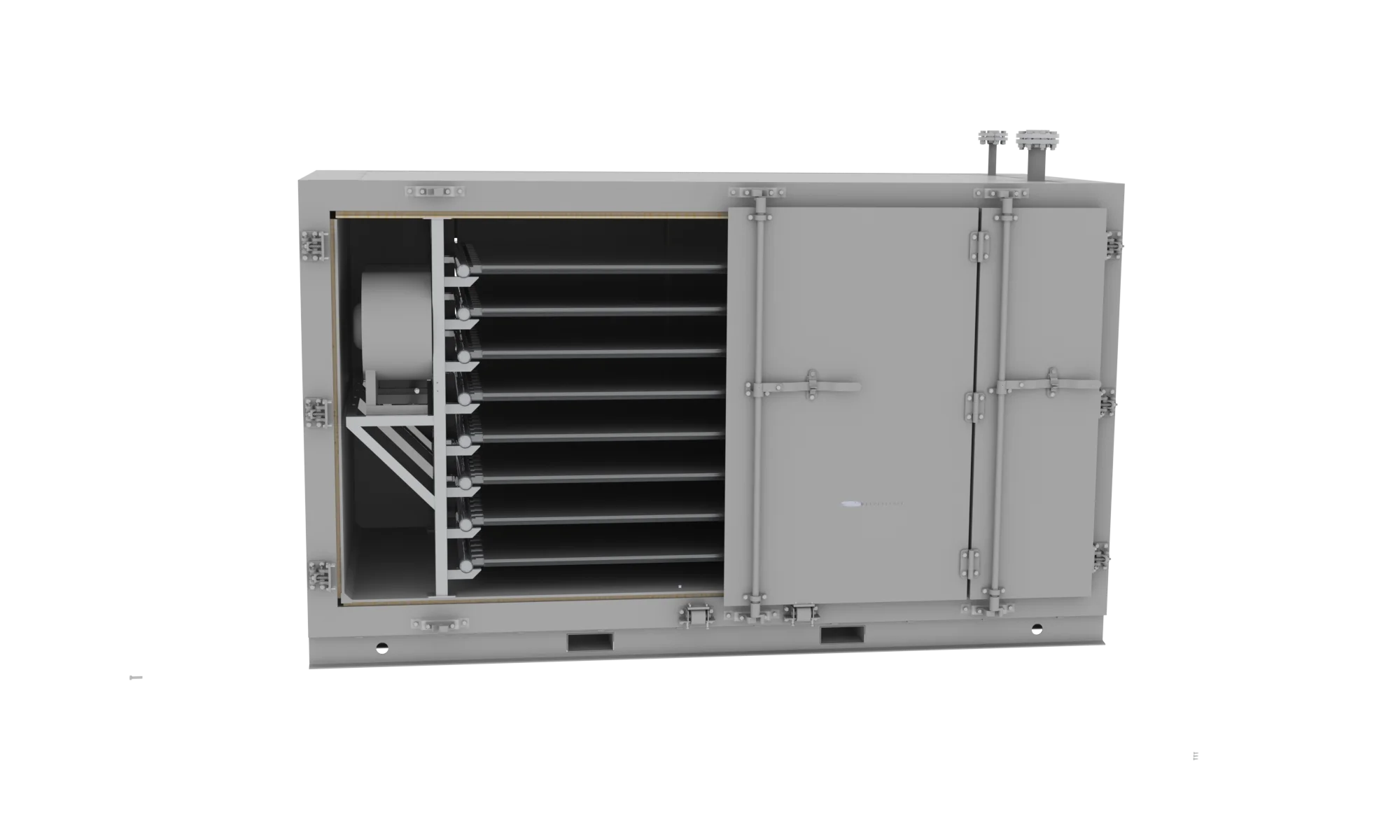

Constructure:
Plate: 6-20 layers, alumium alloy plates.
Frame: Hot-dip galvanized closed profile.
Covered plate: SS304.
Hose fittings: stainless steel.
Control system: Manual and PLC are optional.
Insulation door: 150mm thickness.
Capacity: 1000kg/h-1500kg/h.
Blasting fan: one side or two sides
Accessories: stainless steel with anti-corrosion.
PRODUCT SPECIFICATIONS
Model | Freezing capability | Plate evaporator | Dimension(mm) | Power(kw) | Weight(kg) | ||
Fish | Effective Layers | Single board effective size(mm) | 3250*1670*2600 | 1.5 | 3450 | ||
BRPF840 | 840 | 7 | 15 | 3250*1670*2700 | 1.5 | 3550 | |
BRPF960 | 960 | 8 | 17 | 3250*1670*2900 | 1.5 | 3800 | |
BRPF1080 | 1080 | 9 | 18.5 | 3600*1670*2700 | 1.5 | 4000 | |
BRPF1200 | 1200 | 8 | 21.5 | 3600*1670*2900 | 1.5 | 4150 | |
BRPF1350 | 1350 | 9 | 24.5 | 3600*1670*3000 | 1.5 | 4300 | |
1500BRPF1500 | 111500 | 10 | 27 | 3600*1670*3100 | 1.5 | 4450 | |
BRPF1650 | 121650 | 11 | 30 | 3600*1670*3200 | 1.5 | 4600 | |
BRPF1800 | 1800 | 12 | 32.5 | 3990*1980*3000 | 1.5 | 5000 | |
BRPF2100 | 2100 | 10 | 40 | 3990*1980*3200 | 1.5 | 5400 | |
PRODUCT CONFIGURATION

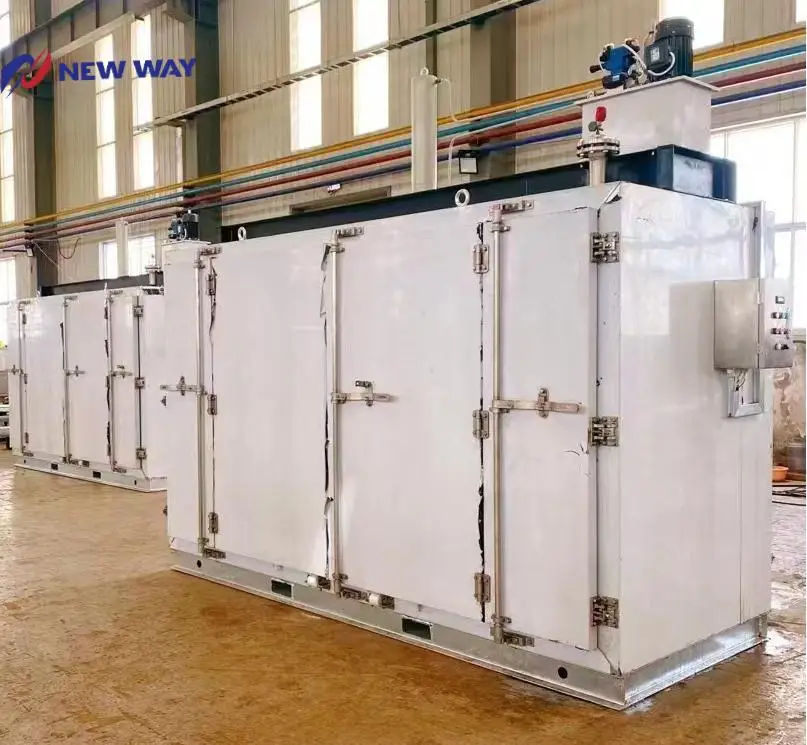

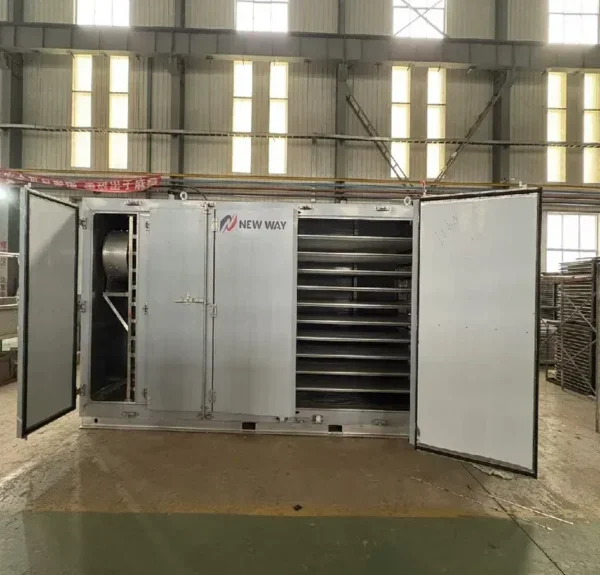

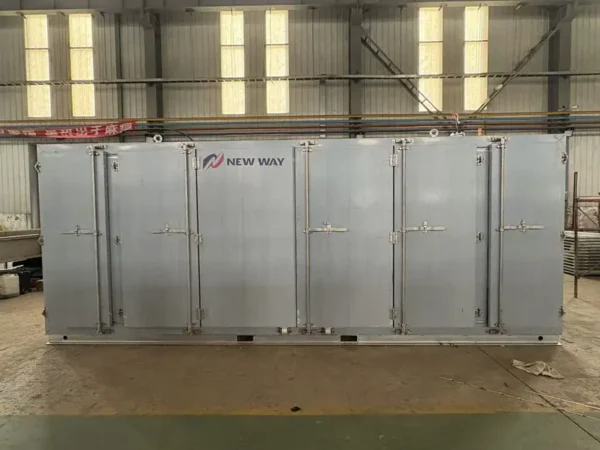

The box body adopts integral polyurethane foaming to ensure that the frame of the library body does not deform under high
pressure. The box body is a fully closed structure with thermal insulation doors on both sides, and the shell adopts stainless
steel shell seamless docking to prevent dirt and dirt.

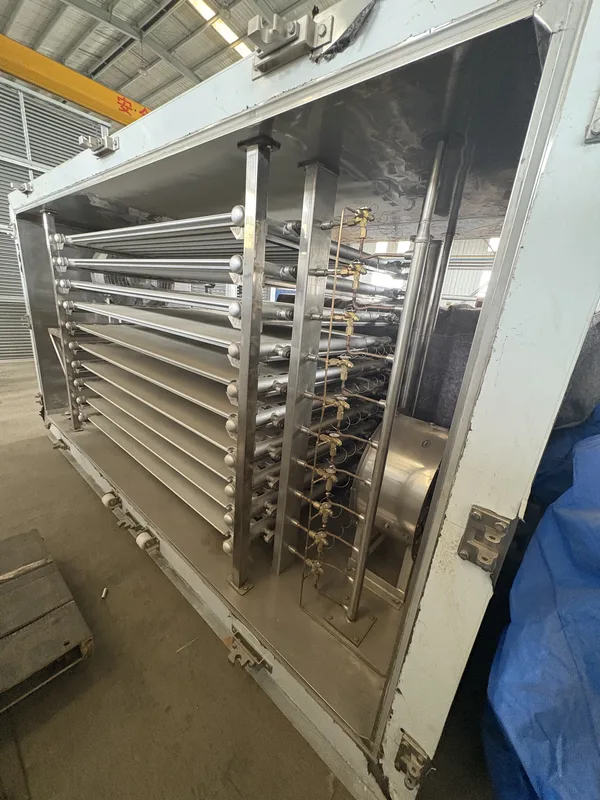

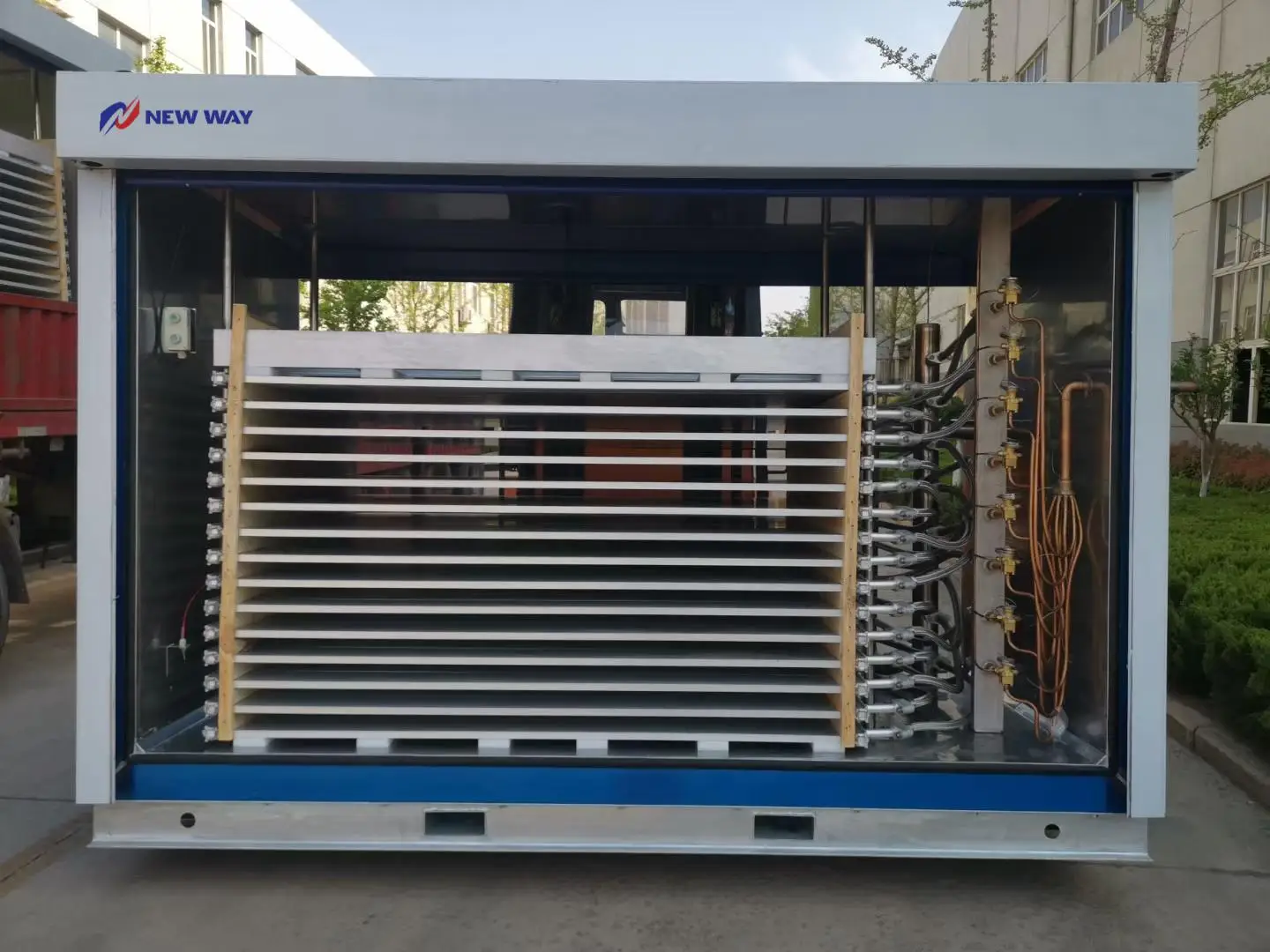

The cold plate is cast from aluminum alloy material, and the surface is treated with oxidation resistance and better corrosion
resistance. The surface of cold plate is smooth to ensure good contact with frozen products. The advantages are convenient
installation, large load capacity, uniform heat conduction, long service life, fast freezing speed, to the purpose of rapid
freezing.
resistance. The surface of cold plate is smooth to ensure good contact with frozen products. The advantages are convenient
installation, large load capacity, uniform heat conduction, long service life, fast freezing speed, to the purpose of rapid
freezing.
APPLICATION
OUR FACTORY
Yantai New Way Environment Technology Co., Ltd. is located in the cold chain logistics distribution center of China—Yantai, Shandong.
The company is a professional refrigeration enterprise that integrates R&D, production, and sales, and it possesses advanced processing equipment and professional technical personnel. The main products include evaporative condenser, unit cooler, quick freezer, condensing unit, warehouse and relevant accessories. Products manufactured by New way are not only exported to Southeast Asia, the Middle East, Europe, Africa, America and other countries, but also highly praised by our foreign clients. New way will continue to provide products with high quality & service and we are willing to join hands with friends all over the world to create a bright future!

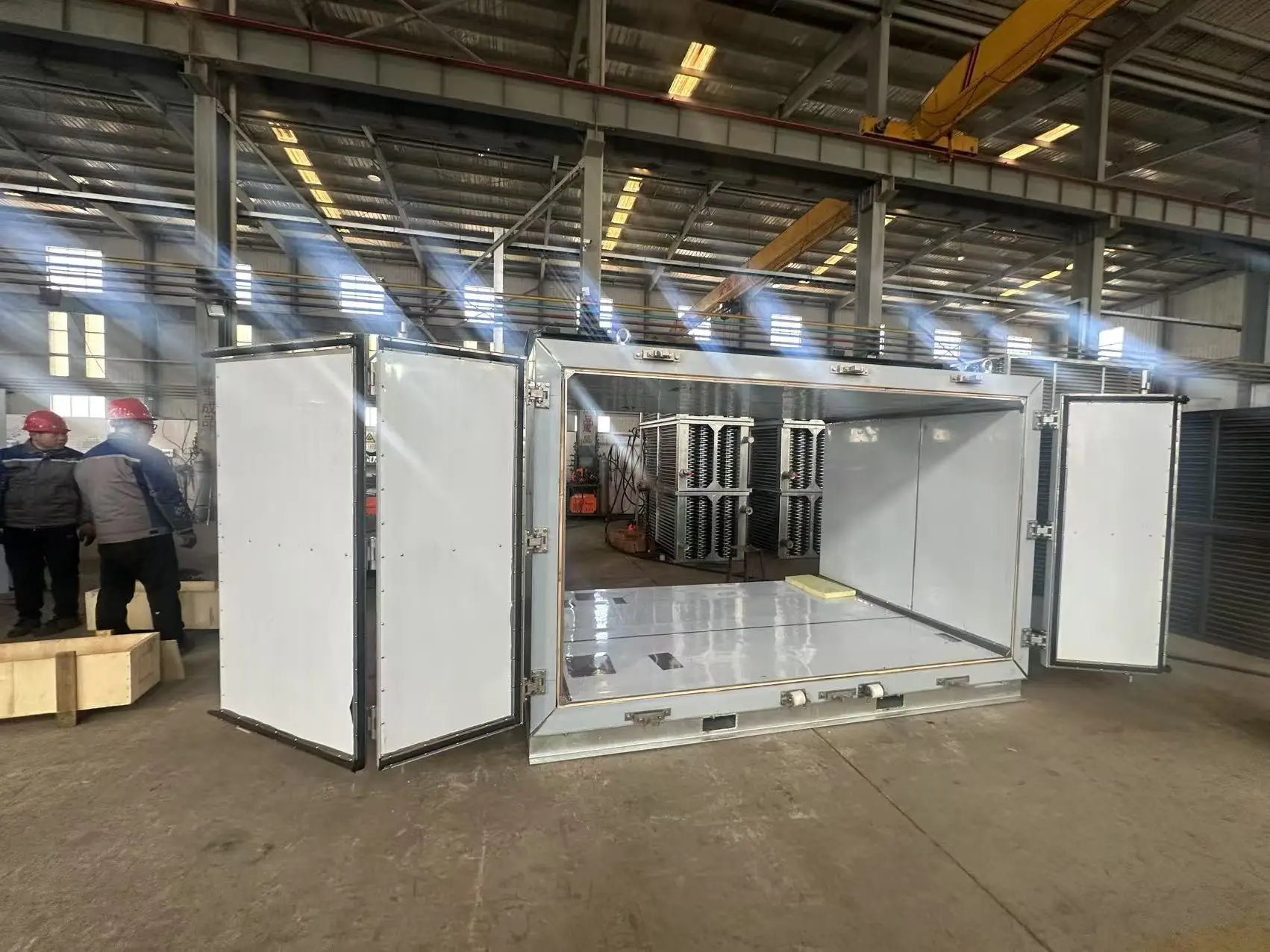

OUR WORKSHOP
WITH OUR CUSTOMER
FAQ
1. Who are we? We are based in Shandong, China, start from 2023,sell to Southeast Asia(50.00%),Mid East(30.00%),South America(15.00%),Domestic Market(5.00%). There are total about – people in our office. 2.How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Refrigeration equipment,Air cooler,Evaporative condenser,Accessories,Kinds of valves 4. Why should you buy from us not from other suppliers? Our company is a manufactry&trading company, we can quickly deal with all kinds of customer enquiries and quotations. Have certain price advantage and time limit advantage. 5. What services can we provide? Accepted Delivery Terms:EXW,FOB,CIF Accepted Payment Currency:USD,EUR,CNY Accepted Payment Type:T/T,L/C,MoneyGram,Credit Card,PayPal Language Spoken:English,Chinese.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $10000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stainless steel freezer?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the stainless steel freezer be supplied for my local voltage?
The standard configuration is 380V/50HZ/3P or customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yantai New Way Environmental Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Yantai New Way Environmental Technology Co., Ltd. range on HVACR Nexus.
