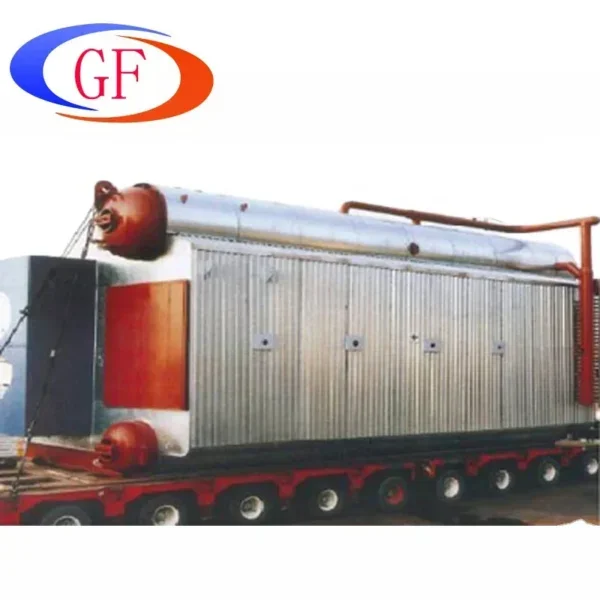

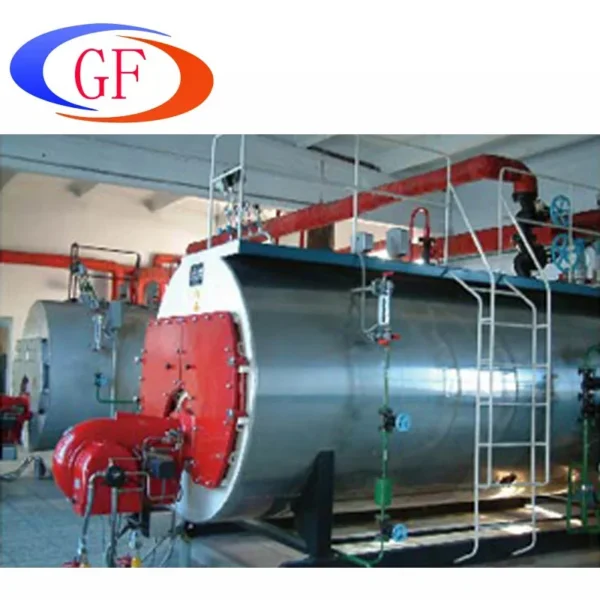

Steam Boiler, 1-20, Stainless Steel, Natural Circulation

Key specification for this steam boiler: material Stainless Steel, Carbon Steel, type Natural Circulation/Once through. Everything below is reproduced from the factory data sheet. Made by Jiangsu Gangfeng Boiler Co., Ltd. (8 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Steam Boiler

• Rated Steam Capacity: 0.5-35T
• Material: Stainless Steel, Carbon Steel
• Warranty: 1 Year
• Certification: ISO9001/TUV/ASME/EN
• Place Of Origin: Jiangsu, China

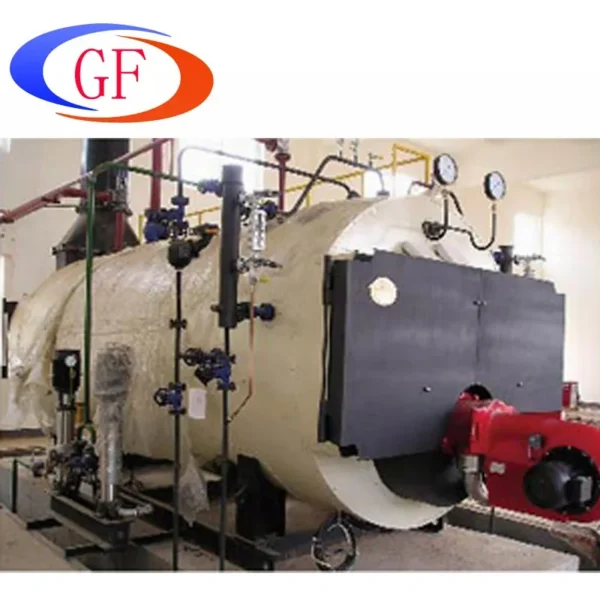

• Application: oil gas fired steam boiler

Technical Specifications

Product Details

Item	Unit	WNS 1-1.0-QT	WNS 1-1.0-YC	WNS 2-1.0-Y	WNS 2-1.25-QT 2-1.25-YC	WNS 4-1.0-YC	WNS 4-1.0-QT
Rated output	t/h	1	1	2	2	4	4
Work pressure	Mpa	1.0	1.0	1.0	1.25	1.0	1.0
Steam temperature	℃	Saturated	Saturated	184	Saturated	Saturated	184
Feedwater temperature	℃	20	20	20	20	105	105
Heated area	㎡	38.57	38.57	56.77	56.77	100.47	110.47
Design efhcieny	%	92	92	92	92	92	92
Fuel		Gas	Disel	Residual fuel	Gas,residual fuel	0#resudual fuel	Gas
Diameter of main steam pipe	mm	50	50	89	80	100	100
Diameter of feed water pipe	mm	25	25	45	40	40	40
Combustion		Chamber
Control mode		Program ignition,flame monitoring,flam protection regulate combustion all use PC control
Installation dimension	m	4.462×2.35×3.227	4.462×2.35×3.227	5.69×2.5×3.43	5.69×2.5×3.43	6.05×2.75×3.87	6.05×2.75×3.87

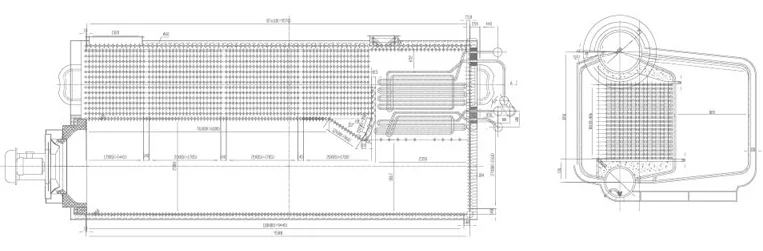

Referenced drawing		60410	60410A	60297	60423	60417	60286A

Item	Unit	WNS 4-1.25-QT	WNS 6-1.0-Y	WNS 6-1.0-QT	WNS 6-1.25-QT	WNS 10-1.25-Y	WNS 10-1.25-YC
Rated output	t/h	4	6	6	6	10	10
Work pressure	Mpa	1.25	1.0	1.0	1.25	1.25	1.25
Steam temperature	℃	Saturated	183	Saturated	Saturated	194	194
Feedwater temperature	℃	20	105	105	20	105	105
Heated area	㎡	110.47	158.54	158.5	158.5	248.53	224.7
Design efhcieny	%	92	92	92	92	92	92
Fuel		Gas	Residual oil	Gas	Gas	20#diesel	0#diesel
Diameter of main steam pipe	mm	100	150	150	125	150	150
Diameter of feed water pipe	mm	40	50	50	50	50	50
Combustion		Chamber
Control mode		Program ignition,flame monitoring,flam protection regulate combustion all use PC control
Installation dimension	m	6.05×2.75×3.87	6×3×3.4	6.9×3×4.1	6.9×3×4.1	8.6×3.55×3.2	7.88×3.55×3.2
Referenced drawing		60410	60410A	60297	60423	60417	60286A

Q1:How long is the warranty period? We provide 12 months warranty for all spare parts(exclude fragile parts). Q2:How do you control the quality? 1) All GF machines are in strict accordance with the ISO quality and CE system requirements. 2) Each procedure is crafted by professional Skilled labour, followed by particular QC 3) All information of our products can be checked in efficient management system. Q3:What certifications do you have? All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design. Q4:What kind of service do you provide? Before sales: Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.

After sales: 1. Technical training on according to customer requirements; 2. We promise replacement under warranty; 3. We promise to supply the maintenance spare parts; 4. Regular call back or visit customers; 5. On time response to mail and phone calls of your complaints or consultation. Q5:Are you a factory or trading company, where are you located？ We are a factory, just 130km(2 hours by car) away from Shanghai Airport.We offer pickup service at Shanghai for your visit.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $10000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this steam boiler?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this steam boiler carry?

It is supplied with ISO9001/TUV/ASME/EN documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jiangsu Gangfeng Boiler Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Gangfeng Boiler Co., Ltd. range on HVACR Nexus.
