This steam boiler is published with the manufacturer’s full specification — 6KW, material Stainless Steel, Carbon Steel. Made by Henan Shuoman Machinery Equipment Co., Ltd. (11 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Steam Boiler
- Power: 6KW
- Material: Stainless Steel, Carbon Steel
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Type: Natural Circulation
- Single Package Size: 15X15X15 cm
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Electric,Fuel and Gas |
| Pressure | High Pressure |
| Structure | Water Tube |
| Type | Natural Circulation |
| Material | Stainless Steel, Carbon Steel |
| Core Components | Pump, Motor |
| Key Selling Points | Automatic |
| Style | VERTICAL |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 70 |
| Place Of Origin | Henan, China |
| Brand Name | SHUOMAN |
| Dimension(L*W*H) | 950*740*1140mm |
| Power | 6KW |
| Current | 10A |
| Pressure Gauge | 0~1.0MPa |
| Keywords | 150 hp steam boiler |
| Steam Temperature | 150/170 Celsius |
| Working Life | 20 years |
| Package | Packed in standard export plywood wooden case |
| Selling Units | Single item |
| Single Package Size | 15X15X15 cm |
| Single Gross Weight | 35.0 kg |
Product Details
Reasonable Price 100Kw 150 Hp Electric Heating Steam Boiler
Feature of our steam generator :
Features:
1. Electric heating steam boiler is designed with normal water level and water volume ≤ 30L, which is not within the scope of national supervision and inspection. The boiler does not need to undergo annual examination for certificates.
2. High efficiency: The unique inner tank and steam-water separation structure design guarantee the rapid supply of high-quality steam.
3. Made of high-quality tank, no leakage and no deformation after 1.5MPa pressure test.
4. Convenient operation: automatic control, automatic pressure control, water level control, water shortage protection, automatic alarm, etc. No need to be on duty.
5. External water level monitoring is adopted for easy maintenance.
6. Use high temperature resistant wire, high insulation level, durable.
7. The electric heating tube and the furnace body are connected by flanges, which is convenient for maintenance.
8. Simple installation and maintenance: compact structure, small footprint, integrated machine leaving the factory, easy installation;
High Guality:
1. The product uses high-quality materials and advanced welding equipment to produce high-quality welds and perform a hydraulic pressure test of 1.5MPa.
2. The whole machine is manufactured strictly in accordance with the “Steam Boiler Safety Technical Supervision Regulations” to ensure that users have assured and reliable products.
3. Equipped with high-quality electric heating tube, excellent quality and durable.
Specification of our steam generator :
Model | Power | Output | Current | Pressure Gauge | Weight |
SM-SG-8 | 6KW | 8kg/h | 10A | 0~1.0MPa | 70kg |
SM-SG-12 | 9KW | 12kg/h | 15A | 0~1.0MPa | 82kg |
SM-SG-16 | 12KW | 16kg/h | 20A | 0~1.0MPa | 83kg |
SM-SG-24 | 18KW | 24kg/h | 30A | 0~1.0MPa | 83kg |
SM-SG-32 | 24KW | 32kg/h | 40A | 0~1.0MPa | 110kg |
SM-SG-50 | 36KW | 50kg/h | 60A | 0~1.0MPa | 110kg |
SM-SG-65 | 48KW | 65kg/h | 80A | 0~1.0MPa | 150kg |
SM-SG-100 | 72KW | 100kg/h | 120A | 0~1.0MPa | 150kg |
SM-SG-130 | 96KW | 130kg/h | 160A | 0~1.0MPa | 150kg |
SM-SG-150 | 108KW | 150kg/h | 180A | 0~1.0MPa | 175kg |
Note: there are three ways of Electricity, Fuel and Gas | |||||
Our steam generator safe and secure:
1. Water shortage protection: When the boiler is short of water, the controller automatically cuts off the heating circuit and issues a water shortage alarm to prevent the boiler from being damaged by dry burning.
2. Pressure protection: The boiler pressure is automatically controlled by the pressure control system. Even if the control system fails, the safety valve will automatically release pressure to prevent boiler accidents.

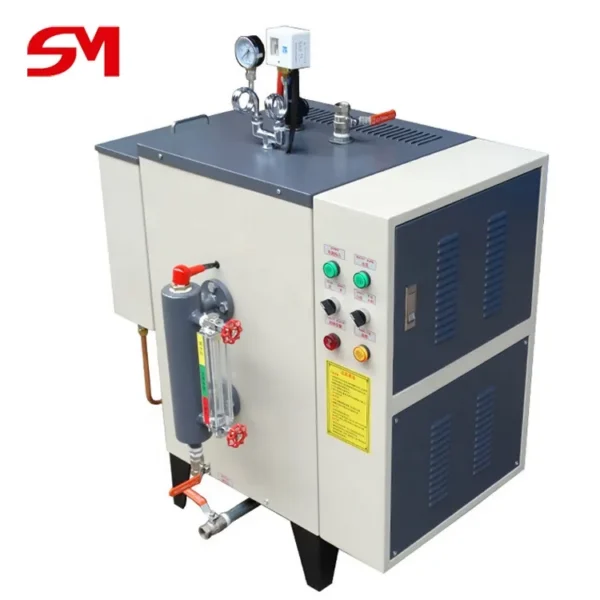

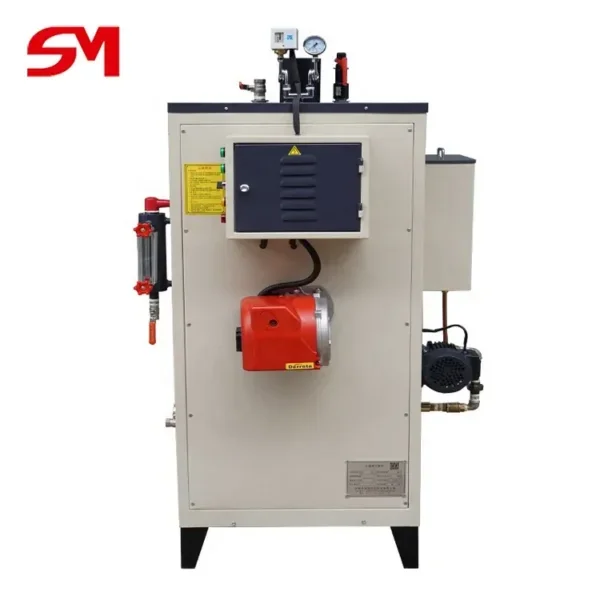

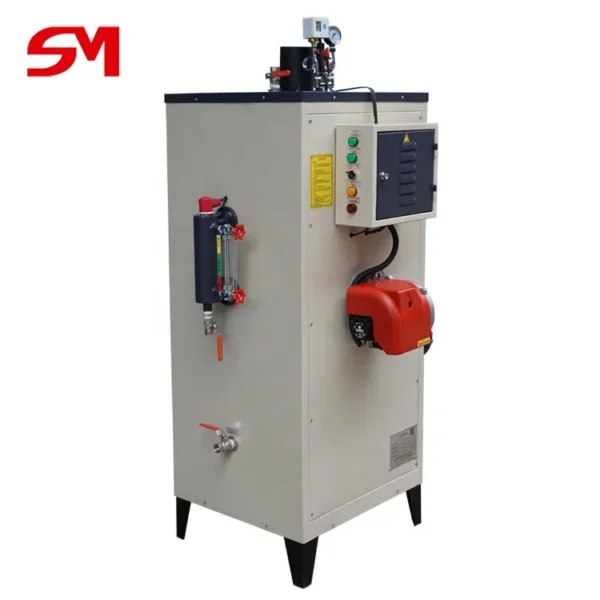

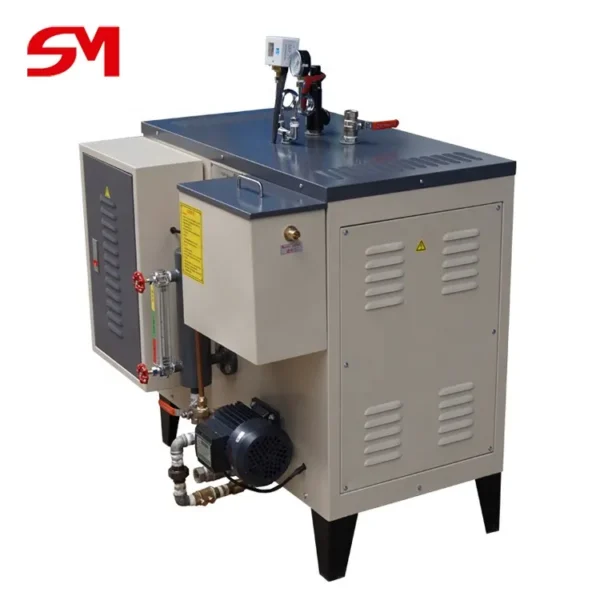

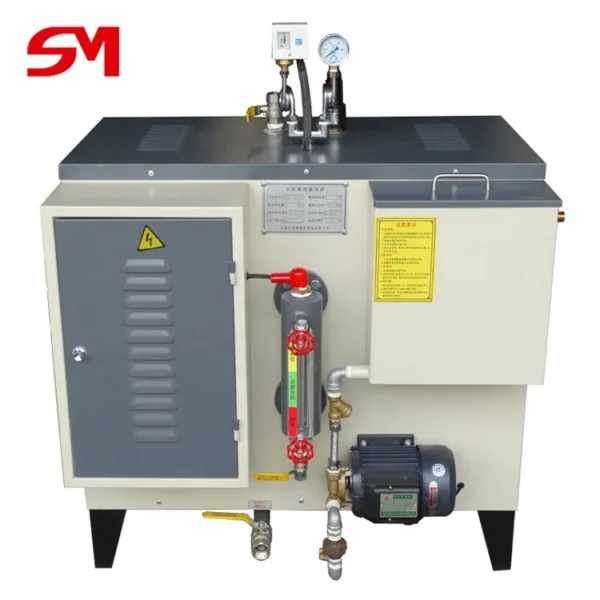

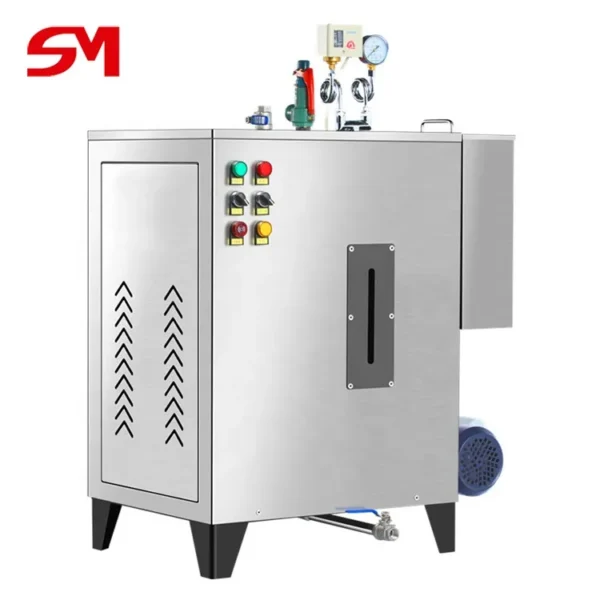

Detailed pictures of our steam generator:
Our steam generator for industrial applications:
PACKAGE:
Standard export carton or wooden case packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
WHY CHOOSE US
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Shuoman Machinery Equipment Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company. Browse the full Henan Shuoman Machinery Equipment Co., Ltd. range on HVACR Nexus.
