This steam boiler is published with the manufacturer’s full specification — material Carbon Steel, type Natural Circulation. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Steam Capacity: 1-20 T/h
- Material: Carbon Steel
- Boiler Material: Boiler specific carbon steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application Field: Food,Textile,Dyeing and Printing, Papermaking Industry
Technical Specifications
| Output | Steam, saturated steam, superheated steam |
|---|---|
| Usage | Industrial |
| Fuel | Gas (Natural gas, LPG, coal gas) |
| Pressure | Low Pressure |
| Structure | Horizontal; Corrugated furnace; Wet back |
| Type | Natural Circulation |
| Material | Carbon Steel |
| Core Components | Burner, Pump, Electric Control |
| Key Selling Points | Easy To Operate |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 8000 |
| Place Of Origin | Shandong, China |
| Brand Name | EPCB |
| Dimension(L*W*H) | Depends |
| Boiler Name | Industrial 1 to 20 ton gas fired steam boiler |
| Keywords | Gas fired steam boiler |
| Steam Capacity | 1-20 T/h |
| Working Pressure | 0.7-2.5Mpa (7-25 bar) |
| Steam Temperature | 170-225℃ |
| Boiler Material | Boiler specific carbon steel |
| Thermal Efficiency | Up to 94% |
| Application Field | Food,Textile,Dyeing and Printing, Papermaking Industry |
| Local Service Location | Philippines, Pakistan,Bangladesh,Uzbekistan |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

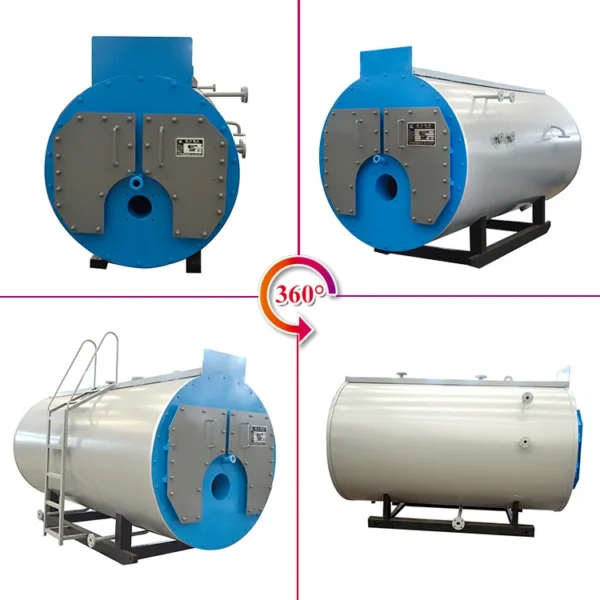

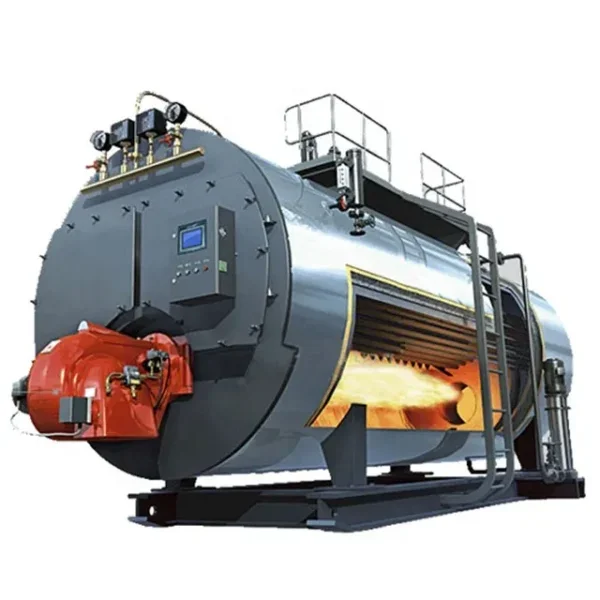

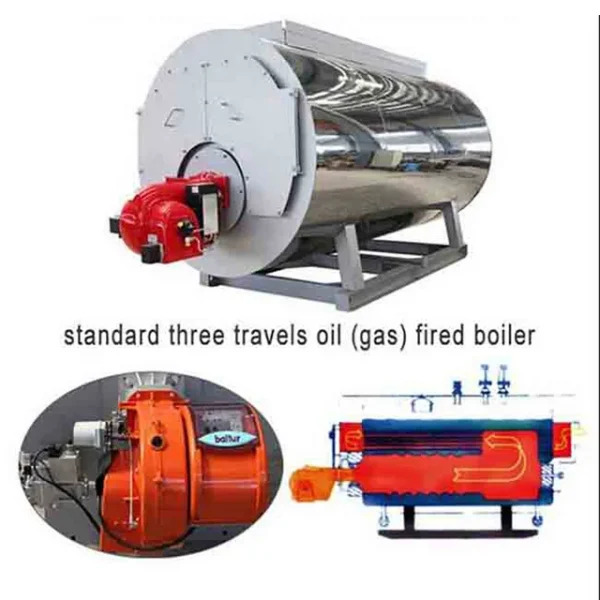

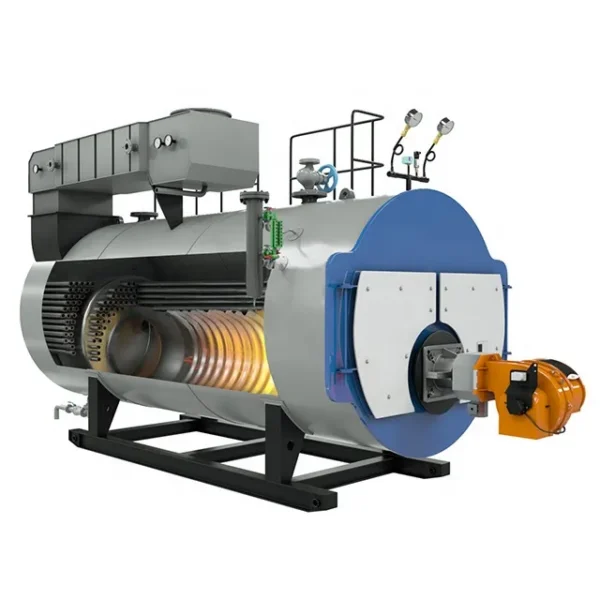

1 2 3 4 6 8 10 12 15 20 Ton Industrial Gas Fired Steam Boiler With corrugated furnace three passes and web back structure
Product Features

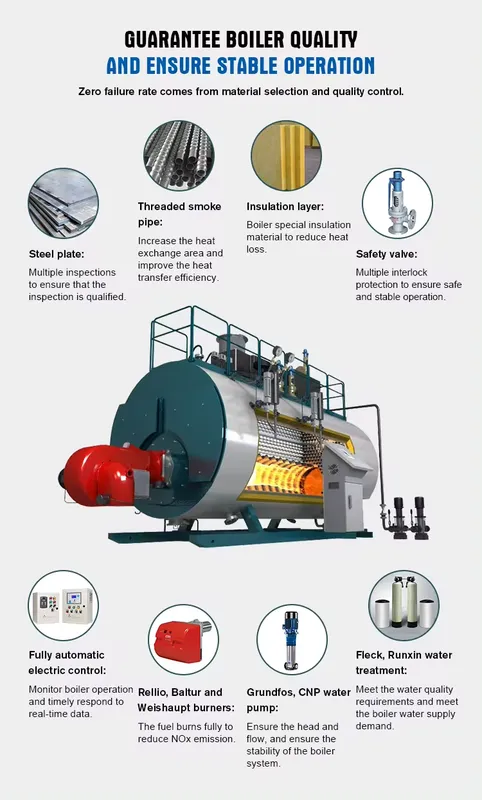

Experience Unmatched Efficiency with Our Industrial Gas Fired Steam Boiler Unleash the Power of Steam for Your Industrial Needs Key Features: – Versatile Steam Capacity: With a steam capacity ranging from 1 to 20 tons per hour, this gas-fired steam boiler is designed to meet the demands of various industrial applications. Whether you need saturated steam or superheated steam, it delivers with ease. – Superior Efficiency: Achieve thermal efficiency of up to 94% with our advanced boiler design. It ensures optimal fuel utilization, saving you operational costs in the long run. – Durable Construction: Crafted with precision using specific carbon steel, this horizontal boiler is built to last. The corrugated furnace, wet back structure, and three-pass design further enhance its durability. – Easy Operation: Designed with simplicity in mind, this gas-fired steam boiler is easy to operate. It's the ideal choice for hotels, garment shops, manufacturing plants, and more. Exceptional After-Sales Service:We understand the importance of reliable customer support. Our team of engineers is available to service machinery overseas, ensuring that your boiler continues to perform at its best. Global Reach, Local Service:Our gas-fired steam boilers have found their way to satisfied customers in the Philippines, Pakistan, Bangladesh, and Uzbekistan. Our worldwide showroom locations make it easy for you to see our products in action. Fuel Options to Suit Your Needs:This versatile boiler can run on natural gas, LPG, or coal gas, providing flexibility to adapt to your specific requirements.
We have agents and offices in countries such as Bangladesh, Pakistan, Indonesia, Uzbekistan, Russia,and the Philippines.
We also have very professional installation and after-sales teams that are always ready to serve you.
Click here to get your industry solution!
Item/Type | Horizontal Fire Tube Automatic Oil/Gas Fired Steam Boiler | ||||||||||||||||
Rated capacity t/h | 3 | 4 | 5 | 6 | 8 | 10 | 15 | 20 | |||||||||
Rated steam pressure MPa | 0.7/1.0/1.25/1.6 | ||||||||||||||||
Rated steam temperature ℃ | 170/184/194/204 | ||||||||||||||||
Boiler thermal efficiency % | 92.55 | 92.6 | 92.5 | 92.9 | 93.1 | 93.4 | 93.5 | 93.7 | |||||||||
Body heating area m2 | Boiler body | 67.87 | 80.37 | 110.5 | 140.13 | 194.27 | 142.3 | 218.5 | 275.3 | ||||||||
Economizer | 30.4 | 43.41 | 46.5 | 57.1 | 74.4 | 112.6 | 155 | 225.5 | |||||||||
Boiler water volume m3 | 6.25 | 7.54 | 8.9 | 8.5 | 13.9 | 19.5 | 24.5 | 31.5 | |||||||||
Flue diameter mm | φ450 | φ520 | 750×410 | 800×410 | 940×520 | 850×500 | 1200×600 | 1500×600 | |||||||||
Water inlet diameter DN | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 80 | |||||||||
Main steam valve diameter DN | 100/40 | 100/40 | 125/40 | 125/40 | 150/40 | 150/40 | 200/50 | 200/65 | |||||||||
Safety valve diameter DN | 2×40 | 50+40 | 2×50 | 2×65 | 2×65 | 2×80 | 2×100 | 2×100 | |||||||||
Blowdown diameter DN | 40 | 40 | 40 | 40 | 40 | 2×50 | 2×50 | 2×50 | |||||||||
Fuel consumption | Diesel kg/h | 177.65 | 236.74 | 296.25 | 353.97 | 470.95 | 586.79 | 879.25 | 1169.83 | ||||||||
Natural gas Nm³/h | 217.25 | 289.51 | 362.28 | 432.40 | 573.44 | 717.57 | 1075.21 | 1430.55 | |||||||||
Largest transportation size | Length mm | 4600 | 4900 | 5250 | 5850 | 6500 | 6240 | 8500 | 9200 | ||||||||
Width mm | 2200 | 2300 | 2350 | 2400 | 2600 | 2850 | 3500 | 3950 | |||||||||
Height mm | 2500 | 2650 | 2680 | 2700 | 2850 | 3100 | 4000 | 4350 | |||||||||
Largest transportation weight kg | 8000 | 8700 | 11200 | 12500 | 17800 | 22000 | 32500 | 40500 | |||||||||
Quality assurance: EPCB BOILER undertakes certain quality assurance for the products sold by the company to ensure that customers' rights and interests are protected from loss. Under the warranty conditions listed in the user manual or instruction manual, the device If the equipment fails during the warranty period, our company will provide warranty services for the products sold. Warranty period: Overseas products are 12 months from the date of equipment boarding and departure. Warranty service: During the warranty period, any failure due to equipment quality or non-Party A reasons can be repaired. Get free warranty service (including some accessories). Response service: In case of emergency, usually within 2 hours; in case of non-emergency, usually within 4 hours Inside. Telephone service: If there is a problem with the equipment, if necessary, it can be solved through telephone consultation. On-site service: When telephone consultation cannot solve the problem, for products within the warranty period, we will On-site service is available. Specific service terms should be stated in advance, and the costs incurred will be borne by both parties or We will be responsible for any damage caused.
Related Products
About EPCB
After more than seventy years of development, EPCB Boiler has grown into a professional boiler system solution provider integrating boiler design, manufacturing, installation, and maintenance. Our products cover steam boilers, thermal oil boilers, hot water boilers, power plant boilers, and other categories and can provide customized solutions according to customer needs. At present, our market has covered more than one hundred countries and regions in Asia, America, Europe, Africa, Oceania, etc. More than fifteen thousand companies around the world have chosen EPCB boilers, which are widely used in more than four hundred industries.
The EPCB Boiler factory is located in Qingdao, an important industrial manufacturing base in China, covering an area of one hundred twenty thousand square meters. It has modern factory buildings, advanced production equipment, and a complete production line to ensure the stability and reliability of product quality. As of two thousand twenty-four, the annual production volume has reached two thousand units and continues to grow.
Under a strict quality management system, we have obtained multiple international certifications: [Factory Certification] ISO nine thousand one; [Product Certification] CE, ASME, EAC, etc. EPCB Boiler always adheres to high-standard manufacturing to ensure the high performance, high safety, and long service life of each boiler, providing excellent heating solutions for global customers.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao East Power Industry Equipment Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao East Power Industry Equipment Co., Ltd. range on HVACR Nexus.
