Steam Boiler, Centrifugal, Electric, Stainless Steel

The steam boiler listed here carries power Electric, material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Qingdao East Power Industry Equipment Co., Ltd. (15 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Steam Boiler

• Power: Electric
• Material: Stainless Steel
• Warranty: 1 Year
• Certification: ISO9001; ISO14001
• Place Of Origin: China
• Application: Feed water

Technical Specifications

Product Details

Products Description

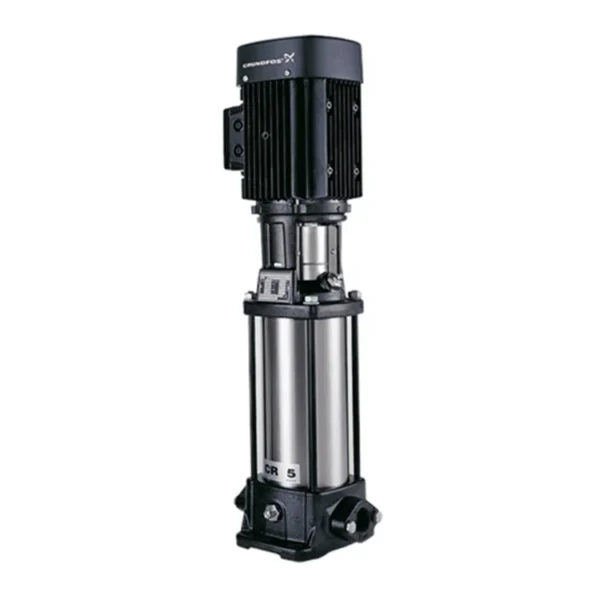

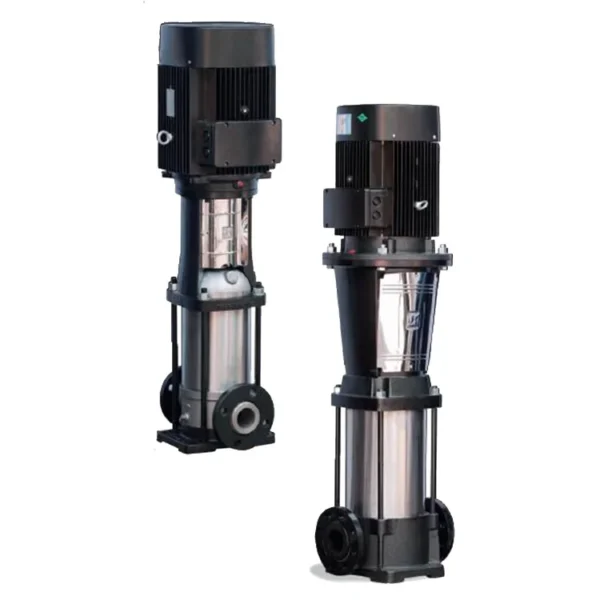

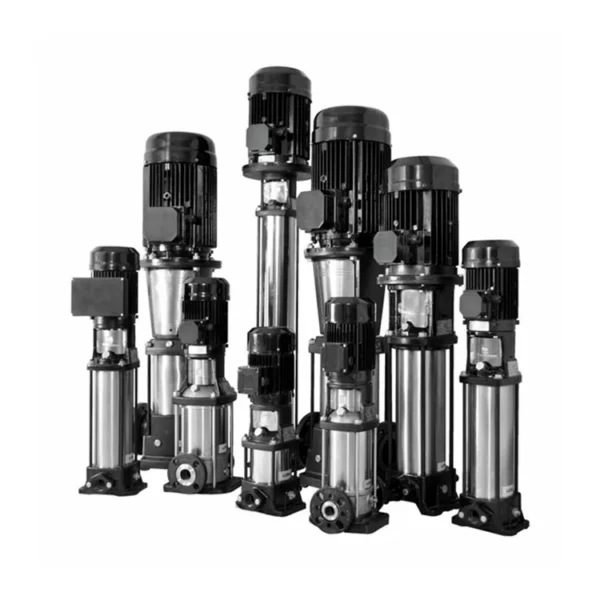

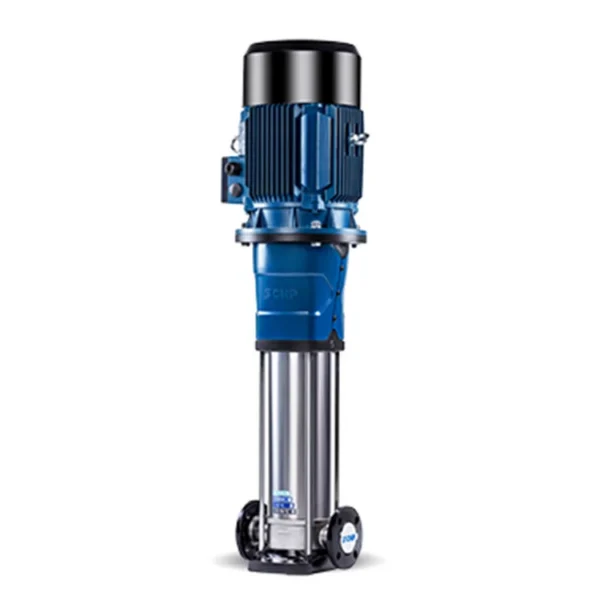

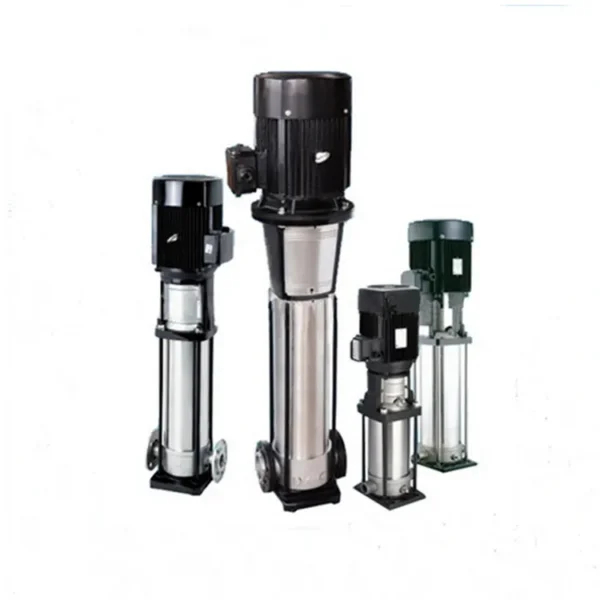

Feed Water Pump Multiple Stage Centrifugal Pump for Steam Boiler

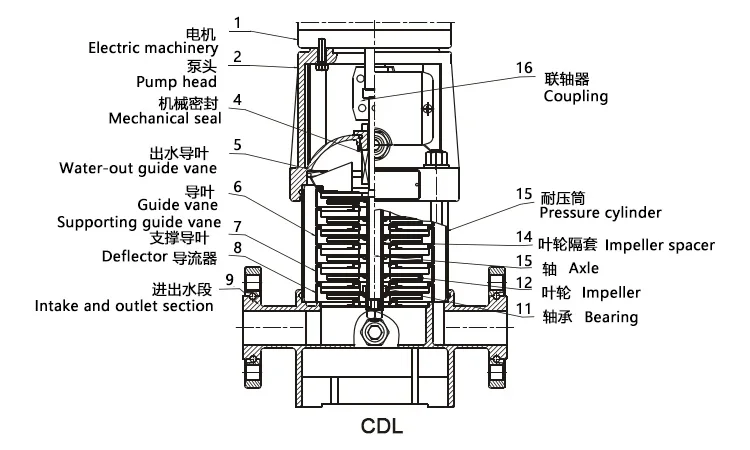

CDL / CDLF is a non self-priming vertical multistage centrifugal pump with standard motor. The motor shaft is directly connected with the pump shaft through the coupling of the pump head. The pull rod bolts fix the pressure cylinder and overflow parts between the pump head and the water inlet and outlet section. The water inlet and outlet of the pump are in the same straight line at the pump bottom. The pump can be equipped with intelligent protector as required to effectively protect the dry running, phase loss, overload, etc. of the pump.

Our Advantages

· Vertical and compact structure, the inlet and outlet flanges are located at the same central line, small ares occupation and easy installation.
· Assembly mechanical seal. Making installation and maintenance safer and more convenient.And guaranteeing the reliability mechanical seal.
· Wet parts are made of stainless steel, which will not contaminate medium ,possess lengthy service life and elegant appearance.
· Electric motor shaft directly and accurately connects with pump shaft through coupling.
· Low noise and less vibration.
· Standardized design and outstanding universality.

Please click here to learn more!!

Product Paramenters

Type	Equipped motor(KW)	Q(m^3/h)	0.4	0.6	0.8	1	1.2	1.4	1.6
CDL1-2	0.37	H(m)	13	12.5	12	11.5	11	10.5	10
CDL1-3					19	18	17.5	17	16.5	16	15
CDL1-4					24	23.5	23	22.5	21.5	21	19
CDL1-5					33	29.6	29	28	27	26	24
CDL1-6					36	35.5	35	33.5	33	31	28
CDL1-7					42	41	40.5	39	38	36	33
CDL1-8	0.55			48	47	46	45	43	41	38
CDL1-9					54	53	52	51	49	46	43
CDL1-10					60	59	58	57	54	51	48
CDL1-11					66	65	63	61	59	56	52
CDL1-12	0.75			72	71	69	67	64	61	57
CDL1-13					78	77	75	73	69	66	62
CDL1-15					89	88	86	84	79	76	71
CDL1-17	1.1			101	99	97	95	89	86	80
CDL1-19					113	110	108	106	99	96	89
CDL1-21					124	122	120	117	110	106	98
CDL1-23					137	133	131	128	121	116	107
CDL1-25	1.5			149	145	143.	139	131	126	116
CDL1-27					161	157	155	150	141	136	125
CDL1-30	2.2			178	175	171	166	157	150	139
CDL1-33					196	192	188	183	173	165	154
CDL1-36					214	210	205	200	190	181	169

Product packaging

We choose the best way to pack and load our vertical water pumps. All parts will be complete and work well.

Professional factory offers professional and safety service.

Operating Conditions

Title goes here.

1. Thin, clean, non-flammable, explosive liquid without solid particles or fibers;
2. Liquid temperature: Normal temperature: – 15 to + 70 ℃; Hot water type: – 15 to + 120 ℃;
3. Environmental temperature: maximum + 40 ℃;
4. Elevation: up to 1000M;

Application of Vertical Water Pump

CDL is a multi-functional product, which can transport various media from tap water to industrial liquids.
It is suitable for different temperature, flow rate and pressure range. CDL is suitable for non-corrosive liquids.
CDLF is suitable for mild corrosive liquids.
1.Water supply: water plant filtration and transportation, water plant zonal water supply, supercharger, high-rise building
supercharger.
2.Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire fighting system.
3.Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensation systems, machine tools, acid and alkali.
4.Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
5.Irrigation: farmland irrigation, sprinkler irrigation, drip pipe.

Company Profile

FAQ

Q: How can I choose the right model for the pump?
A: Please let us know the head of the pump and the flow of the pump. Then we can choose the appropriate pump model and make an offer to you immediately.
Q: Are you manufacturer?
A: Yes, we are the largest boiler manufacturer in China. We have our own factory with 120,000m2 area.
Q: How can I pay you?
A: T/T, LC,D/P are all available.
Q:What is the using life of your vertical water pumps?
Normally the boiler is design for 5 years life, but with right operation and good maintenance, the vertical water pumps can be use 5 years.
Q: How to use the product?
A: After you receive the product, we will guide you to use or pack it with the product manual.
Q: What about the delivery time?
A: Usually the delivery time is about 30 days. If you need the product badly, we can discuss again to shorten the delivery time and help you get the product as soon as possible.
Q: How can I get the best price quickly?
A: Please tell us your name, email address and company name, and then we will send you price list immediately. And if you use Whatsapp, Skype or Wechat, you can provide us your ID, it will be more convenient for our communication.

Please click here to contact us!

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $2100 / set
  • 2+ set: US $2000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this steam boiler?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this steam boiler carry?

It is supplied with ISO9001; ISO14001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
