Steam Boiler, KV20, 250KW, 114mm, 230KW

The steam boiler listed here carries material Cast aluminum, type Oil Burner, documented exactly as the manufacturer publishes it. Made by Qingdao Kingwei Energy Saving Equipment Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Steam Boiler

• Output Power: 230KW
• Material: Cast aluminum
• Warranty: 1 Year
• Place Of Origin: Shandong, China
• Application: various, such as heating mould, reactor, grain dryer
• Type: Oil Burner

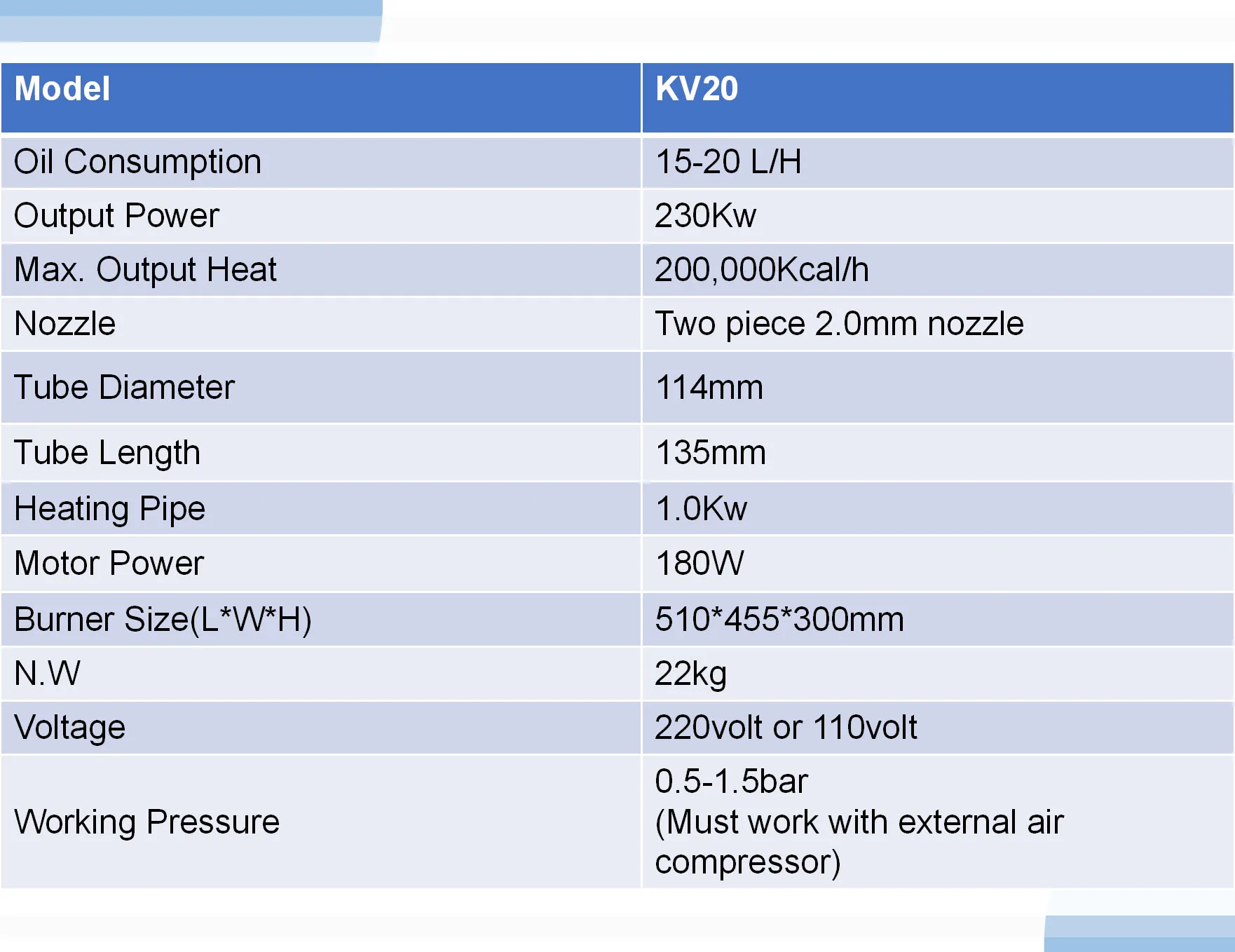

Technical Specifications

Product Details

Available Fuel List

Our burner can utilize all kinds of liquid oil/waste oil with or without impurities, can be divided into six types, 1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil 2) #2-#5 fuel oil 3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc 4) Mix oil 5) Diesel oil 6) KV-Artesian Oil Burner for Corrosive fuel, strongly acidic, strongly alkaline, such as pyrolysis oil, waste oil from tire&plastic, methanol (Link)

Waste Engine Oil

Vegetable Oil

Diesel Oil

Do you know how much heat/power you can gain from different fuels? ​Please choose the correct model from the below table before you put an order.

Fuel	Diesel Oil, Fuel Oil, Pyrolysis Oil Sample-C1 (Reference Calorific Value:  10 000Kcal/kg)			Vegetable Oil (Reference Calorific Value: 9 000Kcal/kg)			Engine Oil/Waste Engine Oil (Reference Calorific Value: 8 500Kcal/kg)
Model	Max. output heat(Kcal/h)	Max.output power(Kw)	Max. output heat(Kcal/h)	Max.output power(Kw)	Max. output heat(Kcal/h)	Max.output power(Kw)
KV03	30 000	34	27 000	31	25 500	29
KV05	50 000	57	45 000	51	42 500	48
KV10	100 000	114	90 000	102	85 000	97
KV20	200 000	227	180 000	205	170 000	193
KV30	300 000	341	270 000	307	255 000	290
KV40	400 000	455	360 000	409	340 000	386
KV50	500 000	570	450 000	511	425 000	483
KV60	600 000	682	540 000	614	510 000	580
KV90	900 000	1023	810 000	920	765 000	870
KV120	12 00 000	1360	10 80 000	1227	10 20 000	1160
KV180	18 00 000	2045	16 20 000	1840	15 30 000	1740
KV240	24 00 000	2730	21 60 000	2455	20 40 000	2320
KV360	36 00 000	4090	32 40 000	3682	30 60 000	3478

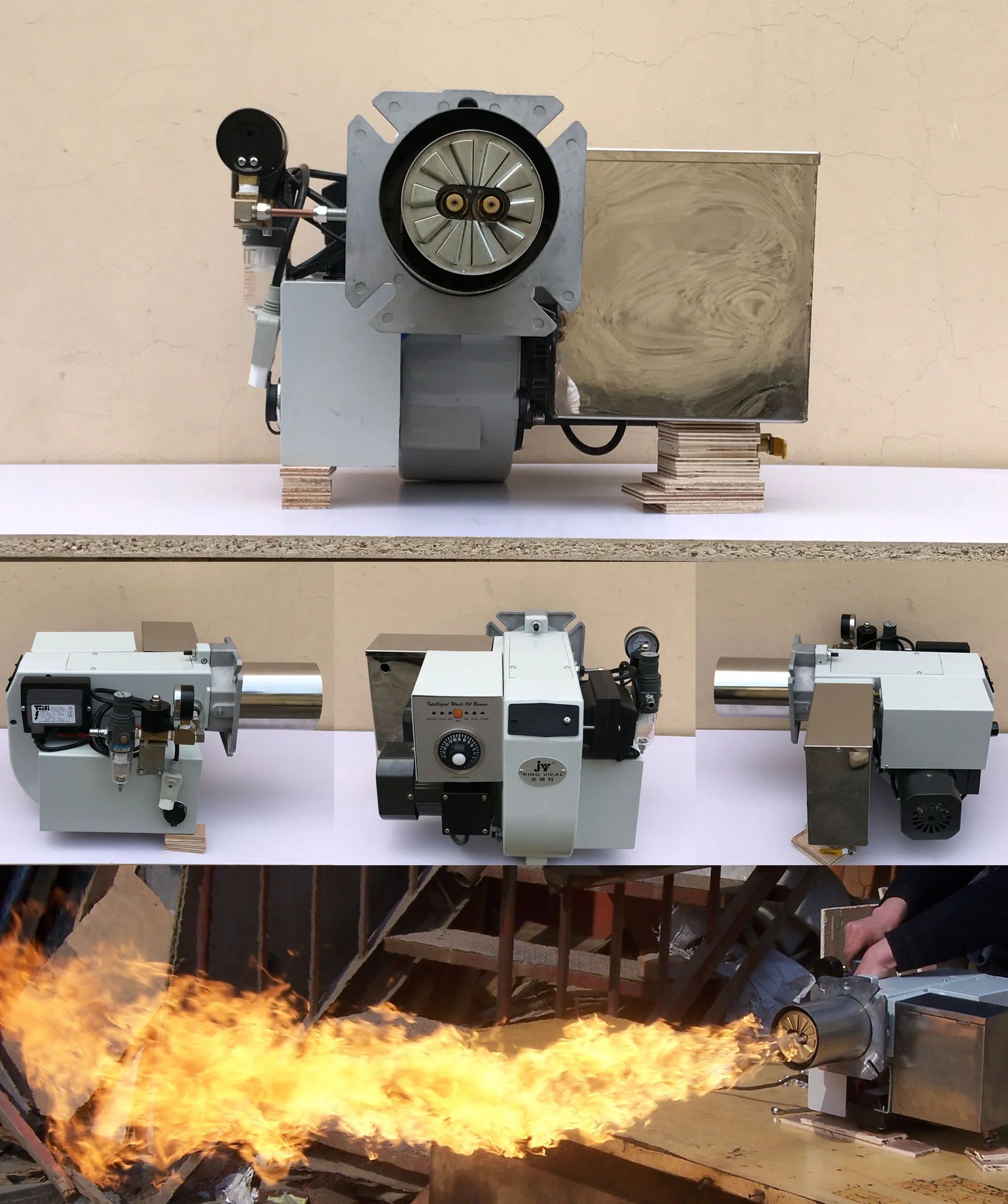

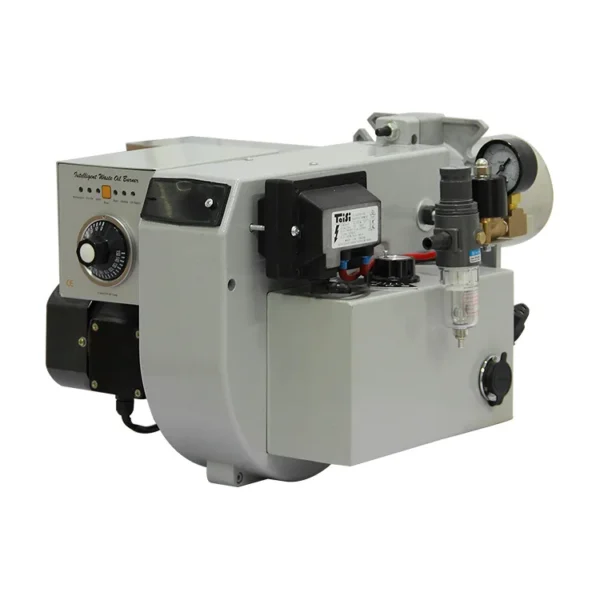

KV20 Oil Burner Description

KV20 Oil Burner Feature

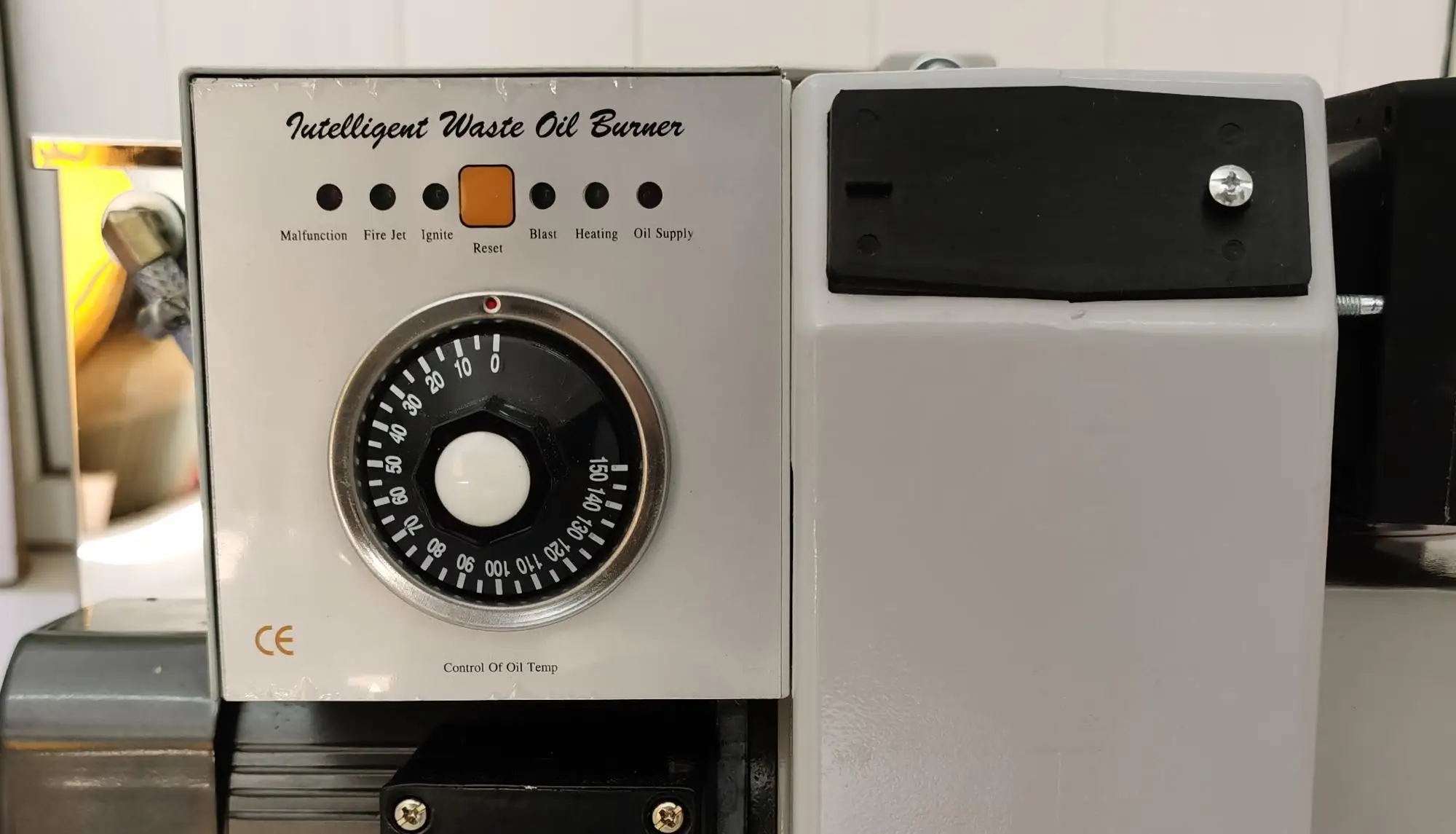

1) Pc board control, works fully automatically

2) Working stage & Malfunction readable, suit for different kinds of fuel

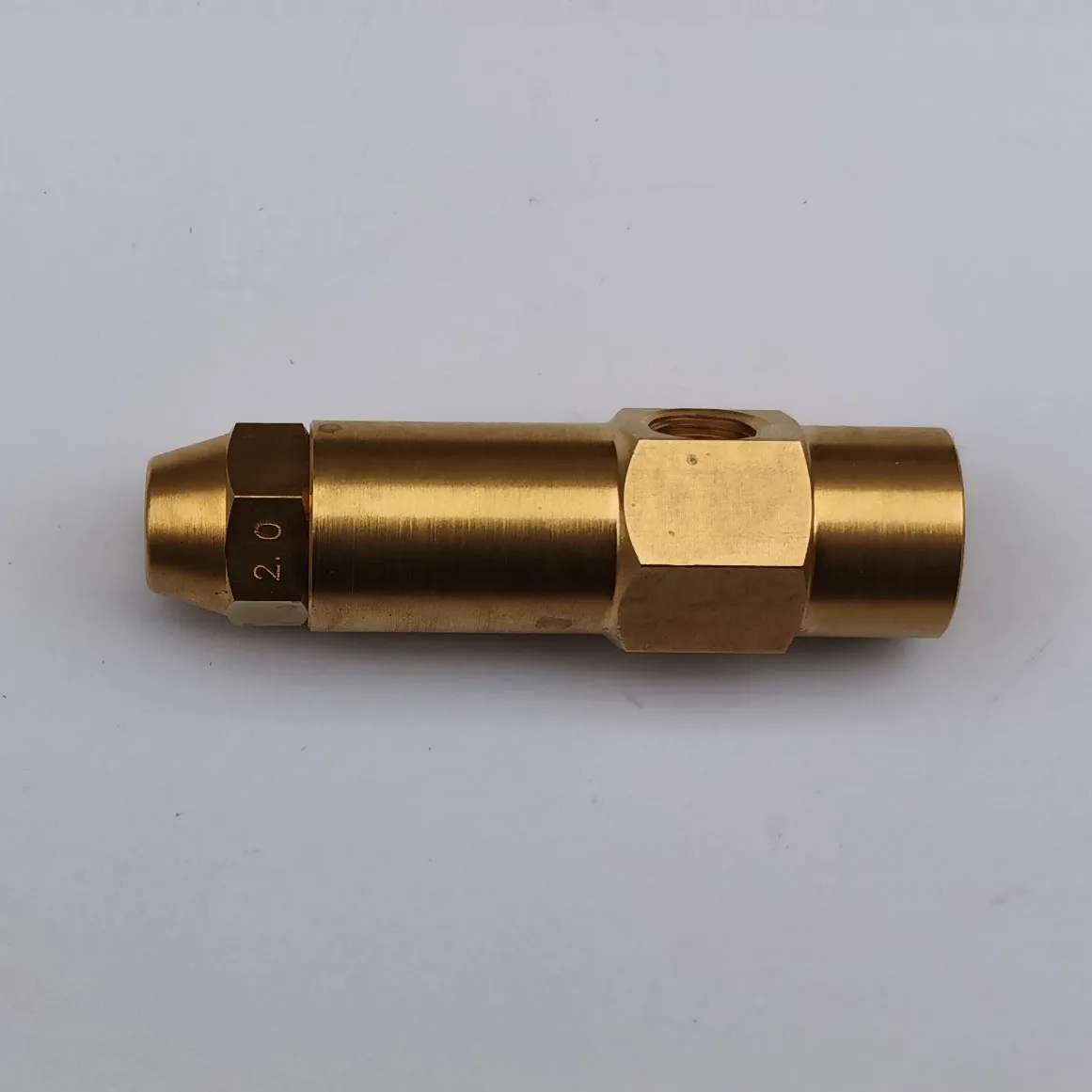

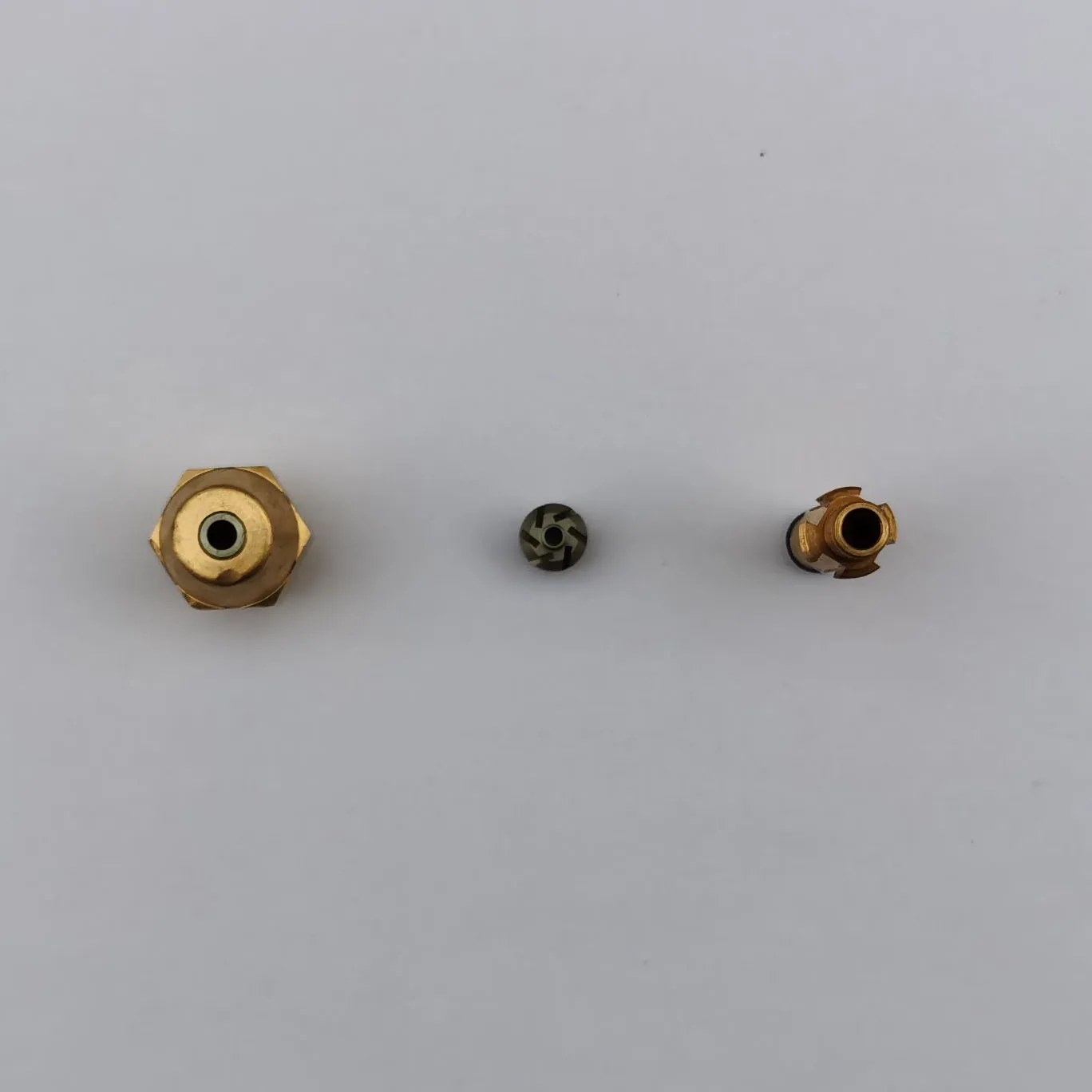

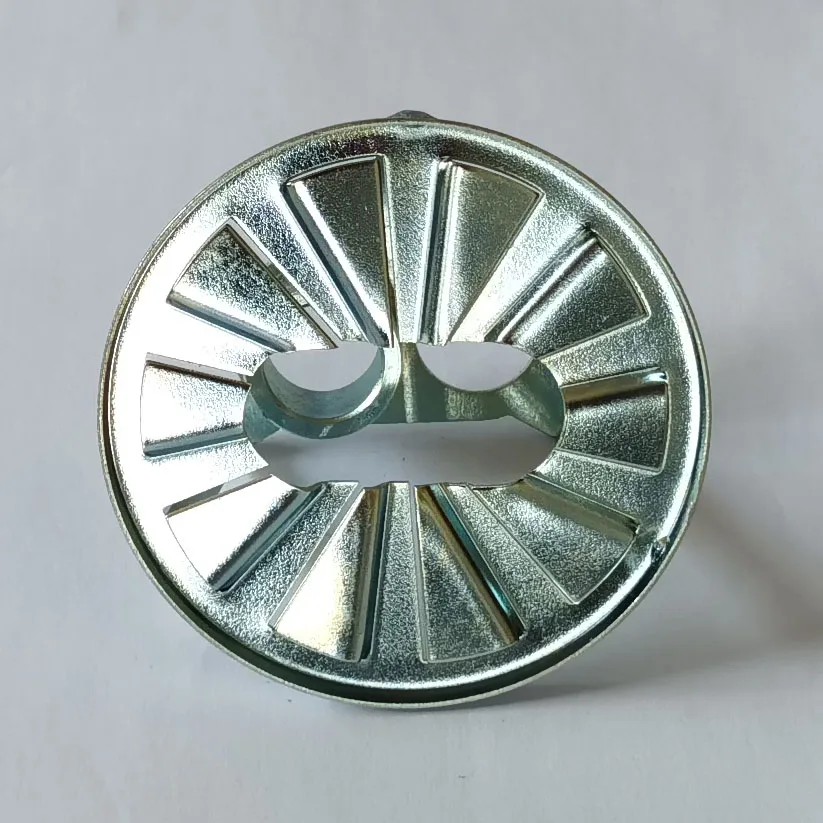

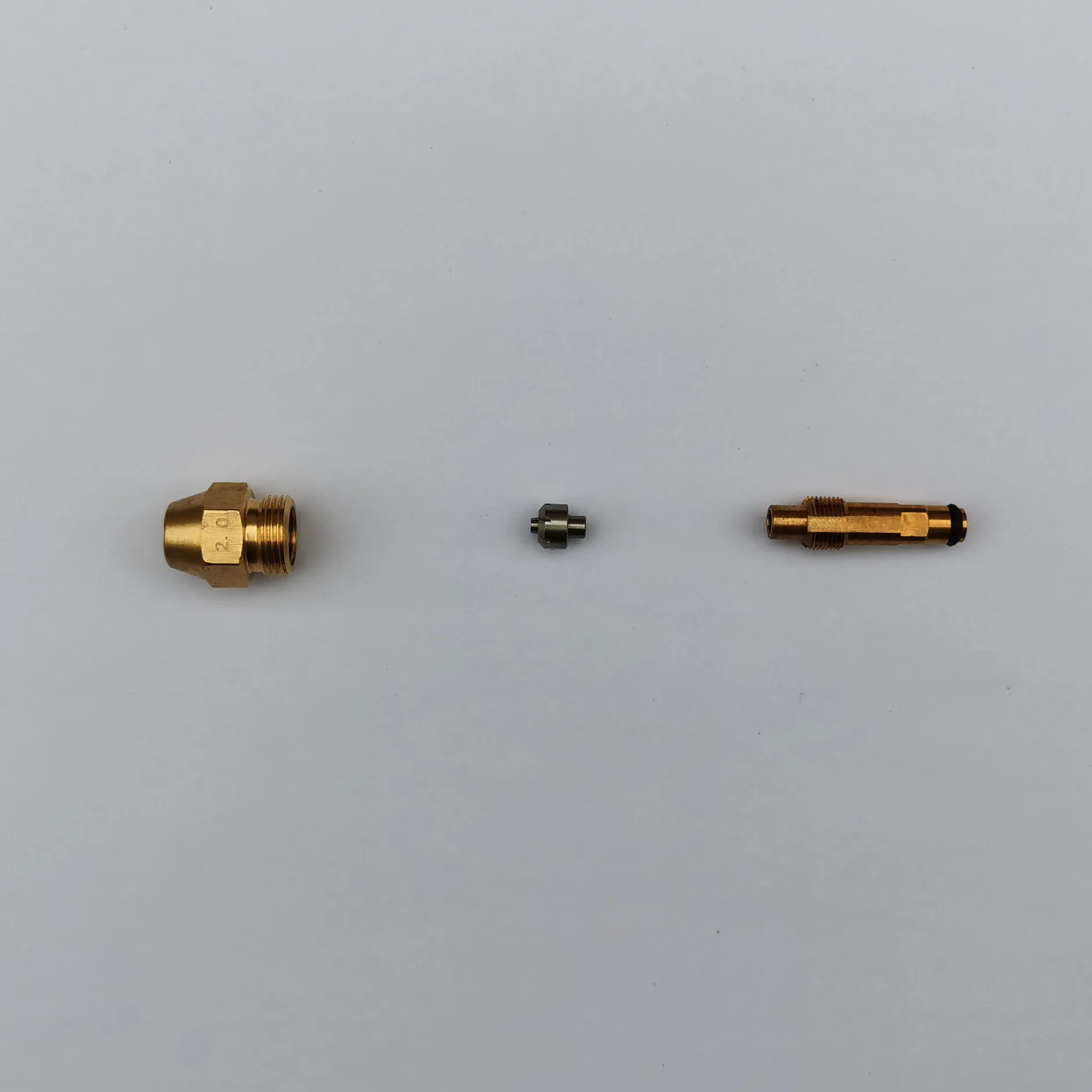

3) Customized siphon brass nozzles, casted flame ring, reach the best combustion

4) Multi safety protection

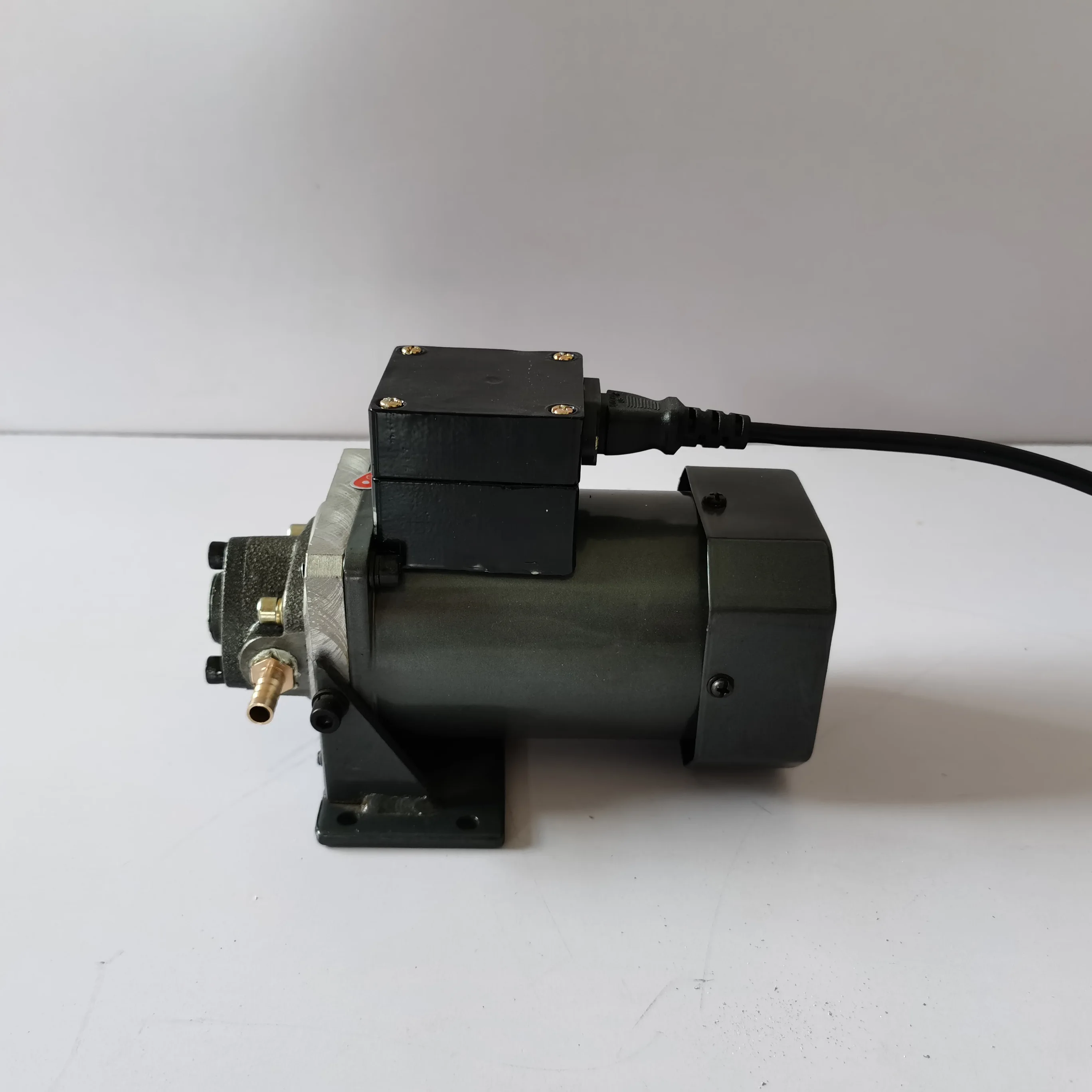

Oil pump protection

Stop the burner when oil pumps more than 2 minutes

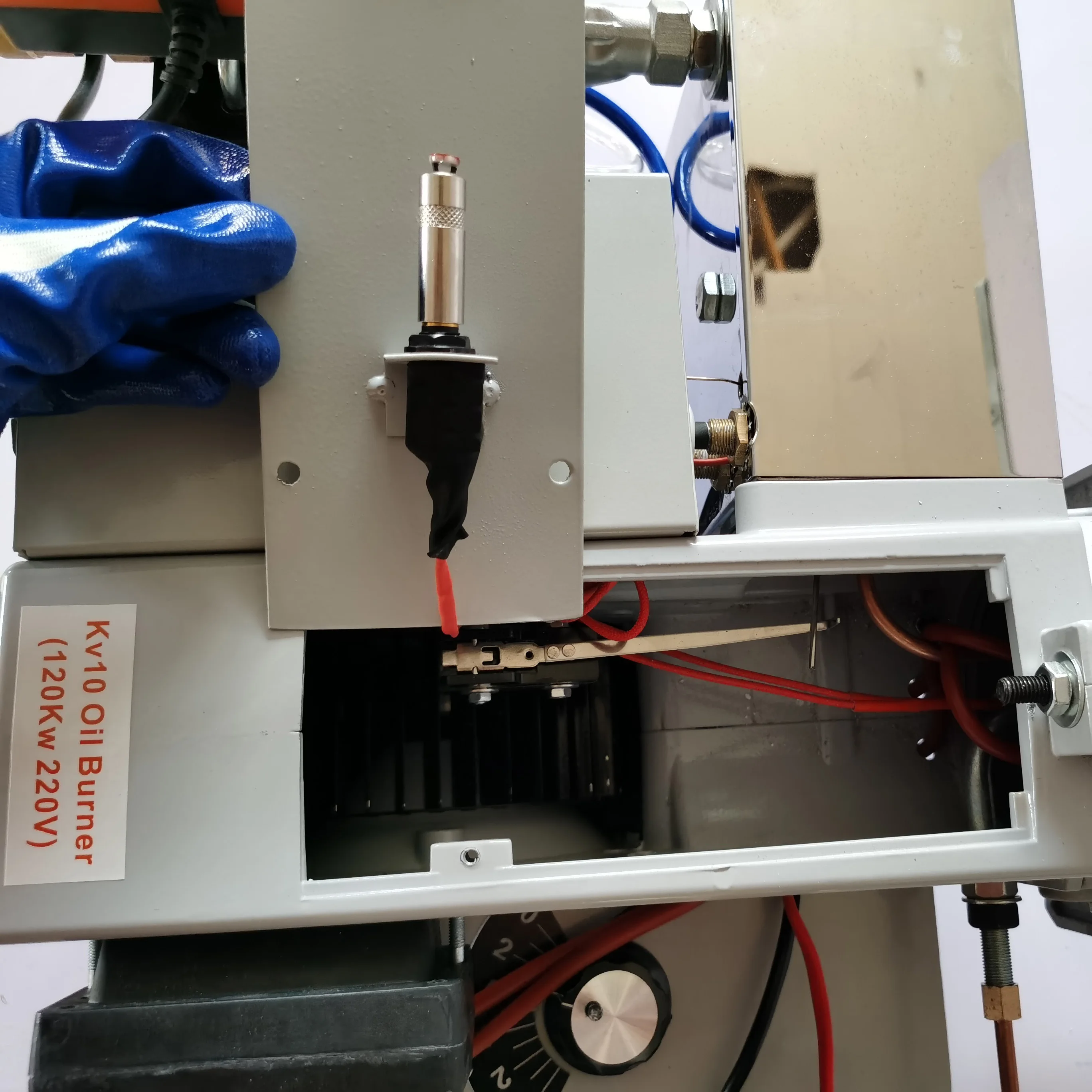

Photocell protection

Stop the burner when there is light

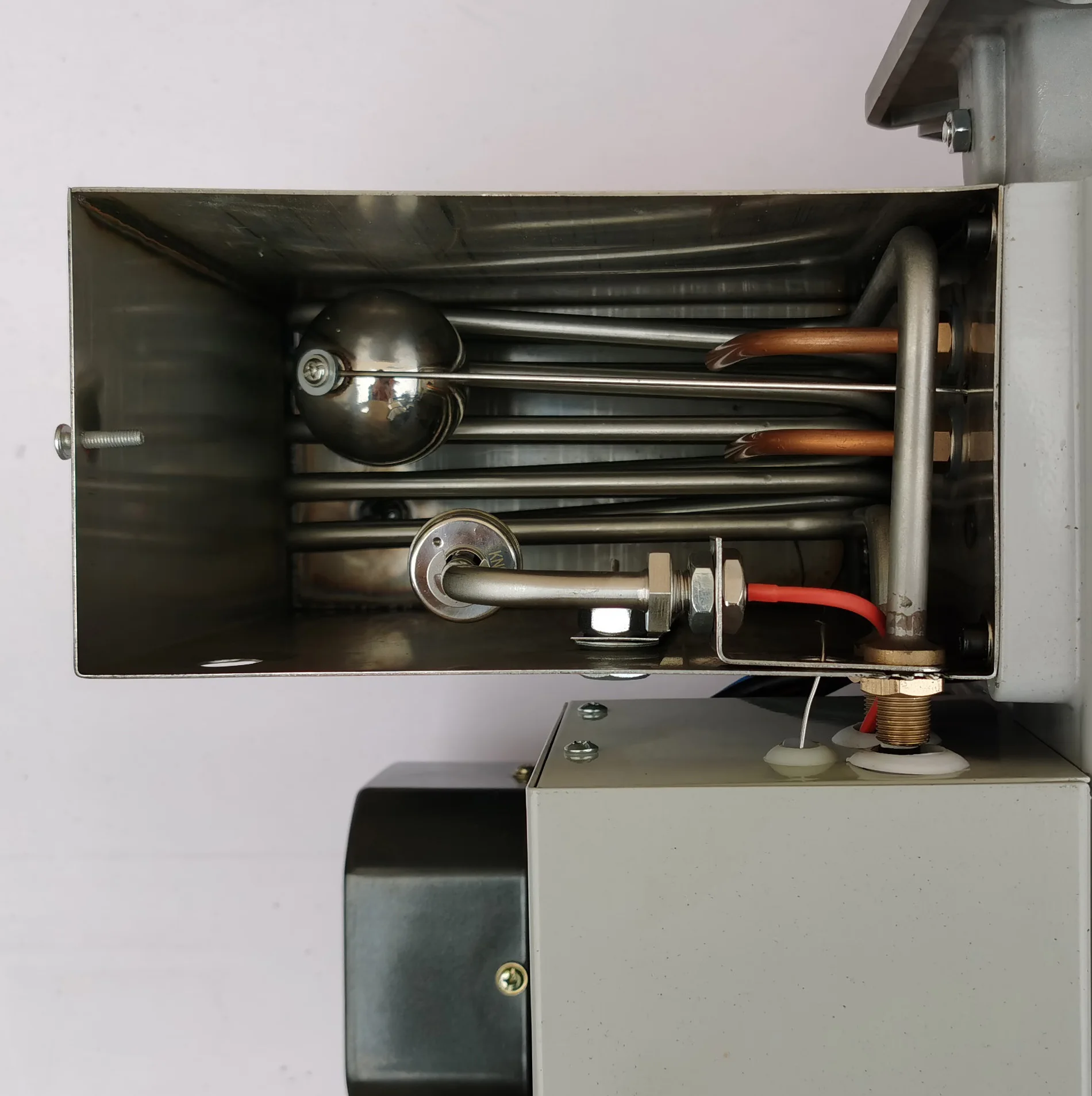

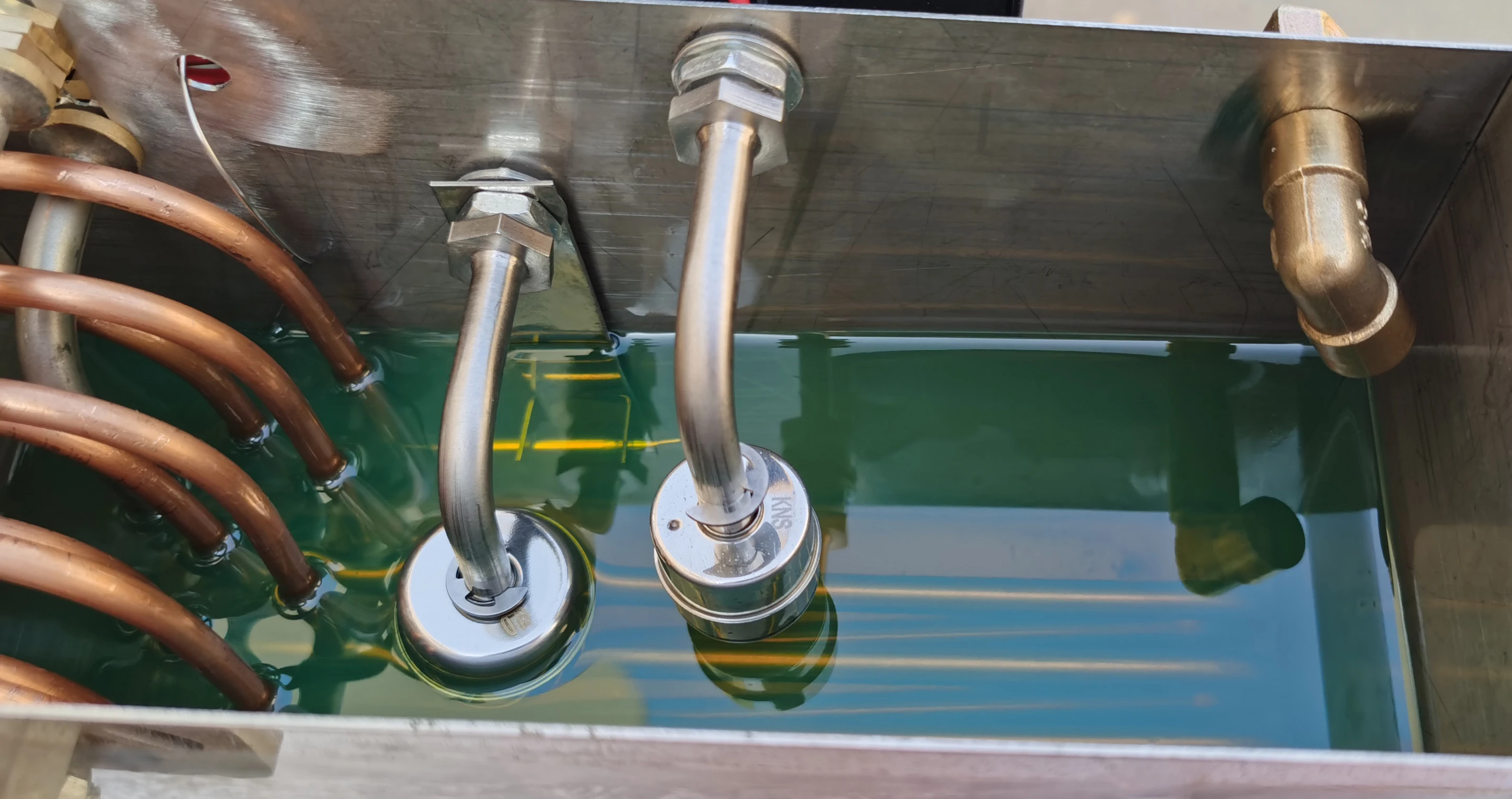

Oil level protection

Stop the burner when oil level reaches the high oil float

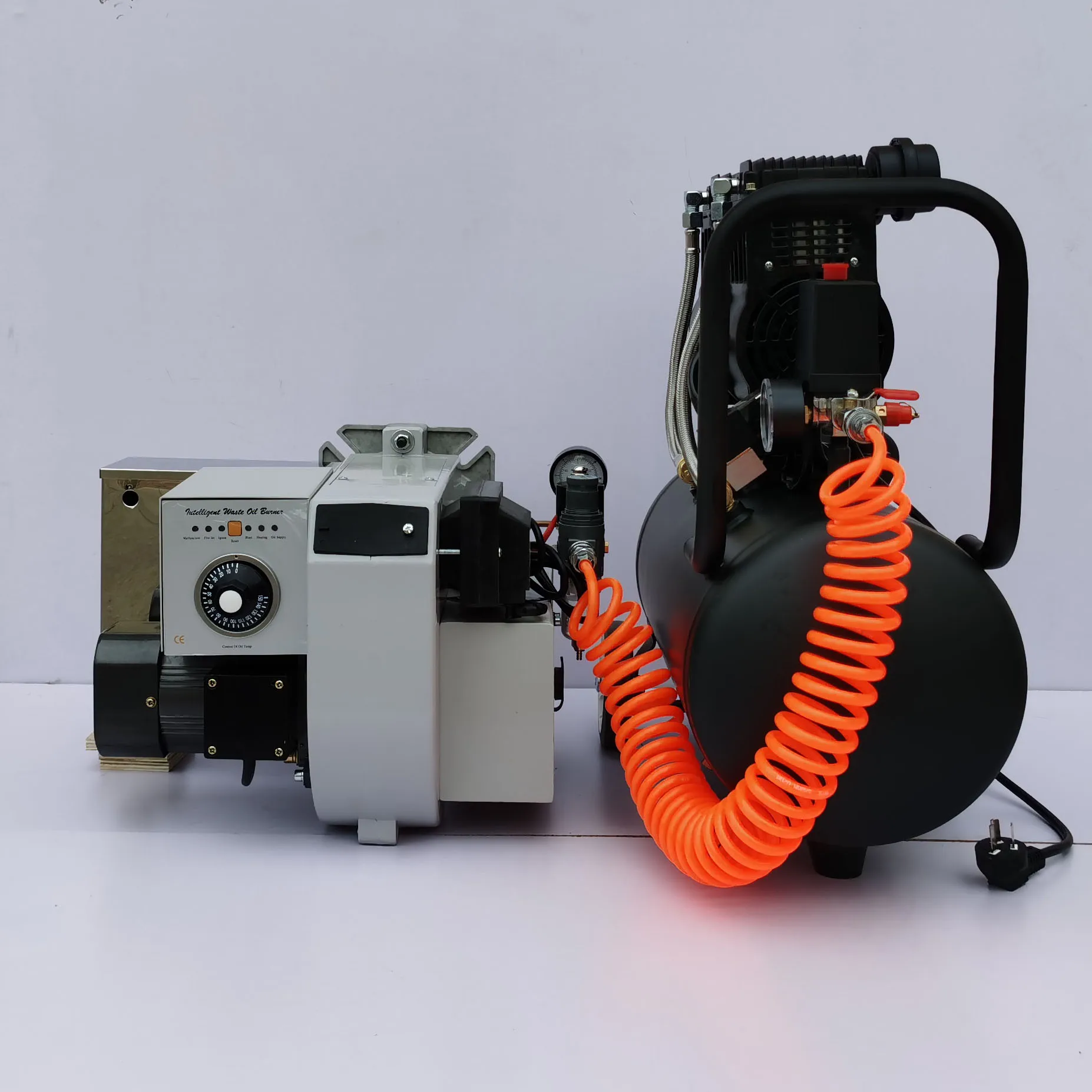

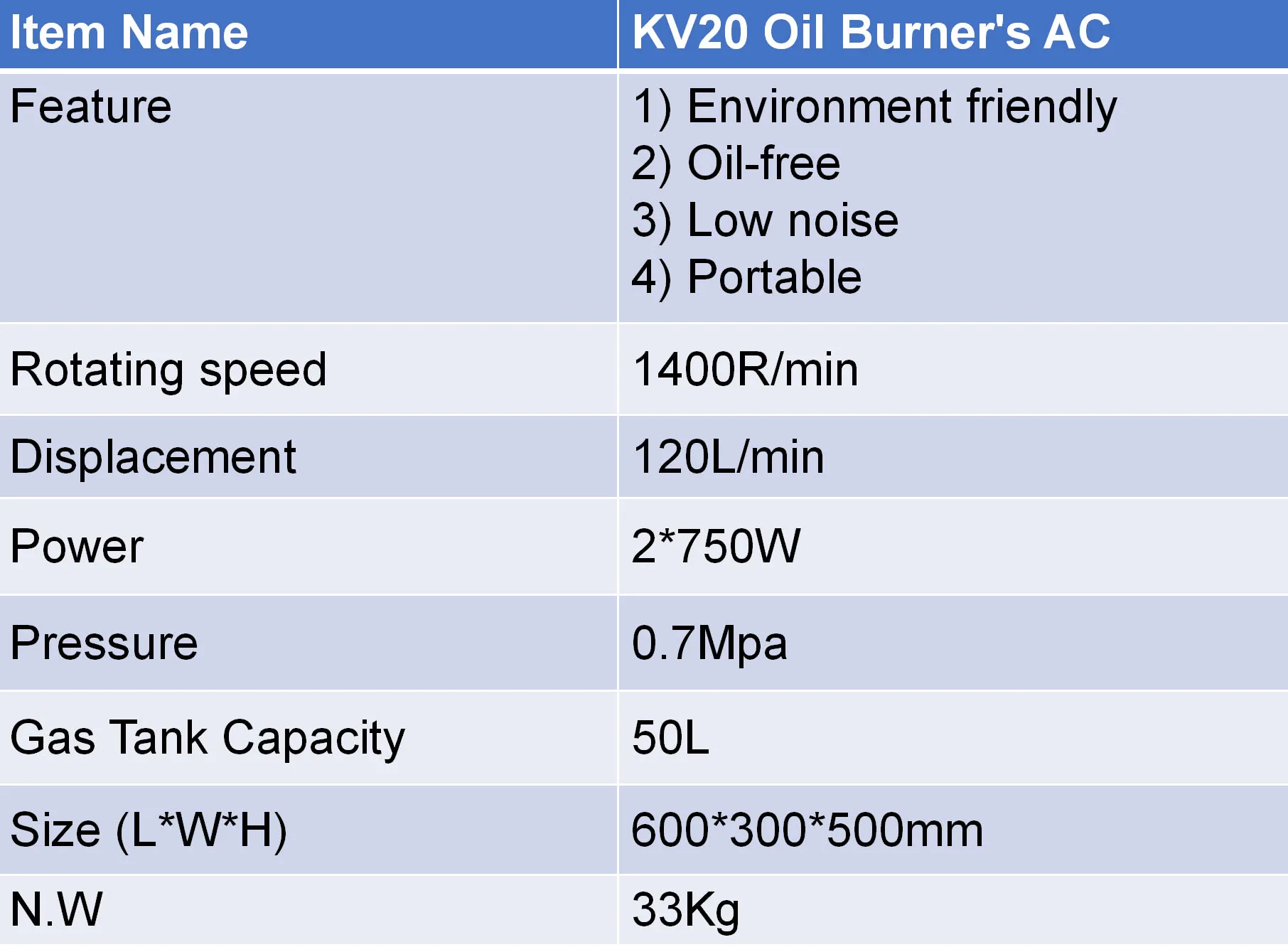

External Air Compressor Selection Guide

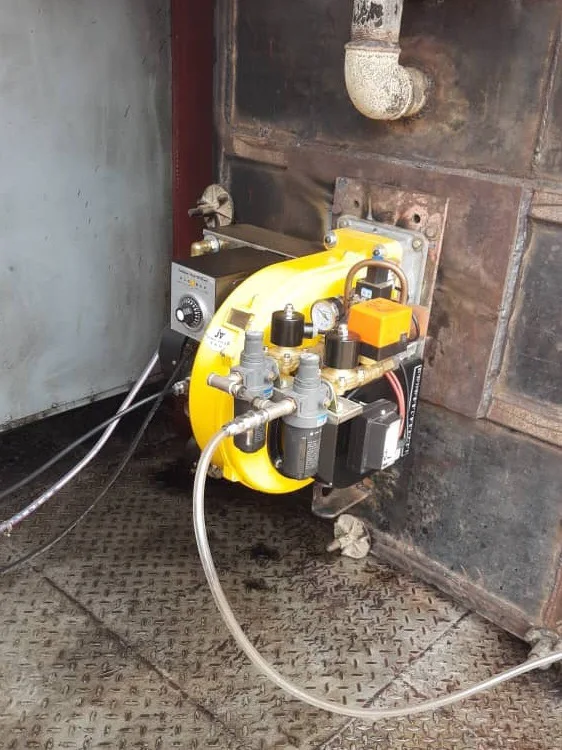

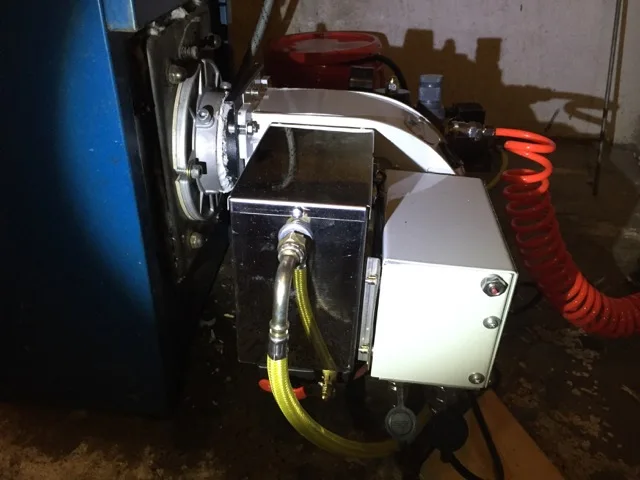

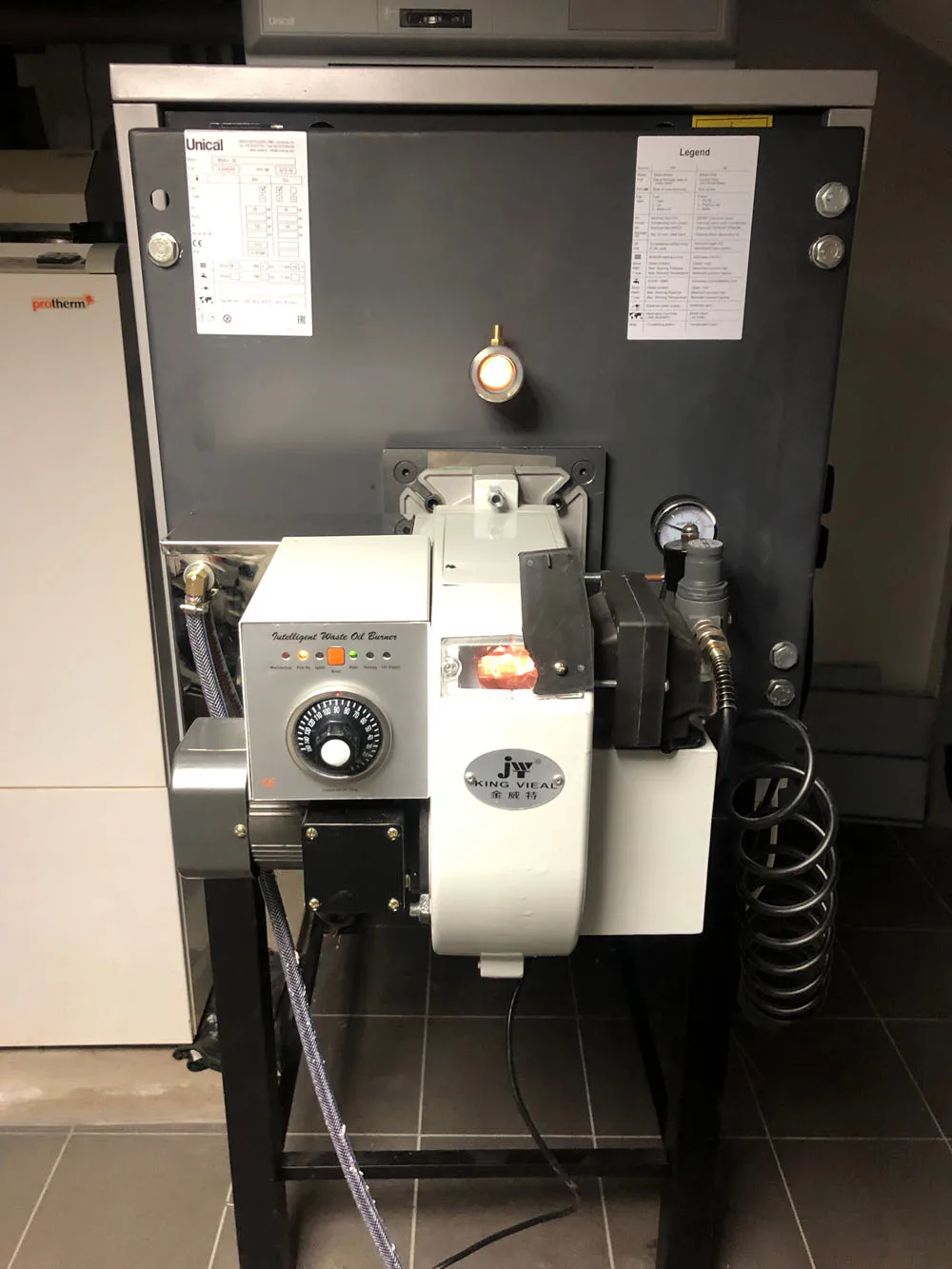

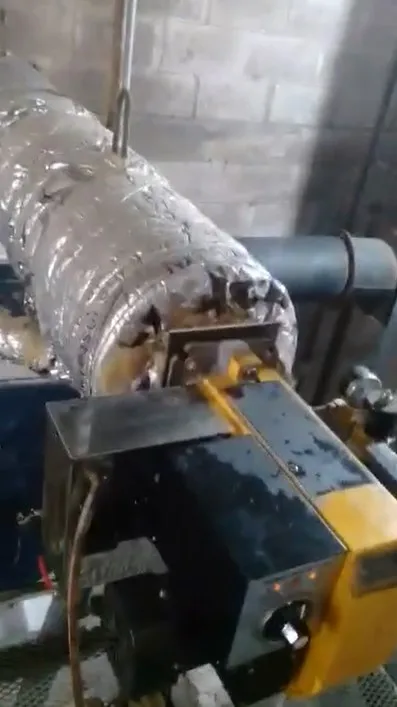

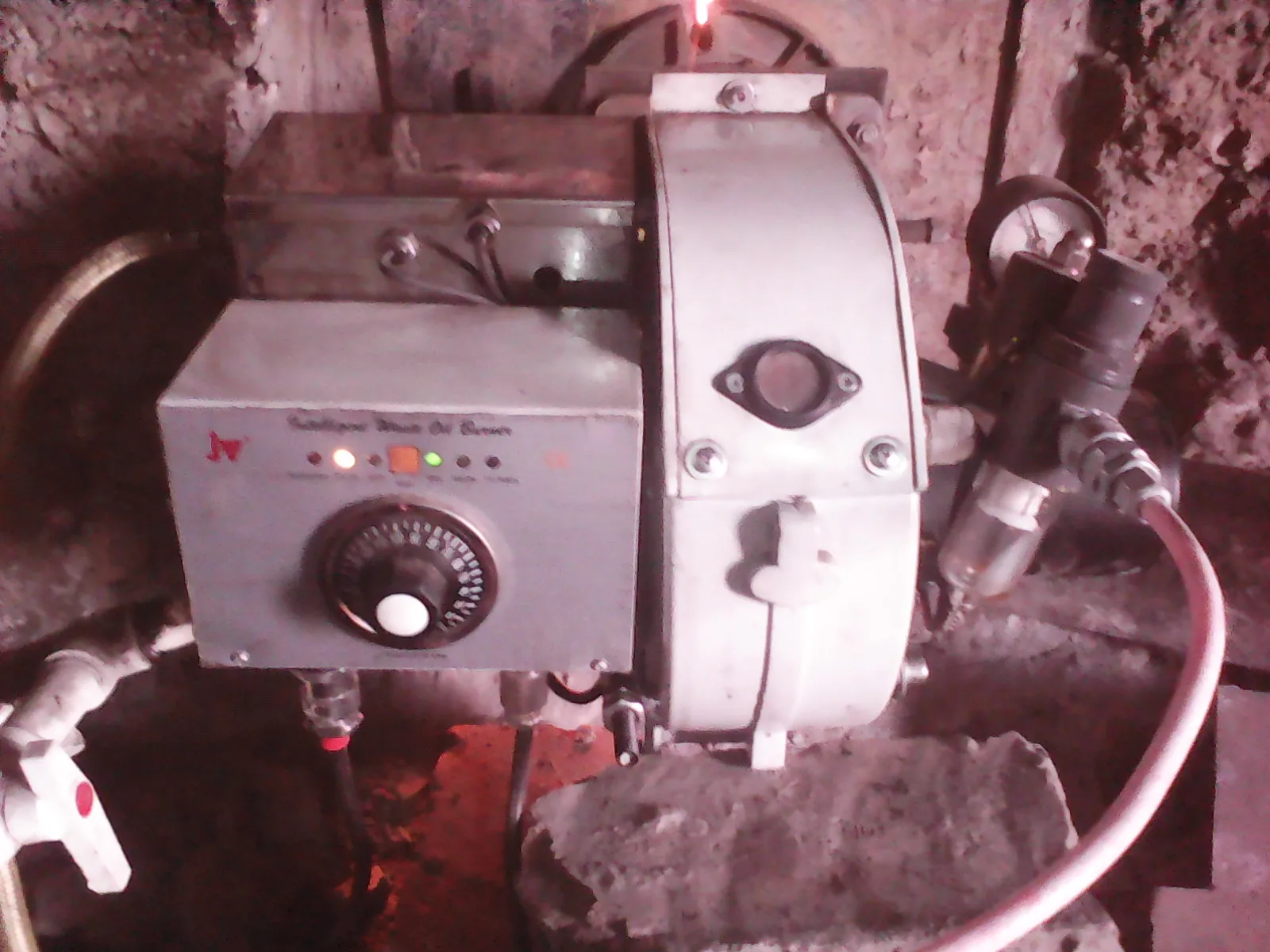

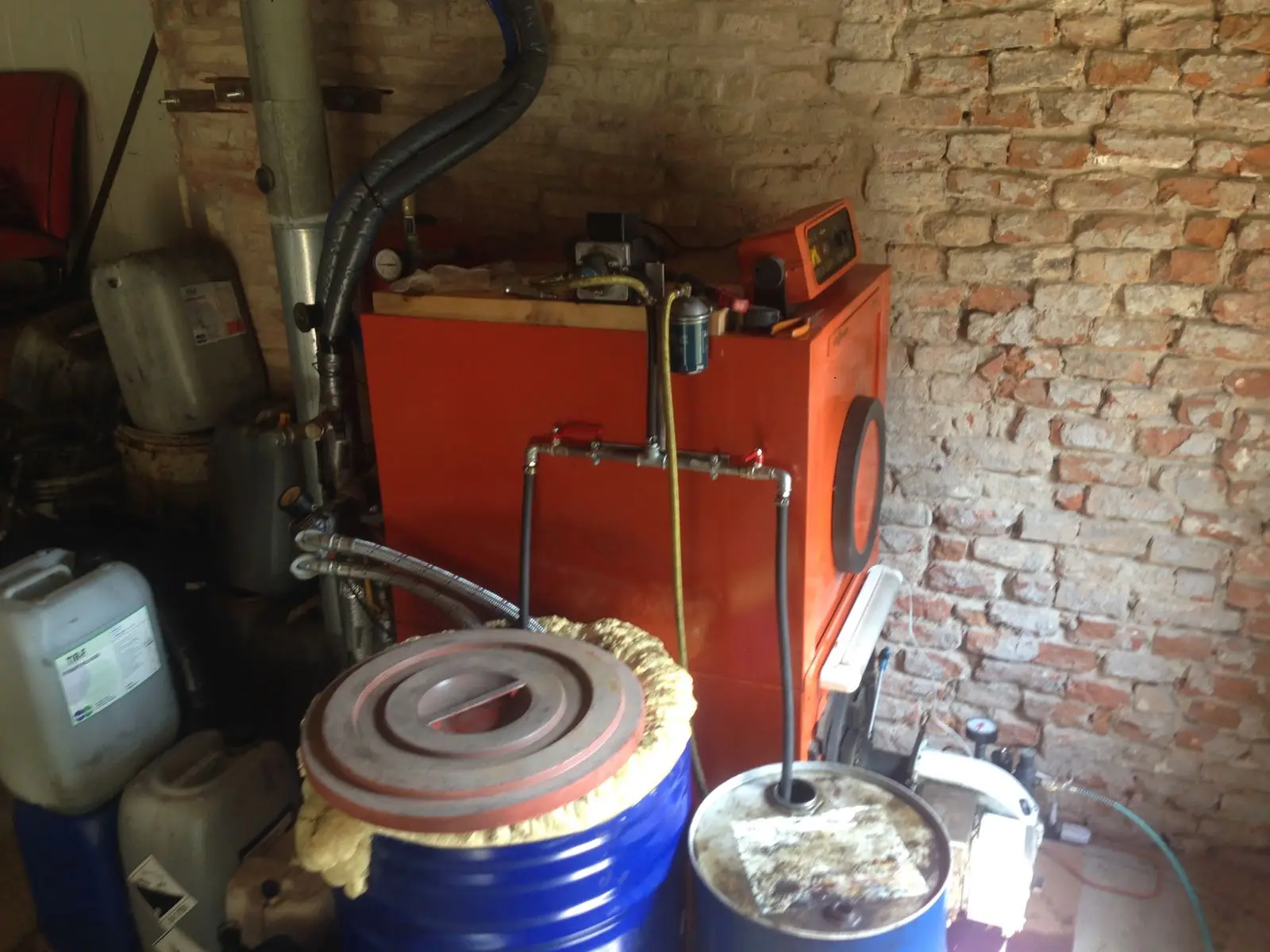

Installation Example

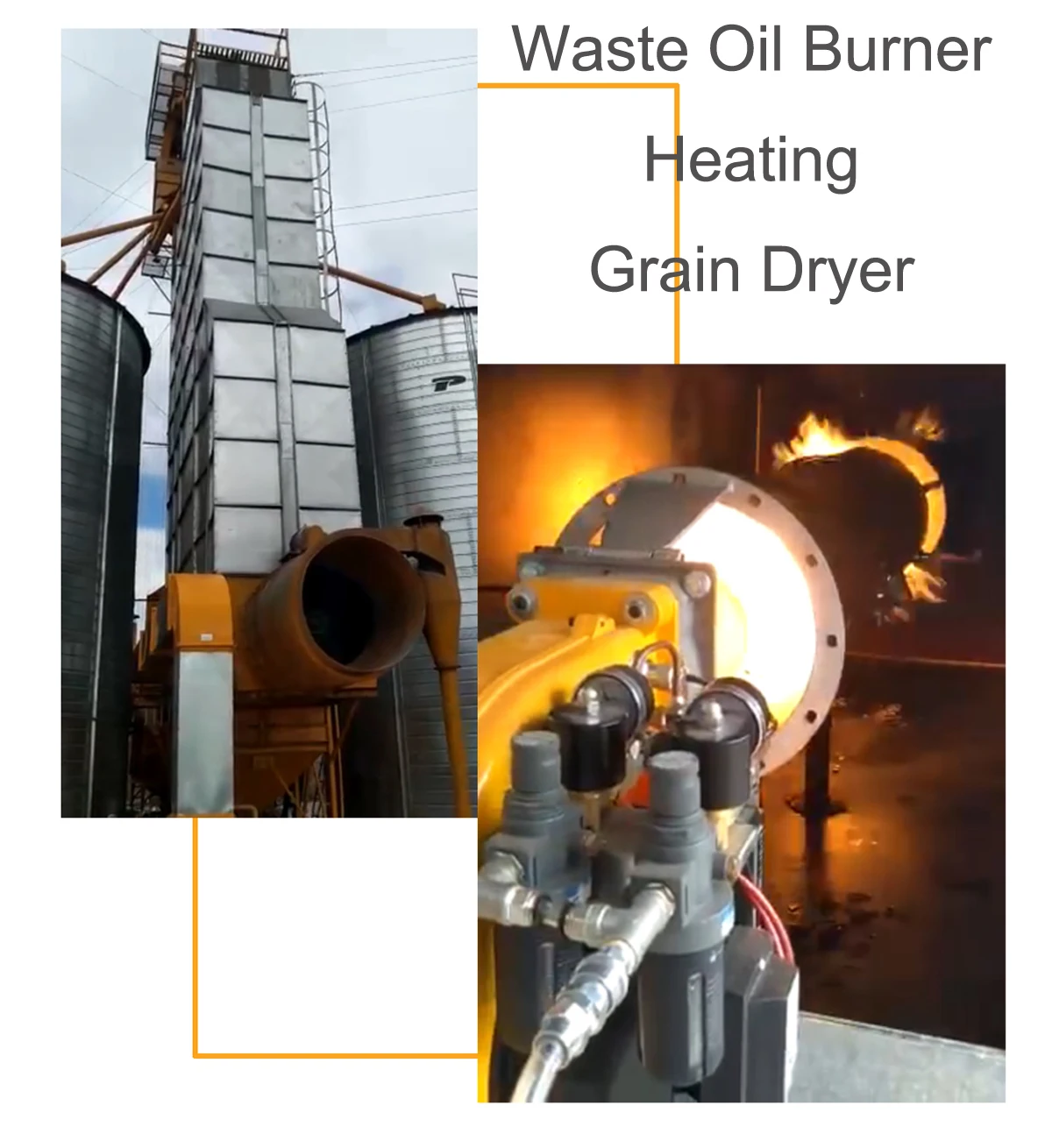

Our waste oil burner has various applications, can use for both individual and industrial area

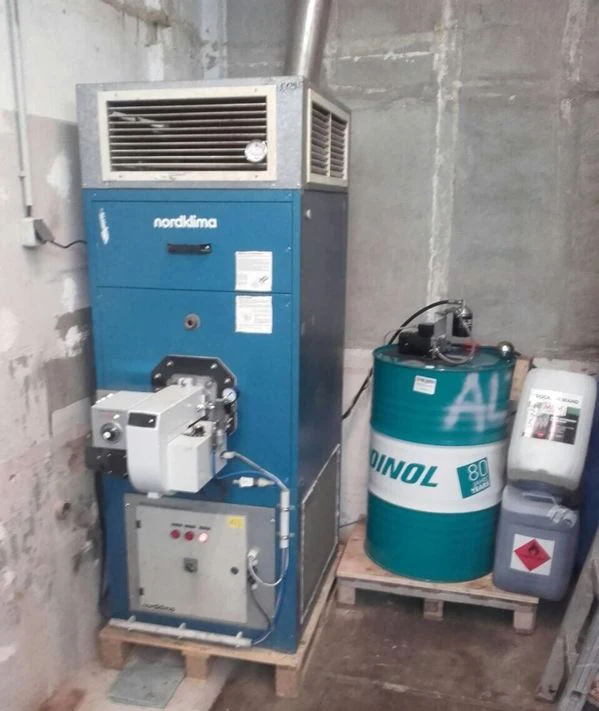

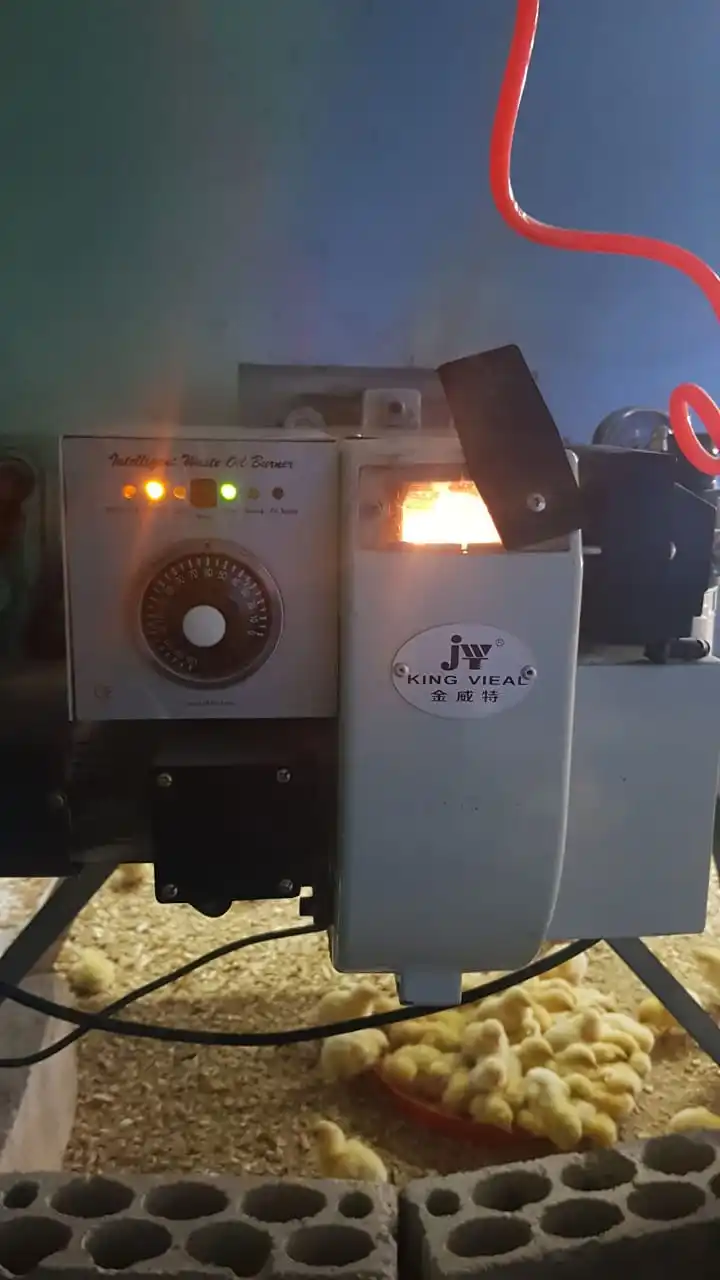

Small power burners are very popular for individual heating, for home, swimming pool, grain dryer, chicken house, fryer, etc

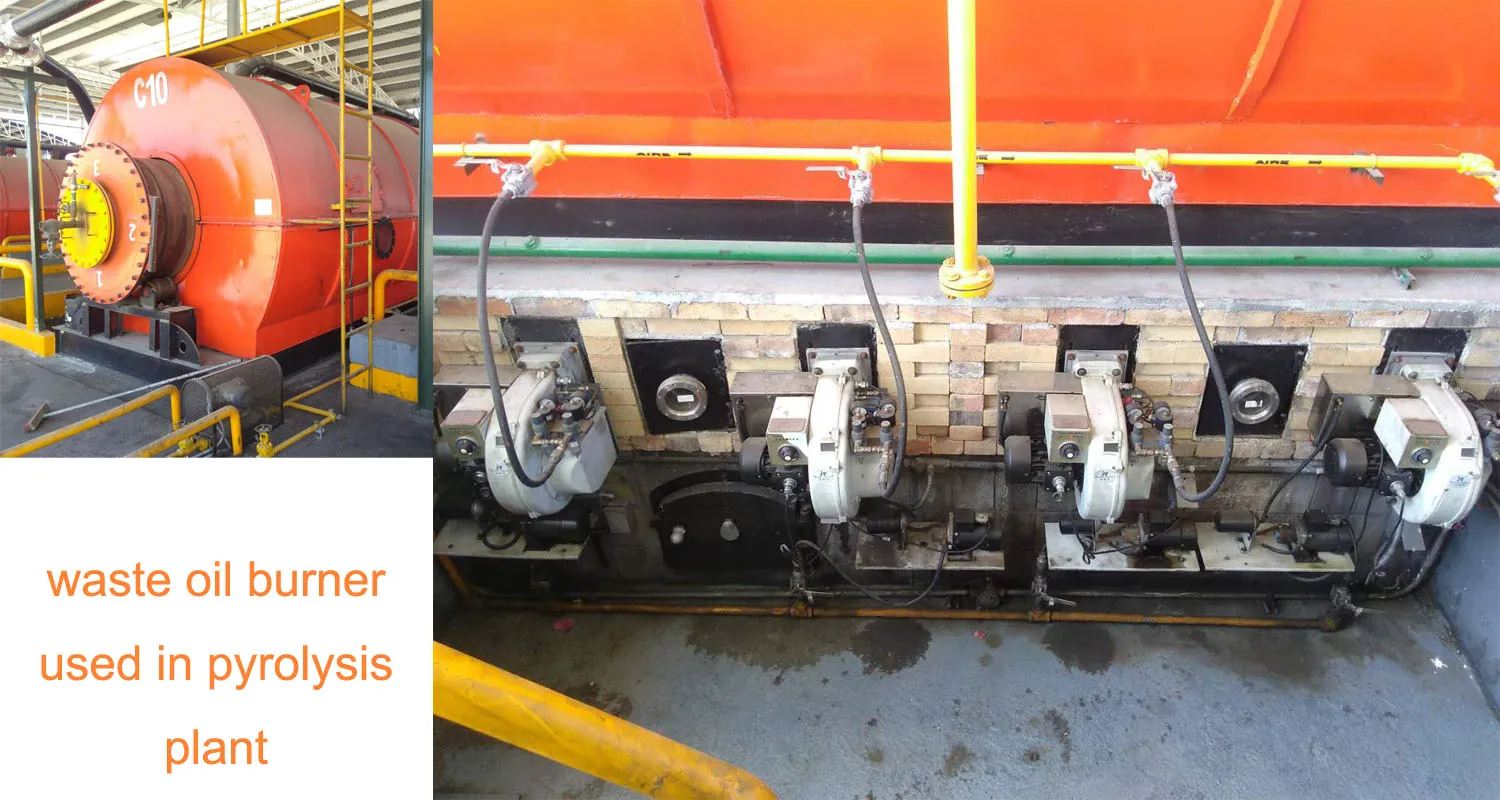

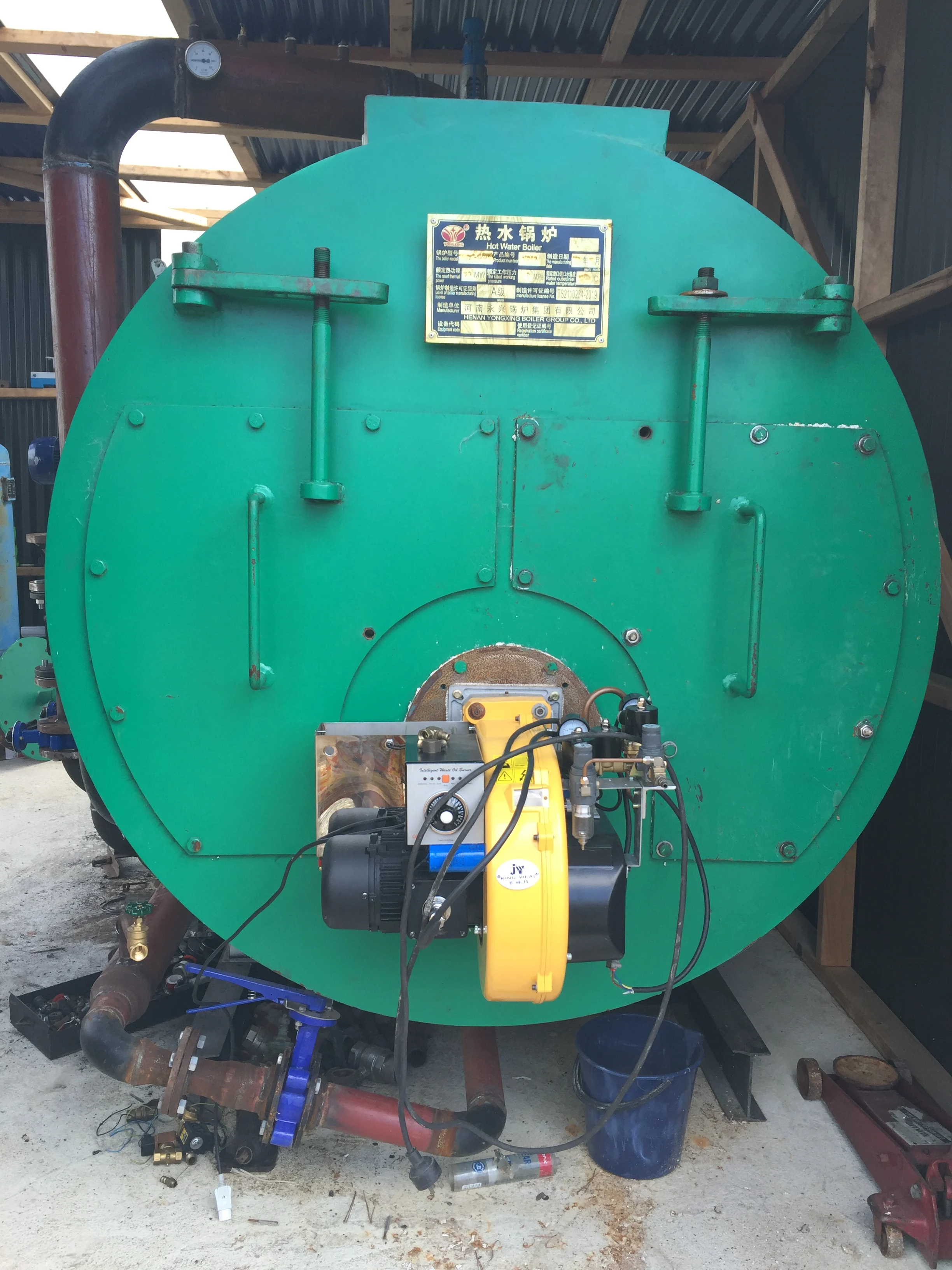

Big power burners are suitable for industrial area, such as boiler, furnace, grain dryer, mold casting, reactor, incinerator, etc

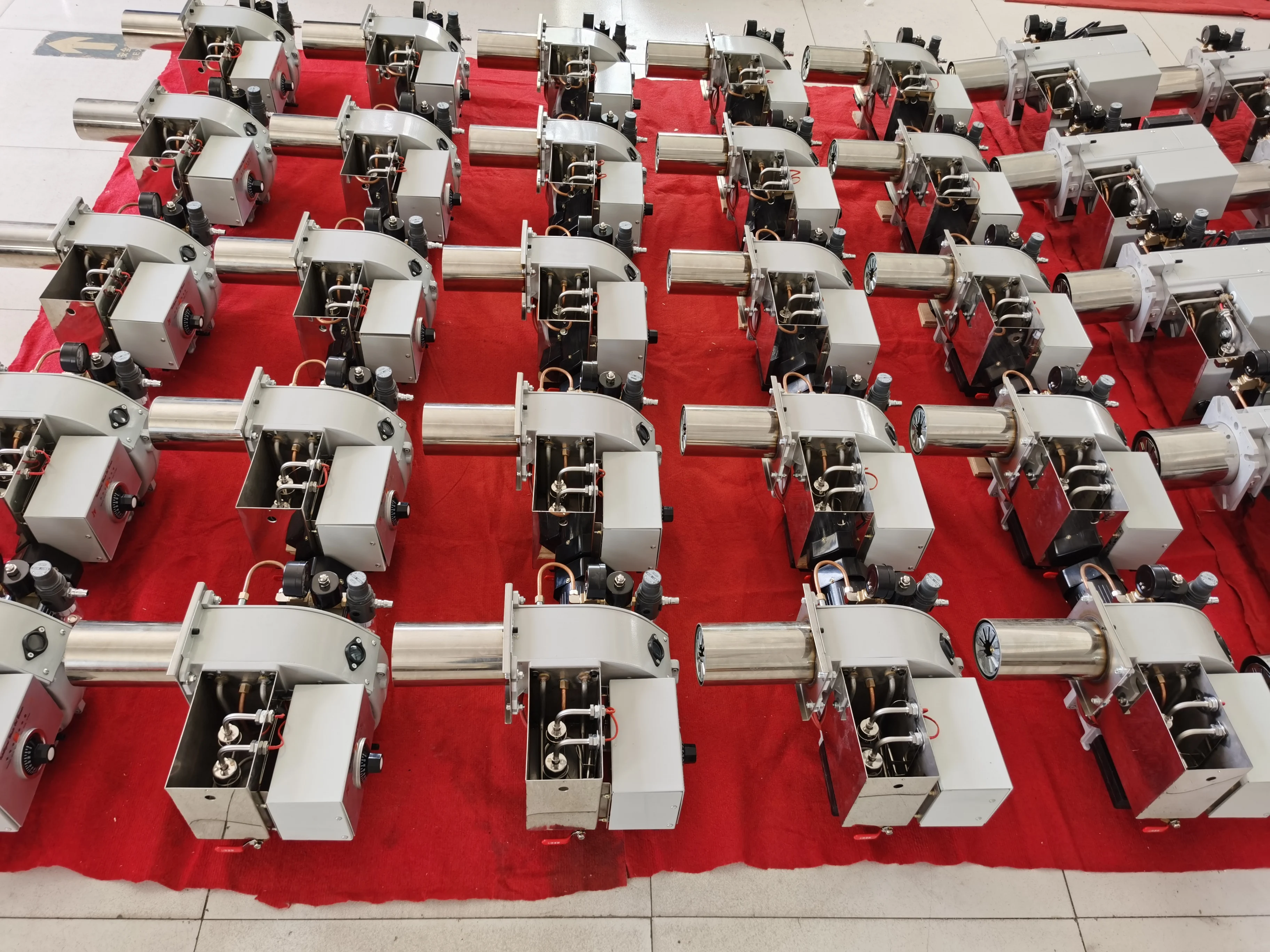

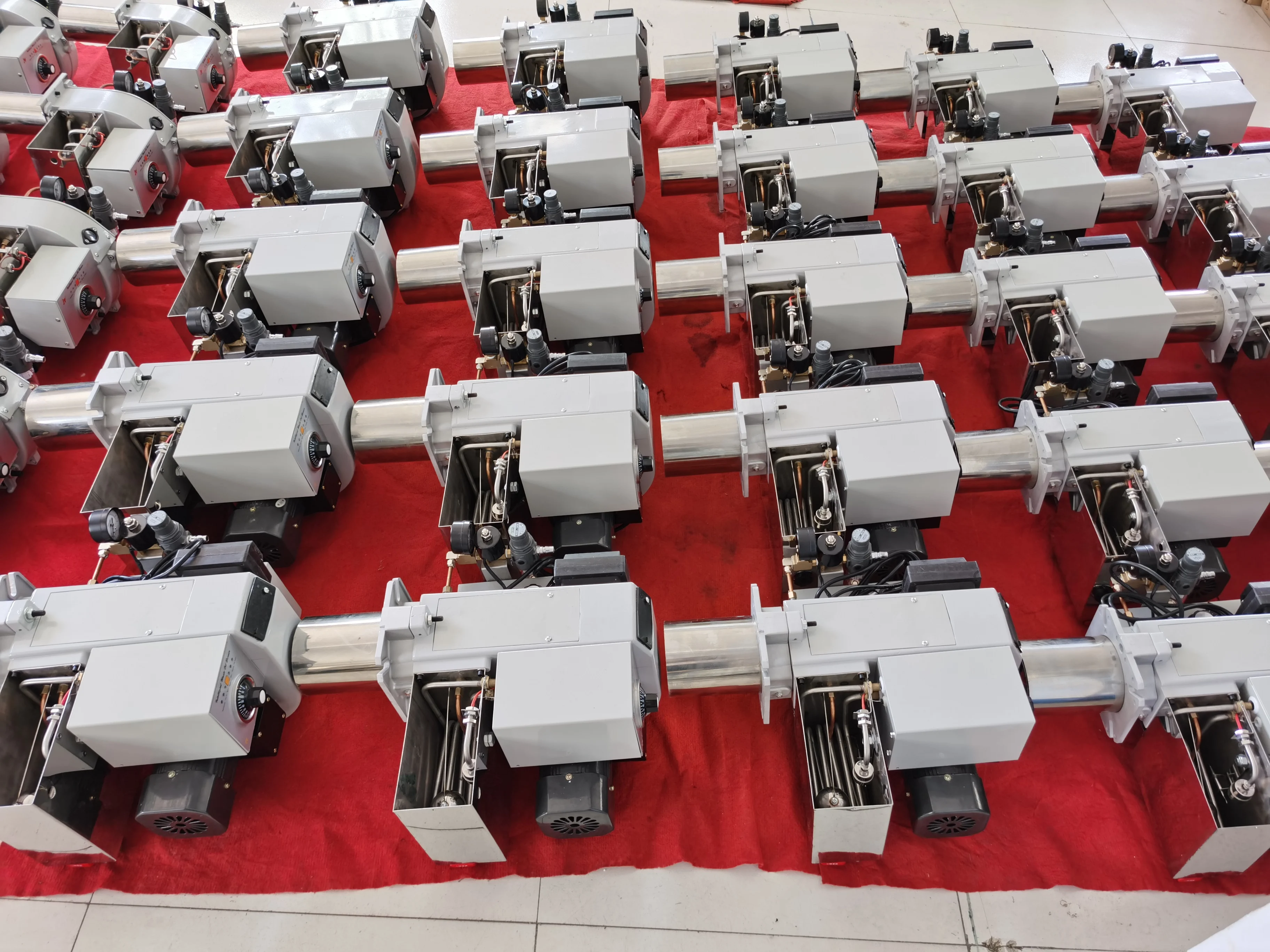

Order Display

Contact&Social Page

Contact name: Helen Jiang
ID:cn1513245264
Phone/whatsapp/wechat: 86-130 1251 3355
Fax: 0532-68876247

Email:helenjiang_sales1@ kingweienergy.com(no blank after @)

Facebook: https://www.facebook.com/wasteoilburnersupplier
Youtube: https://www.youtube.com/channel/UCd2DtCB7ma4BzUwCRPVs4ow
Shop on alibaba:Http://jinweijieneng.en.alibaba.com/

Office&factory address:No997 Wangsha Road Chengyang District Qingdao Shandong China

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–1 unit: US $720 / unit
  • 2–2 unit: US $710 / unit
  • 3+ unit: US $700 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this steam boiler?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingdao Kingwei Energy Saving Equipment Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Kingwei Energy Saving Equipment Co., Ltd. range on HVACR Nexus.
