Technical Specifications
| Max. Drilling Dia. (Mm) | 200 |
|---|---|
| Type | PMD2020/3030/4040/5050/6060/7070 |
| Voltage | 380 V, 110 V, 220 V |
| Cnc Or Not | CNC |
| Warranty | 5 year |
| Machinery Test Report | Provided |
| Core Components | PLC, Motor, Pressure Vessel |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Range Of Spindle Speed(R.P.M) | 30 – 4500 |
| Place Of Origin | Shandong, China |
| Power (Kw) | 5.5 |
| Weight (Kg) | 100 |
| Drilling Speed | 30-45000 |
| Brand Name | SANSEN |
| Dimension(L*W*H) | 4500*4000*4000 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
Structural Features:

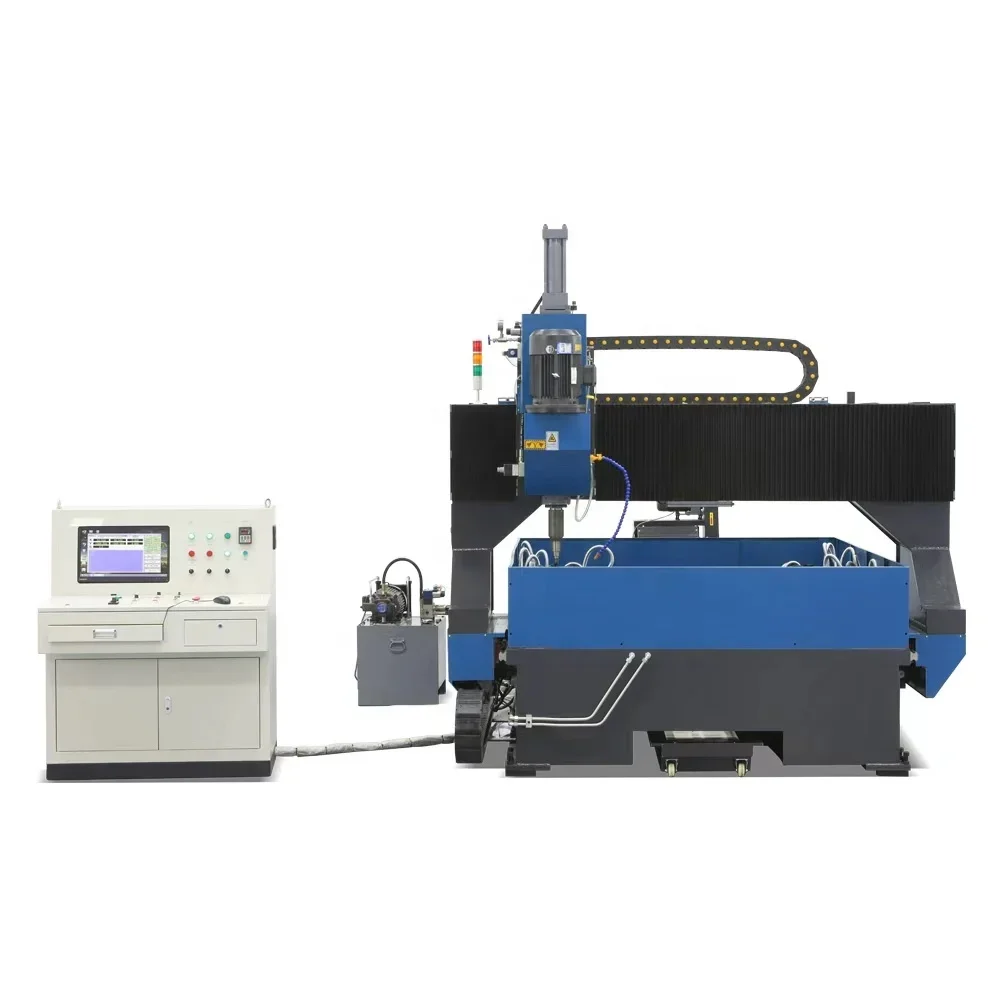

1. The machine mainly consists of: Bed and longitudinal sliding table,Gantry and transverse sliding table,Vertical sliding
sleeve-type drilling head,Worktable,Electrical control system,Hydraulic system, Cooling system, Chip removal system and
Centralized lubrication system
2. The machine adopts a moving gantry with fixed worktable design, effectively saving floor space.
3. The machine bed and worktable are independently designed, enhancing stability and significantly reducing vibrations generated
during high-speed drilling.
4. Both longitudinal and transverse movements utilize precision roller-type linear guideways, greatly improving machine rigidity.
5. The spindle is driven by a dedicated servo motor via synchronous belt, featuring:Stepless speed regulation, High torque at low
speeds,Capability for heavy cutting loads and Compatibility with carbide tool high-speed machining
6. The drilling spindle employs a Taiwan-made precision spindle (internal cooling) with:
* BT50 taper
* Automatic drawbar mechanism with disc springs

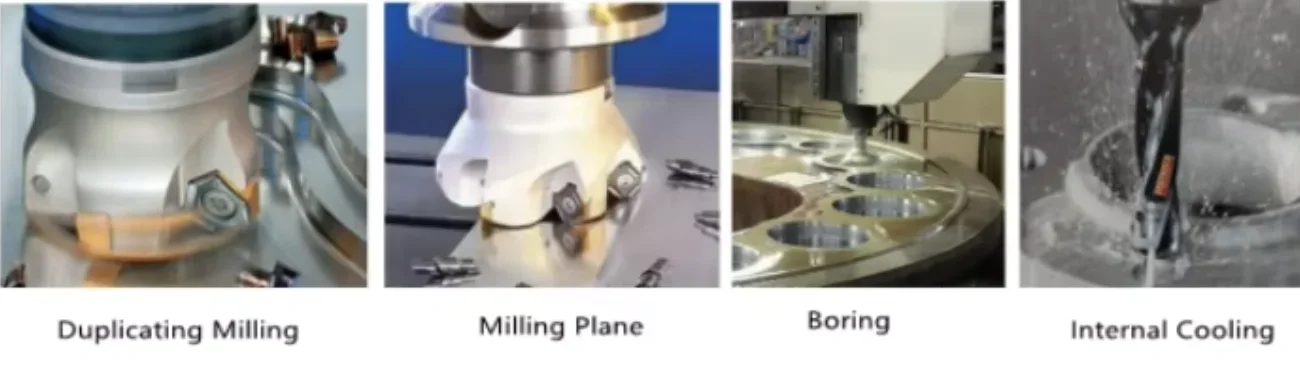

* Capability to mount drills or milling cutters via extension arbors
* Hydraulic cylinder tool release for convenient tool changing
1. The machine mainly consists of: Bed and longitudinal sliding table,Gantry and transverse sliding table,Vertical sliding
sleeve-type drilling head,Worktable,Electrical control system,Hydraulic system, Cooling system, Chip removal system and
Centralized lubrication system
2. The machine adopts a moving gantry with fixed worktable design, effectively saving floor space.
3. The machine bed and worktable are independently designed, enhancing stability and significantly reducing vibrations generated
during high-speed drilling.
4. Both longitudinal and transverse movements utilize precision roller-type linear guideways, greatly improving machine rigidity.
5. The spindle is driven by a dedicated servo motor via synchronous belt, featuring:Stepless speed regulation, High torque at low
speeds,Capability for heavy cutting loads and Compatibility with carbide tool high-speed machining
6. The drilling spindle employs a Taiwan-made precision spindle (internal cooling) with:
* BT50 taper
* Automatic drawbar mechanism with disc springs
* Capability to mount drills or milling cutters via extension arbors
* Hydraulic cylinder tool release for convenient tool changing
Specification

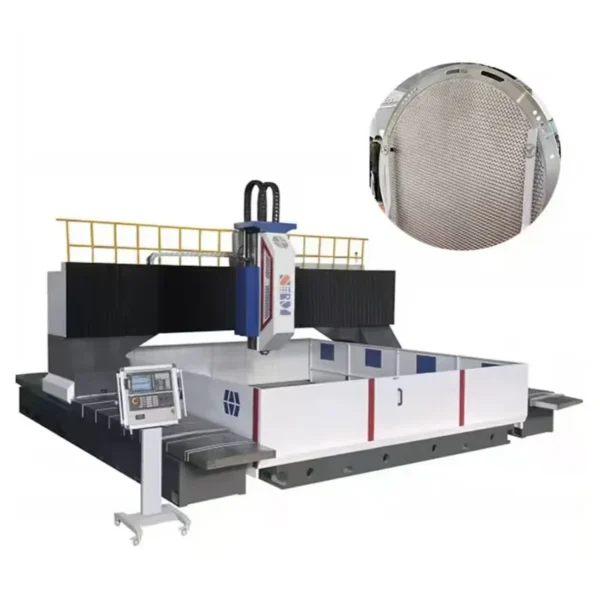

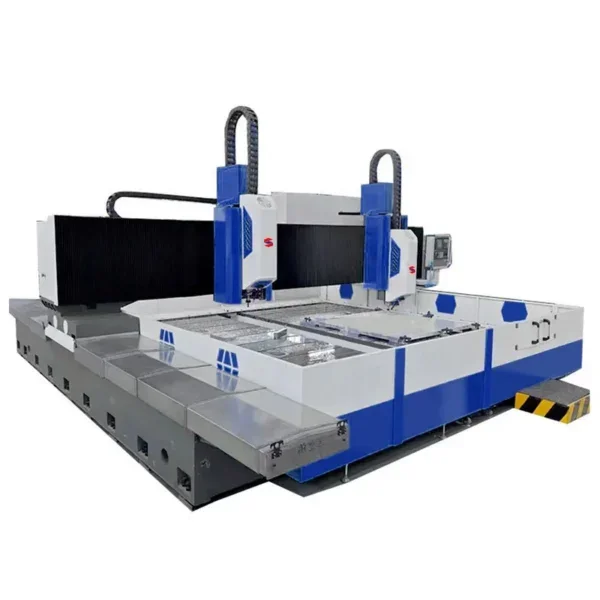

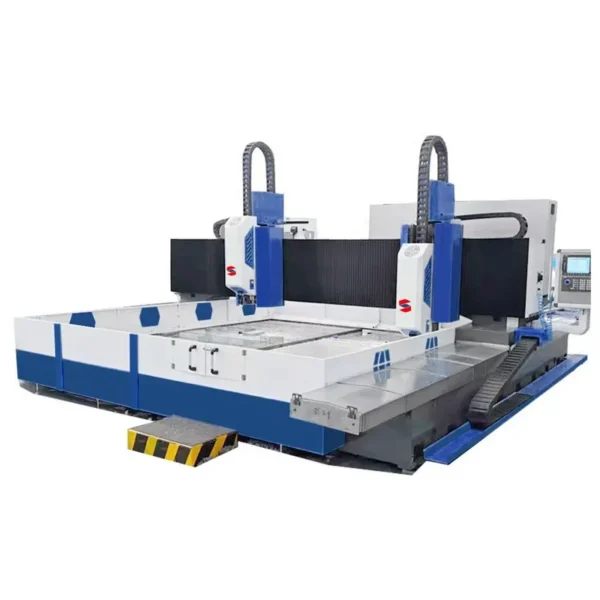

WZ Series Horizontal High-Speed CNC Universal Drilling Machine
Model | PMD3030 PMD3030/2 | PMD4040 PMD4040/2 | PMD5050 PMD5050/2 | PMD6060 PMD6060/2 | PMD7070 PMD7070/2 | ||||||
Working Area | LxW（mm） | 3000×3000 | 4000×4000 | 5000×5000 | 6000×6000 | 7000×7000 | |||||
The distance between the two columns （mm） | 3900 | 4900 | 5900 | 6900 | 7900 | ||||||
Working Table | Workbench Bearing （T/㎡） | 8 | |||||||||
T-slot Width（mm） | 28 | ||||||||||
Spindle | Qty of Spindle | 1 /2 | |||||||||
Spindle model/taper hole | BT50-190/220（hollow） | ||||||||||
Spindle Rotation（rpm） | 30-3200 | ||||||||||
Maximum Drilling Diameter（mm） | φ100 | ||||||||||
Max.Tapping Diameter（mm） | M42（can milling） | ||||||||||
Maximum milling diameter（mm） | φ200 | ||||||||||
Drilling depth / diameter | ≤10（carbide drill карбидное сверло） | ||||||||||
Motor Power（KW） | 30/37/45 | ||||||||||
Spindle torque（N.m） | 780-1560 | ||||||||||
Spindle surface to worktable distance （mm） | 500-1000/500-1300/500-1700/500-2000（adjustable） | ||||||||||
Longitudinal movement of gantry (X-axis) | Max. Stroke（mm） | 3000 | 4000 | 5000 | 6000 | 7000 | |||||
X-axis guide rail number x model | 4 x RGW55 | 4 x RGW65 | |||||||||
X-axis lead screw number x model | 2 x DFU6320 | 2 x DFU8020 | |||||||||
X axis movement speed（m/min） | 10 | ||||||||||
X-axis servo motor power（KW） | 2×3.1 | 2×4.3 | |||||||||
Y axis moveme | Maximum Stroke（mm） | 3000 | 4000 | 5000 | 6000 | 7000 | |||||
Number / model of Y-axis guide rail | 2xRGW55 | 2xRGW65 | |||||||||
Lead screw | DFU6320 | DFU8020 | |||||||||
Lead screw support | / | / | Flexible horizontal bar support | ||||||||
Y-axis movement speed（m/min） | 10 | ||||||||||
Y-axis servo motor power（KW） | 3.1 | 4.3 | |||||||||
Vertical slip pillow feed mechanism | Sliding pillow form | Four guide rail surrounded | |||||||||
Sliding pillow section area （mm） | 450X370 | ||||||||||
Z axis stroke （mm） | 500/800/1000/1200/1500 | ||||||||||
Number of Z-axis guide rail, x model | 4X RGW55 | ||||||||||
Z-axis lead screw model | DFU6310 | ||||||||||
Z-axis feed speed（mm/min） | 8 | ||||||||||
Z axis Servo Motor Power （KW） | 4.3 | 5.2 | |||||||||
Positioning Accuracy ия | X.Y axis оси X,Y（mm） | ≤0.03/1000；≤0.08/ overall length | |||||||||
Repeat accuracy | X.Y axis（mm） | ≤0.02/1000；≤0.06/overall length | |||||||||
Chip Removal System | Chip conveyor type | Flat chain type | |||||||||
Qty of Chip Conveyor | 2 | ||||||||||
Chip removal speed（m/min） | 1 | ||||||||||
Chip Conveyor Motor Power（KW） | 2×0.75 | ||||||||||
Coolant System | Internal cooling water pump motor power（KW） | 7.5 | |||||||||
Power of external cooling water pump motor（KW） | 2×0.75 | ||||||||||
Auto Lubrication | Lubrication pressure（Mpa） | 2 | |||||||||
Lubrication point filling volume（ML） | 0.1 | ||||||||||
Lubrication Cycle（min） | 6-10 | ||||||||||
Electrical System | CNC Control System | SIEMENS 828D PPU281.3 | |||||||||
No.of Axis | 4+1 | ||||||||||
Motor Total Power （KW） | 60 | 65 | |||||||||
Machine dimensions | L×W×H（m） | 4.5X4X4 | 5.8X5X4.5 | 9X8.9X4.5 | 11x10x5 | 12.5X12X5.5 | |||||
Weight （T） | 38 | 50 | 62 | 78 | 100 | ||||||
Optional | |||||||||||
Grating Scale | Germany HEIDENHAIN/Spanish FAGOR | ||||||||||

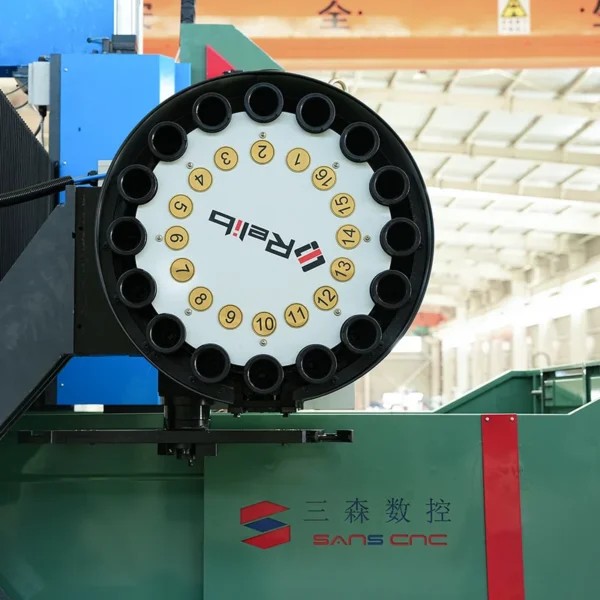

Tool magazine system | Turret | 8-24 | |||||||||
straight-line | 4-12 | ||||||||||
Angle head | 90 Right Angle head | ||||||||||
Narrow right Angle head | |||||||||||
Extension of the head | |||||||||||
Details Images

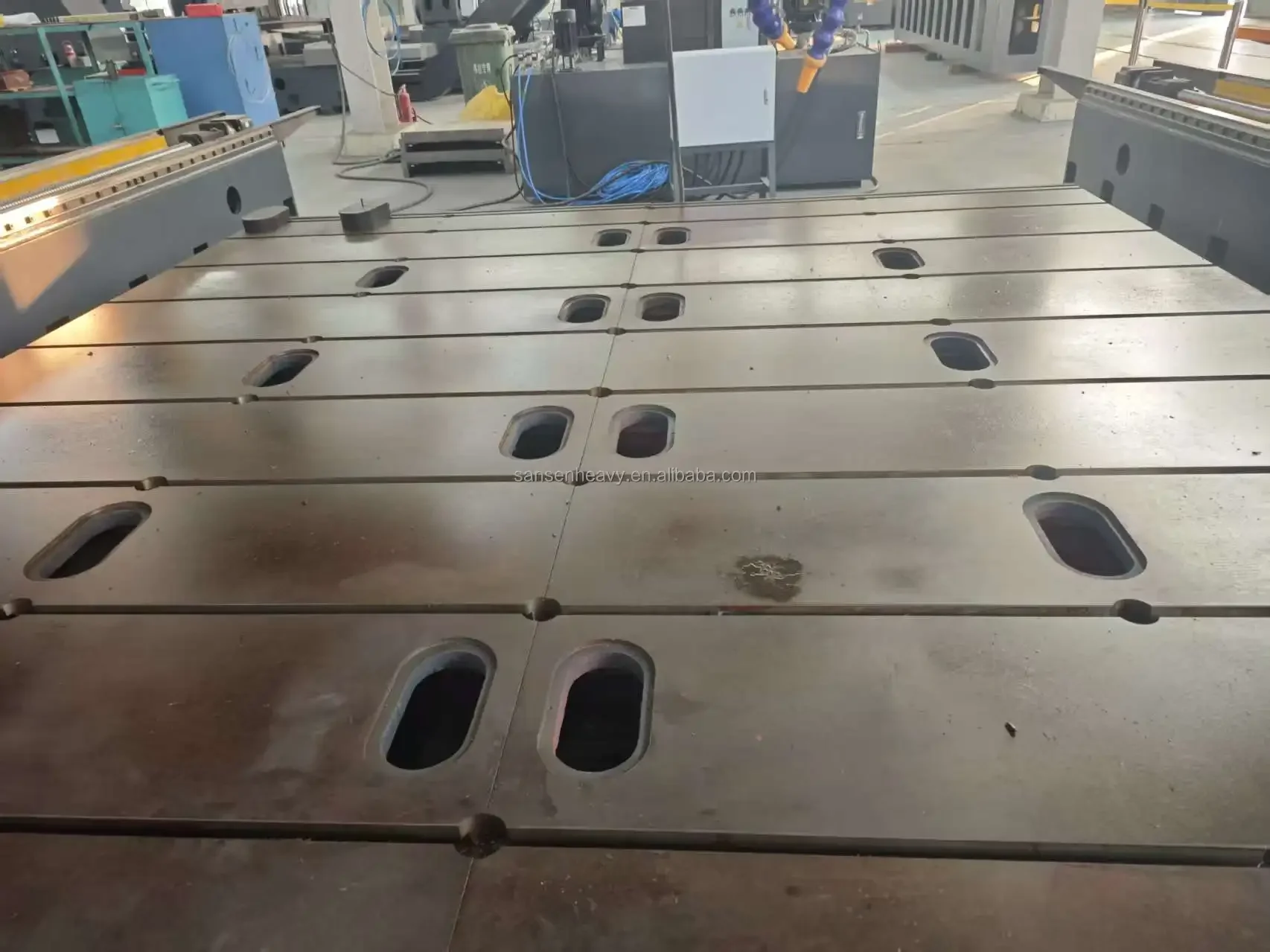

The bed&worktable is made of high-qualitygray iron (HT300), with good rigidity andstrong stability. A number of transverseT-slots are arranged on the top to clampthe workpiece, (when installing, fix anumber of ground anchors to better fix thebed and improve the stability of themachine tool.)
Servo feed power head
T-type ram structure power head, the mainshaft motor adopts a special servo motor forthe main shaft to drive the main shaftthrough a synchronous belt, low speed andlarge torque, which can not only bear heavycutting load, but also suitable for
high-speedmachining of cemented carbide tools
high-speedmachining of cemented carbide tools

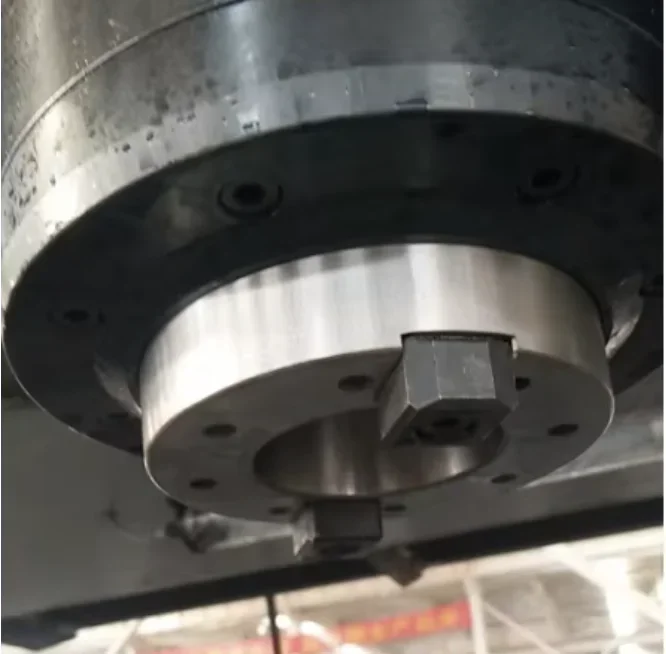

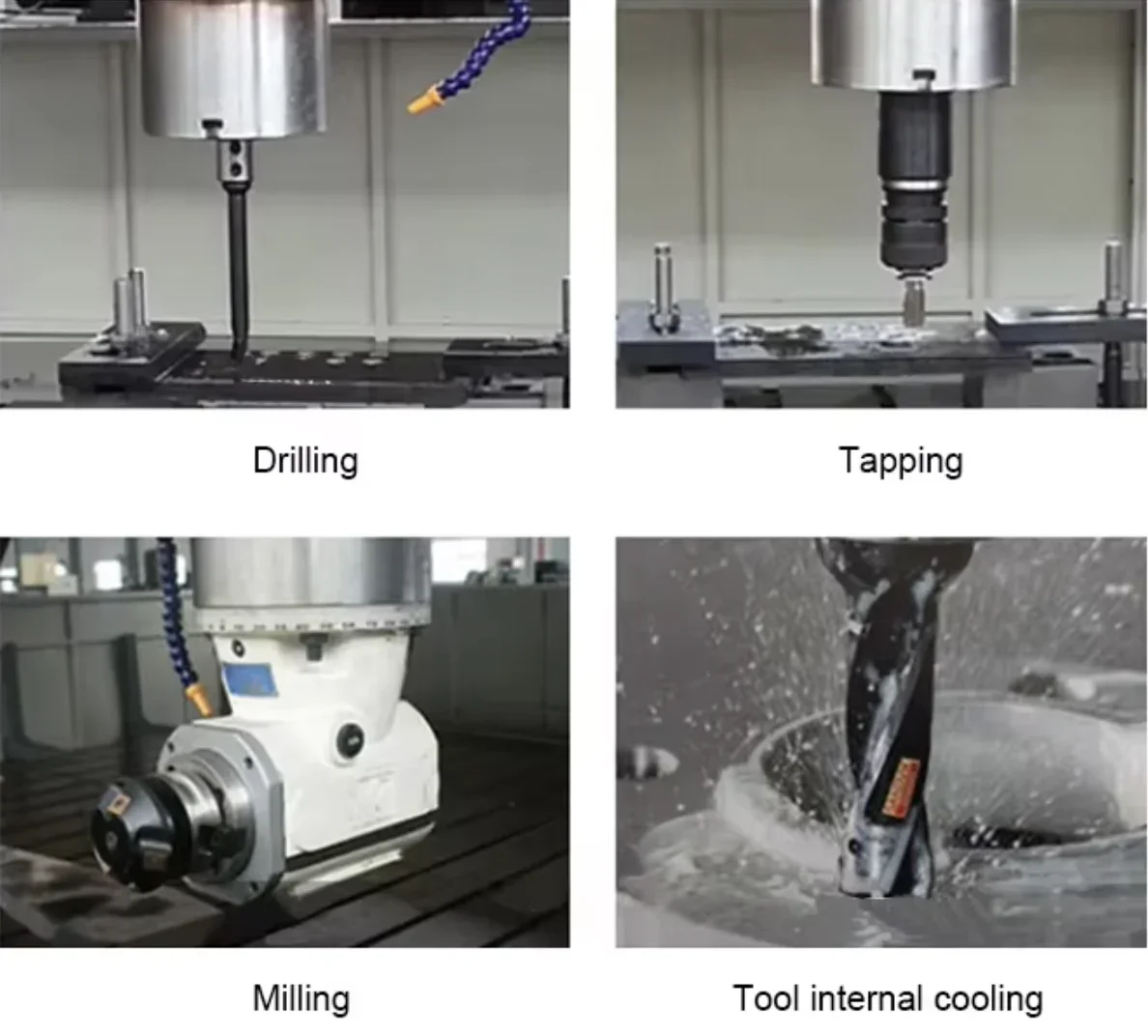

BT50 precision spindle
Adopt Taiwan precision spindle (high-speedinternal cooling), spindle taper BT40/50, withbutterfly spring hydraulic broach
mechanism(hydraulic cylinder to loosen the tool, it is veryconvenient to change the tool. )The speed is3000 r/min, and the
processing efficiency ishigh.
mechanism(hydraulic cylinder to loosen the tool, it is veryconvenient to change the tool. )The speed is3000 r/min, and the
processing efficiency ishigh.
Adopts a full set of control system, and is equipped withRS232 interface and LCD liquid crystaldisplay. (The drilling coordinates
can bedirectly converted from CAD/CAM, which isconvenient for programming, storage,display and communication.)
can bedirectly converted from CAD/CAM, which isconvenient for programming, storage,display and communication.)

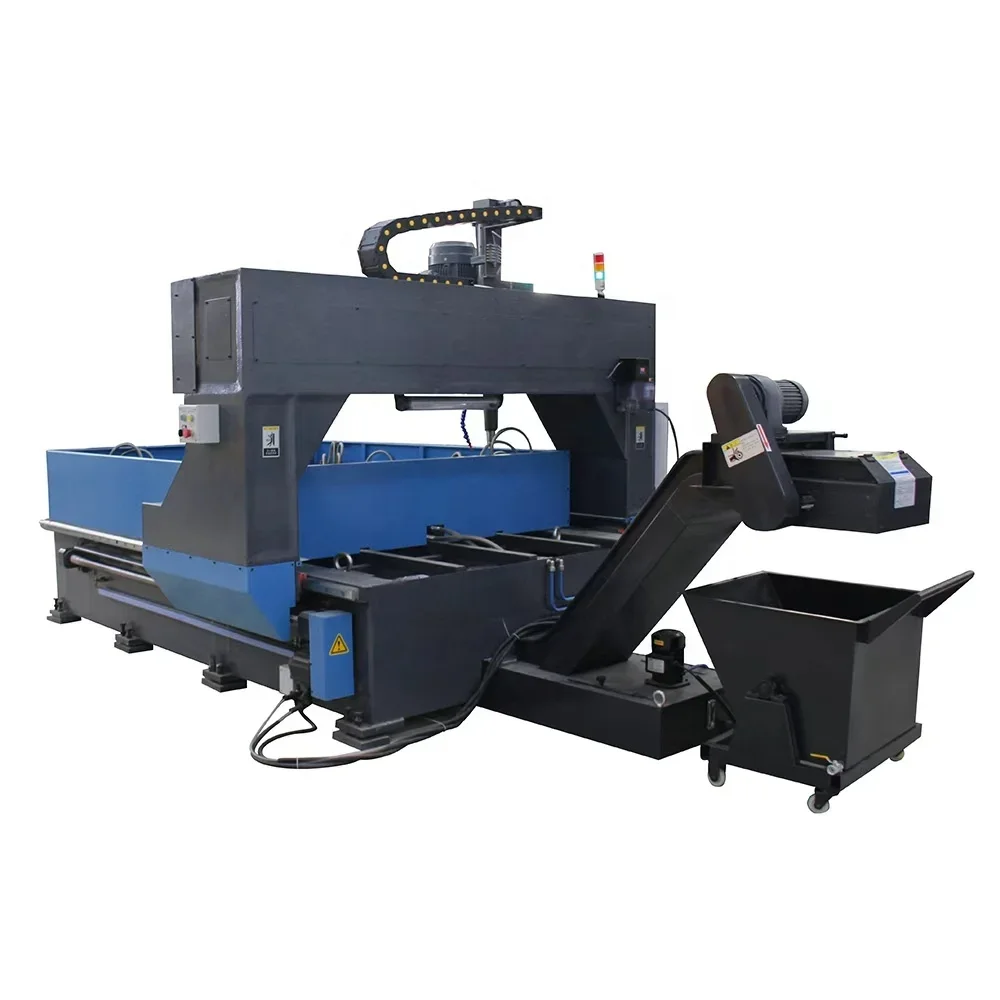

Equipped with a flat chain type automaticchip conveyor and collector for automaticcollection of iron chips
Company Profile
Shandong Sansen CNC Machinery Co., Ltd., established in 2008, is a high-tech enterprise specializing in the R&D, manufacturing,and sales of green intelligent equipment. Aligning with China’s “Made in China 2025” strategy, the company leverages smart information technology to advance the equipment manufacturing sector. Its products are widely used in a range of new infrastructure applications, including ultra-high voltage power transmission towers, rail transit components, wind power generation equipment, transportation infrastructure, building steel structures, automated parking systems, central cooling facilities, seawater desalination, petroleum and petrochemical engineering, construction machinery, engineering equipment, and port machinery.The company enjoys high brand recognition and a strong market reputation, ranking among the top players in the industry. It also holds a significant position in the global market, with products exported to more than 40 countries and regions, and a sales network that spans all continents.

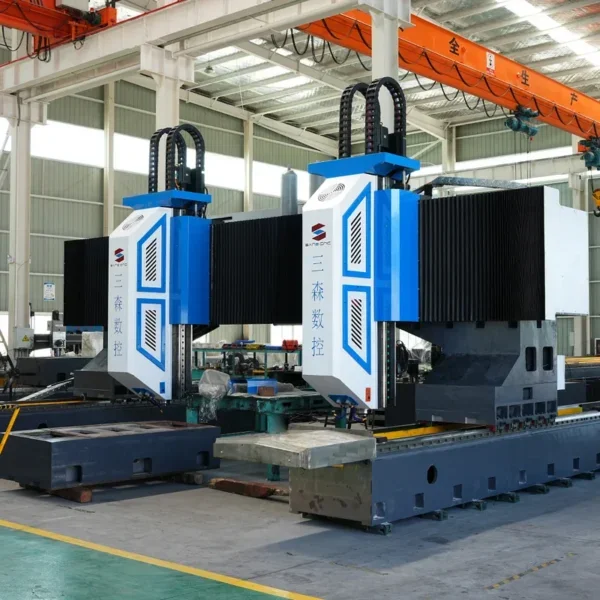

Finshed products
Main Applications :

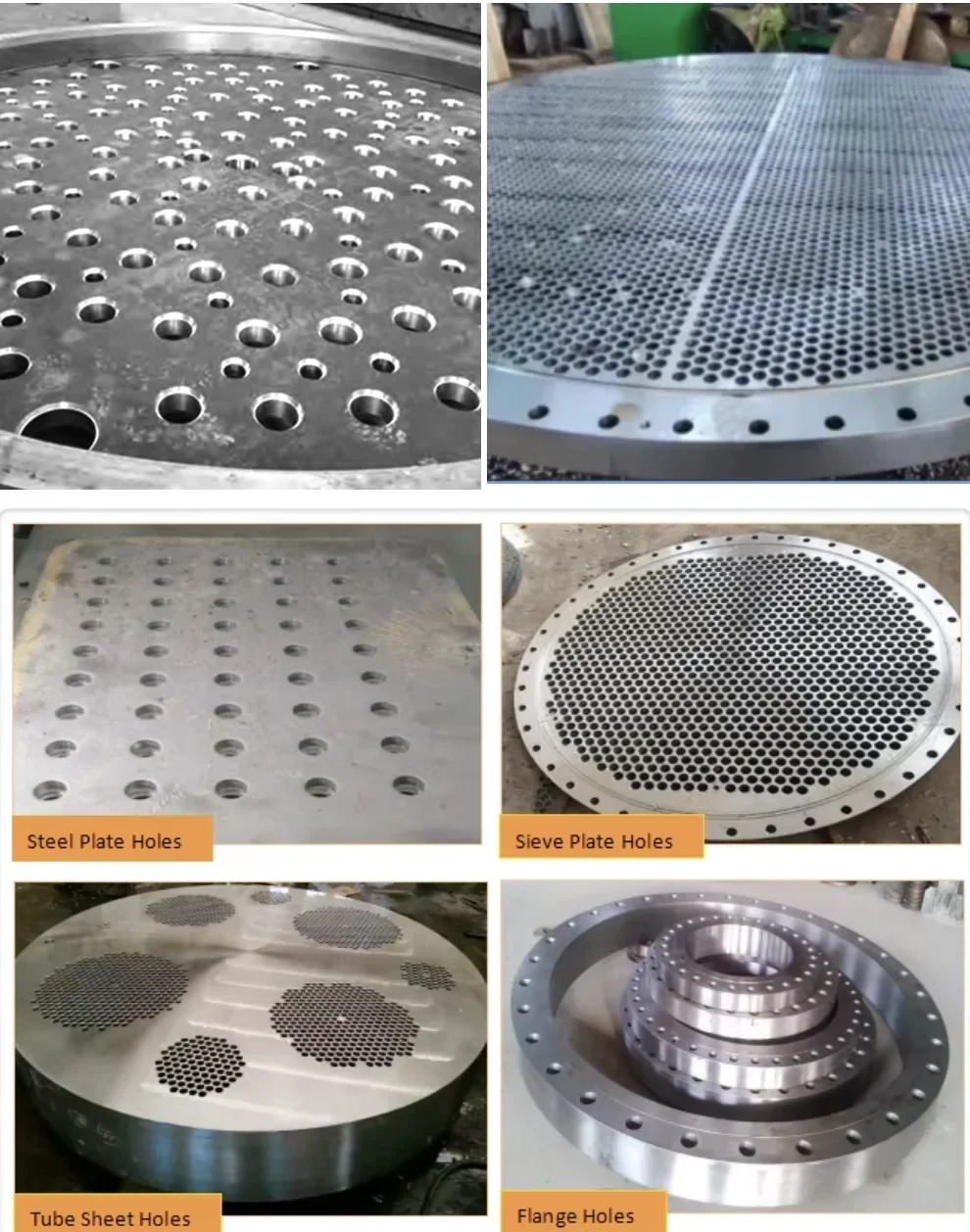

1. Construction & Bridge Steel Structures: It is extensively used for drilling various steel plates, including connection plates, gusset plates, base plates, end plates, and formwork templates.
