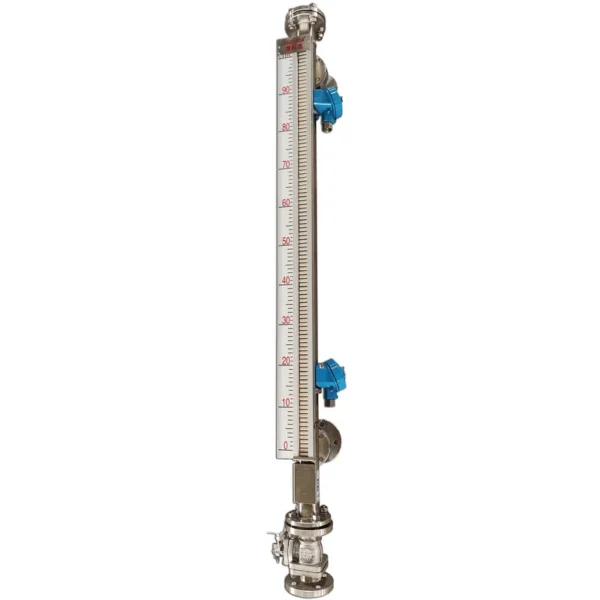

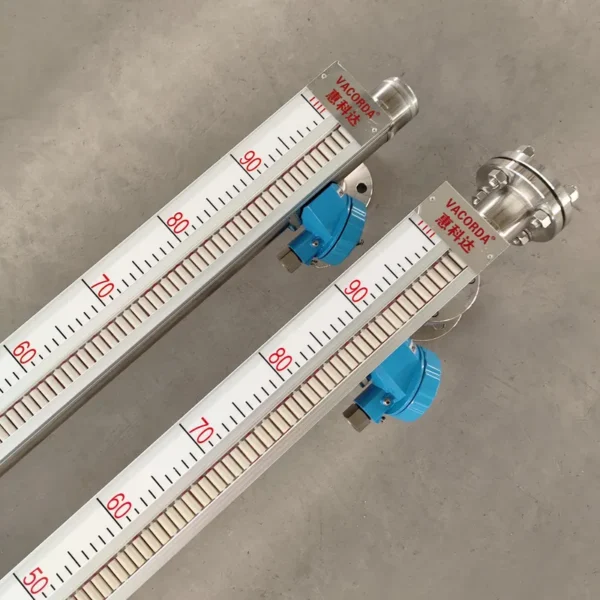

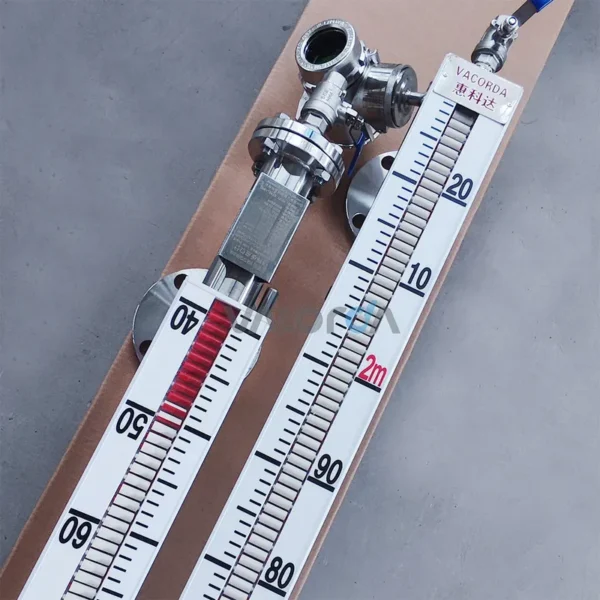

The steam boiler listed here carries material Bypass level gauge, documented exactly as the manufacturer publishes it. Made by Vacorda Instruments Manufacturing Co., Ltd. (15 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Material: Bypass level gauge
- Warranty: 1 years
- Place Of Origin: Sichuan, China
- Single Package Size: 200X30X20 cm
- Single Gross Weight: 20.0 kg
- Accuracy: 0.5FS
Technical Specifications
| Accuracy | 0.5FS |
|---|---|
| Material | Bypass level gauge |
| Warranty | 1 years |
| Customized Support | OEM, ODM, OBM |
| Brand Name | Vacorda |
| Smart App | Tuya App |
| Place Of Origin | Sichuan, China |
| Temperature: | -190~425℃ |
| Pressure | vacuum to 42Mpa |
| Installation Form | side mounted,top mounted,rope type, side+top mounted… |
| Color | white flap indicator |
| Center To Center Distance | 150~6000mm or customize |
| Protection Class | IP65 |
| Model | High presure sight glass diesel fuel tank level gauge indicator |
| Life Span | 5-8 years |
| Selling Units | Single item |
| Single Package Size | 200X30X20 cm |
| Single Gross Weight | 20.0 kg |
Product Details
Center-center distance | 150~6000mm(more than 6m can be specially customized） | ||||
Medium density | ＞0.45g/cm³ | ||||
Nominal pressure | PN63~PN420 (x 0.1MPa) | ||||
Material | SS304,316L,PP,PTFE, Titanium alloy or customize | ||||
Operating temperature | -190 ~ +425 °C | ||||

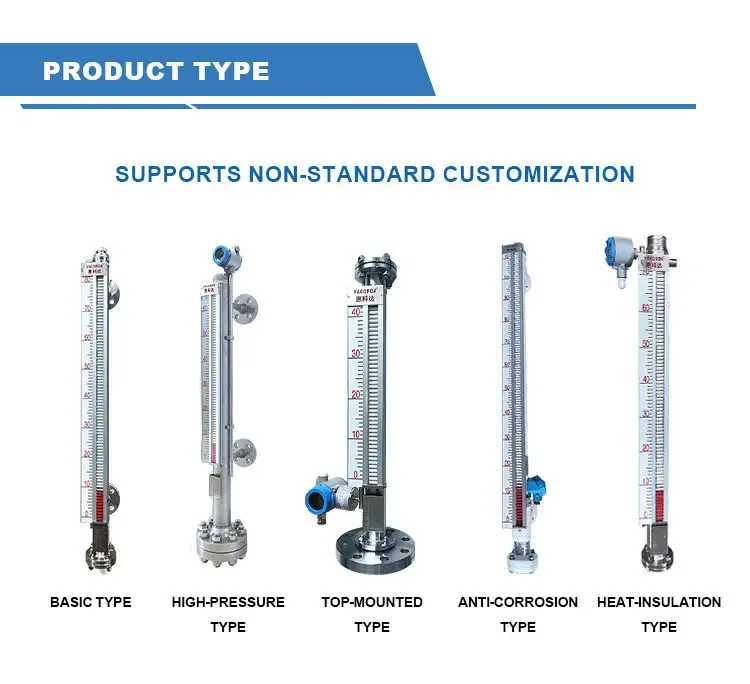

Installation | Top mount, side mount, bottom mount | ||||

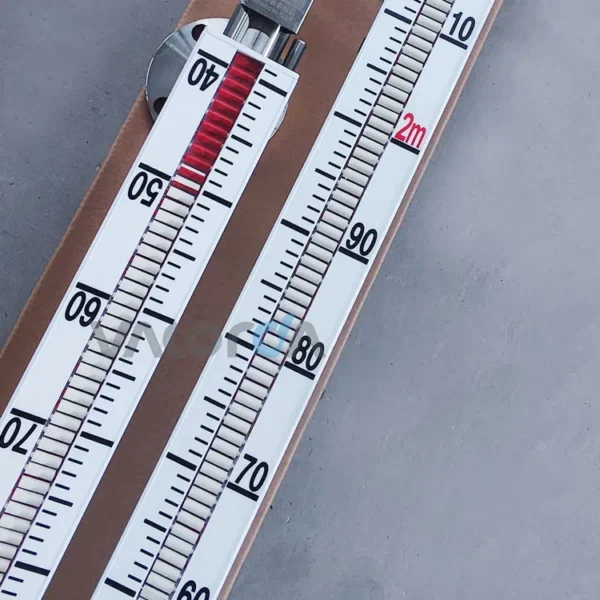

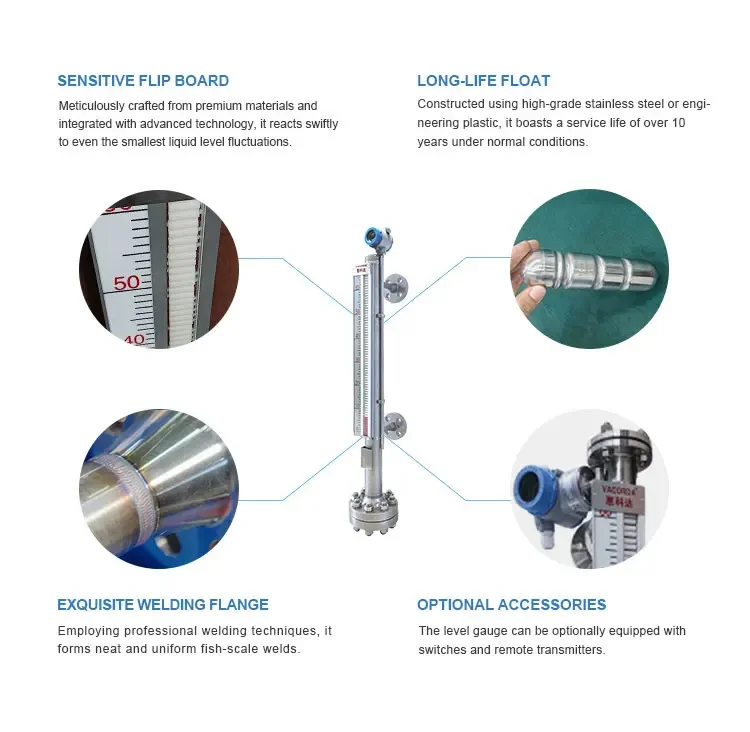

Indicator types | 1. Al &ABS flap cylinder 2. Al flap plate 3. PVC ABS flap cylinder 4. PP&ABS flap cylinder 5. AL &LED 6. PP&LED | ||||
Optional Items | 1.Magnetic Switch 2.Liquid Level Transmitter | ||||
Accuracy | ±10mm/±5mm | ||||
Output signal | 4-20mA | ||||
Communication Protocol | HART、MODBUS | ||||

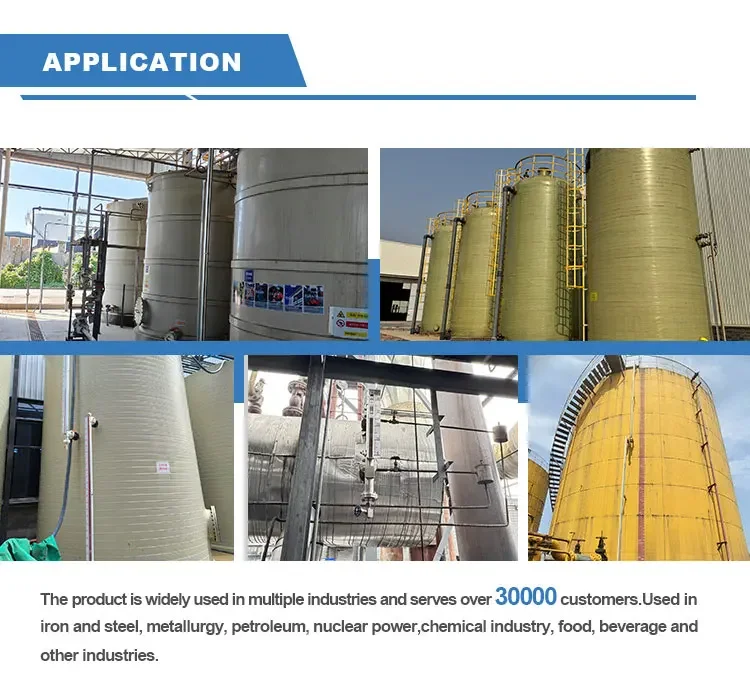

Application | Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity. | ||||
Explosion-proof Type | Exia, Exd | ||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $148 / piece
- 10–49 piece: US $135 / piece
- 50+ piece: US $132 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Vacorda Instruments Manufacturing Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Vacorda Instruments Manufacturing Co., Ltd. range on HVACR Nexus.
