Steam boiler — material Stainless Steel, type Gas Burner. The complete factory specification follows. Made by Henan Province Sitong Boiler Co., Ltd. (16 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Boiler
- Material: Stainless Steel
- Warranty: 6 Months
- Place Of Origin: Italy
- Application: steam boiler, hot water boiler, thermal oil boiler
- Type: Gas Burner
- Marketing Type: Ordinary Product
Technical Specifications
| Type | Gas Burner |
|---|---|
| Material | Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 6 Months |
| Weight (Kg) | 100 |
| Place Of Origin | Italy |
| Brand Name | RIELLO |
| Fuels | natural gas, city gas, etc |
| Max.Output Heat | 3000KW |
| Application | steam boiler, hot water boiler, thermal oil boiler |
| Advantage | Low NOx Combustion Technology |
| Marketing Type | Ordinary Product |
| Selling Units | Single item |
Product Details

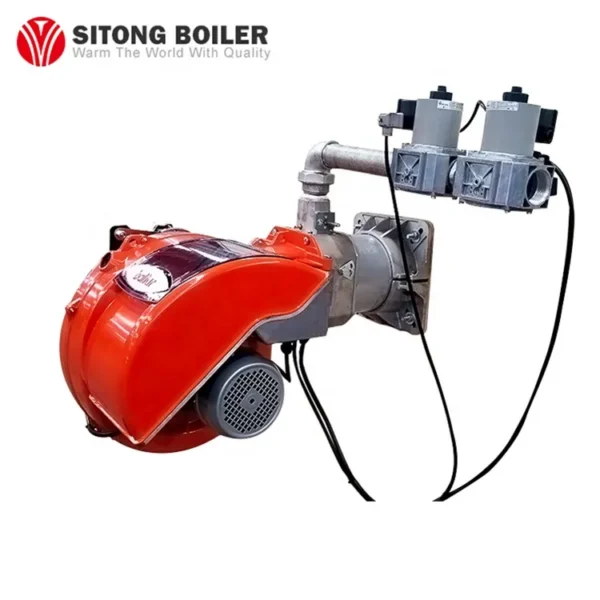

High Quality and Long Working Life Riello Gas Burner for Steam Boiler

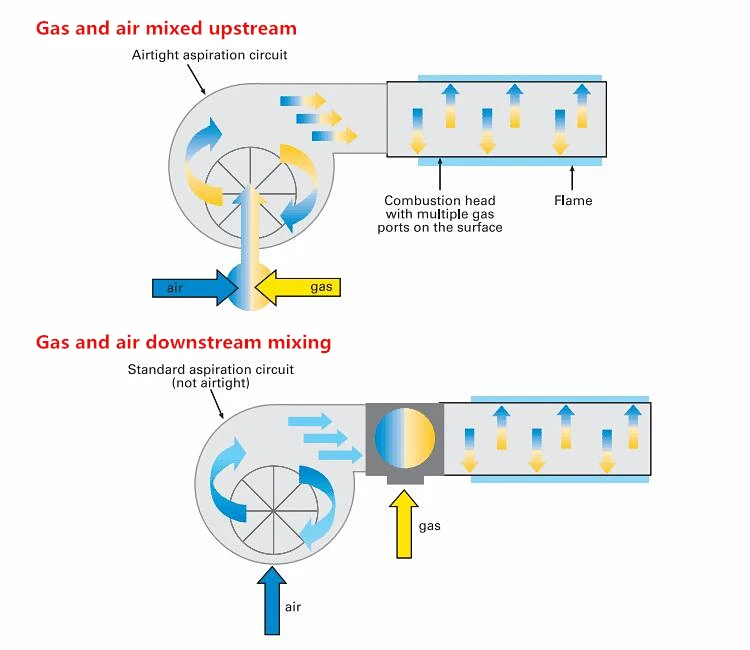

Full Premixed Combustion Technology
Full premixed combustion, which belongs to surface burning. gas and air, pre-mixed before entering the burner. the shape of the burner head is a metal cylinder. the wire mesh (made of special alloy) made by Riello's patented “seamless weaving thread” is wrapped on the surface of the metal cylinder. full premixed combustion, the flame is only produced on the surface of the burner, and the actual size of the flame is the same as the size of the burner head. therefore, the full premix burner does not require a large furnace size and still achieves perfect combustion in a small furnace.
When the surface of the metal fiber is burned, the combustion is uniform, a local high temperature region cannot be formed, and the temperature of the flame surface is relatively low, therefore, the generation of NOx is suppressed. In addition, the burning rate is very fast, the flame is very short, and the residence time of the combustion products is very short. therefore, the opportunity for NOx generation is also suppressed.
PREMIX series of full premix burners, NOx emissions can reach the lowest 18mg / Nm³.
RX S/PV Series Fan and Brushless Motor
RX S/PV type burner fan adopts brushless motor, which can realize speed adjustment without frequency conversion drive. This type burner power is strong but quiet operation, with small size, low energy consumption and low noise emission.
RX S/E Series LMV37 Digital Burner Management System
Combustion technology is constantly evolving to meet the demands of escalating industrial applications and more stringent regulatory requirements. RX S/E series burners use LMV37 burner management system and independent fuel-air servo motor. user-friendly interface and precise fuel-air ratio control ensure the safety and reliability of the RX S/E Series burners.
Output Range
| Boiler Model | PREMIX Burner Model | Power (V/Ph/Hz) | Thermal Output (KW) |
| Less than 0.5 t/h | RX 35 S/PV | 1/ 230V/ 50Hz | 6 – 30 |
| RX 70 S/PV | 1/ 230V/ 50Hz | 14 – 70 | |
| RX 150 S/PV | 1/ 230V/ 50Hz | 25 – 145 | |
| RX 180 S/PV | 1/ 230V/ 50Hz | 30 – 180 | |
| RX 250 S/PV | 1/ 230V/ 50Hz | 41 – 250 | |
| RX 360 S/PV | 1/ 230V/ 50Hz | 60 – 360 | |
| 0.5 t/h | RX 500 S/PV | 1/ 230V/ 50Hz | 82 – 490 |
| RX 700 S/PV | 1/ 230V/ 50Hz | 140 – 700 | |
| 1 t/h | RX 850 S/PV | 1/ 230V/ 50Hz | 170 – 880 |
| RX 1000 S/PV | 3N/ 400V/ 50Hz | 180 – 1080 | |
| 2 t/h | RX 1500 S/PV | 3N/ 400V/ 50Hz | 190 – 1790 |
| RX 1800 S/PV | 3N/ 400V/ 50Hz | 220 – 1990 | |
| RX 2500 S/PV | 3N/ 400V/ 50Hz | 500 – 2500 | |
| 3 t/h | RX 3000 S/PV | 3N/ 400V/ 50Hz | 600 – 3000 |
| Note:Matching with the boiler model, based on more boiler data, final confirmation of the specific burner model | |||

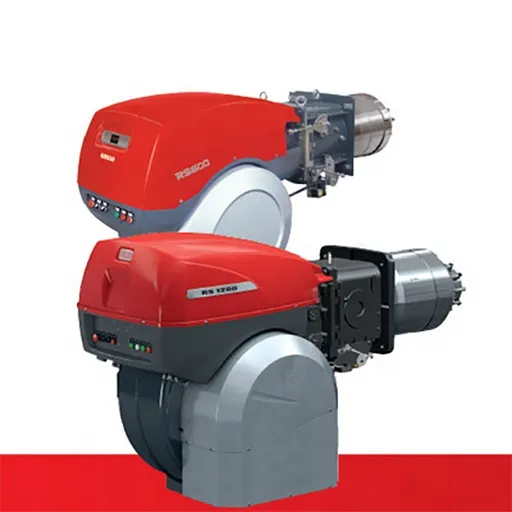

Q1: RS Series Burner?
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–1 unit: US $5000 / unit
- 2+ unit: US $4800 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam boiler?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 6 Months warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Province Sitong Boiler Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Henan Province Sitong Boiler Co., Ltd. range on HVACR Nexus.
