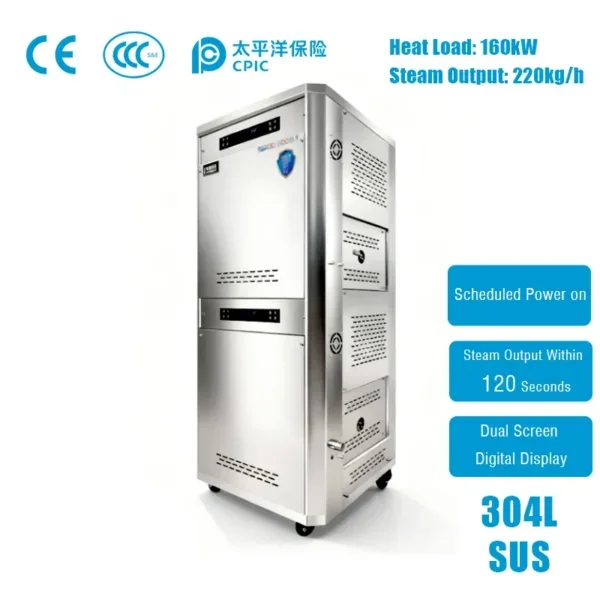

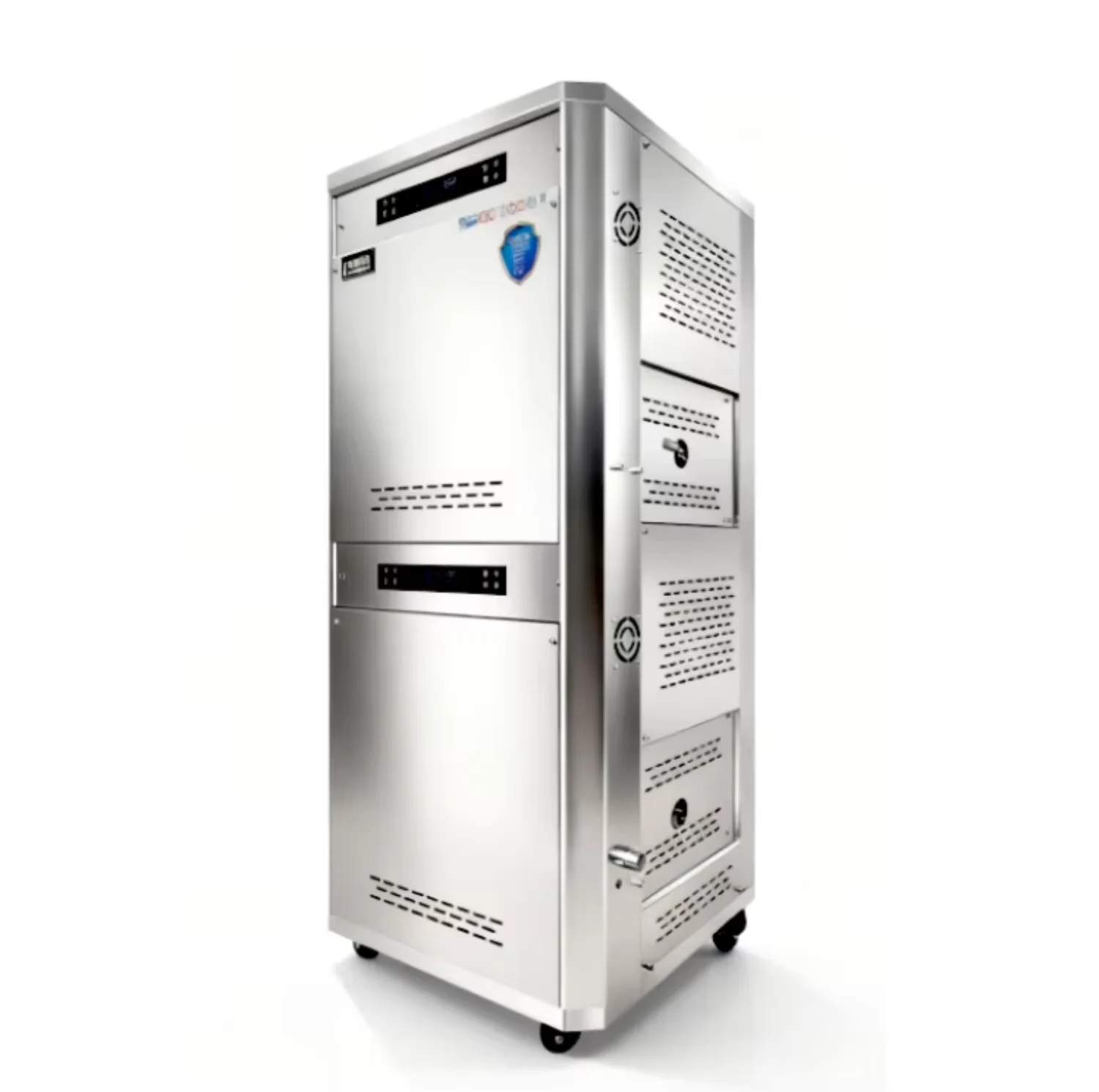

The steam generator listed here carries power source type Gas, material Stainless Steel (Grade 304), documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Steam Generator
- Model Number: SZQT80/160-G
- Power Source Type: Gas
- Power (W): 160kw(214.56hp)
- Material: Stainless Steel (Grade 304)
- Warranty: 1 Year
- Warranty Type: Parts Warranty
Technical Specifications
| Power Source Type | Gas |
|---|---|
| Cooking Method | Steaming |
| Power (W) | 160kw(214.56hp) |
| Material | Stainless Steel (Grade 304) |
| Features | Remote Monitoring, Energy Saving Mode, Easy Cleaning, Digital Display & Touchscreen, Temperature Control (±1°C), Timer Function, Steam Injection, Self-Cleaning Function |
| Warranty | 1 Year |
| Warranty Type | Parts Warranty |
| Fuel Type | Natural Gas (NG) |
| Gas Type | Natural Gas, Gas |
| Weight(Kg) | 222 |
| Model Number | SZQT80/160-G |
| Dimension (L*W*H) | 750x750x1750 mm(29.53×29.53×68.90in) |
| Brand Name | JOWIN |
| Product Keywords | natural gas steam generator,Dual-mode gas steam generator |
| Core Technology | High Efficiency Rapid Steam Generation |
| Control Interface | Intelligent Digital Computer Control Panel |
| Installation Type | Easy Wall-Mounted / Floor Standing |
| Steam Output (Kg/H) | 220 |
| Steam Temperature | 100-115°C |

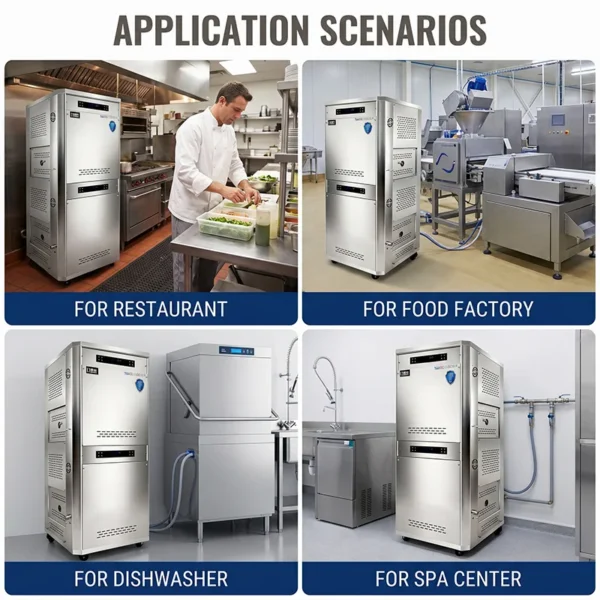

| Application | Food Processing/Restaurant/Food Factory/Hotel/Spa |
| Chamber Type | Vertical Dual |
| Selling Units | Single item |
| Single Package Size | 83X83X183 cm |
| Single Gross Weight | 230.0 kg |
Product Details
PRODUCT HIGHLIGHTS

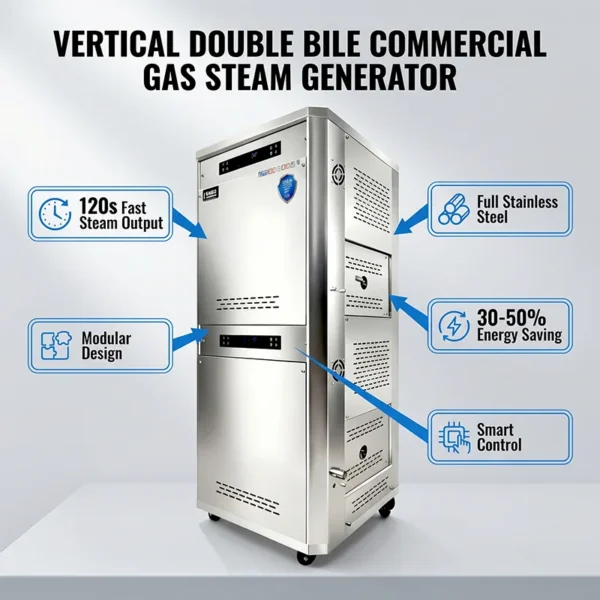

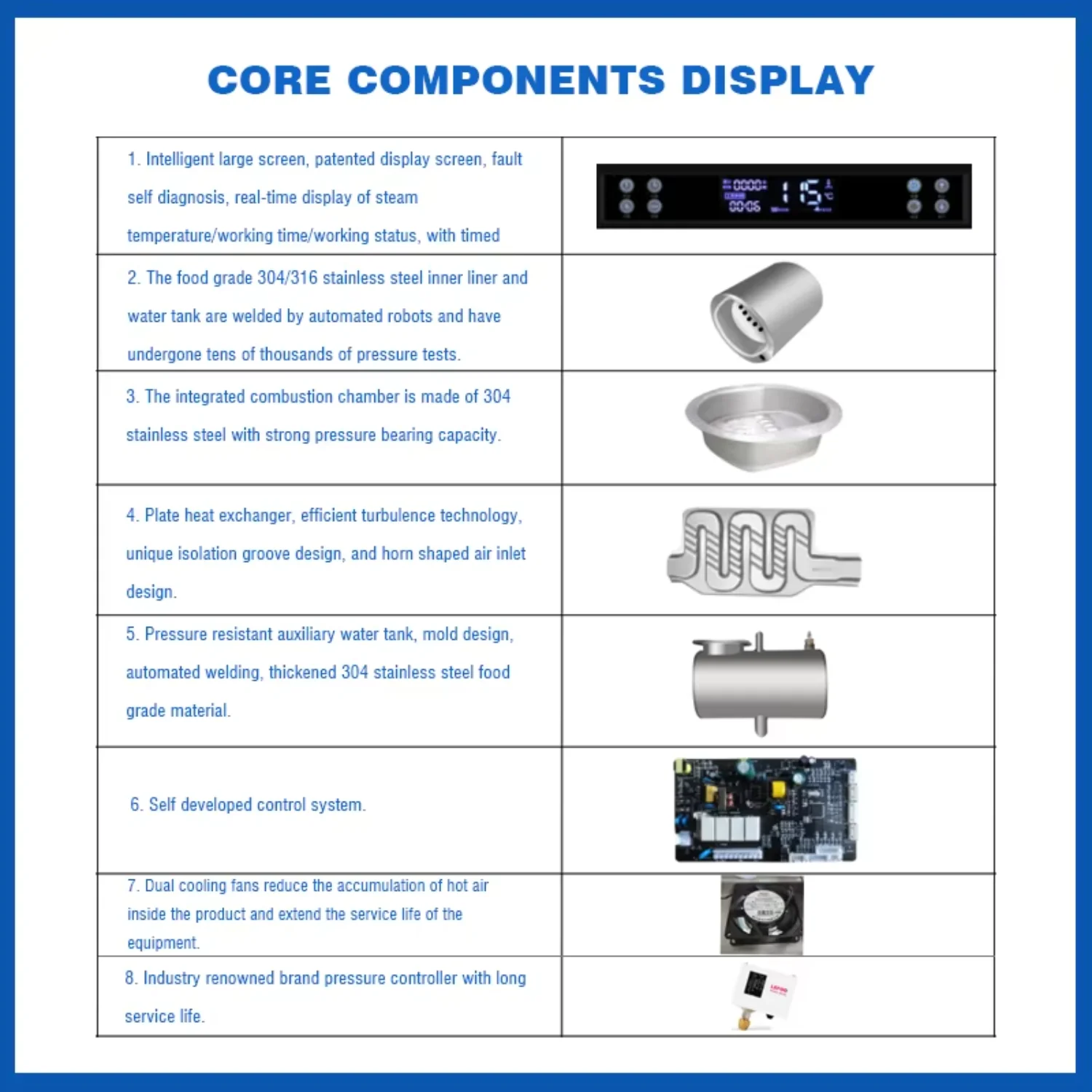

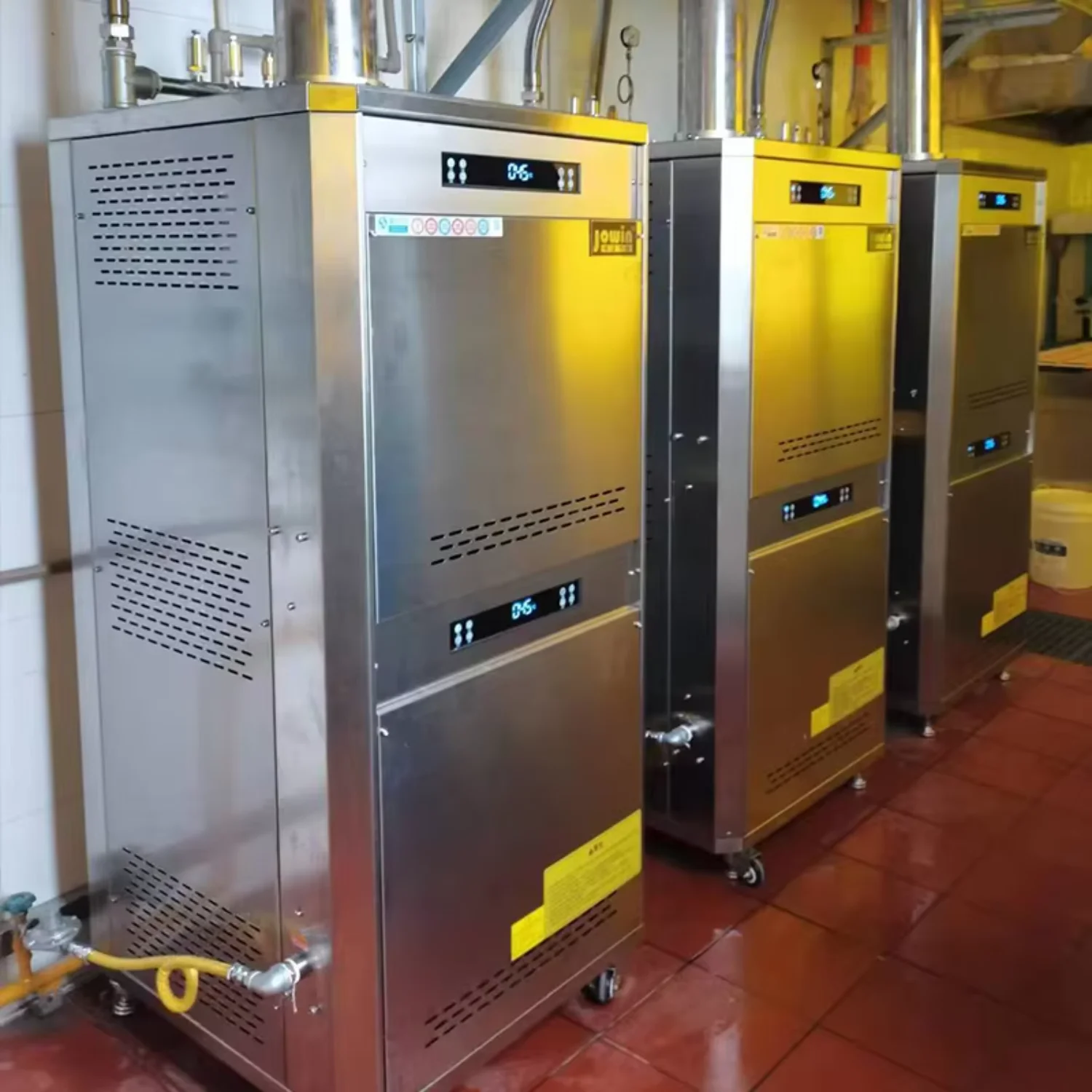

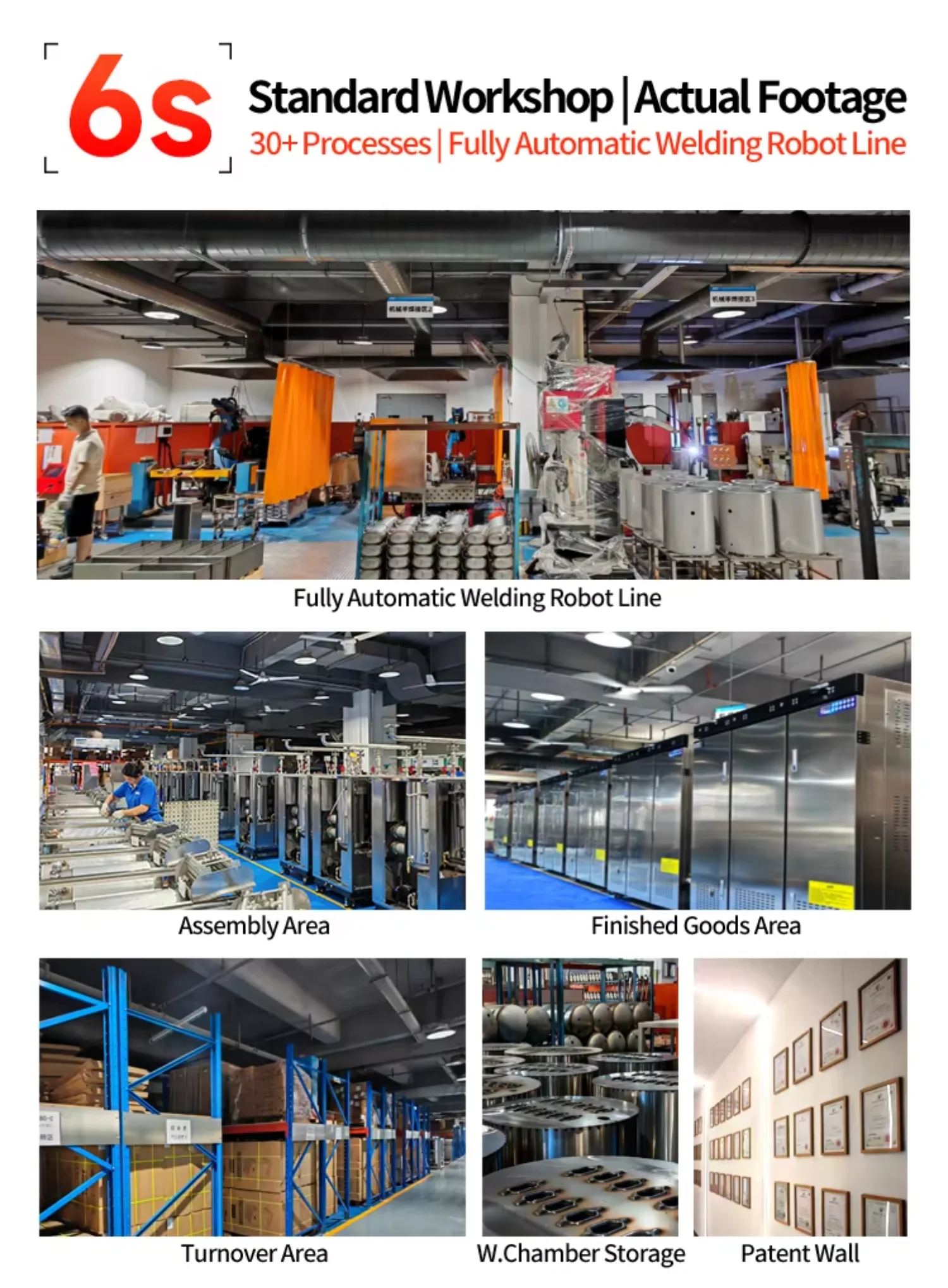

- This is A Vertical Double Bile commercial steam generator is designed for reliable daily operation in restaurants, food factories, dishwashers, spa centers and industrial curing processes. With one-touch start and electronic auto-ignition, it produces steam from cold water in about 120 seconds and supports timed start and stop for flexible scheduling. The intelligent controller displays steam temperature, working hours and running status on a clear panel, and operators can switch easily between manual and automatic modes. Built with full stainless steel, including a 304 inner tank and 316 heat exchanger and welded by automated robots, the unit delivers stable performance and a long service life. A modular structure makes maintenance simple, while the natural-draft design keeps CO emissions at only 5% of the national standard and reduces noise by 60% compared with forced-draft ovens, achieving 30 to 50% energy saving over traditional models. Multiple safety protections cover dry-burn, overflow, flameout, water level and anti-backdraft, and any fault is shown as a pop-up alarm on the display for quick response. As a national high-tech enterprise with more than 100 patents and CE certification, JOWIN provides OEM and ODM customization and dependable factory-direct supply to support your business.
Products Name | JOWIN Commercial Gas Steam Generator | ||||
Products Type | SZQT50/100-G | SZQT70/140-G | SZQT80/160-G | ||
Gas Type | Natural gas（12T） | Natural gas（12T） | Natural gas（12T） | ||
Rated Gas Pressure (KPa) | 2.0 | 2.0 | 2.0 | ||
Effective Volume (L) | ≤29 | ≤29 | ≤29 | ||
Saic Time (S) | 120-150 | 120-150 | 120-150 | ||
Ignition Method | Intelligent Pulse Ignition | Intelligent Pulse Ignition | Intelligent Pulse Ignition | ||
Work Pressure (Mpa) | 0~0.08（Atmospheric Pressure） | 0~0.08（Atmospheric Pressure） | 0~0.08（Atmospheric Pressure） | ||
Applicable Water Pressure (Mpa) | 0.15~0.4 | 0.15~0.4 | 0.15~0.4 | ||
Rated Voltage | AC220/50Hz | AC220/50Hz | AC220/50Hz | ||

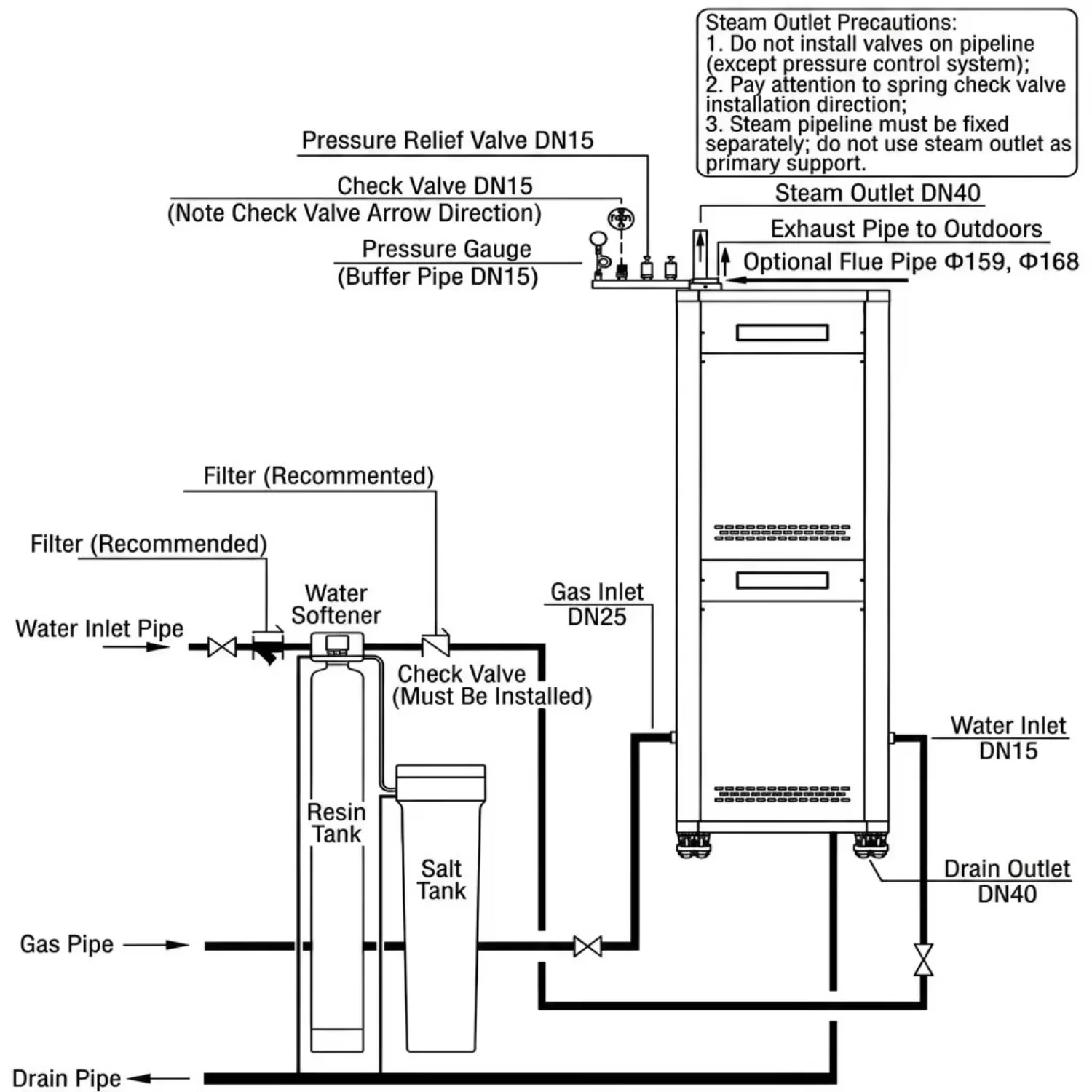

Steam Outlet Specifications | DN40 M | DN40 M | DN40 M | ||
Inlet Specifications | DN25 M | DN25 M | DN25 M | ||
Inlet Specifications | DN40 F | DN40 F | DN40 F | ||
Specification Of Sewage Outlet | DN25 M | DN25 M | DN25 M | ||
Exhaust Pipe Diameter (mm) | Φ159 | Φ169 | Φ169 | ||
Rated Electrical Power (W) | 120*2 | 120*2 | 120*2 | ||
Steam Temperature (℃) | 100-115 | 100-115 | 100-115 | ||
Rated Heat Load (kW) | 100 | 140 | 160 | ||
Steam VolumeK（kg/h） | 140 | 180 | 220 | ||
Gas Consumption (m3/h) | 10 | 14 | 16 | ||
Dimensions (mm) | 750*750*1750 | 750*750*1750 | 750*750*1750 | ||
Packaging Method (mm) | Honeycomb Cardboard Box | Honeycomb Cardboard Box | Honeycomb Cardboard Box | ||
Net Weight (kg) | 184 | 205 | 222 | ||
