Steam Generator, Stainless, Steel, 70kg/h

Steam generator — power source type Gas, material Stainless Steel (Grade 304). The complete factory specification follows. Made by SHENZHEN JOWIN SMART HEAT INTL TECH CO., LTD. (1 year on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Steam Generator

• Model Number: SZQT50-C
• Power Source Type: Gas
• Power (W): 50KW
• Material: Stainless Steel (Grade 304)
• Material Quality: 304 Stianless Steel
• Warranty: 1 Year

Technical Specifications

Product Details

PRODUCT HIGHLIGHTS

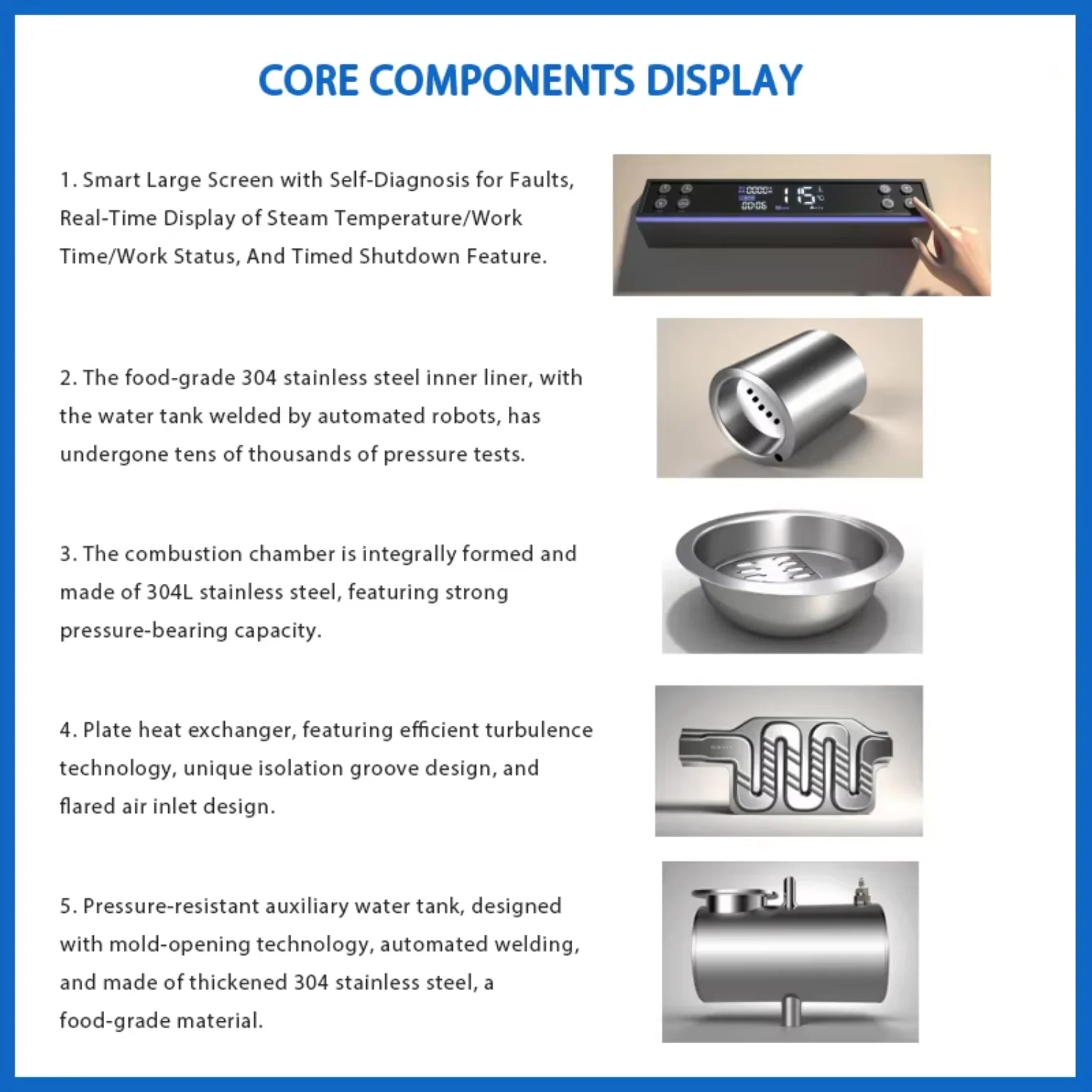

• The digital control panel can clearly display steam temperature, working time, and real-time operating status. The built-in fault self diagnosis system can quickly help you identify the problem. The timed shutdown function makes energy control more convenient and also enhances safety.
• The inner tank is made of food grade 304 stainless steel material. Automated robot welding technology ensures consistent weld quality. Each unit has undergone tens of thousands of stress tests to ensure reliable and worry free long-term use.

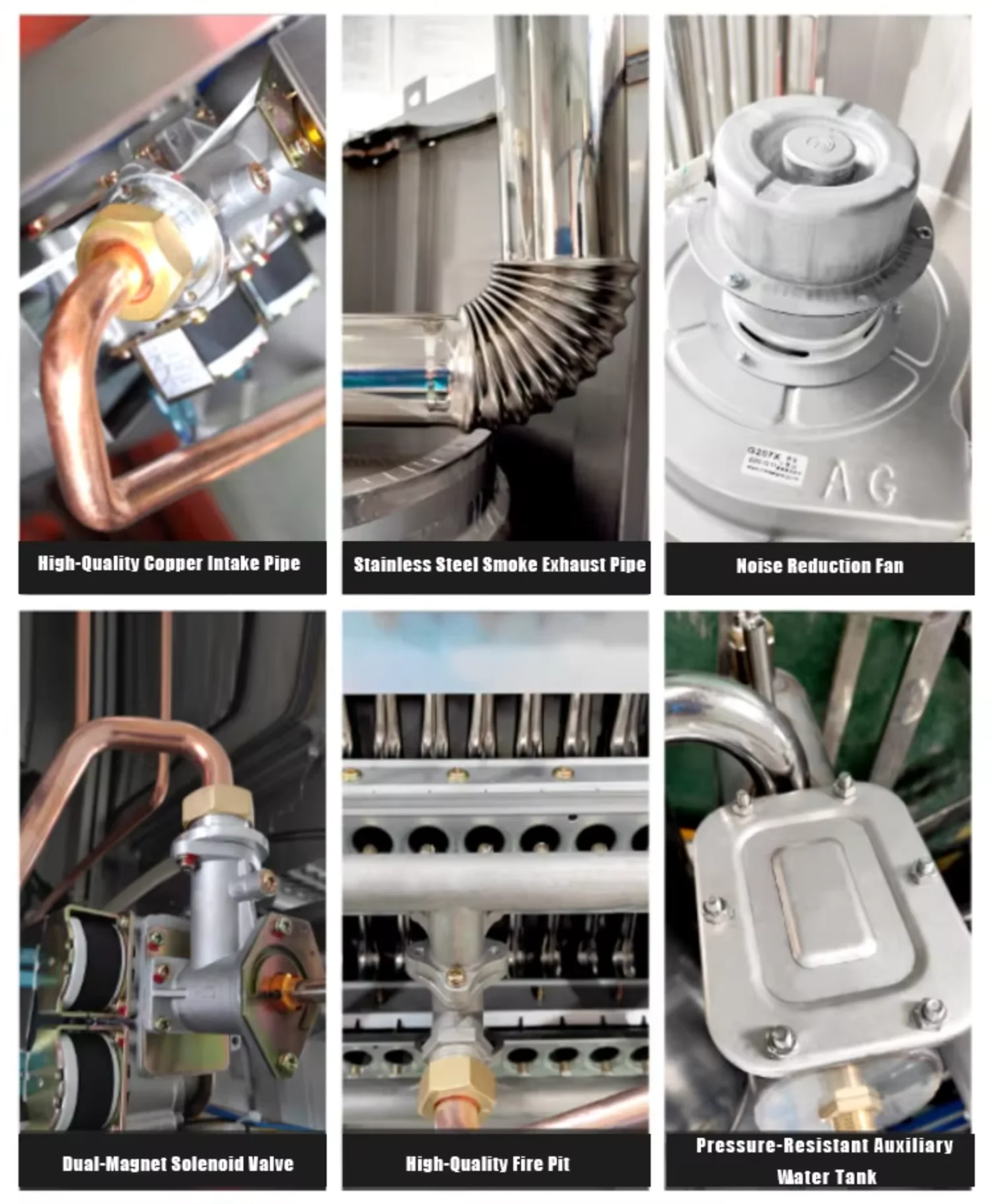

• The combustion chamber is made of 304 stainless steel, which is both heat-resistant and pressure resistant, and performs very well. Plate heat exchangers utilize advanced turbulence technology. The unique isolation groove design and optimized air inlet have significantly improved heat transfer efficiency and thermal performance. The auxiliary water tank is also made of thickened 304 food grade stainless steel. The mold design and automatic welding process ensure uniform wall thickness and reliable pressure resistance.

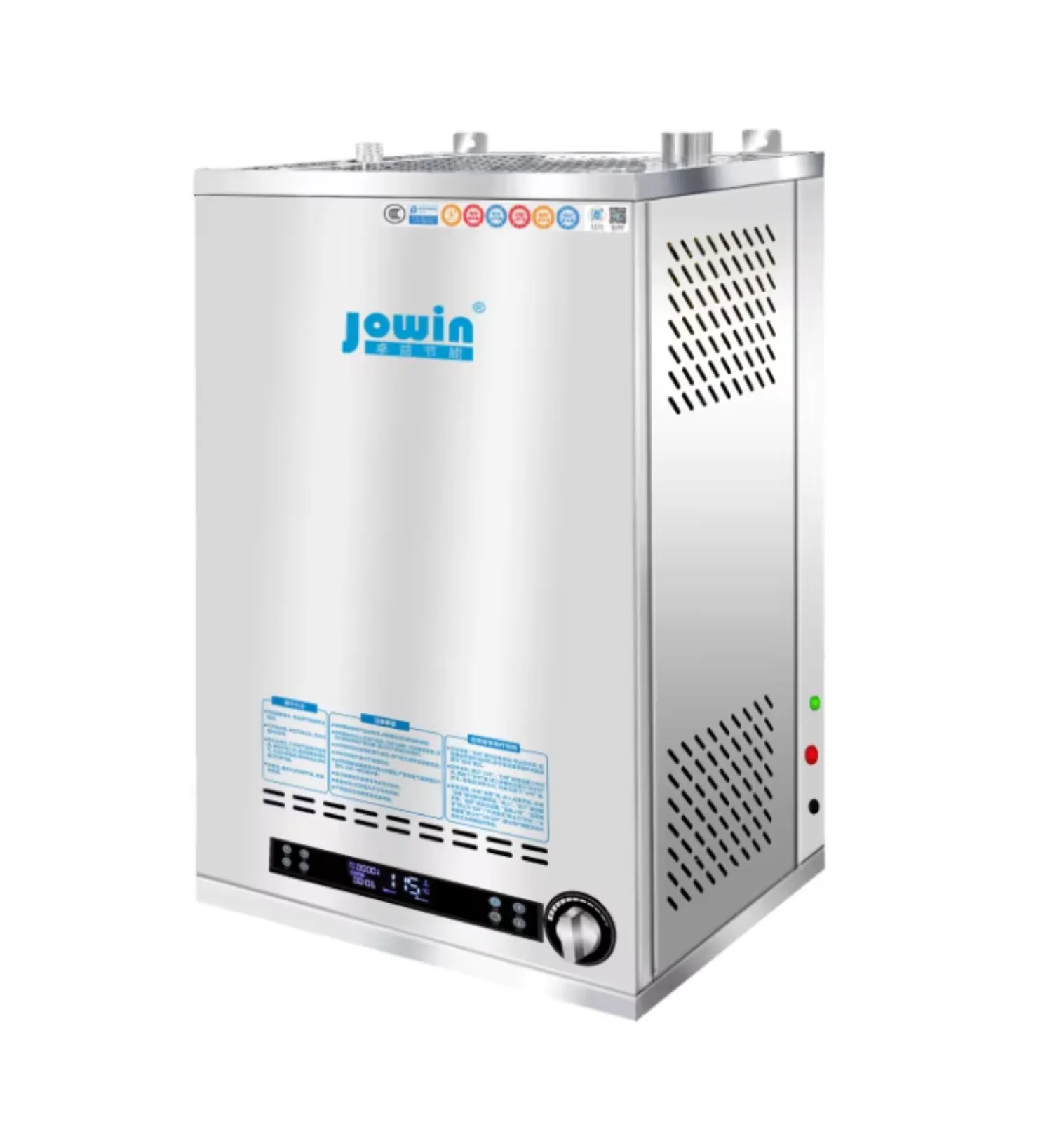

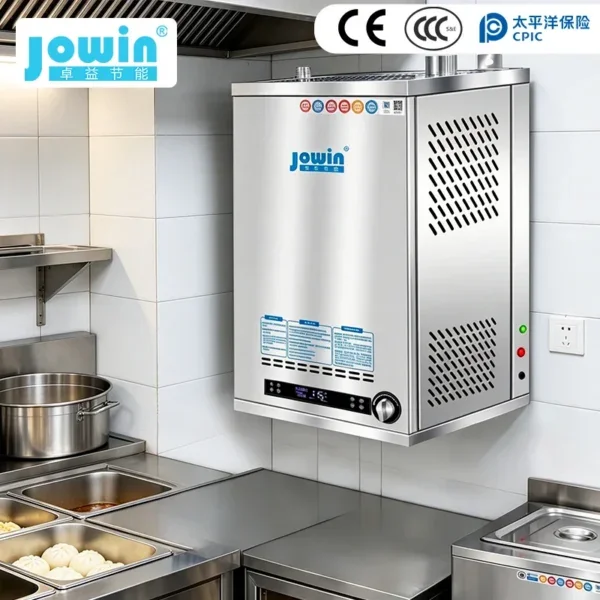

– PRODUCT SHOWCASE –

– SPECIFICATIONS –

Products Name	JOWIN Commercial Gas Steam Generator
Products Type	SZQT40-C	SZQT50-C	SZQT60-C	SZQT70-C	SZQT80-C
Gas Type	Natural Gas (NG)
Gas Pressure (Pa)	2000/2800
Effective Volume (L)	≤29
SAIC Time (s)	120-150
Lgnition Method	Smart Pulse Ignition
Water Pressure	0.15-0.16
Materials	304 Stainless Steel
Stop-Start Protection Device	Ionic
Service Life	8 Years
Execution Standards	GB 35848-2024
Rated Voltage	AC220/50Hz
Steam Outlet Specifications	DN25 F							DN32 M
Inlet Specifications	DN15 M							DN15 M
Gas Port Specifications	DN15 M							DN25 M
Sewage Outlet Specifications	DN25 M							DN25 M
Electric Power	100	120	120	120	120
Flue Diameter	50	50	60	60	60
Heat Load (KW)	40	50	60	70	80
Steam Output (kg/h)	55	70	80	90	100 (Max. 125)
Gas Consumption (m3/h)	4	5	6	7	8 (Max. 9)
Dimensions (mm)	570 x 470 x 900	570 x 470 x 900	640 x 540 x 900	640 x 540 x 900	680 x 580 x 900
Packaging Dimensions	650 x 550 x 1070	650 x 550 x 1070	720 x 620 x 1070	720 x 620 x 1070	760 x 660 x 1070
Packaging Method	Standard cardboard box	Standard cardboard box	Standard cardboard box	Standard cardboard box	Standard cardboard box
Net Weight (kg)	50	55	66	68	82

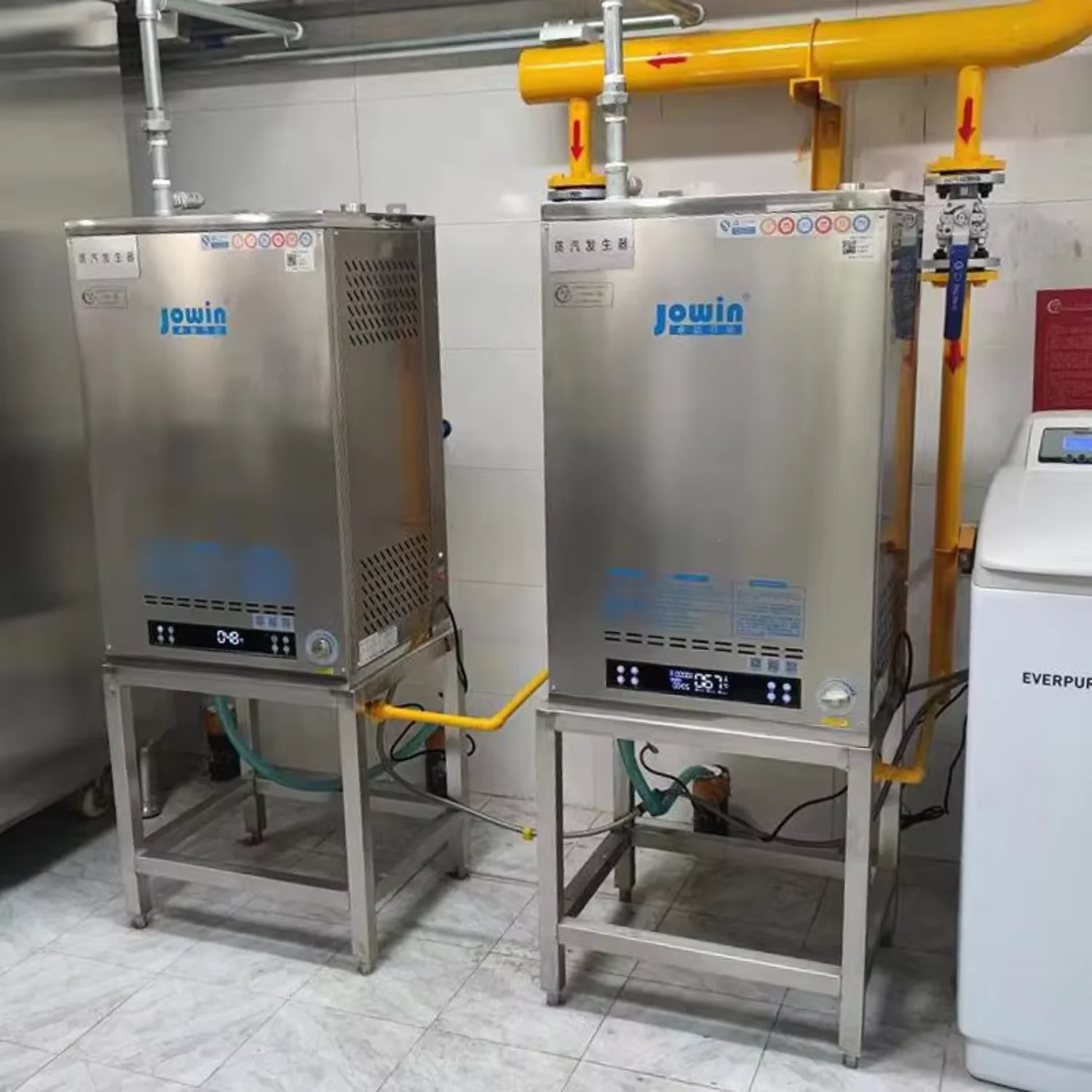

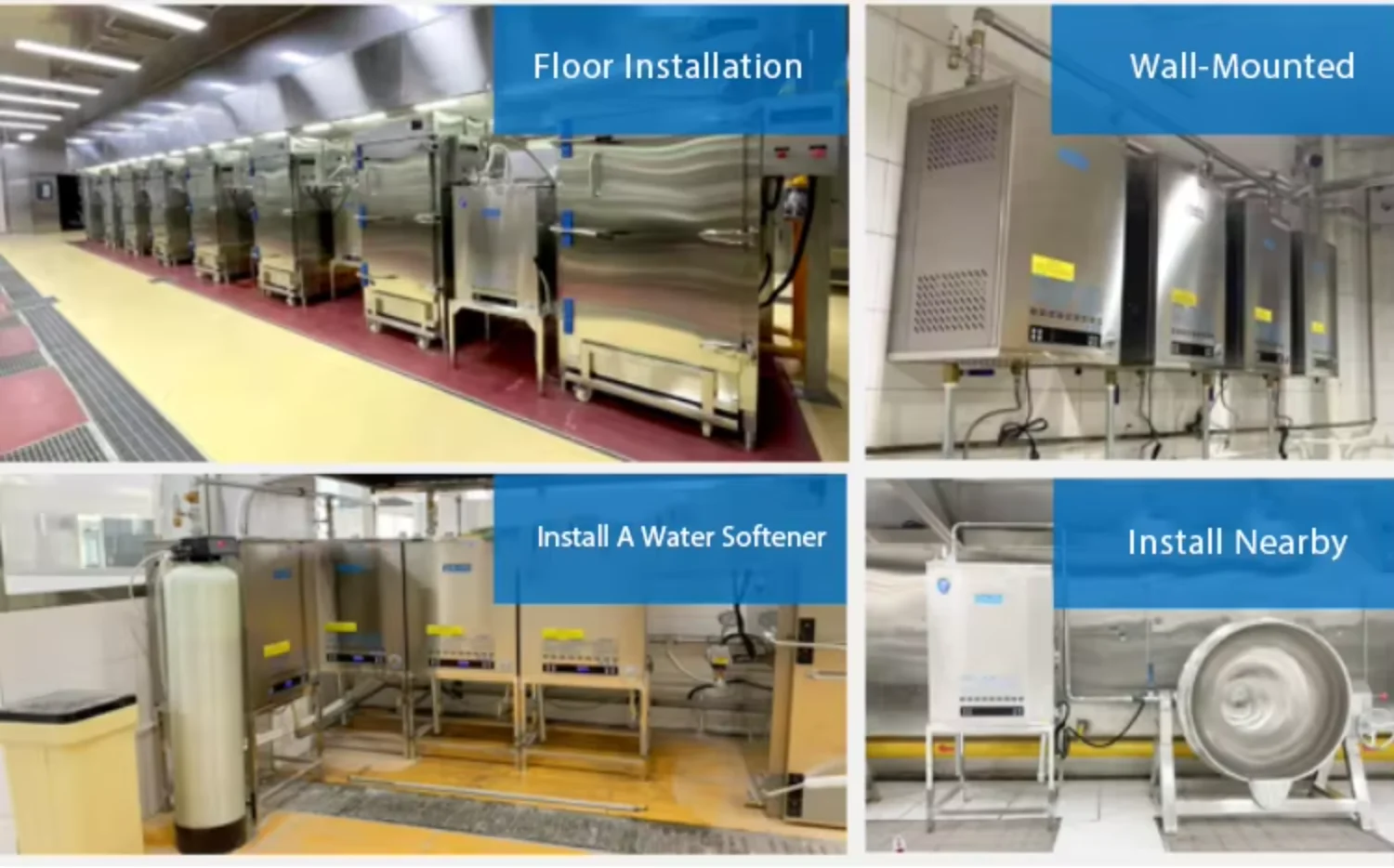

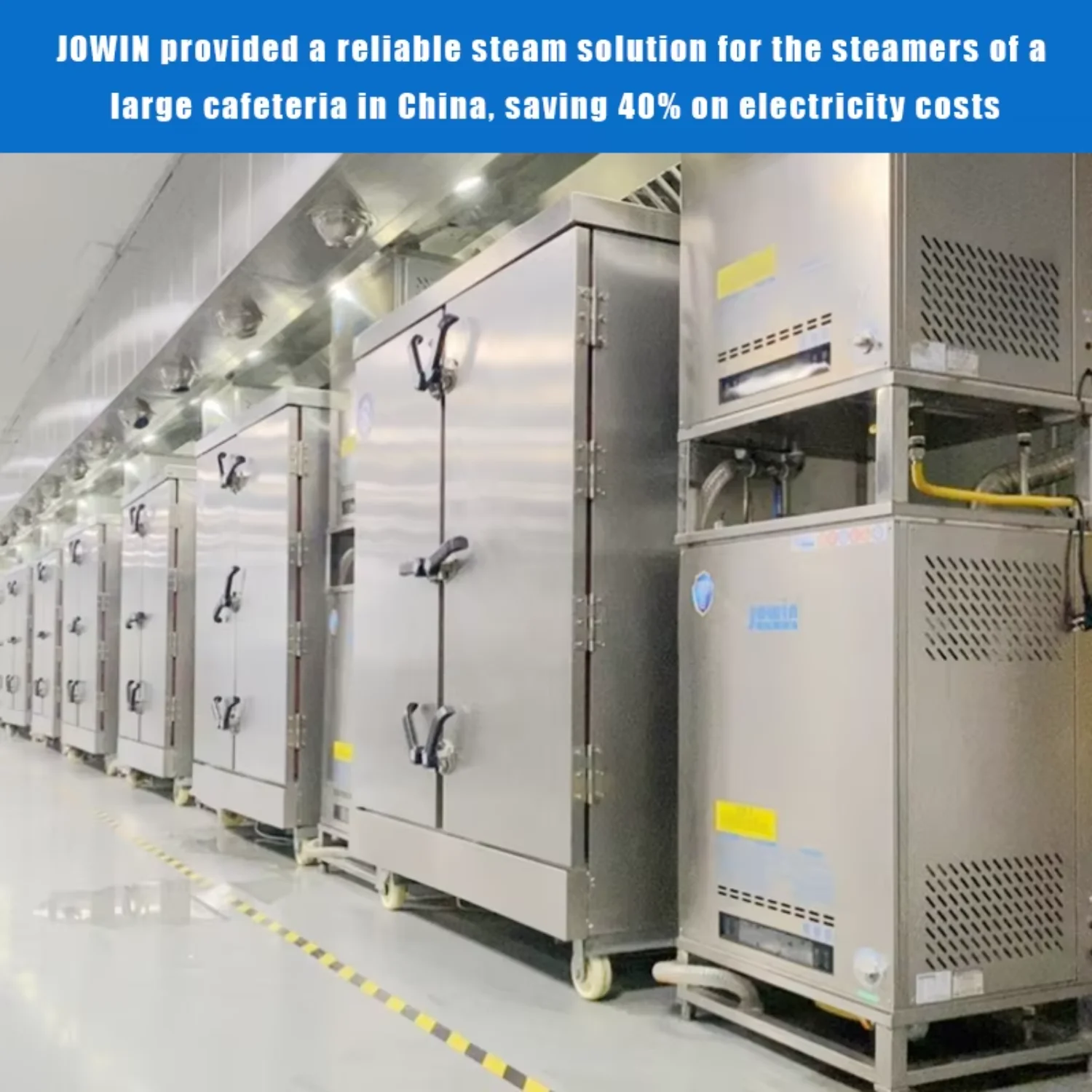

– SCENARIO APPLICATIONS –

– COMPANY INTRODUCTION –

标题

Shenzhen Jowin Smart Heat is a subsidiary of the Jowin Energy Saving Group and serves as the Group's overseas headquarters for the global market. Established in 2012 and headquartered in Dongguan, China, the Group boasts a professional team dedicated to R&D, manufacturing, and sales. Our product portfolio comprises five major series: gas steam generators, electric steam generators, gas hot water units, electric hot water units, and smart steam cabinets, catering to the diverse needs of sectors such as central kitchens, food processing, hospitality, schools, and industrial manufacturing. We hold Triple C, EU CE, and ISO certifications, possess over 100 patents, and are underwritten by China Pacific Insurance. Our heating system retrofit projects now cover an area exceeding 5 million square meters, with an annual steam supply capacity of 2 million tons. Looking ahead, Jowin Smart Heating remains dedicated to its core mission of delivering intelligent heating solutions to more overseas customers, leading the global heating industry toward a greener future.

– WORKSHOP SHOWCASE –

– PRODUCTION PROCESS –

– TRADE SHOW PARTICIPATION –

– OUR SERVICES –

标题

Pre-sales Service
1. Provide steam and hot water heating system solutions for your project. 2. Offer steam generator operation cost optimization plans. 3. Provide interior layout design.

In-sales Service
1. Timely update production progress of the steam generator and auxiliary equipment with photos and videos attached. 2. Cooperate with customers or third-party inspection institutions for factory inspection. 3. Provide detailed delivery list including quantity, weight and dimension data. 4. Arrange shipment via our long-term cooperative logistics providers upon customer request. 5. Supply a full set of factory documents delivered together with goods: General layout drawing, steam generator body drawing, installation drawing, foundation drawing, installation and operation manual, quality certificate and inspection certificate.

After-sales Service
1. One-year warranty and lifelong technical support. 2. Professional remote guidance installation and debugging services. 3. Provide maintenance services for steam generator accessories. 4. Provide vulnerable parts kit.

– PACKAGING & SHIPPING SPECIFICATIONS –

》FAQs《

Q1. What is your Minimum Order Quantity (MOQ)?

We are highly flexible and support small trial orders. The MOQ for most commercial equipment is just 1 unit. However, minimum quantities may vary by model and configuration, please contact us for details.

Q2. What shipping methods and packaging do you provide?

Shipping: We offer global logistics including sea freight (FCL/LCL), air freight, and international express (e.g., DHL, FedEx). We will recommend the most cost-effective route based on your order volume.

Packaging: All equipment is packed in heavy-duty corrugated cartons with internal shock-absorbing foam and waterproof stretch film wrapping to ensure safe transit.

Q3. What payment methods do you support?

We mainly support T/T (Telegraphic Transfer). Our standard terms are a 30% deposit in advance and a 70% balance before shipment.

Q4. Can you provide samples? How long does it take?

Availability: We provide samples of small parts or standard models. For large commercial equipment, we recommend purchasing a single unit for testing.

Lead Time: Standard samples are ready within 7 working days; customized samples take approximately 15 working days, depending on the complexity of requirements.

Q5. Can you customize the logo and equipment parameters?

Yes. We offer comprehensive OEM/ODM services including custom logo branding, bespoke equipment parameters (capacity, power, fuel type), color customization, and tailored packaging.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this steam generator?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by SHENZHEN JOWIN SMART HEAT INTL TECH CO., LTD., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full SHENZHEN JOWIN SMART HEAT INTL TECH CO., LTD. range on HVACR Nexus.
