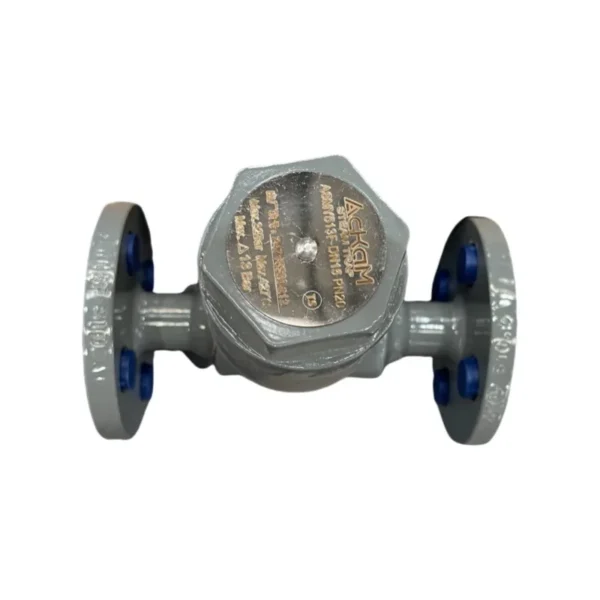

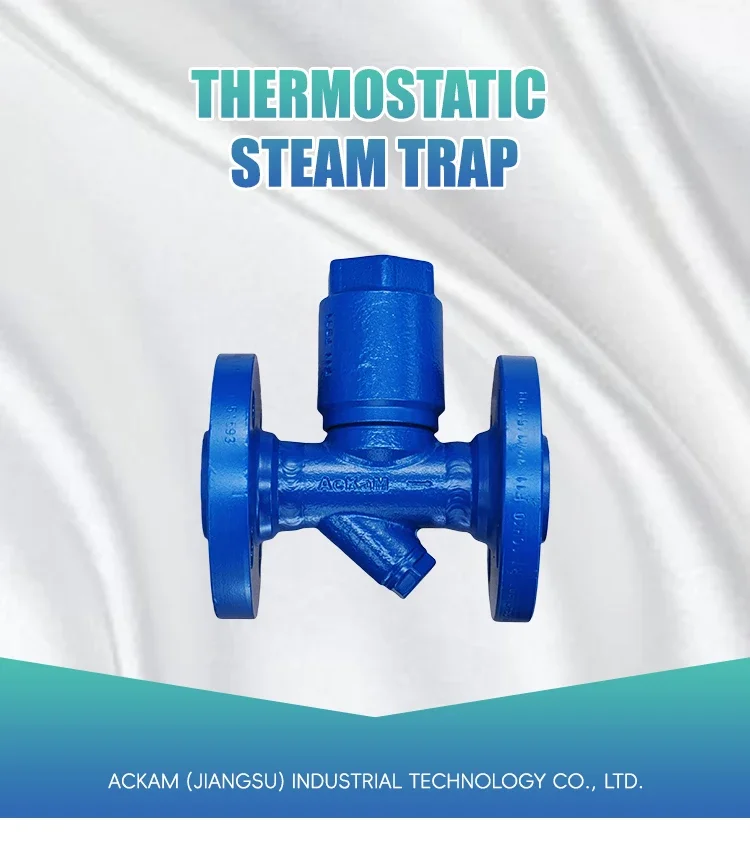

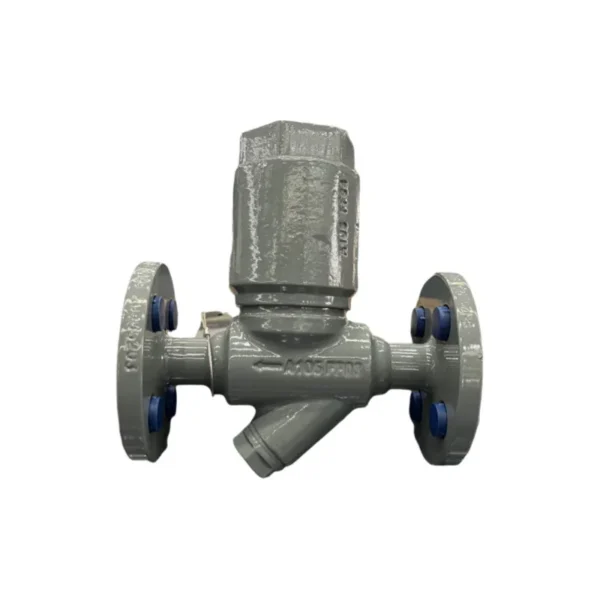

Steam Trap Valve, 513F, Steel, DN15, PN20

This steam trap valve is published with the manufacturer’s full specification — power Manual, type Other Valves. For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Steam Trap Valve

• Model Number: 513F DN15 PN20
• Power: Manual
• Warranty: 1 year
• Place Of Origin: Jiangsu, China
• Application: General
• Type: Other Valves

Technical Specifications

Product Details

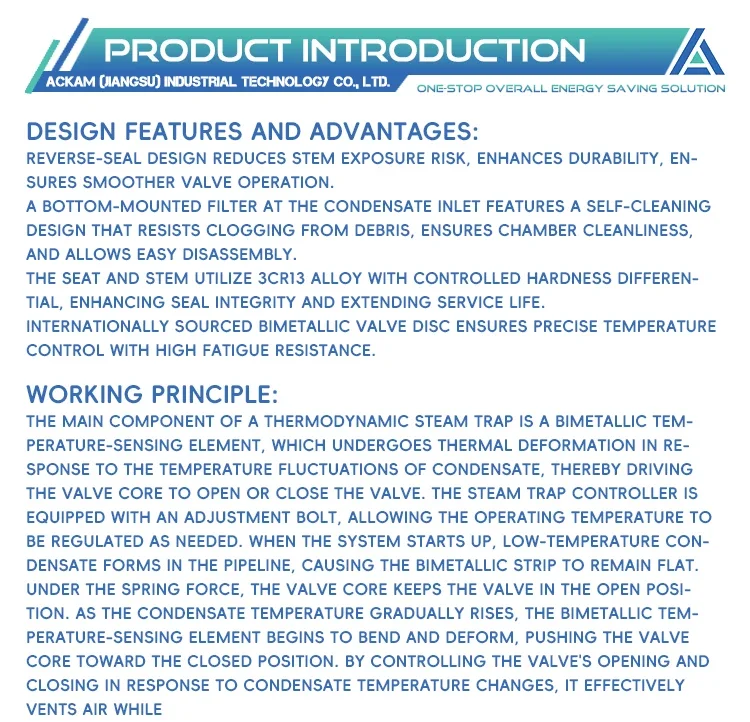

DESIGN FEATURES AND ADVANTAGES: REVERSE-SEAL DESIGN REDUCES STEM EXPOSURE RISK, ENHANCES DURABILITY, EN-SURES SMOOTHER VALVE OPERATION. A BOTTOM-MOUNTED FILTER AT THE CONDENSATE INLET FEATURES A SELF-CLEANING DESIGN THAT RESISTS CLOGGING FROM DEBRIS, ENSURES CHAMBER CLEANLINESS, AND ALLOWS EASY DISASSEMBLY. THE SEAT AND STEM UTILIZE 3CR13 ALLOY WITH CONTROLLED HARDNESS DIFFEREN-TIAL, ENHANCING SEAL INTEGRITY AND EXTENDING SERVICE LIFE. INTERNATIONALLY SOURCED BIMETALLIC VALVE DISC ENSURES PRECISE TEMPERATURE CONTROL WITH HIGH FATIGUE RESISTANCE.

WORKING PRINCIPLE: THE MAIN COMPONENT OF A THERMODYNAMIC STEAM TRAP IS A BIMETALLIC TEM-PERATURE-SENSING ELEMENT, WHICH UNDERGOES THERMAL DEFORMATION IN RE-SPONSE TO THE TEMPERATURE FLUCTUATIONS OF CONDENSATE, THEREBY DRIVING THE VALVE CORE TO OPEN OR CLOSE THE VALVE. THE STEAM TRAP CONTROLLER IS EQUIPPED WITH AN ADJUSTMENT BOLT, ALLOWING THE OPERATING TEMPERATURE TO BE REGULATED AS NEEDED. WHEN THE SYSTEM STARTS UP, LOW-TEMPERATURE CON-DENSATE FORMS IN THE PIPELINE, CAUSING THE BIMETALLIC STRIP TO REMAIN FLAT.UNDER THE SPRING FORCE, THE VALVE CORE KEEPS THE VALVE IN THE OPEN POSI- TION. AS THE CONDENSATE TEMPERATURE GRADUALLY RISES, THE BIMETALLIC TEM-PERATURE-SENSING ELEMENT BEGINS TO BEND AND DEFORM, PUSHING THE VALVE CORE TOWARD THE CLOSED POSITION.BY CONTROLLING THE VALVE'S OPENING AND CLOSING IN RESPONSE TO CONDENSATE TEMPERATURE CHANGES, IT EFFECTIVELY VENTS AIR WHILE

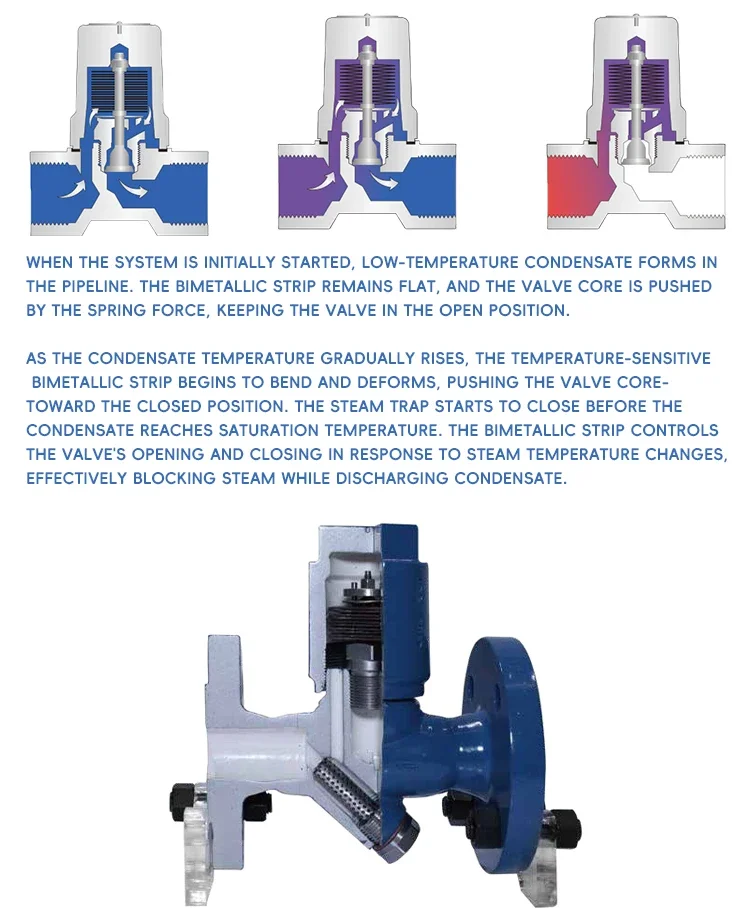

WHEN THE SYSTEM IS INITIALLY STARTED,LOW-TEMPERATURE CONDENSATE FORMS IN THE PIPELINE. THE BIMETALLIC STRIP REMAINS FLAT, AND THE VALVE CORE IS PUSHED BY THE SPRING FORCE, KEEPING THE VALVE IN THE OPEN POSITION.AS THE CONDENSATE TEMPERATURE GRADUALLY RISES, THE TEMPERATURE-SENSITIVE BIMETALLIC STRIP BEGINS TO BEND AND DEFORMS, PUSHING THE VALVE CORE-TOWARD THE CLOSED POSITION. THE STEAM TRAP STARTS TO CLOSE BEFORE THE CONDENSATE REACHES SATURATION TEMPERATURE. THE BIMETALLIC STRIP CONTROLS THE VALVE'S OPENING AND CLOSING IN RESPONSE TO STEAM TEMPERATURE CHANGES, EFFECTIVELY BLOCKING STEAM WHILE DISCHARGING CONDENSATE.

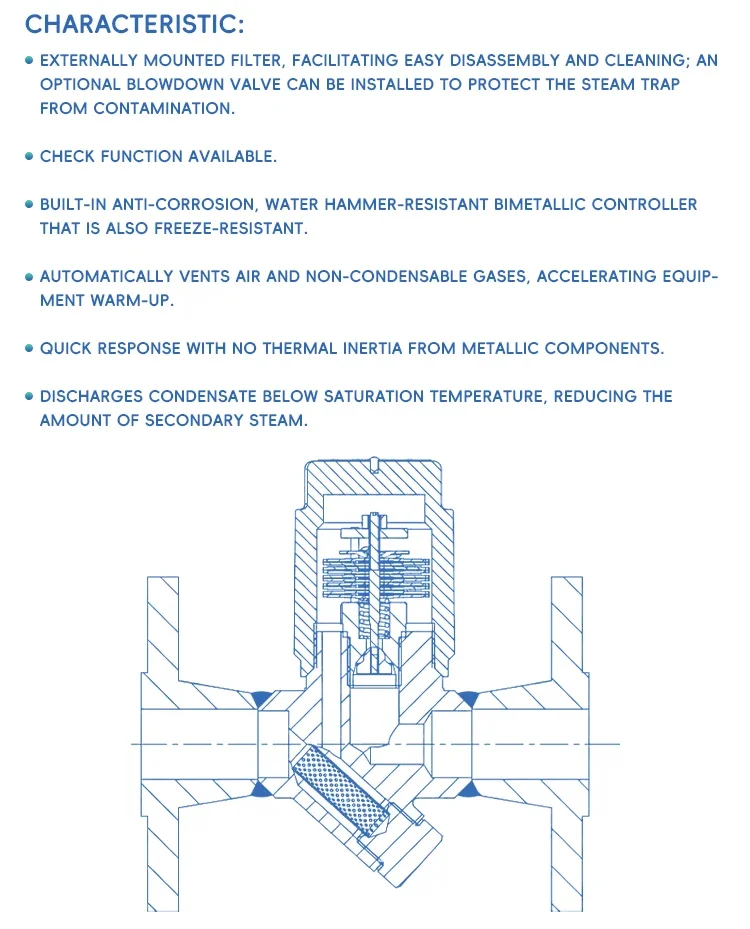

CHARACTERISTIC:

EXTERNALLY MOUNTED FILTER, FACILITATING EASY DISASSEMBLY AND CLEANING; AN OPTIONAL BLOWDOWN VALVE CAN BE INSTALLED TO PROTECT THE STEAM TRAP FROM CONTAMINATION.

CHECK FUNCTION AVAILABLE.

BUILT-IN ANTI-CORROSION, WATER HAMMER-RESISTANT BIMETALLIC CONTROLLER THAT IS ALSO FREEZE-RESISTANT.

AUTOMATICALLY VENTS AIR AND NON-CONDENSABLE GASES, ACCELERATING EQUIP- MENT WARM-UP.

QUICK RESPONSE WITH NO THERMAL INERTIA FROM METALLIC COMPONENTS.

DISCHARGES CONDENSATE BELOW SATURATION TEMPERATURE, REDUCING THE AMOUNT OF SECONDARY STEAM.

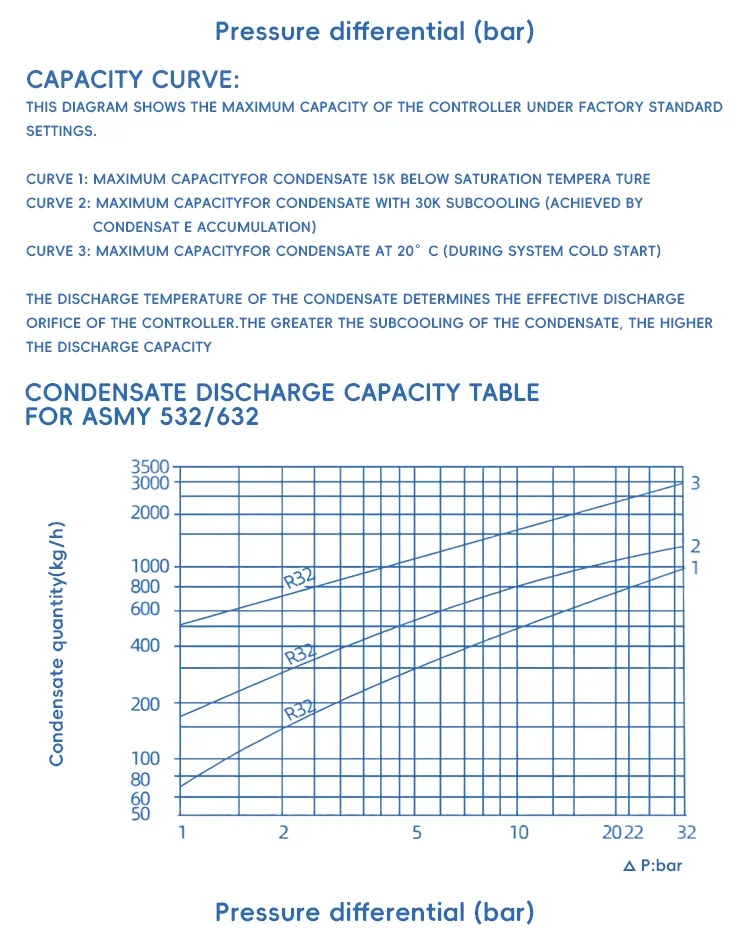

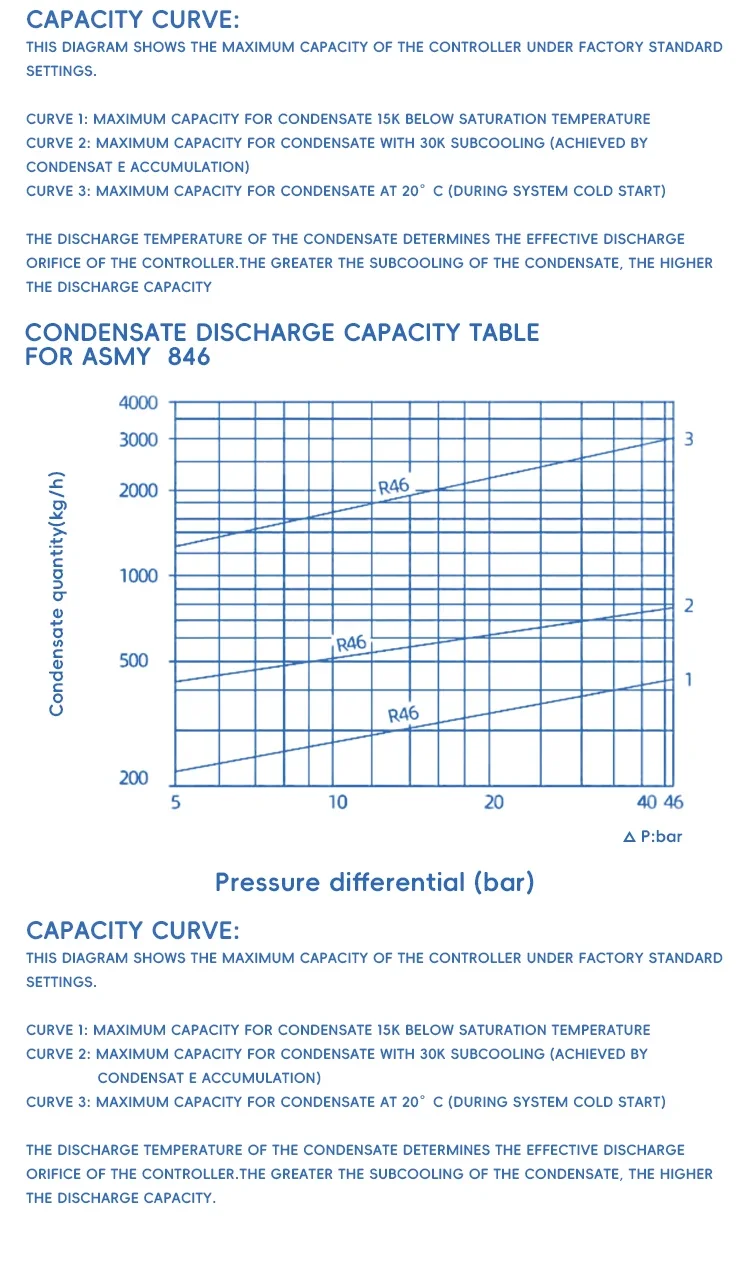

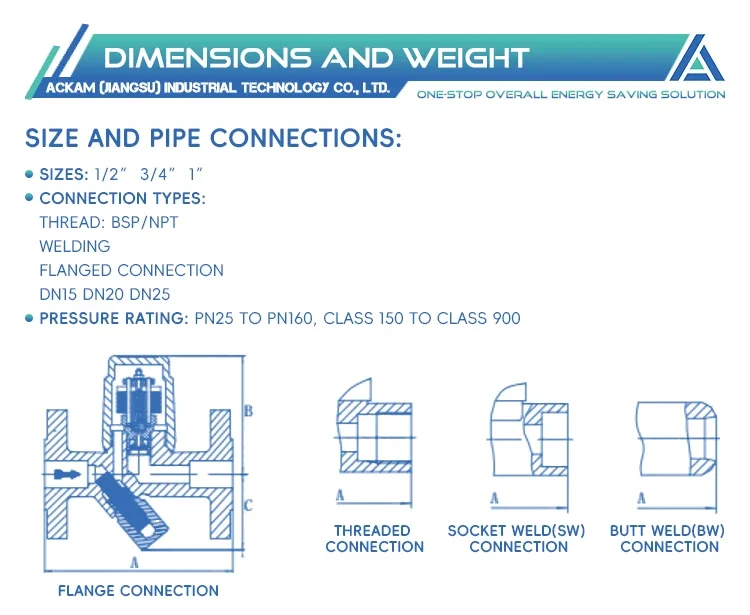

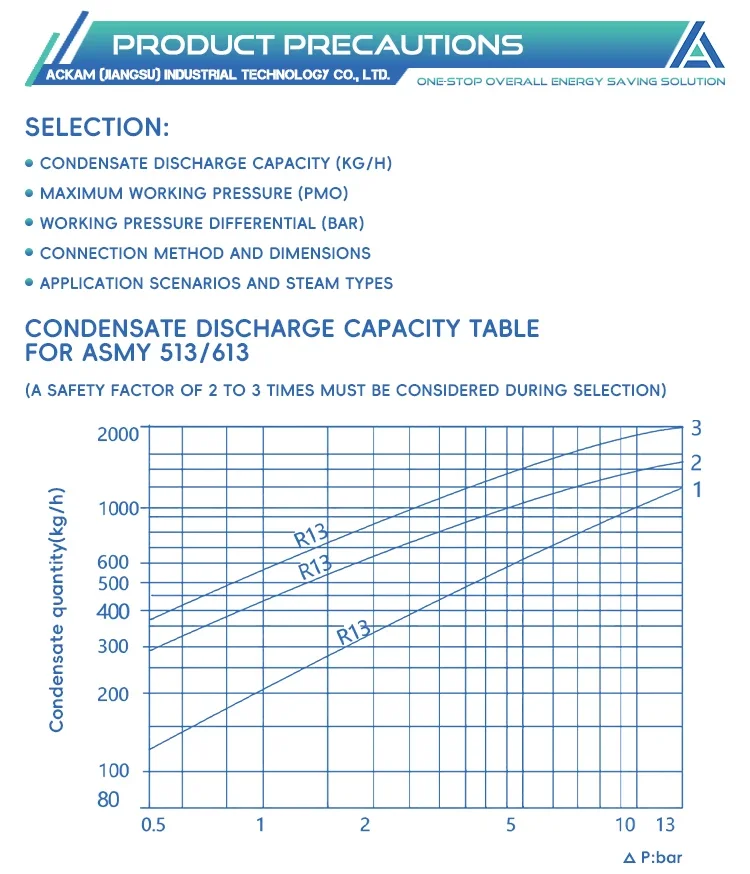

Dimensions and weights (approximate) in mm and kg
Size and Weight			Connection Method
				Flange Connection					Thread
mm			15	20	25	15	20	25
Caliber	Inch	1/2	3/4	1	1/2	3/4	1
Size（mm）	L	150	150	160	128	131	140
		B	108					108
		C	54					54
Approximate weight	（kg）	3.2	3.7	4.2	1.7	1.7	1.6

Size and Weight			Connection Method
				Flange Connection					Thread
mm			15	20	25	15	20	25
Caliber	Inch	1/2	3/4	1	1/2	3/4	1
Size（mm）	L	70	78	162	80	80	80
		B	108					108
		C	54					54
Approximate weight	（kg）	1.7	1.7			2.2	2.3	2.4
(Structural length and flange can be customized according to customer requirements)
