The steel air intake fan listed here carries 220V/380V/415V/440V/660V, power source type Corded Electric, documented exactly as the manufacturer publishes it. Made by Shandong Handun Environmental Technology Co., Ltd. (9 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steel Air Intake Fan
- Model Number: HD-XDW
- Power Source Type: Corded Electric
- Voltage: 220V/380V/415V/440V/660V
- Material: Galvanized Steel
- Blade Material: Galvanized steel sheet
- Noise Level: 40 dB and above
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 220V/380V/415V/440V/660V |
| Motor Type | AC Motor |
| Speed | 800 RPM, 1500 RPM, 900rpm |
| Material | Galvanized Steel |
| Blade Material | Galvanized steel sheet |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM |
| Noise Level | 40 dB and above |
| Place Of Origin | Shandong, China |
| Brand Name | HANDUN |
| Model Number | HD-XDW |
| Name | Air Intake Fan |
| Model | HD-XDW |
| Driven Type | A Direct/Belt C/ Shaft driven D |
| Impeller Diameter | 200mm -900mm |
| Application | Industrial ventilation |
| Feature | Double Inlet |
| Delivery Time | 15-20 days |
| Certificate | CE/ISO |
| Selling Units | Single item |
Product Details

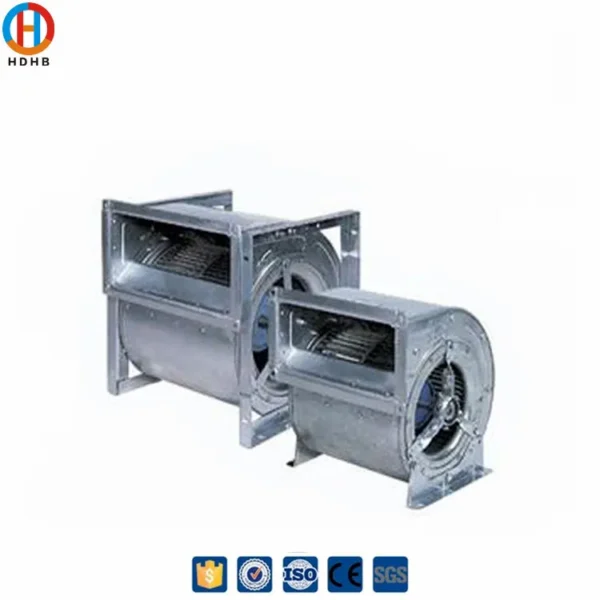

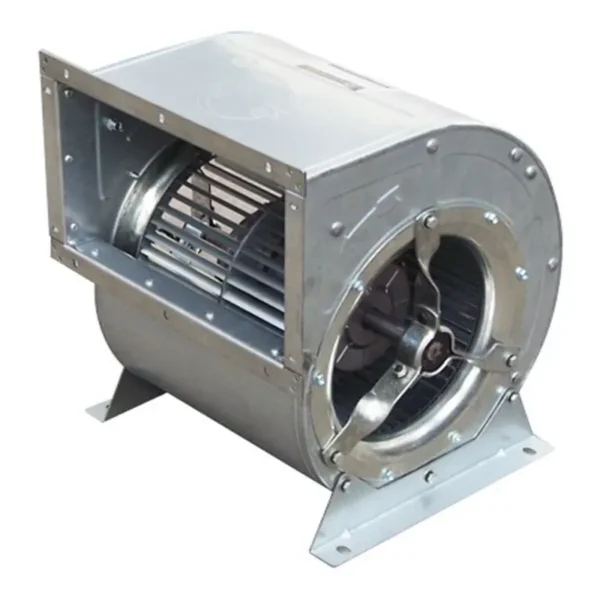

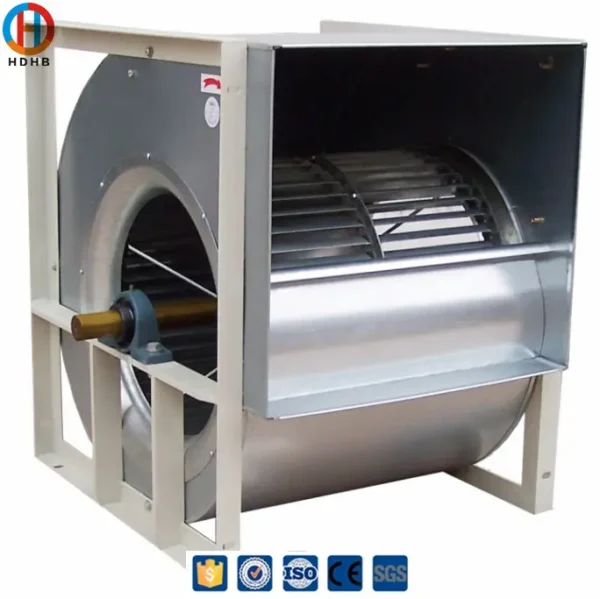

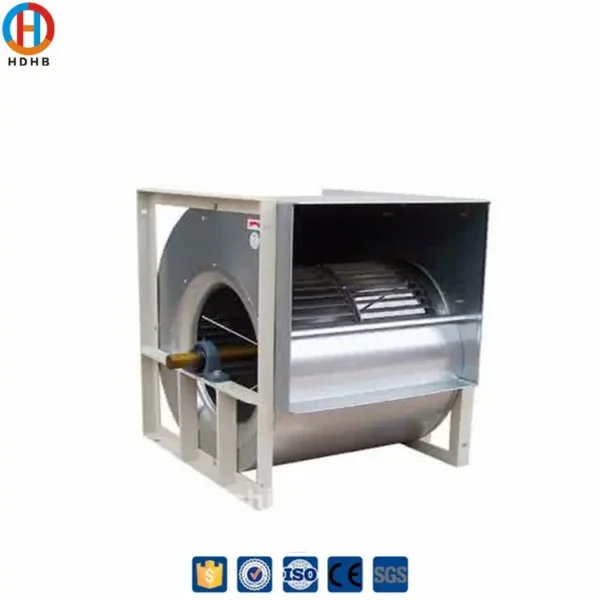

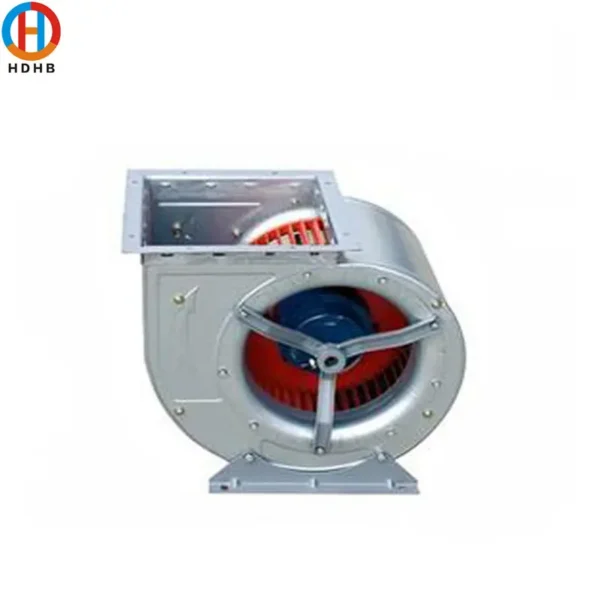

Forward Impeller Air Intake Fan
1. Product Characteristics:
•Optional Parts: flexible coupling, variable inlet vane damper, damper, electric actuator, motor with variable frequency and speed regulation, frequency converter, soft starter for motor;

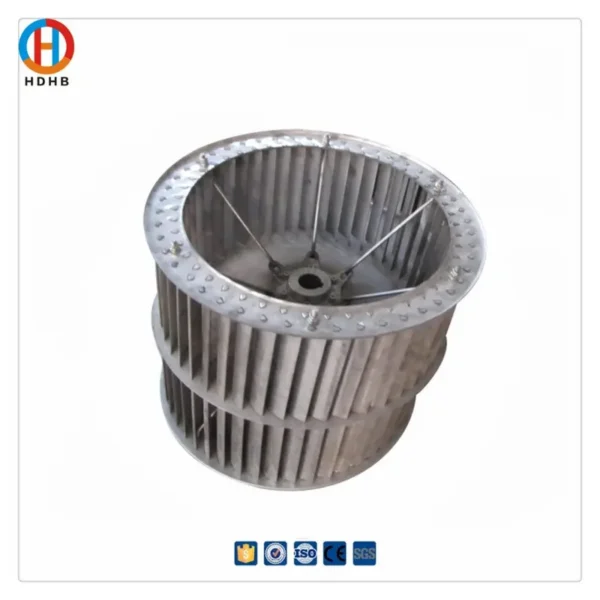

•Impeller is adjusted by the static and dynamic balancing test.
•Backward blades
•Water cooled bearing house
•Oil leak preventing design for bearing house
•Long service life
•Large air volume, low noise, high efficiency and abrasion resistant
•Easy installation and operation, LAPU.
•Superior service in customized design and production.
Technical Parameters
| Model. | Size | A |
| B | C | D | E | F |
| G | H | I |
|
|
|
| ||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 200S | 311 |
| 360 | 200 | 240 | 270 | 220 |
| 280 | 120 | 170 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 200L | 311 |
| 360 | 200 | 240 | 320 | 270 |
| 340 | 120 | 170 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 250S | 373 |
| 426 | 230 | 270 | 270 | 220 |
| 280 | 150 | 200 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 250M | 373 |
| 426 | 230 | 270 | 350 | 300 |
| 360 | 150 | 200 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 250L | 373 |
| 426 | 230 | 270 | 430 | 380 |
| 440 | 150 | 200 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 280S | 437 |
| 481 | 280 | 321 | 320 | 270 |
| 340 | 200 | 250 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 280M | 437 |
| 481 | 280 | 321 | 400 | 350 |
| 420 | 200 | 250 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 280L | 437 |
| 481 | 280 | 321 | 480 | 430 |
| 500 | 200 | 250 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 315S | 519 |
| 542 | 280 | 321 | 320 | 270 |
| 340 | 240 | 290 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 315M | 519 |
| 542 | 280 | 321 | 400 | 350 |
| 420 | 240 | 290 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 315L | 519 |
| 542 | 280 | 321 | 480 | 430 |
| 500 | 240 | 290 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 355S | 600 |
| 640 | 350 | 550 | 400 | 350 |
| 420 | 320 | 370 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 355M | 600 |
| 640 | 350 | 550 | 490 | 440 |
| 520 | 320 | 370 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 355L | 600 |
| 640 | 350 | 550 | 560 | 510 |
| 590 | 320 | 370 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 400S | 669 |
| 725 | 400 | 620 | 400 | 350 |
| 430 | 320 | 370 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 400M | 669 |
| 725 | 400 | 620 | 490 | 440 |
| 520 | 320 | 370 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 400L | 669 |
| 725 | 400 | 620 | 560 | 510 |
| 590 | 320 | 370 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 450S | 732 |
| 815 | 450 | 685 | 515 | 455 |
| 535 | 360 | 410 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 450M | 732 |
| 815 | 450 | 685 | 595 | 545 |
| 625 | 360 | 410 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 450L | 732 |
| 815 | 450 | 685 | 685 | 635 |
| 715 | 360 | 410 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 500S | 810 |
| 900 | 500 | 760 | 620 | 570 |
| 650 | 450 | 500 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 500M | 810 |
| 900 | 500 | 760 | 710 | 660 |
| 740 | 450 | 500 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| XDW | 500L | 810 |
| 900 | 500 | 760 | 810 | 760 |
| 840 | 450 | 500 |
Shandong Handun Environmental Technology Co., Ltd is a leading international business company in China, mainly designs and manufacturers Centrifugal fan, Axial flow fan, Boiler induced draft fan and other Ventilation equipment and parts. Also customize fans water tank and cooling tower as requirements. Which are applied to industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
Main products : Centrifugal fan, Axial flow fan, Boiler induced draft blower and Industrial fans and parts, water tank and cooling tower
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–49 set: US $170 / set
- 50+ set: US $160 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steel air intake fan?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this steel air intake fan carry?
It is supplied with CE/ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the steel air intake fan be supplied for my local voltage?
The standard configuration is 220V/380V/415V/440V/660V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
