Steel flat large gasket — voltage –, heat exchanger type Plate Heat Exchanger. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steel Flat Large Gasket
- Voltage: —
- Plates Material: AISI316L/304, SMO254, Hastelloy, Ni, Ti
- Frame Material: Carbon steel
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: Liquid to liquid heat exchanging
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Voltage | — |
| Core Components | Pressure Vessel |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy |
| Place Of Origin | Jiangsu, China |
| Brand Name | Baode |
| Dimension(L*W*H) | — |
| After-Sales Service Provided | Overseas service center available |
| Product Name | accept custom orderl gasket plate |
| Plates Material | AISI316L/304, SMO254, Hastelloy, Ni, Ti |
| Gasket | NBR/EPDM/VITON |
| Brand | customized |
| Application | Liquid to liquid heat exchanging |
| Frame Material | Carbon steel |
| Condition | new |
| Maximum Working Pressure | 15 |
| Selling Units | Single item |
| Single Package Size | 200X150X100 cm |
| Single Gross Weight | 50.5 kg |

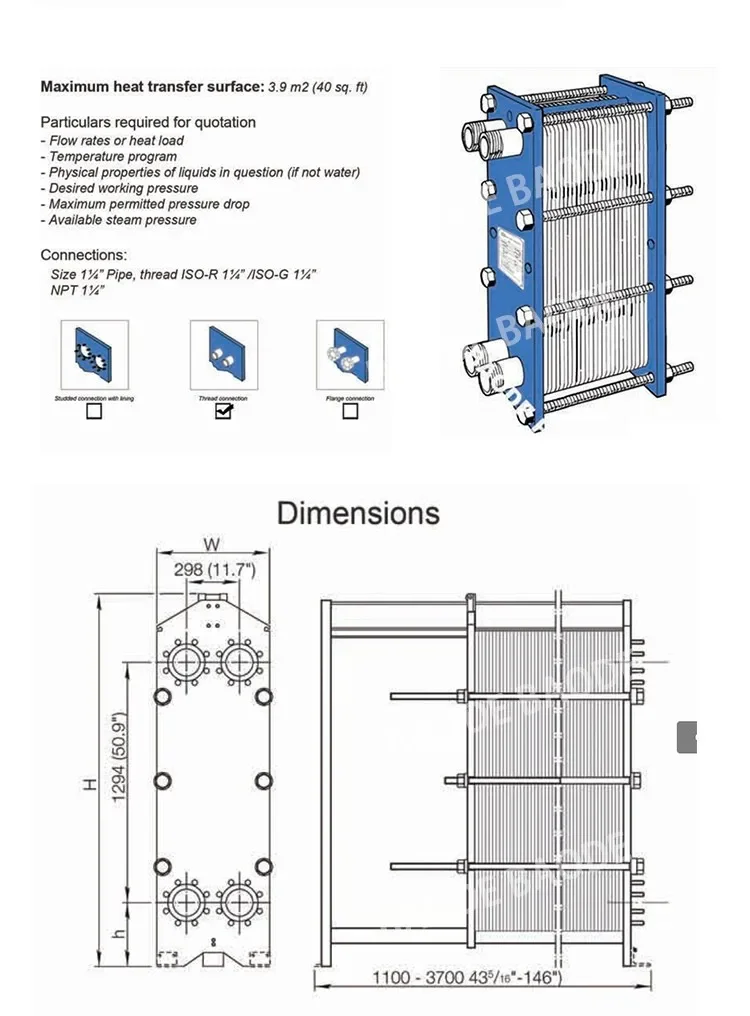

Product Details
solar 10kw steam engine accept custom order gasket plate
| Model | BH30 | BH60B/BH60H | SH60H | LB100B | ||
| Cross Reference ALFA LAVAL | M3 | M6, M6M | TS6M | TLlOB | ||
| Height, H [mm] | 480 | 920 | 940 | 704 | 1885 | |
| Width, W [mm] | 180 | 320 | 330 | 400 | 480 | |
| Minstandardlength, L [mm] | 400 | 500 | 500 | 530 | 850 | |
| Max standard length, L [mm] | 650 | 1500 | 1500 | 1430 | 2350 | |
| Verticalportdisance, VC [mm] | 357 | 640 | 640 | 380 | 1338 | |
| Horizontal portdistance, HC [mm] | 60 | 140 | 140 | 203 | 225 | |
| Max temperature[℃] | 180 | 180 | 180 | 180 | 160 | |
| Max pressure [barg] | 16 | 10 | 16 | 16 | 10 | |
| Flange size Pipe | Pipe 1 1/4" | DN50/2" | DN50/2" | DN65/2" | DN100/4" | |
| Max. Flow rate [kg/s] | 4 | 16 | 20 | 50 | ||
| Model | BH100B/BH100H | BH150B/BH150H | BH200H | |||
| Cross Reference ALFA LAVAL | MlOM, M10B | M15M, M15B | M20M,T20M,T20B | |||
| HeigHt. H [mm] | 1084 | 1084 | 1885 | 1885 | 2150 | |
| Width, W [mm] | 470 | 470 | 610 | 650 | 750 | |
| Min standard length,L [mm] | 700 | 700 | 1150 | 1150 | 1250 | |
| Max standard length,L [mm] | 2300 | 2300 | 2050 | 3250 | 3350 | |
| Venical portdistance,VC[mm] | 719 | 719 | 1294 | 1294 | 1478 | |
| Horizontal port distance, HC [mm] | 225 | 225 | 298 | 298 | 353 | |
| Max temparature [℃] | 180 | 180 | 180 | 180 | 180 | |
| Max pressure [barg] | 10 | 16 | 10 | 16 | 42659 | |
| Flange size | DN100/4" | DN100/4" | DN150/6" | DN150/6" | DN200/8" | |
| Max. flow rate [kg/s] | 50 | 80 | 225 | |||
| Model | SH200B | BH250 | BH300H | |||
| Cross Reference ALFA LAVAL | TS20M | MX25B | M30 | |||
| HeigHt. H [mm] | 1405 | 2595 | 2920 | |||
| Width, W [mm] | 740 | 920 | 1190 | |||
| Min standard length,L [mm] | 900 | 1550 | 1650 | |||
| Max standard length,L [mm] | 2700 | 3350 | 5200 | |||
| Venical portdistance,VC[mm] | 698 | 1939 | 1842 | |||
| Horizontal port distance, HC [mm] | 363 | 439 | 596 | |||
| Max temparature | 180 | 180 | 180 | |||
| Max pressure [barg] | 42659 | 42659 | 42659 | |||
| Flange size | DN200/8" | DN200/DN250/8"/10" | DN300/DN350/12"/14" | |||
| Max. flow rate [kg/s] | 190 | 250 | 250 | 497 | ||
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of plate heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of plate heat exchangers for any task
Our main products are Brazed plate heat exchanger & Gasket plate heat exchanger & Air cross plate heat exchanger (Flat plate heat exchanger and frame and plate heat exchanger, welded plate heat exchanger). Braze plate heat exchanger include Copper brazed plate heat exchanger and Nickel brazed plate heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the plate heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
