Key specification for this copper brazed plate: material Stainless Steel, Copper, type Refrigerant Liquid Receiver. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Copper Brazed Plate
- Material: Stainless Steel, Copper
- Plate Material: Stainless steel AISI316
- Warranty: 3 Years
- Place Of Origin: Jiangsu, China
- Application: Heater Parts
- Main Application: condenser
Technical Specifications
| Application | Heater Parts |
|---|---|
| Type | Refrigerant Liquid Receiver |
| Material | Stainless Steel, Copper |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 2.48 |
| Place Of Origin | Jiangsu, China |
| Brand Name | Baode |
| After-Sales Service Provided | Overseas service center available |

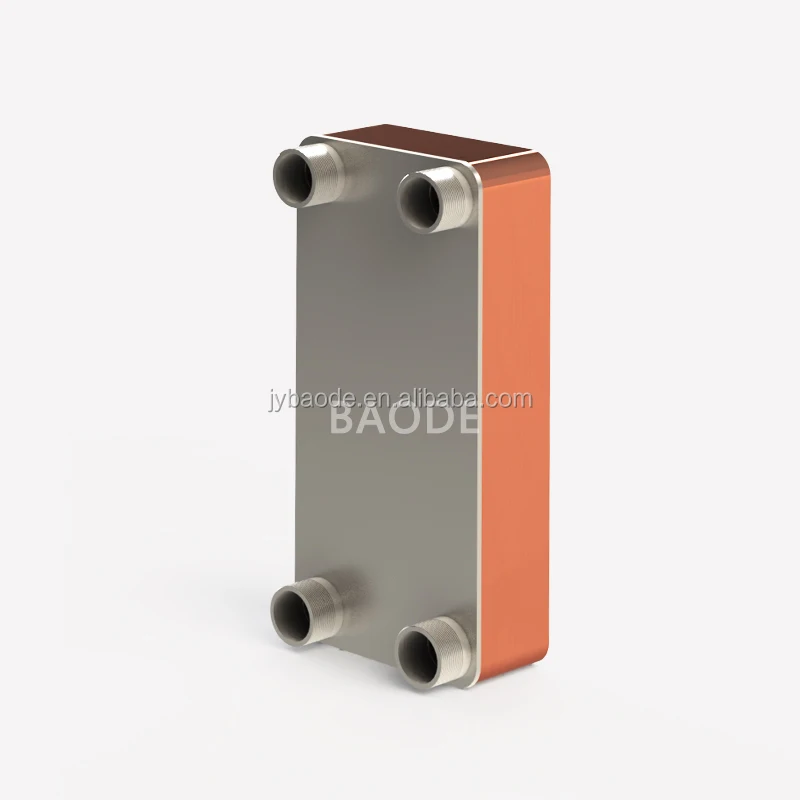

| Product Name | BL14 |

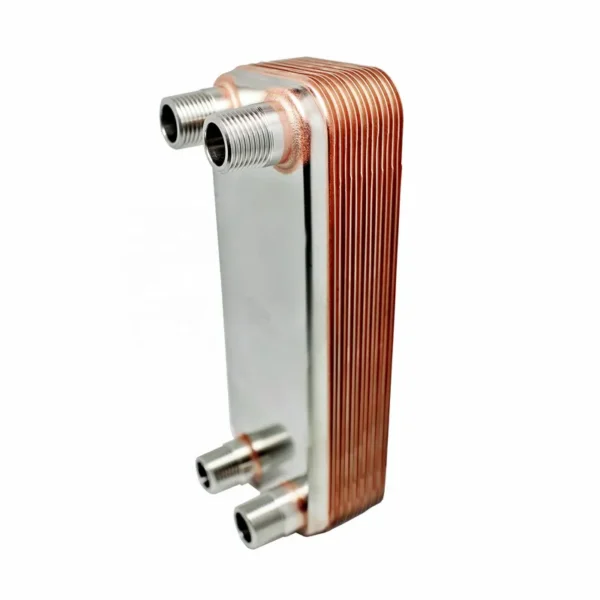

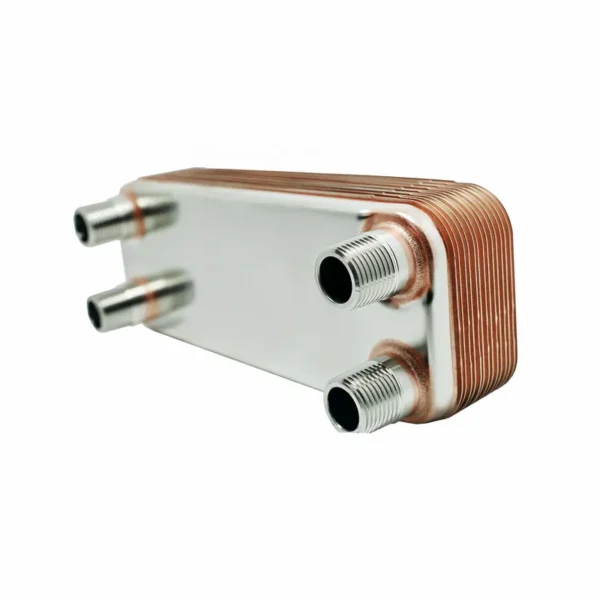

| Heat Exchanger Type | Copper brazed plate heat exchanger |
| Main Application | condenser |
| Plate Material | Stainless steel AISI316 |
| Connections | Stainless steel AISI 316, 304 |
| Design Data | Max 45 bar up to 225C, testing pressure 60 bar |
| Advantage | high efficient |
| Connection Type | customized |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details

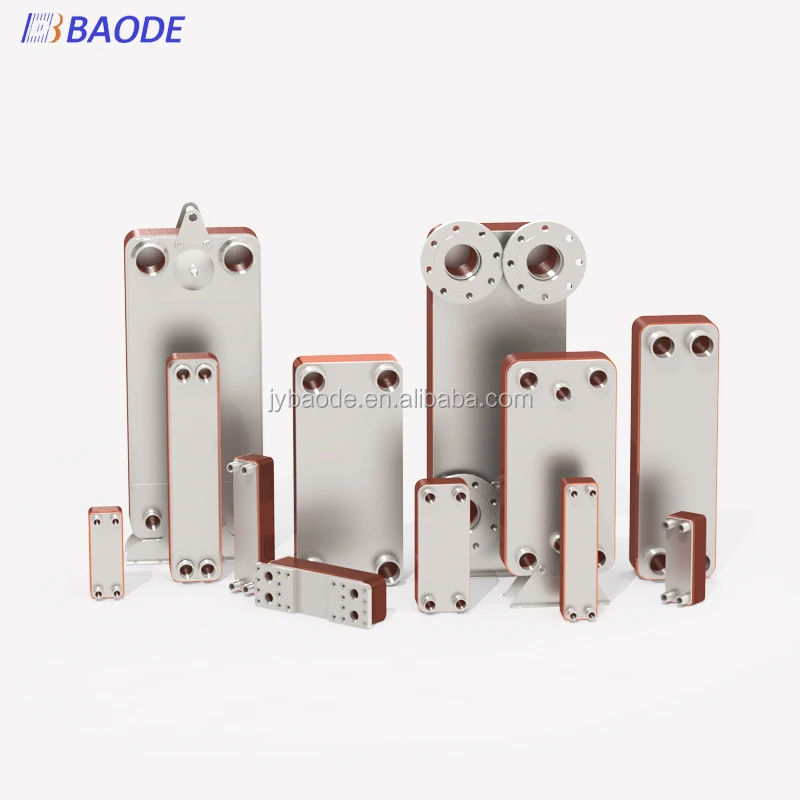

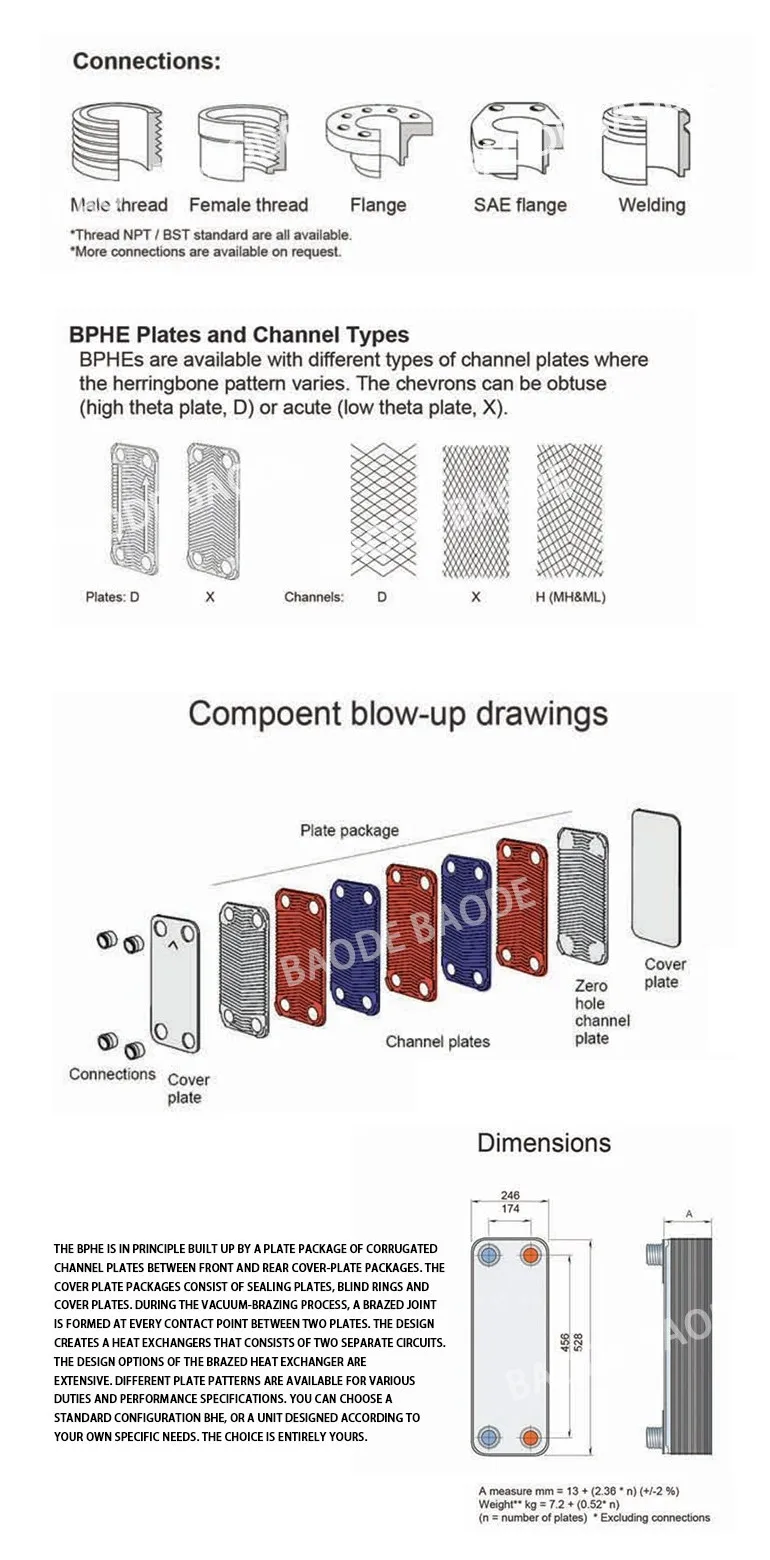

Model | BL14 | BL20 | BL26 | BL26C | BL50 | BL95 |
Width (mm) | 78 | 76 | 111 | 124 | 111 | 191 |
Height (mm) | 206 | 310 | 310 | 304 | 525 | 616 |
Length (m) | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
Horizontal port distance (mm) | 42 | 42 | 50 | 70 | 50 | 92 |
Vertical port distance (mm) | 172 | 282 | 250 | 250 | 466 | 519 |
Max pressure [Mpa] | 3 | 3 | 3/4.5 | 3 | 3 | 21 |
Max flowrate (M3/h) | 8.1 | 12.7 | 39 | 8.1 | 12.7 | 39 |
Weight(kg) | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n | 2.6+0.19n | 2.6+0.19n | 7.8+0.36n |
Model | BL120 | BL190 | BL200 | BL600 | BL100 | BL210 |
Width (mm) | 246 | 307 | 321 | 429 | 248 | 322 |
Height (mm) | 528 | 696 | 738 | 1398 | 495 | 739 |
Length (m) | 13+2.36n | 13+2.75n | 13+2.7n | 10+2.15n | 10+2.15n | 13+2.55n |
Horizontal port distance (mm) | 174 | 179 | 188 | 220 | 157 | 205.2 |
Vertical port distance (mm) | 456 | 567 | 603 | 1190 | 405 | 631 |
Max pressure [Mpa] | 3 | 3 | 21 | 1.5 | 3/4.5 | 3/4.5 |
Max flowrate (M3/h) | 42 | 100 | 100 | 300 | 42 | 100 |
Weight(kg) | 7.2+0.52n | 12.5+0.72n | 13+0.75n | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
Ordering and Pricing
- Minimum order quantity: 5 unit
- Volume pricing:
- 5+ unit: US $35 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this copper brazed plate?
The standard minimum order quantity is 5 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Baode Heat-Exchanger Equipment Co., Ltd., based in China. The company 20 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Baode Heat-Exchanger Equipment Co., Ltd. range on HVACR Nexus.
