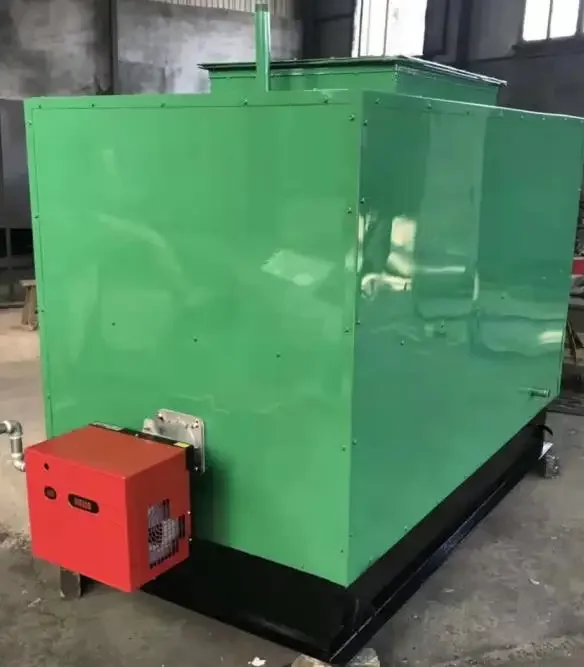

Stove, 380 V, gas

This stove is listed with the manufacturer’s full published specification — voltage 380 V, power source gas/coal/LPG, material IRON. It is produced by Qingzhou Gongle Electric Fan Co., Ltd., a verified supplier of 18 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Stove

• Power Source: gas/coal/LPG
• Voltage: 380 V
• Material: IRON
• Warranty: 2 Years
• Place Of Origin: Shandong, China
• Application: poultry farm/chicken house/greenhouse/industry

Technical Specifications

Product Details

Product Description

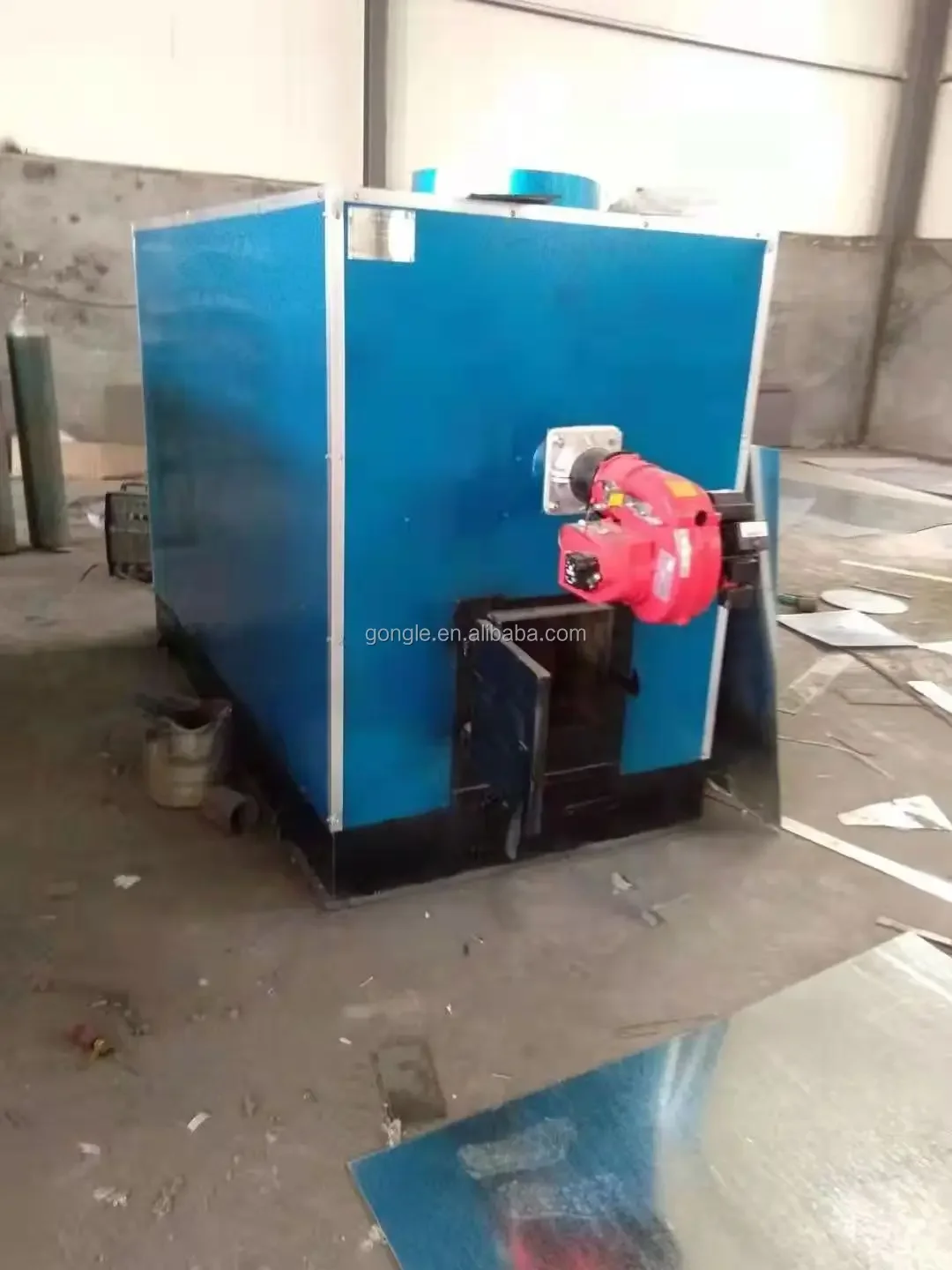

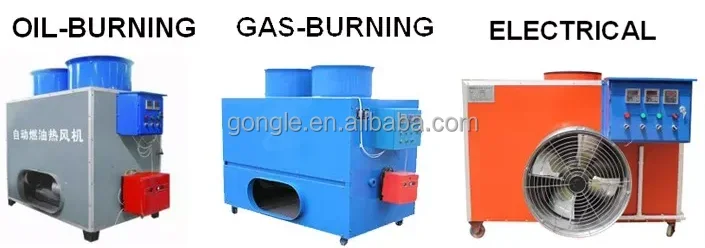

Poultry heating competitive price stove gas burner gas heater for poultry farm

1. Energy saving: The product adopts multi-pass high-density finned tube for heat dissipation. When the outlet temperature is higher than 100 degrees, the exhaust temperature can be controlled below 50 degrees, and the thermal efficiency is as high as 108%;

2. Efficient: The temperature of the wind can reach 120 degrees after turning on for 3 minutes, which can quickly increase the indoor temperature;

3. Low noise: the use of low-speed central air-conditioning centrifugal fan has the characteristics of large air volume, low noise and low energy consumption;

4. Auxiliary humidification: According to production needs, models with auxiliary humidification can be customized;

5. Stable operation and long lifespan: The standard high-efficiency Italian Black and Decker imported burner, the control system, centrifugal blower, various electrical appliances, sensors, etc. are all selected well-known brands; the furnace body's high-quality heat insulation and anti-corrosion treatment technology can be Long-term use at 1500 degrees high temperature;

6. Single reference heating area: 1000-6000m2.

Specification

Model	GL-10	GL-20	GL-30	GL-40	GL-50	GL-60
Rated power (KW/H)	160	205	280	450	600	800
Weight(Kg)	1500	1600	1700	2000	2500	2700
Air volume (m3/h)	8000-11000	11000-14000	14000-17000	18000-26000	24000-34000	40000-50000
Outlet temperature (℃)	80-150	80-150	80-150	80-150	80-150	80-150
Outlet size (mm)	350	350	500	550	620	750
Natural gas (Nm³/h)	8-15	10-21	12-26	20-42	25-60	30-80
Liquefied gas (Kg/h)	4-8	8-16	12-24	16-32	20-40	24-48
Light oil (Kg/h)	4-8	4-8	12-24	16-32	20-40	24-48
Motor power (Kw/h)	5	5.8	7.4	9.4	20	28
Voltage (v)	AC220/380V 50Hz
Exhaust temperature(℃)	20-50	20-50	20-50	20-50	20-50	20-50
Thermal efficiency (%)	109.5	109.5	108	108	108	108
Size (L*W*H) (mm)	2000*1120* 1650	2200*1250* 1750	2350*1250* 1900	2550*1270* 1950	3050*1570* 1950	3550*1870* 2450

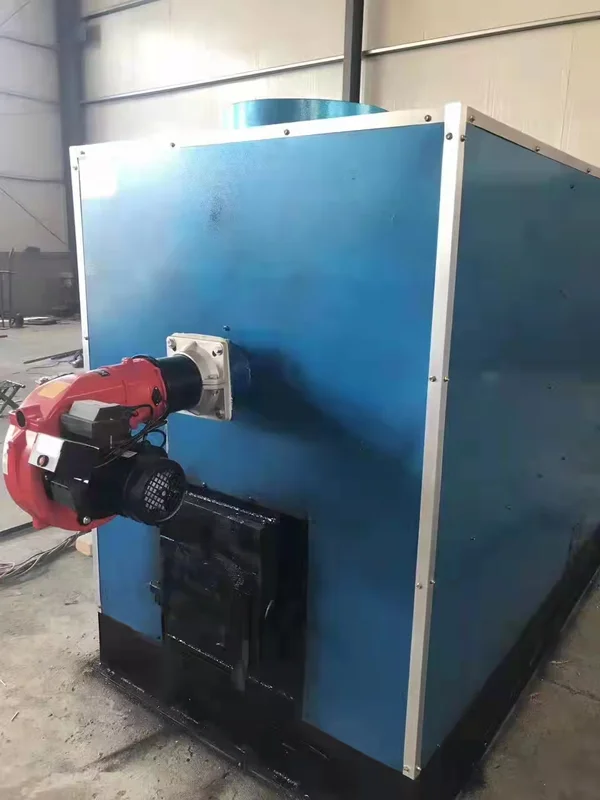

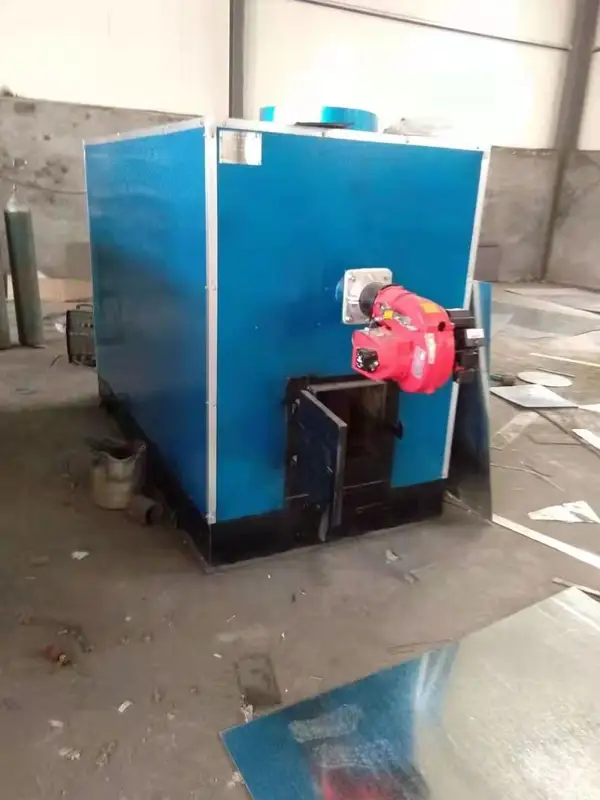

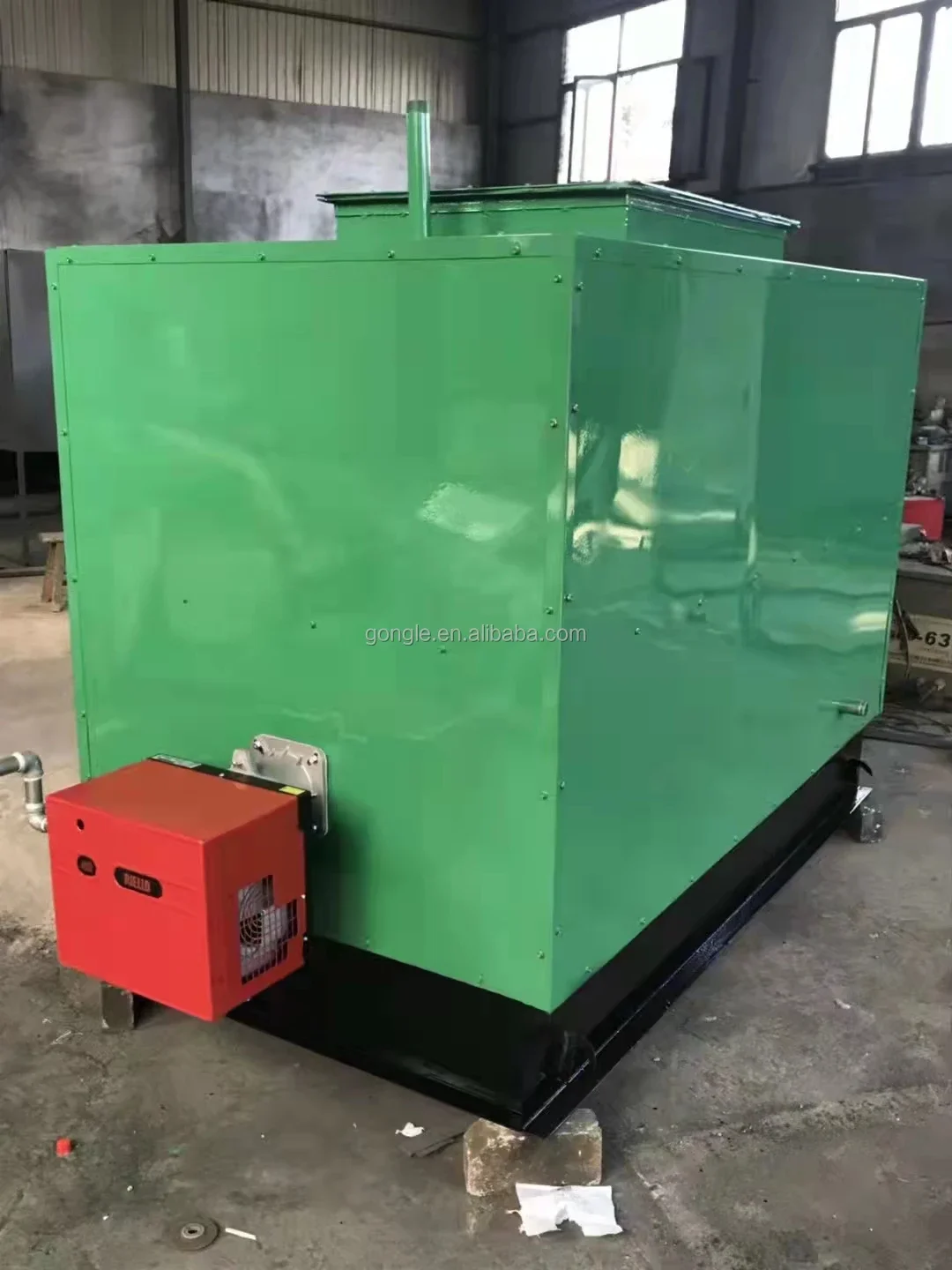

1.Burner

We adopt Baltur and Riello burner imported from Italy

2.Centrifugal Blower

Large air volume,low noise and low energy consumption

3.High-density Finned Tube

Thermal efficiency more than 108% ,energy saving 40%-50%

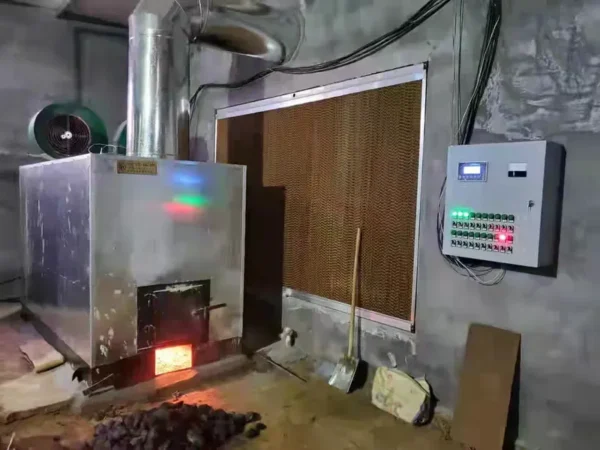

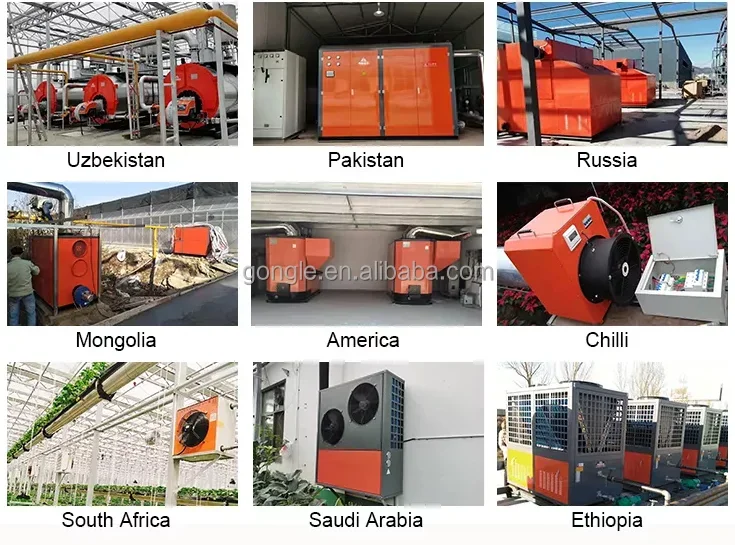

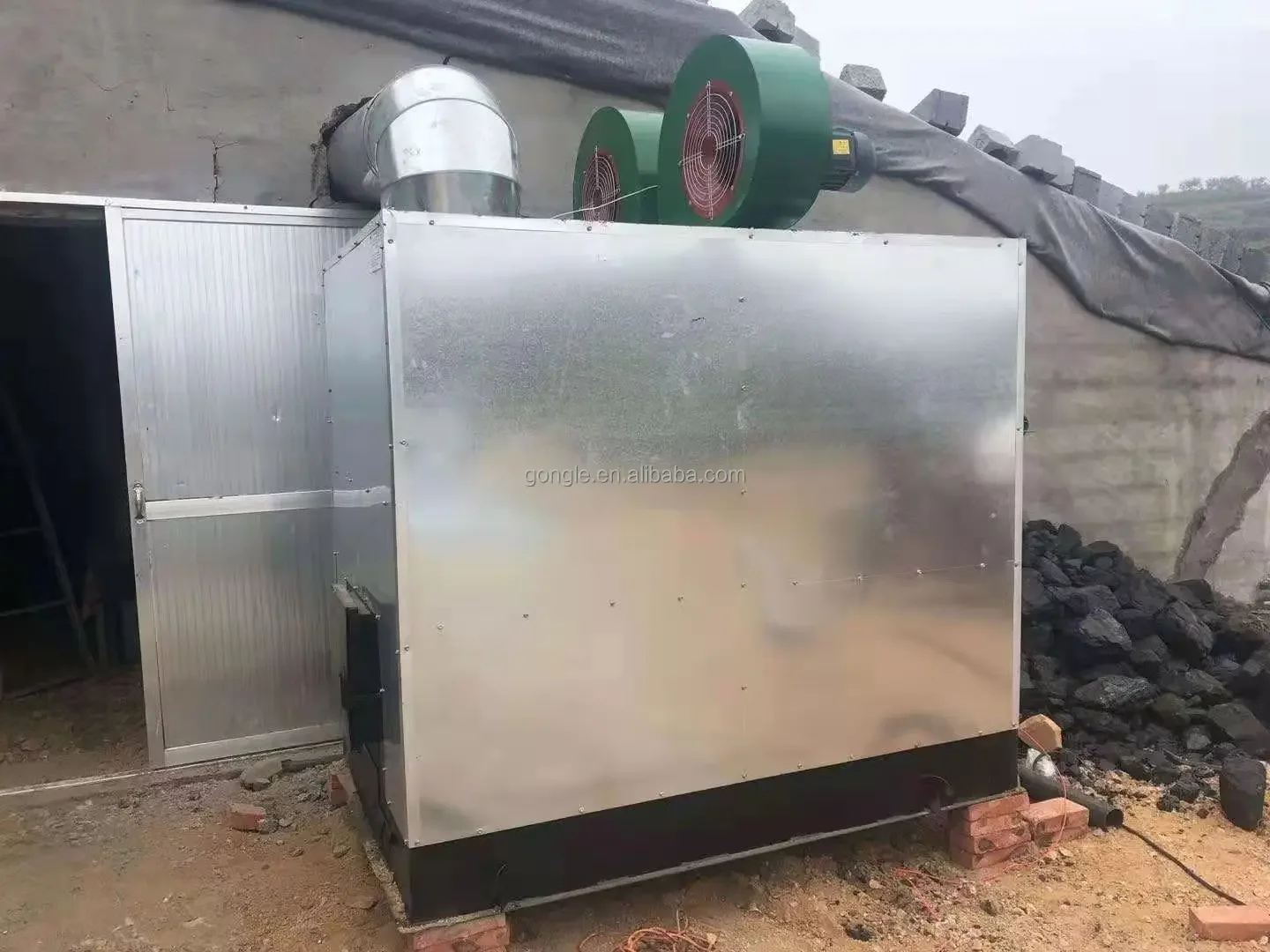

Application

Packing & Delivery

1.Package by LCL or FCL

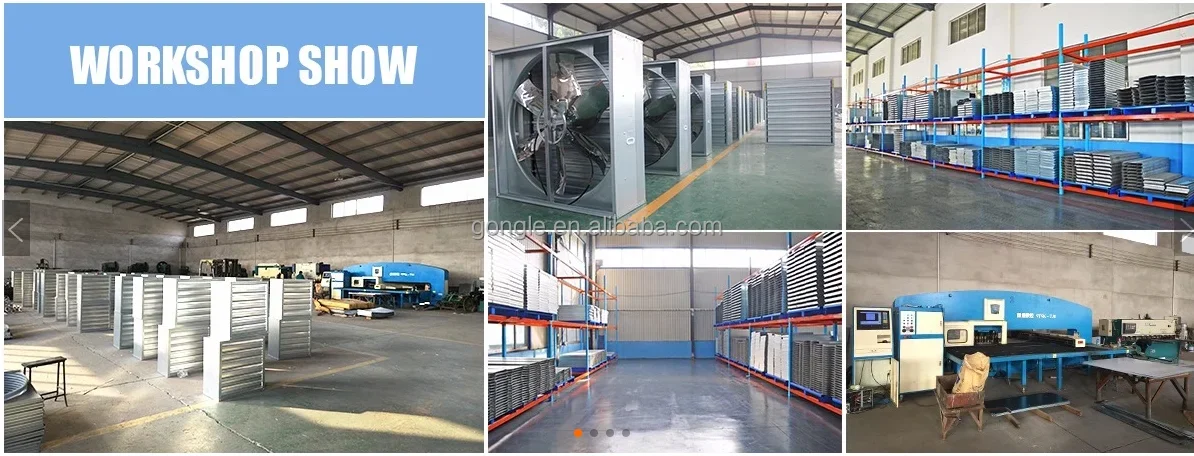

Company Profile

★ Qingzhou Gongle Electric Fan Co., Ltd. founded in 1978, is a private enterprise from primary Qingzhou City Electric Fan Company in No.1388 Industrial Road, Qingzhou City, Shandong Province, China.
★Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,industrial air coolers, industrial ceiling fans and so on.
★They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.

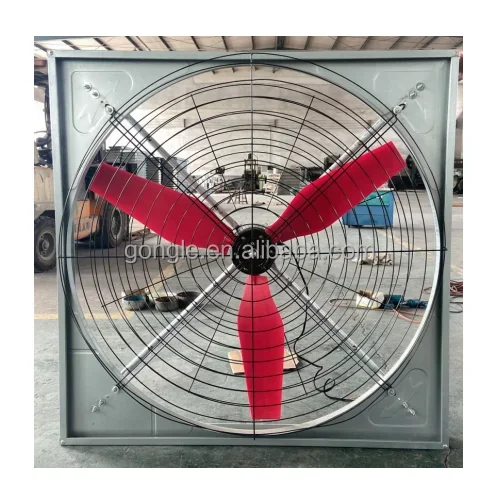

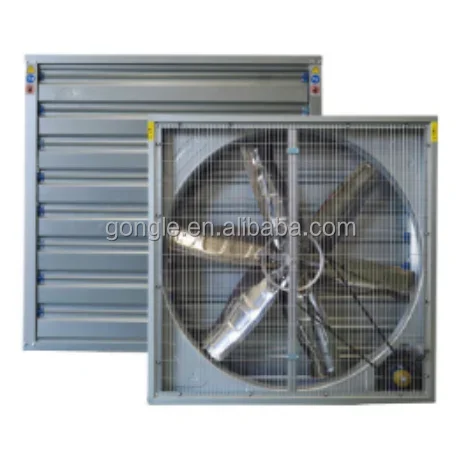

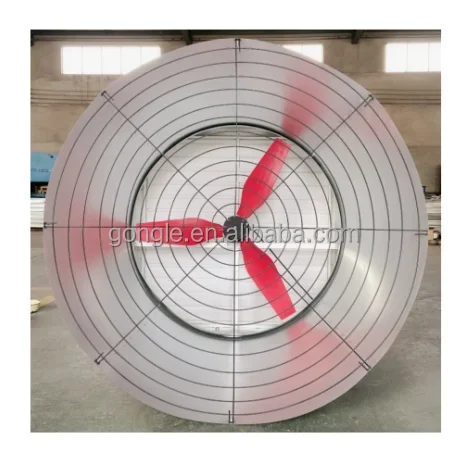

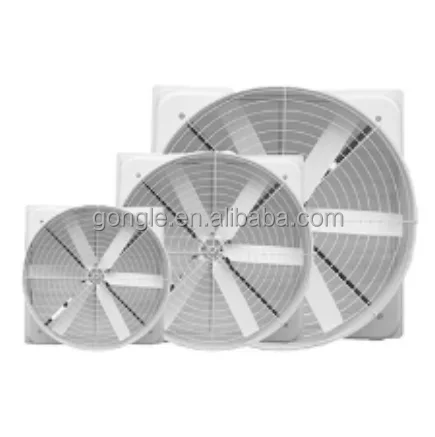

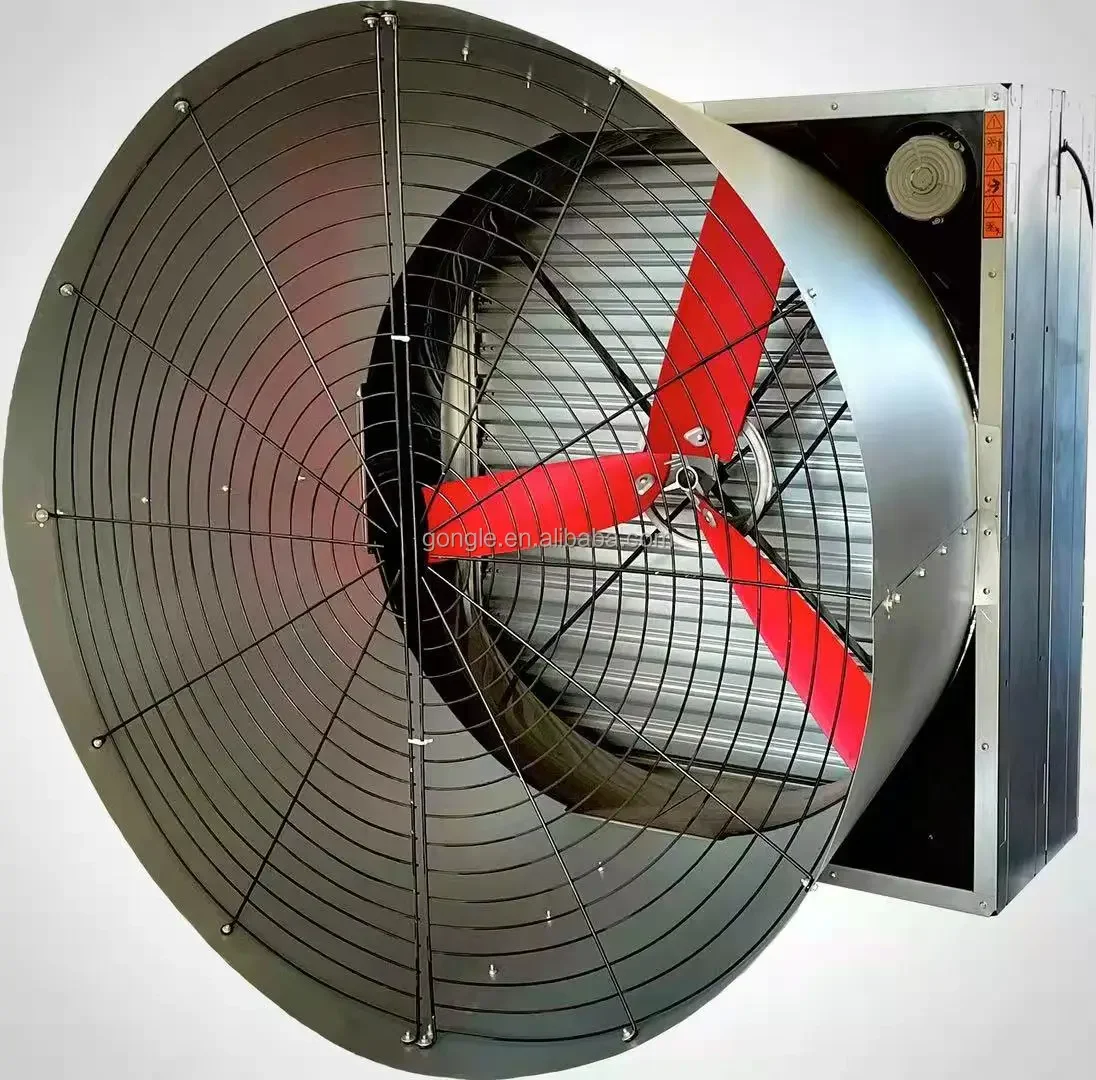

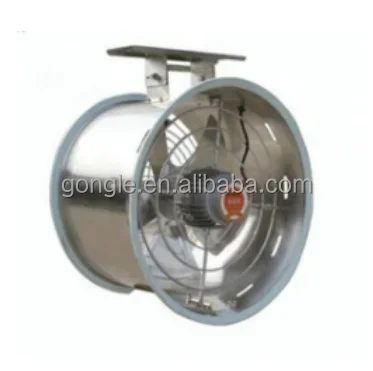

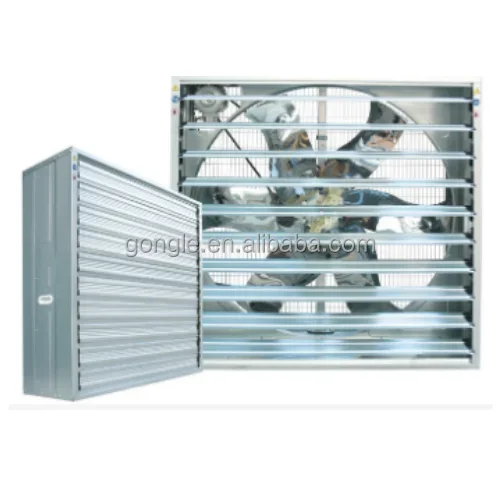

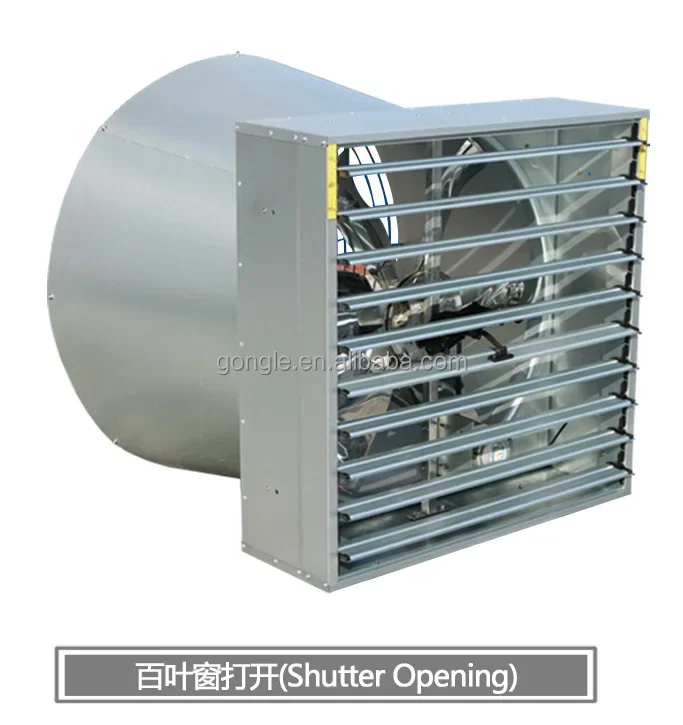

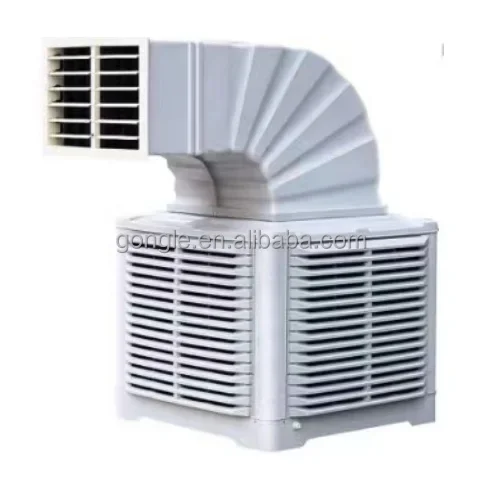

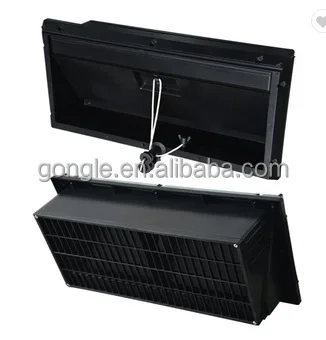

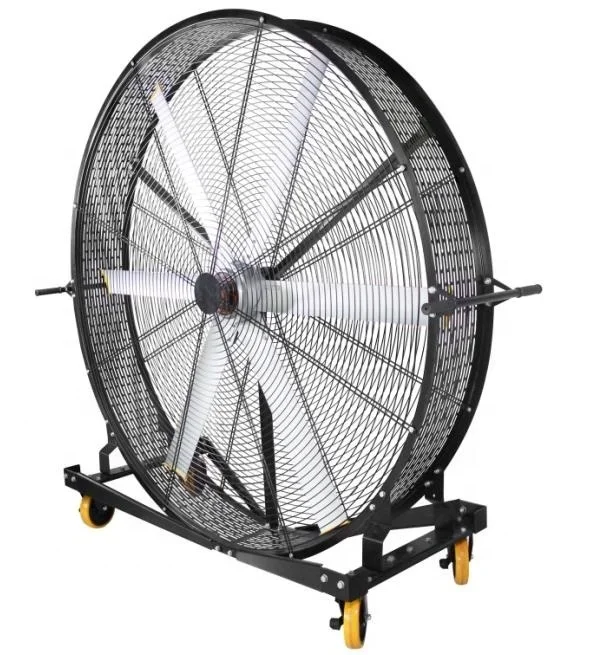

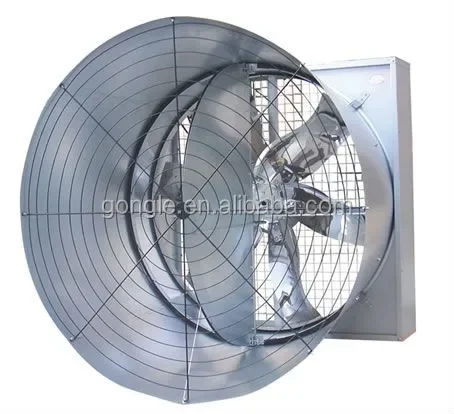

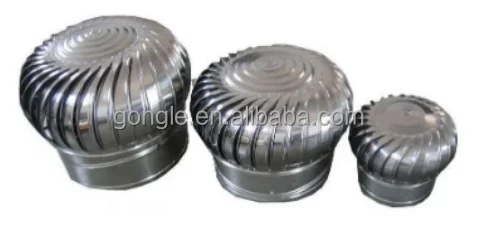

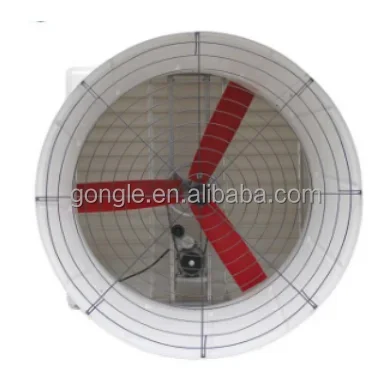

Relevant products

FAQ

Why you choose us?
1.Good quality, Competitive price, Fast delivery.
2. We have a team who have average 44 years experience in designing and producing fans, we can OEM different kinds of products
according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4.All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5.If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you
want. We will give you a satisfying reply.

Contact us

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $1000 / set
  • 5+ set: US $990 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this stove?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the stove be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingzhou Gongle Electric Fan Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Gongle Electric Fan Co., Ltd. range on HVACR Nexus.
