This superior gas pressure controller is published with the manufacturer’s full specification — material Plastic, Brass, model number 111. Made by Foshan Shunde Jiumei Electrical Co., Ltd. (14 years on the platform, typical reply ≤8h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Superior Gas Pressure Controller
- Model Number: 111
- Max. Voltage: 250VAC
- Material: Plastic, Brass
- Warranty: one year
- Place Of Origin: Guangdong, China
- Application: Air Compressor, Pumps, Water Dispenser, HVAC, Air Conditioning, Air Pressure, Pressure Control
Technical Specifications
| Max. Working Pressure | 800PSI |
|---|---|
| Media | Oil, Water, Air, Refrigerant, Motor Oils, Non-Hazardous Gas |
| Max. Voltage | 250VAC |
| Material | Plastic, Brass |
| IP Level | IP54 |
| Accuracy Class | ±2.0% FS |
| Contact Arrangement | SPST |
| Connection Thread | G1/8 |
| Max. Current | 3 A |
| Application | Air Compressor, Pumps, Water Dispenser, HVAC, Air Conditioning, Air Pressure, Pressure Control |
| Whether The Smart | No |
| Place Of Origin | Guangdong, China |
| Model Number | 111 |
| Brand Name | NineGood |
| Installation | easy |
| Quality | Superior |
| Package | one year |
| Warranty | one year |
| Pressure Value | preset |
| Protection Class | IP54 or IP00 |
| Fitting | male thread |
| Switch Type | SPST NO or NC |
| Work Life | 100,000cycles |
| Selling Units | Single item |
| Single Package Size | 3X3X9 cm |
| Single Gross Weight | 0.150 kg |
Product Details

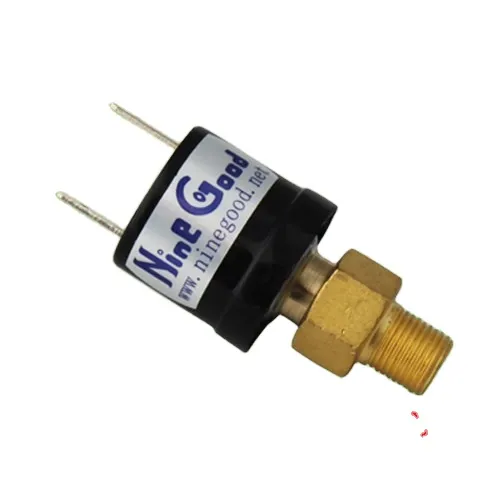

High quality gas pressure controller
Advantages:
1.professional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.

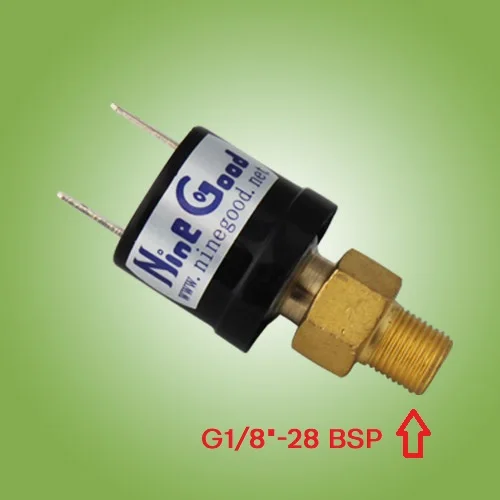

2, Pressure fitting: G1/8"-28BSP Thread (Male ).
3, Electrical connection: 6.35X0.8 Male terminals (Brass & Silver plating).
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: Air,Water, Oil ,Vacuum,etc.
6, Work Life: ≥100,000 Cycle.

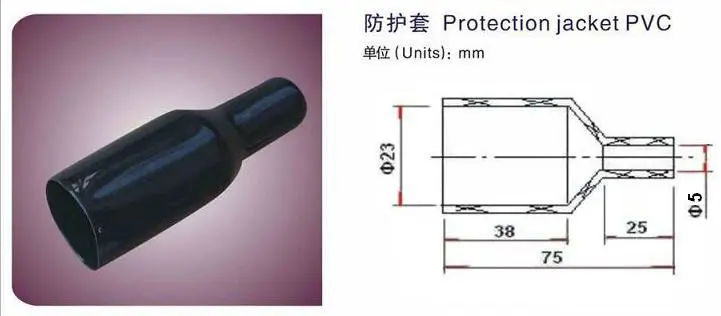

7, Protection class : IP00 (No PVC jacket); IP54 ( Equipped with PVC jacket).
8, Ambient temperature: -20°C~55°C, Medium temperature: 0°C~80°C.

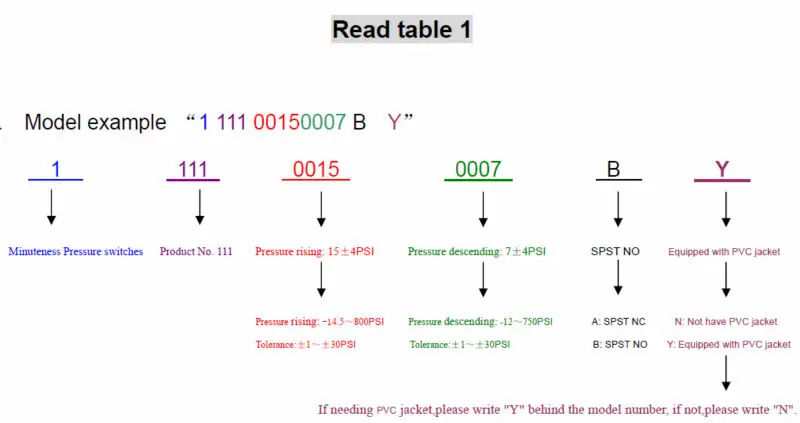

9, Model: (Read table 1).

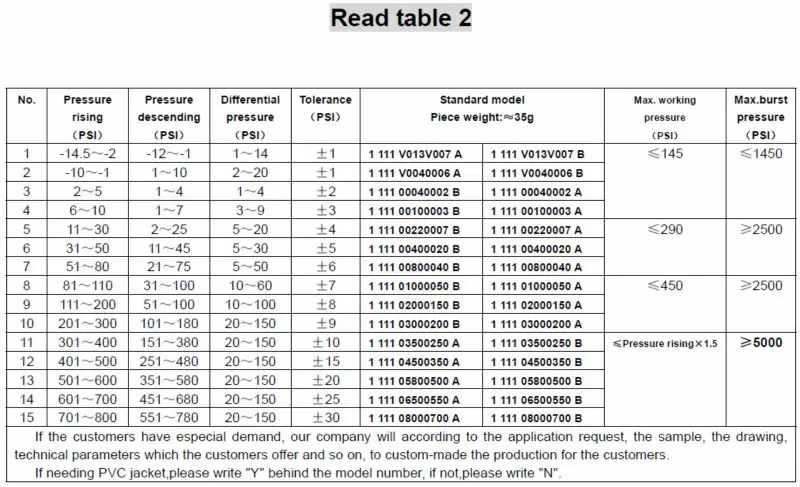

10,Working pressure: Vacuum -14.5PSI to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.

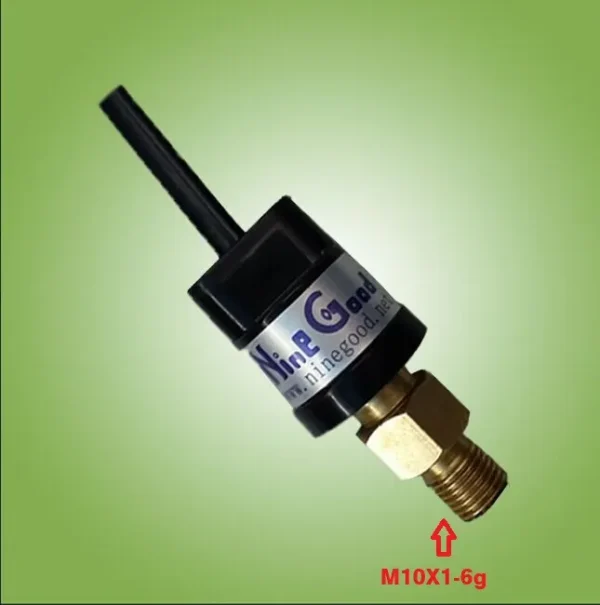

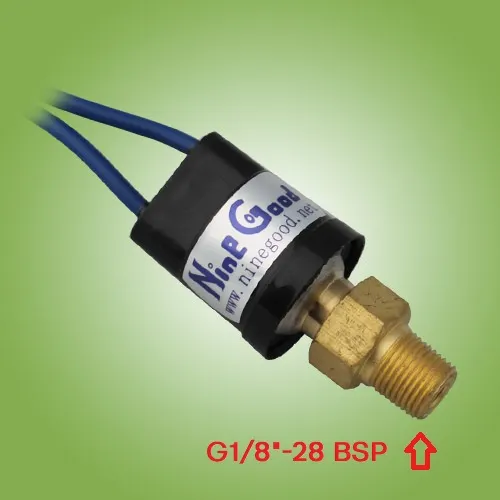

Production Photo:

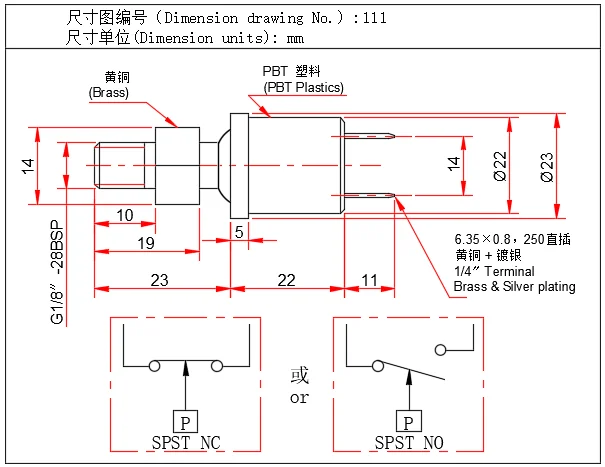

Dimension Drawing:
Ordering and Pricing
- Minimum order quantity: 100 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this superior gas pressure controller?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a one year warranty. Spare parts and technical support remain available after the warranty period.
Can the superior gas pressure controller be supplied for my local voltage?
The standard configuration is 250VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shunde Jiumei Electrical Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shunde Jiumei Electrical Co., Ltd. range on HVACR Nexus.
