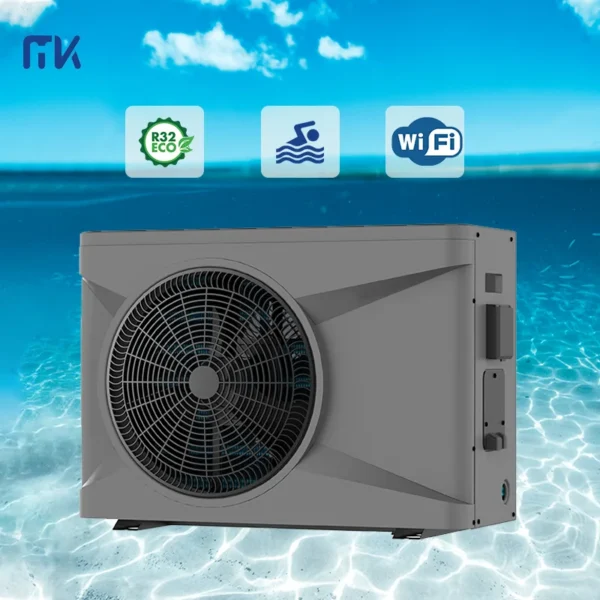

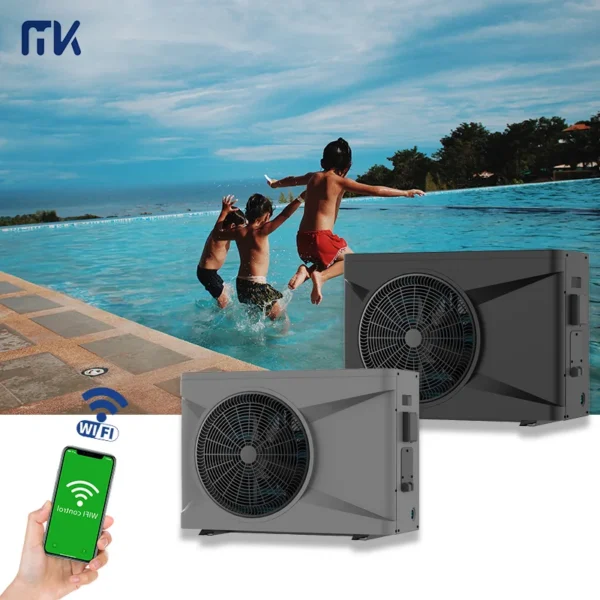

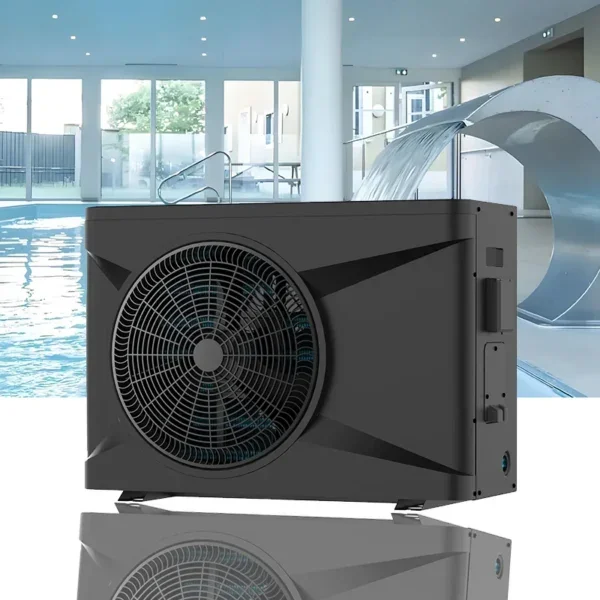

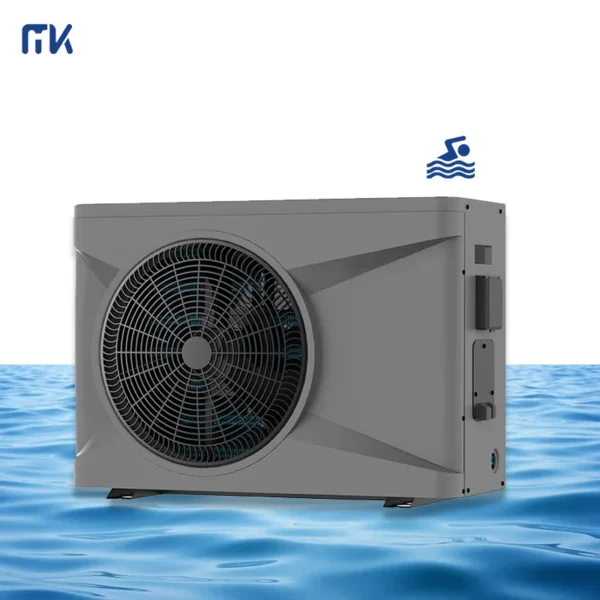

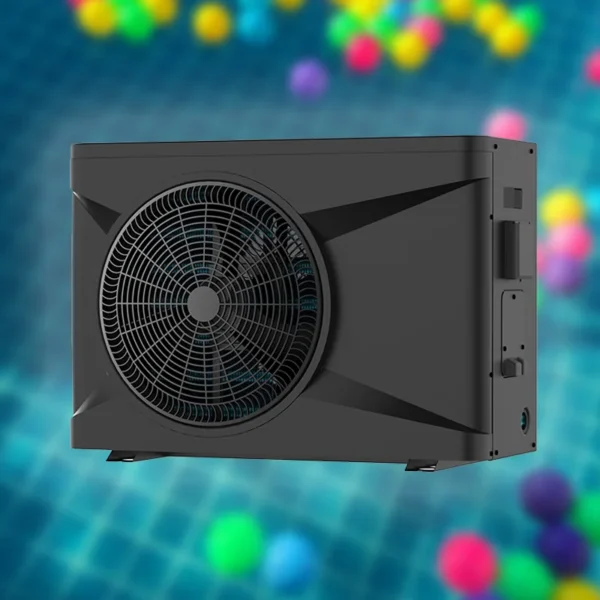

Swimming Pool Heat Pump, 13kw, 17kw, 21kw, 30kw

Key specification for this swimming pool heat pump: 220V/50Hz/1Ph,380~415V/3/50Hz, heating capacity 7-35kw. Everything below is reproduced from the factory data sheet. Made by Guangzhou Mikee New Energy Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Swimming Pool Heat Pump

• Model Number: BYC-007TD1~035TD3
• Power Source: Electric, Solar
• Power Supply: 220V/50Hz/1Ph,380~415V/3/50Hz
• Heating Capacity: 7-35kw
• Housing Material: ABS
• Refrigerant: R32

Technical Specifications

Product Details

Product Paramenters

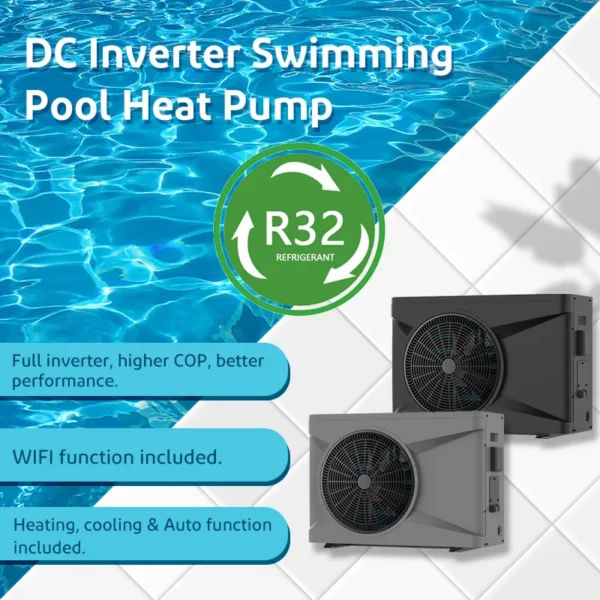

R32 Full DC Inverter Heating & Cooling Swimming Pool Heat Pump

●Full Inverter with R32 refrigerant ●High-end Mitsubishi compressor ●DC Inverter fan motor ●High efficiency COP up to 16

●Quiet running experience

●Built in WiFi function

●Hot gas defrosting

●Precise gas control with EEV

Refrigerant	R32
Ambient temperature	-15~43℃
Voltage Function	Water Heating & Cooling
OEM&ODM	● Style design  ● LOGO ● Packing boxes ● Casing material: such as sheet metal material (flat/wrinkle/matte enrolled/flosted/flash)

Products Description

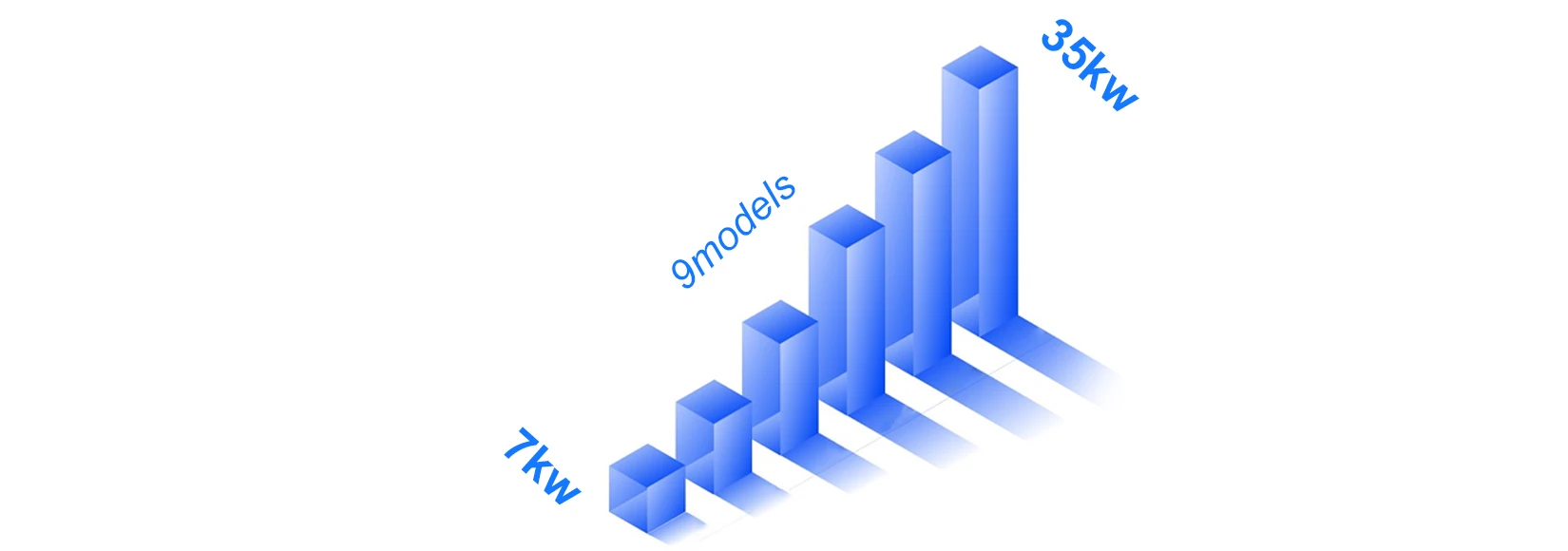

A Wide Range Of Models To Choose From

There are numerous models of swimming pool heat pumps from Mikee, ranging from 7KW to 35KW. The ideal one for your pool is yours to choose.

Heating, Cooling & Automatic Modes

Encompasses both automatic and heating/cooling modes, allowing for a broad range of temperatures for the target water temperature and the operating environment.

GWP For R32 Is 60% Lower Than for R410a

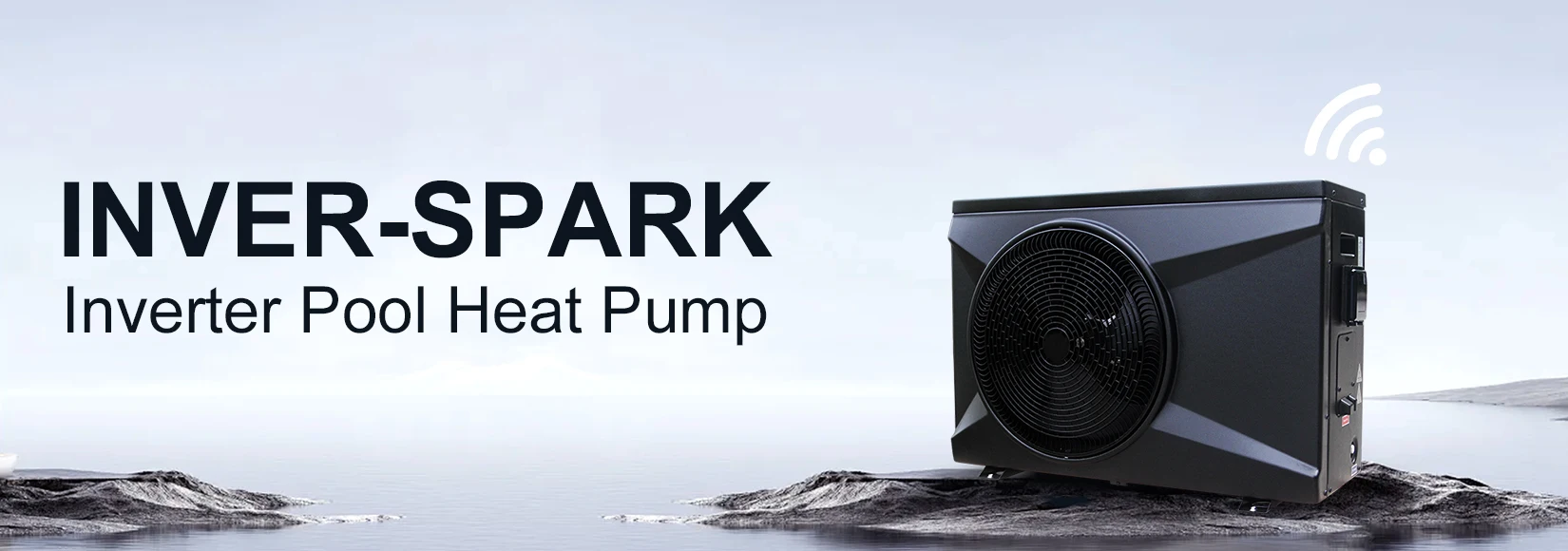

Mikee takes pride in the introduction of Inver SPARK Series Inverter Pool Heat Pump, using R32 a revolutionary refrigerant fluid.
① With R32 refrigerate remarkable attributes, R32 sets itself apart from R410a as it effectively reduces greenhouse gas emissions by an impressive 60%.
② Not only that, but it also enables a 10% decrease in gas quantity per kilowatt, making it an energy-efficient choice.
③ R32 refrigerate recyclability and user-friendly nature further add to Inver SPARK Series Inverter Pool Heat Pump‘s appeal.
④ One of the key advantages of R32 is its absolute zero impact on the ozone layer, highlighting its commitment to protecting the
environment.
By opting for R32 Inver SPARK Series Inverter Pool Heat Pump, you not only contribute to sustainability but also play a role in creating a greener future. Join Mikee in their mission to promote a more sustainable world and embrace R32 as the refrigerant fluid of choice.

Silence Mode

The R32 Inver SPARK Series Inverter Pool Heat Pump has a sound pressure of 39dB(A) at a distance of one meter.
When the temperature remains constant,the compressor and fan in an inverter operate at extremely low speeds,reducing sound levels to only air movement (about 39 dB(A)).

Everything On One App

The operating modes for the Eco Inverter and Power Inverter are available on the new control panel, which has a 20-meter wired extension. Thanks to the built-in WiFi module, the swimming pool heat pump can be operated remotely via a smart phone.

Model No.	BYC-007TD1	BYC-010TD1	BYC-013TD1	BYC-017TD1	BYC-021TD1
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
Heating Capacity (kW)	7.6~1.7	9.5~2.3	13~3.0	17~3.8	21~4.8
Power Input (kW)	1.12~0.11	1.40~0.15	1.91~0.19	2.5~0.24	3.09~0.30
COP	15.8~6.8	15.8~6.8	16~6.8	15.8~6.8	15.8~6.8
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
Heating Capacity (kW)	6.1~1.4	7.6~1.9	9.8~2.3	13.5~3	16.5~3.8
Power Input (kW)	1.24~0.18	1.55~0.25	1.96~0.30	2.76~0.39	3.37~0.5
COP	7.6~4.9	7.6~4.9	7.6~5	7.6~4.9	7.6~4.9
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling Capacity (kW)	4.2~1.0	5.3~1.3	7.2~1.7	9.4~2.1	11.6~2.7
Power Input (kW)	1.11~0.15	1.4~0.19	1.89~0.25	2.47~0.31	3.05~0.4
EER	6.6~3.8	6.7~3.8	6.7~3.8	6.7~3.8	6.7~3.8
* General data
Max Power Input (kW)	220~240V/1/50Hz
Max Power Input (kW)	1.55	1.78	2.2	2.6	3.2
Max Current (A)	7.3	8.3	10.2	12	14.7
Water Flow Volume (m3/h)	2.5	3.5	4.5	5.5	6.5
Refrigerant	R32
Heat Exchanger	Titanium
Air Flow Direction	Horizontal
Automatic defrosting	by 4 way valve
Working temp. range (℃)	-15~43
Casing Material	ABS
Water Proof Level	IPX4
Noise level 1m dB(A)	39~49	40~52	42~53	43~55	45~56
Noise level 10m dB(A)	20~29	20~32	22~33	23~35	25~36
Net Weight (kg)	42	43	53	54	58
Gross Weight (kg)	53	54	64	65	69
Net Dimensions (mm)	864*349*592			925*364*642
Package Dimensions (mm)	930*400*640			990*435*760

Model No.	BYC-030TD1	BYC-035TD1	BYC-030TD3	BYC-035TD3
* Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
Heating Capacity (kW)	28~6.8	35~8.8	28~6.8	35~8.8
Power Input (kW)	4.12~0.43	5.15~0.56	3.97~0.43	5.15~0.56
COP	15.8~6.8	15.8~6.8	15.8~6.8	15.8~6.8
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
Heating Capacity (kW)	23~5.5	25.5~6.4	23~5.5	25.5~6.4
Power Input (kW)	4.7~0.72	5.2~0.84	4.7~0.72	5.2~0.84
COP	7.6~4.9	7.6~4.9	7.6~4.9	7.6~4.9
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling Capacity (kW)	14.9~3.8	19.3~4.9	14.9~3.8	19.3~4.9
Power Input (kW)	3.92~0.57	5.08~0.73	3.92~0.57	5.08~0.73
EER	6.7~3.8	6.7~3.8	6.7~3.8	6.7~3.8
* General data
Power supply	220~240V/1/50Hz			380~415V/3/50Hz
Max Power Input (kW)	4.45	4.76	6.43	6.93
Max Current (A)	20.4	30	7.9	11.3
Water Flow Volume (m3/h)	9	12	9	12
Refrigerant	R32
Heat Exchanger	Titanium
Air Flow Direction	Horizontal
Automatic defrosting	by 4 way valve
Working temp. range (℃)	-15~43
Casing Material	ABS
Water Proof Level	IPX4
Noise level 1m dB(A)	47~58	49~59	47~58	49~59
Noise level 10m dB(A)	27~38	29~39	27~38	29~39
Net Weight (kg)	88	98	88	98
Gross Weight (kg)	99	110	99	110
Net Dimensions (mm)	1084*399*737
Package Dimensions (mm)	1146*460*862

Company Profile

Guangzhou Mikee New Energy Co., Ltd.

Guangzhou Mikee New Energy Co., Ltd. is a subsidiary of SolarEast Group (SH: 603366), a listed technology enterprise. Our factory is located in Shunde, Guangdong Province, covering an area of 69000 square meters, with a total investment of 75 million dollars. It is one of the best scale air energy production bases in Asia, and undertakes ODM and OEM of air energy and energy storage products. We have a number of pre automated assembly lines for commercial and civil products, with an annual production capacity of more than 100W sets and an investment of 150W dollars to build the industry's top heat pump laboratory. We have core data in the fields of hot water dedicated compressors, aerospace level leakproof enamel liners, 3-minute intelligent defrosting technology, super class energy technology, microchannel fast heating technology, etc.

Our Advantages/Workshop

Commercial machine production line

▶▶ The commercial workshop has 3 production lines, 15 automated commodity inspection stations, which can be packaged and wound online. The maximum test capacity is 200P units, and 300 standard units can be produced in a single shift. ▶▶ The household workshop has two production lines, which can produce fluorine machines and water machines below 3P, 10 automatic vacuum pumping stations and 10 commodity inspection stations respectively. Robots are used for offline palletizing, and 700 standard units can be produced in a single shift.

The sheet metal workshop has 3 laser cutting machines, 3 CNC punching machines, 6 CNC bending machines, 2 laser welding machines, and several equipment such as blanking and leveling, angle forming, spinning and pulling, plate shearing, deep throat punching, riveting, welding and grinding, with strong processing capacity.

Automatic spraying line

The total length of the line is more than 520 meters, and the maximum workpiece can be sprayed 3 * 1.8 meters. The materials include galvanized plate, cold plate, brushed stainless steel plate, aluminum plate. The pre-treatment process includes degreasing and vitrification. QC inspection capabilities include: color detection, film thickness detection, hardness detection, adhesion detection, solvent resistance detection, ultraviolet aging test, impact resistance detection. The workpiece can be picked up and sent.

R&D and testing capability

○ More than 10 million investment

○ Has ultra-low 60p temperature laboratory, enthalpy difference laboratory, data monitoring center, long-term operation laboratory

○ Ke – 30 ℃ environmental conditions

Certifications

Exhibition

FAQ

A) Are you a manufacturer? Yes, we are a company and factory integrating R&D, production, and sales. Besides, our products have been exported to more than 100 countries and regions, such as the United States, Russia, the United Kingdom, and Australia. B)Why should you select our heat pumps over those of other manufacturers? We have more than 19 years of experience in the heat pump field. Besides, we have a professional technical team, the industry's top heat pump laboratory, and automatic production lines. We can meet your diverse order requirements. C) Do you offer OEM/ODM customised services? Yes. We are able to produce European-standard heat pumps under your brand according to your special needs. D) I need to buy in bulk. Can you provide a sample service? Yes, we are able to provide sample services. We have professional engineers who can help you solve after-sales installation problems. E) How can we guarantee product quality? 1) There will be multiple tests during the production process. 2) Products will be strictly inspected before shipment.

Ordering and Pricing

• Minimum order quantity: 5 piece
• Volume pricing:
  • 5–19 piece: US $1000 / piece
  • 20–49 piece: US $900 / piece
  • 50–998 piece: US $700 / piece
  • 999+ piece: US $369 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this swimming pool heat pump?

The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the swimming pool heat pump be supplied for my local voltage?

The standard configuration is 220V/50Hz/1Ph,380~415V/3/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
