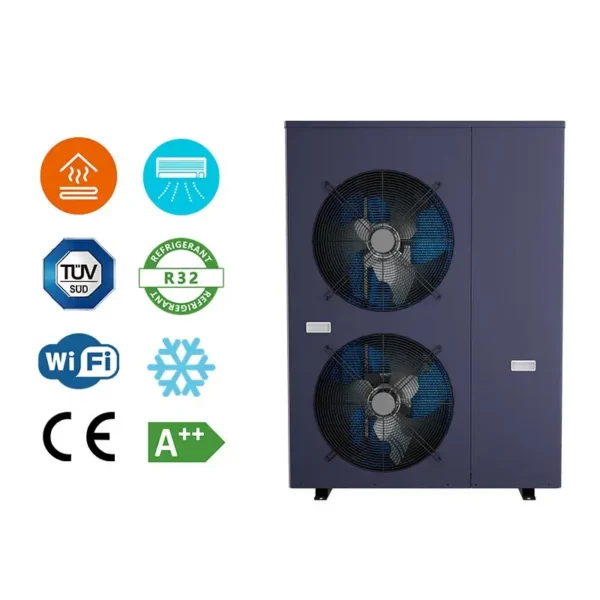

Inverter heat pump — 220V/1PH/50HZ,380~415V/3PH/50HZ, power source Electric. The complete factory specification follows. Made by Guangzhou Mikee New Energy Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Inverter Heat Pump
- Model Number: BLN-026TA3
- Power Source: Electric
- Power Supply: 220V/1PH/50HZ,380~415V/3PH/50HZ
- Housing Material: Stainless Steel
- Refrigerant: R32
- Warranty: 2 Years
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Application | Hotel, Commercial, Household |
| Storage / Tankless | Storage |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Private Mold | Yes |
| Place Of Origin | Guangdong, China |
| Model Number | BLN-026TA3 |
| Refrigerant | R32 |

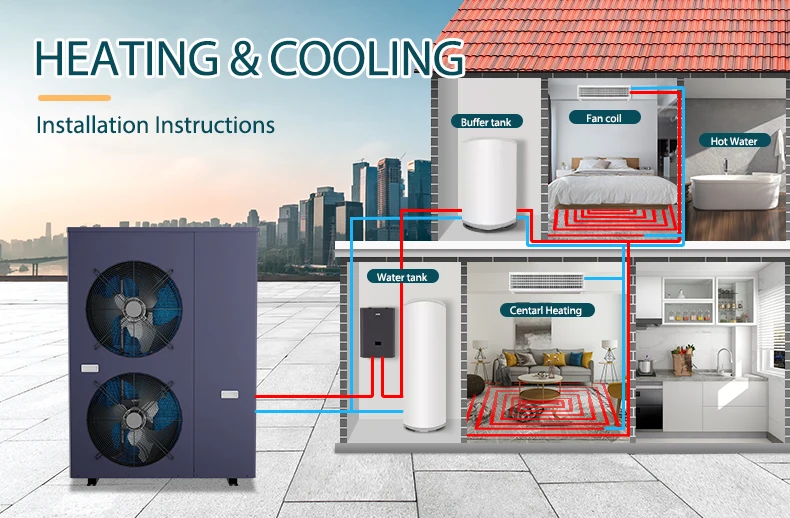

| Function | Heating&Cooling&DHW |
| Compressor | DC Inverter Compressor |
| Power Supply | 220V/1PH/50HZ,380~415V/3PH/50HZ |
| Max Hot Water Temperature | 43℃ |
| Keyword | Monoblock Heat Pump |
| Controller | Wificontroller(optional) |
| Port Of Dispatch | CNSUD |
| Selling Units | Single item |
| Single Package Size | 112.7X42.7X156 cm |
| Single Gross Weight | 202.0 kg |
| Supply Ability | 1000 pieces per Month |
Product Details
Products Description

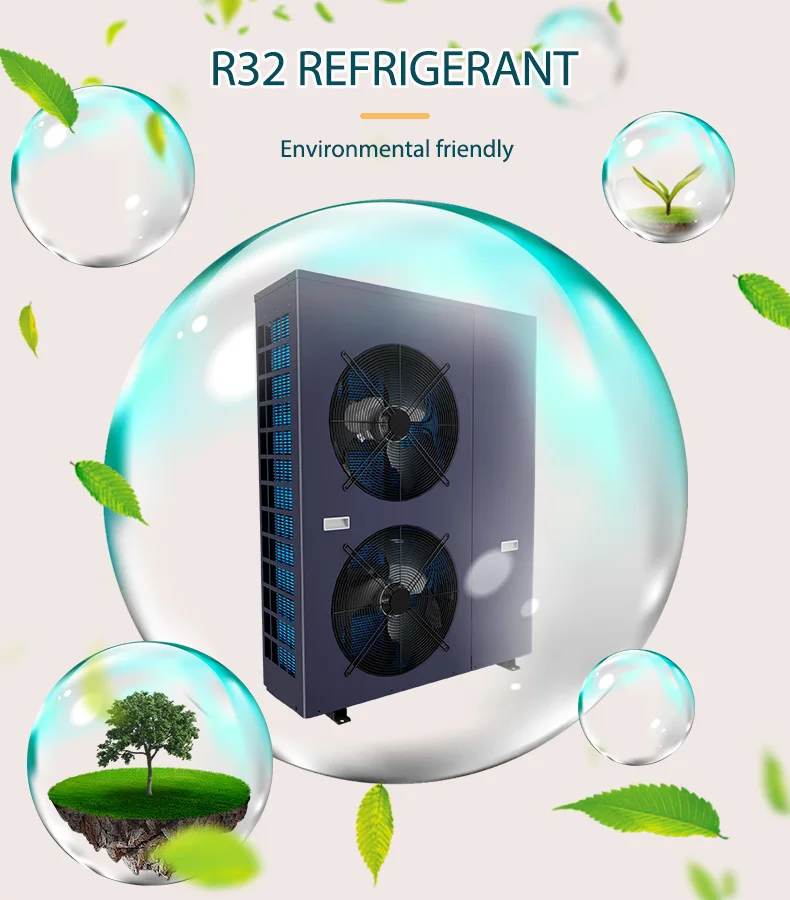

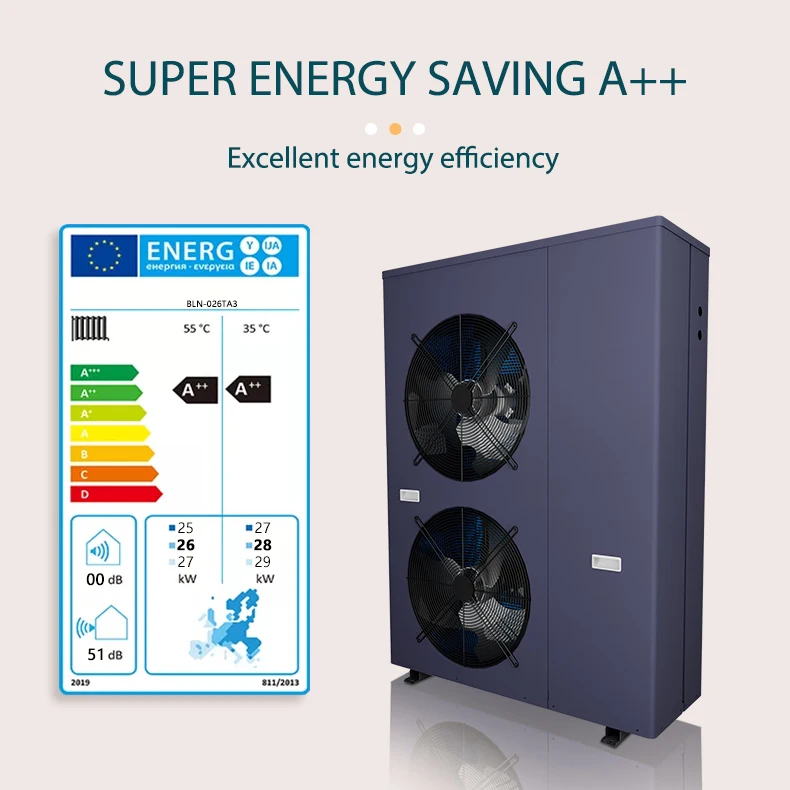

●Energy class: A++ ●Heating+Cooling ●Full DC inverter compressor and fan motor ●-30℃ inverter EVI ●WIFI smart control ●R32 refrigerant, environmental friendly ●Outlet water temperature up to 60℃

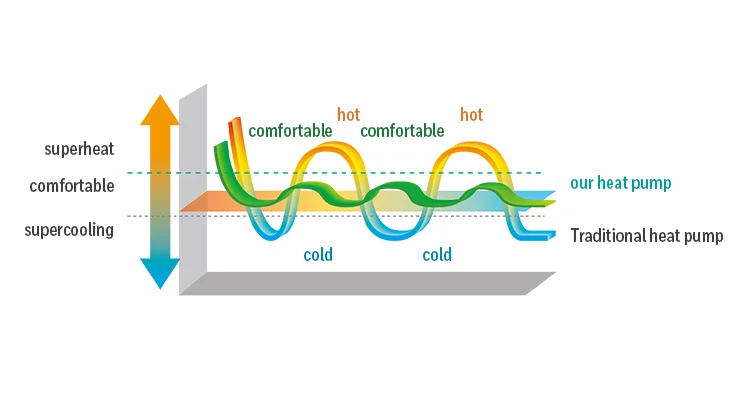

Full DC Frequency Conversion Technology, with a Pleasant "0" Fluctuation
The heat pump adopts full DC frequency conversion technology to lock in a comfortable temperature range. It can adjust the operating temperature range in real time and adjust the operating power in real time. At the same time, it can achieve soft wind in summer and constant temperature and comfort in winter.

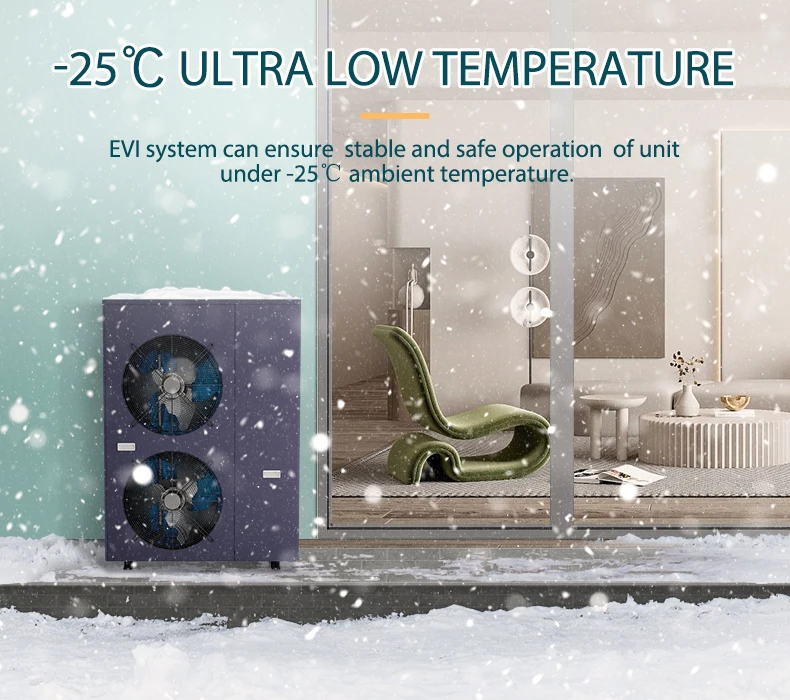

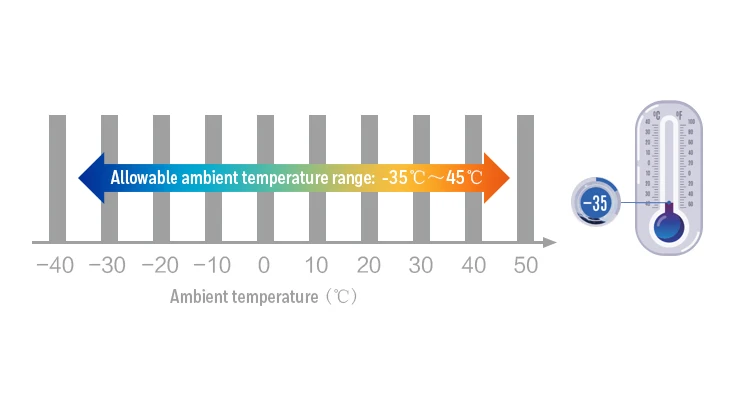

Stable operation of jet enthalpy enhancement technology at -35°C
Innovative use of the international leading level of jet enthalpy enhancement technology, the technology adopts the internationally renowned ultra-low temperature compressor, jet enthalpy enhancement technology, the use of a compressor, to achieve quasi-two-stage compression, -35 °C extremely cold weather can also operate normally.
The dual-rotor compressor operates steadily with 3D stereo noise reduction. It can run quietly like a library, allowing us to enjoy a quiet home environment.

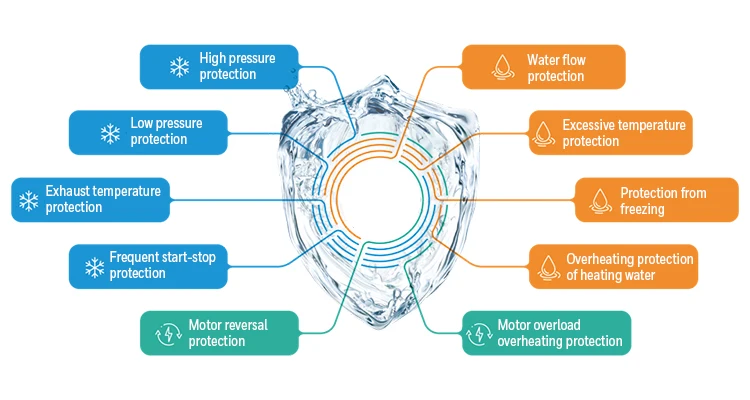

Ten layers of security protection for peace of mind
From refrigerant, water flow to power supply, set up a ten-item all-round safety protection system, all-time and all-round escort, so that the equipment can operate more safely and stably.

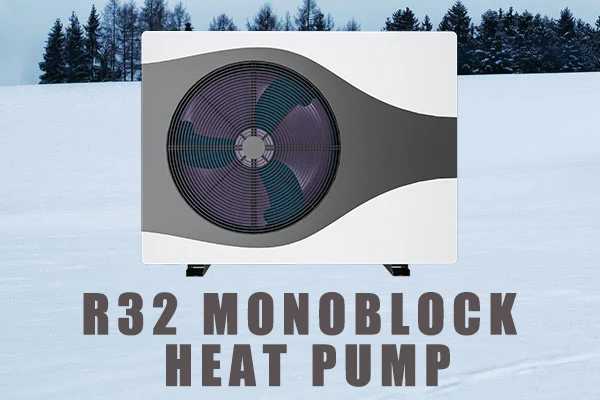

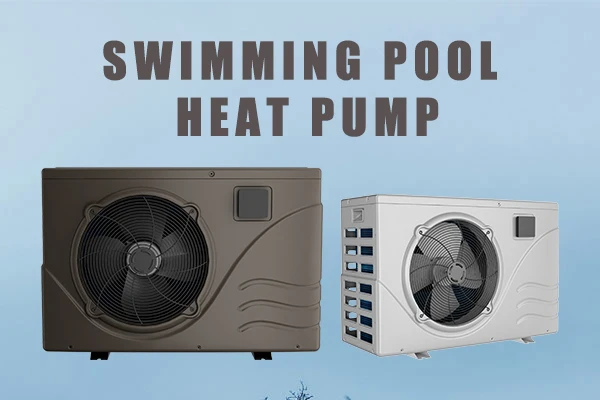

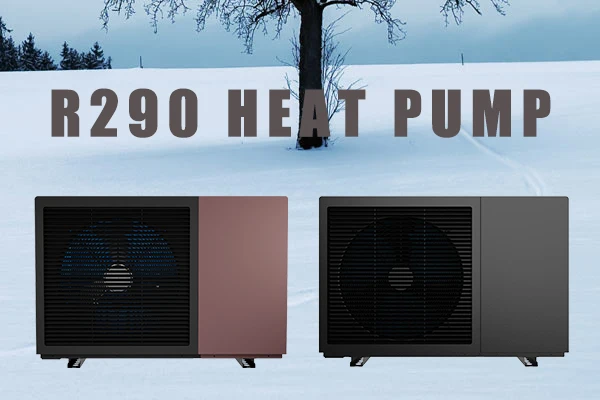

Product categories

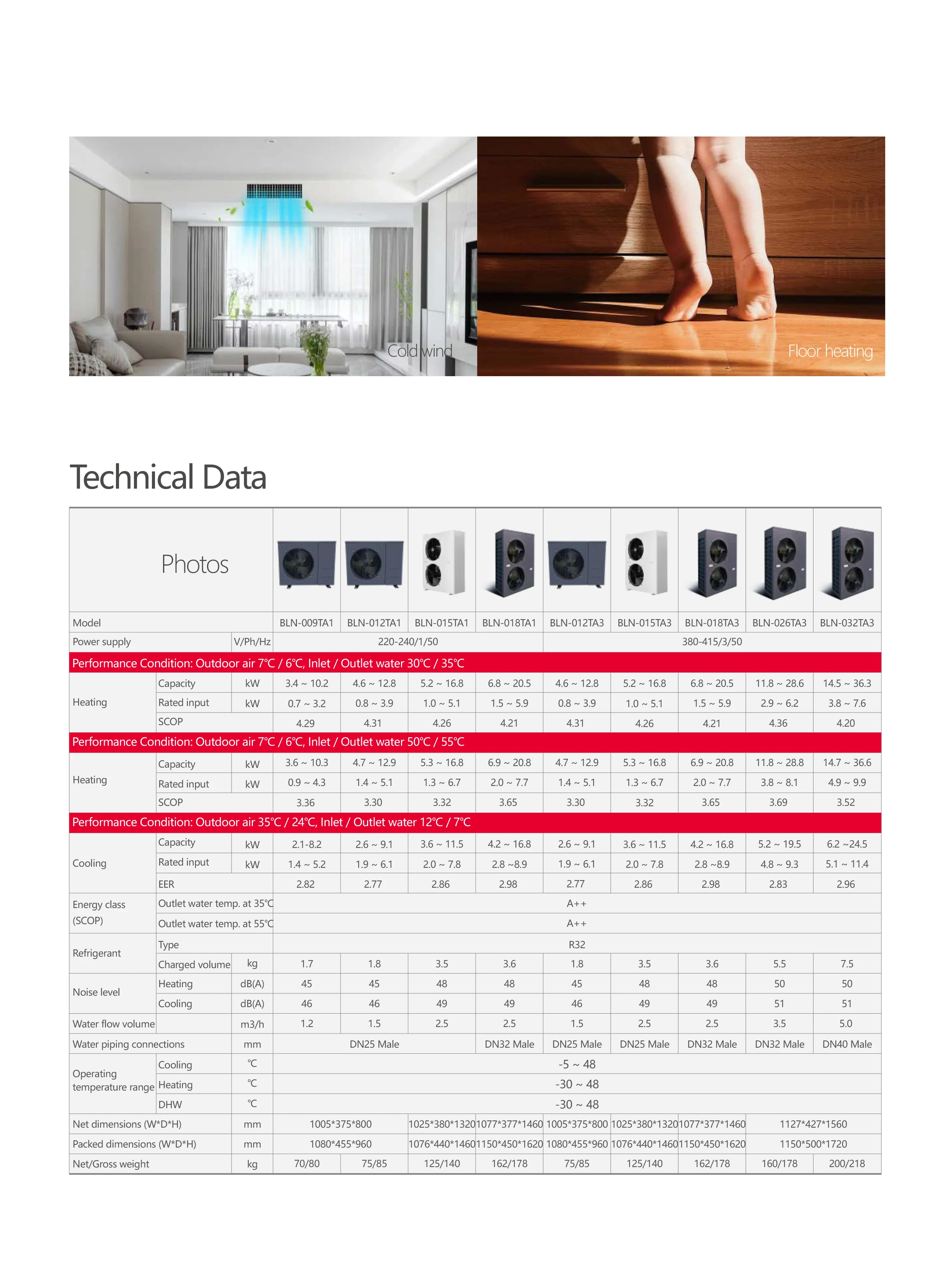

Product Paramenters
Model | BLN-026TA3 | |||||
Power supply | 380-415/3/50 | |||||
Performance Condition: Outdoor air 7℃ / 6℃, Inlet / Outlet water 30℃ / 35℃ | ||||||
Heating | Capacity | kW | 11.8 ~ 28.6 | |||
Rated input | kW | 2.9 ~ 6.2 | ||||
SCOP | 4.36 | |||||
Performance Condition: Outdoor air 7℃ / 6℃, Inlet / Outlet water 50℃ / 55℃ | ||||||
Heating | Capacity | kW | 11.8 ~ 28.8 | |||
Rated input | kW | 3.8 ~ 8.1 | ||||
SCOP | 3.69 | |||||
Performance Condition: Outdoor air 35℃ / 24℃, Inlet / Outlet water 12℃ / 7℃ | ||||||
Cooling | Capacity | kW | 5.2 ~ 19.5 | |||
Rated input | kW | 4.8 ~ 9.3 | ||||
SCOP | 2.83 | |||||

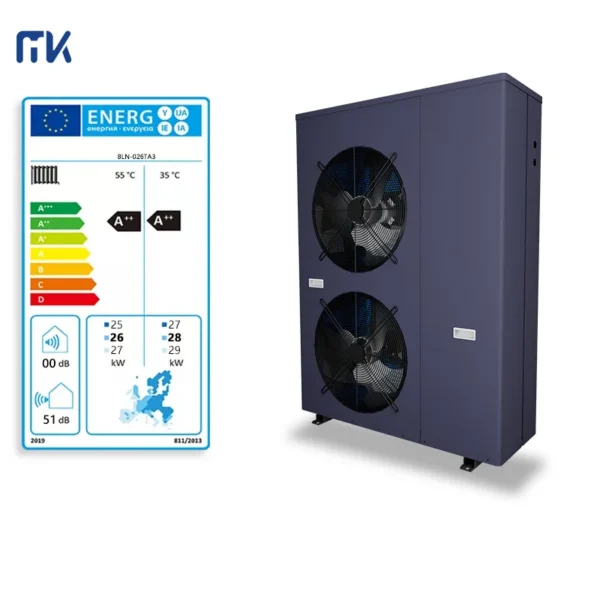

Energy class(SCOP) | Outlet water temp. at 35℃ | A++ | ||||
Outlet water temp. at 55℃ | A++ | |||||
Refrigerant | Type | R32 | ||||
Charged volume | kg | 5.5 | ||||
Noise level | Heating | dB(A) | 50 | |||
Cooling | dB(A) | 51 | ||||
Water flow volume | m³/h | 3.5 | ||||
Water piping connections | mm | DN32 Male | ||||
Operating temperature range | Cooling | ℃ | -5 ~ 48 | |||
Heating | ℃ | -5 ~ 48 | ||||
DHW | ℃ | -30 ~ 48 | ||||
Net dimensions (W*D*H) | mm | 1127*427*1560 | ||||
Packed dimensions (W*D*H) | mm | 1150*500*1720 | ||||
Net/Gross weight | kg | 160/178 | ||||
Company Profile
Guangzhou Mikee New Energy Co., Ltd.
Guangzhou Mikee New Energy Co., Ltd. is a subsidiary of Sunrise Oriental Group (SH: 603366), a listed technology enterprise. Our factory is located in Shunde, Guangdong Province, covering an area of 69000 square meters, with a total investment of 75 million dollars. It is one of the best scale air energy production bases in Asia, and undertakes ODM and OEM of air energy and energy storage products.
We have a number of pre automated assembly lines for commercial and civil products, with an annual production capacity of more than 100W sets and an investment of 150W dollars to build the industry's top heat pump laboratory. We have core data in the fields of hot water dedicated compressors, aerospace level leakproof enamel liners, 3-minute intelligent defrosting technology, super class energy technology, microchannel fast heating technology, etc.
Our Advantages/Workshop
Commercial machine production line
▶▶ The commercial workshop has 3 production lines, 15 automated commodity inspection stations, which can be packaged and wound online. The maximum test capacity is 200P units, and 300 standard units can be produced in a single shift. ▶▶ The household workshop has two production lines, which can produce fluorine machines and water machines below 3P, 10 automatic vacuum pumping stations and 10 commodity inspection stations respectively. Robots are used for offline palletizing, and 700 standard units can be produced in a single shift.
The sheet metal workshop has 3 laser cutting machines, 3 CNC punching machines, 6 CNC bending machines, 2 laser welding machines, and several equipment such as blanking and leveling, angle forming, spinning and pulling, plate shearing, deep throat punching, riveting, welding and grinding, with strong processing capacity.
Automatic spraying line
The total length of the line is more than 520 meters, and the maximum workpiece can be sprayed 3 * 1.8 meters. The materials include galvanized plate, cold plate, brushed stainless steel plate, aluminum plate. The pre-treatment process includes degreasing and vitrification. QC inspection capabilities include: color detection, film thickness detection, hardness detection, adhesion detection, solvent resistance detection, ultraviolet aging test, impact resistance detection. The workpiece can be picked up and sent.
R&D and testing capability
○ More than 10 million investment
○ Has ultra-low 60p temperature laboratory, enthalpy difference laboratory, data monitoring center, long-term operation laboratory
○ Ke – 30 ℃ environmental conditions
Certifications
Exhibition
FAQ
A) Are you a manufacturer? Yes, we are a company and factory integrating R&D, production, and sales. Besides, our products have been exported to more than 100 countries and regions, such as the United States, Russia, the United Kingdom, and Australia. B)Why should you select our heat pumps over those of other manufacturers? We have more than 19 years of experience in the heat pump field. Besides, we have a professional technical team, the industry's top heat pump laboratory, and automatic production lines. We can meet your diverse order requirements. C) Do you offer OEM/ODM customised services? Yes. We are able to produce European-standard heat pumps under your brand according to your special needs. D) I need to buy in bulk. Can you provide a sample service? Yes, we are able to provide sample services. We have professional engineers who can help you solve after-sales installation problems. E) How can we guarantee product quality? 1) There will be multiple tests during the production process. 2) Products will be strictly inspected before shipment.
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–9 piece: US $1730 / piece
- 10–14 piece: US $1700 / piece
- 15+ piece: US $1660 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inverter heat pump?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the inverter heat pump be supplied for my local voltage?
The standard configuration is 220V/1PH/50HZ,380~415V/3PH/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Mikee New Energy Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Mikee New Energy Co., Ltd. range on HVACR Nexus.
