This swimming pool heat pump is published with the manufacturer’s full specification — capacity 0, power source Electric. Made by Foshan Blueway Electric Appliances Co., Ltd. (14 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Swimming Pool Heat Pump

• Model Number: SPCH30
• Power Source: Electric
• Capacity: 0
• Housing Material: Stainless Steel
• Material: Galvanized Steel Powder Coated/Stainless steel
• Refrigerant: R417A

Technical Specifications

Product Details

Product Category

Air Handling unit

DC Inverter Heat Pump

Heat Pump Water Heater

Swimming Pool Heat Pump

Product Description

Pools Heat Pump R410A Refrigerant , CE Approved

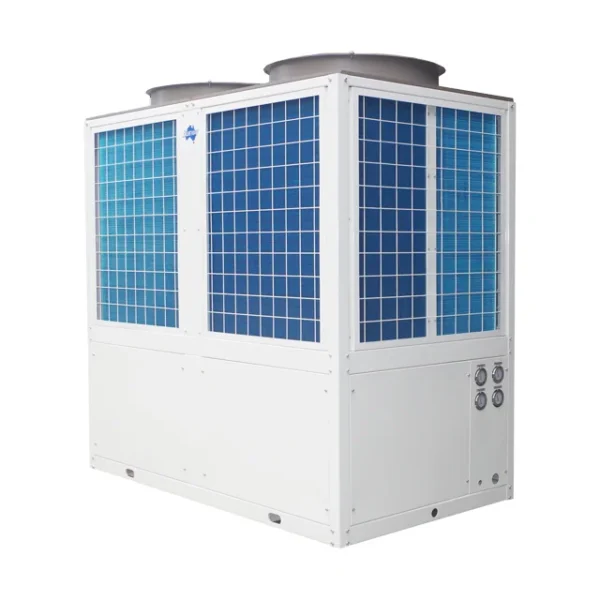

Swimming pool heat pump

Product details

Name	swimming pool heat pump
Function	spa or pool water heater and dehumidifier
COP	4.0~4.5
constant temperature	28-29℃
heat exchanger	titanium heat exchanger
Max temperature	40'C
Heating capacity	65KW
Rated temperature	28'C
Refrigerant	R410A
Warranty	1year
Product Keywords	5kw heat pump,cheap heat pumps,heat pump air to water

BLUEWAY Swimming Pool Heat pumps are specially designed and engineered for water temperature control of swimming pool and spa. The pool Heat Pump units can work as chillers in summer and heat pumps in other seasons, offering the most energy efficient pool & spa chilling and heating. Compared to gas, oil, or electric heaters, operation cost of swimming pool water chiller & heat pumps is up to 60%~80% less, saving your expenses in energy costs each year. Blueway Swimming Pool Heat Pump is especially suitable for the small household swimming pool Heating.



Products feature:

1) PVC Titanium heat exchanger with full resistance against corrosion, more durable.

2) Compact structure, easy demount-able for access.

3) High efficiency compressor with R410a or R32 refrigerant..

4) Flow switch for water flow protection.

5) Intelligent controller and adjustment by quick mind microprocessor.

6) Intelligent LCD display wire controller with touch screen display.

7) Air exchanger (fins-coil) with hydrophilic coating.

8) Automatic defrosting function included. (With reverse cycle valve inside)

9) General testing and operational test carried out for every unit before package in the factory.

10)50Hz and 60Hz units all available.





Products specification

Model	BHP			15	20	25	30	40	50	60	80	100	120	160
Power Suplly			V/P/Hz	380-415/3/50 or 208-2303/60
Output	Cooling		kW/h	25	33	41	51	65	82	97	131	163	192	241
	Heating		kW/h	30	39	47	60	78	106	128	170	214	243	280
Dehumidification capacity			Kg/h	17	22	26	33	43	51	62	84	102	122	160
Application pool surface area			m²	68	88	104	132	172	204	248	336	408	488	640
Rated Airflow			m3  @300Pa	4000	5000	6000	7500	9000	11000	13000	16600	21000	25000	32000
Blower	Qty		Nos.	2	2	2	2	2	2	2	2	2	2	2
	Type		–	Centrifugal
	Static pressure range		Pa	100-500	100-500	100-500	100-500	100-850	100-850	100-850	100-850	100-850	100-850	100-850
	Power input		KW	1.5	1.5	2.2	2.2	3.5	4	5.5	6	7	7.5	11
Compressor	Qty		Nos.	1	1	1	2	2	2	2	2 or 4	2 or 4	2 or 4	2 or 4
	Type			Scroll
	Power input		KW	5.5	7	8.5	5.4	7	8.5	11	7 or 13	8.5 or 16.5	11 or 22	13 or 25
Water Heat Exchanger Condenser	Type		–	Titanium Tube in PVC Shell
	Rated working pressure		Mpa	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
	Max.water temp.		℃	40	40	40	40	40	40	40	40	40	40	40
	Rated water flow rate		m3	4.7	6.1	7.2	9.4	12.2	14.5	18.8	24.6	30.6	37.5	48
	Water connection size		mm	32	32	38	50	50	63	63	75	75	90	100
Air Cooled Condenser	Qty		Nos.	1	1	1	1	1	1	1	2	2	2	2
	Rated capacity		KW	30	39	47	60	78	96	118	150	184	223	278
	Rated airflow		m3	10000	12000	15000	20000	24000	30000	40000	48000	60000	80000	90000
	Nos. of fan		Nos.	1	1	1	2	2	2	2	4	4	4	4
	Fan motor power input		KW	0.82	0.82	1.65	0.82	0.82	0.82	0.82	0.82	0.82	1.1	1.1
Dimension	Outdoor condenser	W	mm	706	1450	1450	1450	1800	1850	2110	1800	1850	2110	2500
		D	mm	686	705	705	705	705	1000	1100	1000	1000	1100	1200
		H	mm	940	1065	1065	1065	1065	1320	1350	1320	1320	1350	1350
	Indoor main unit	W	mm	3600	3800	3600	3800	4200	4600	4900	5400	5800	6600	7000
		D	mm	1370	1520	1570	1670	1670	1930	2160	2200	2200	2150	2200
		H	mm	1160	1160	1260	1360	1450	1520	1690	1840	2150	2200	2500
Indoor Main Unit Weight			Kg	500	800	900	1200	1500	1650	1850	2200	2500	2700	3300
Notes:



Company Information





BLUEWAY was originated founded in Australia in 1993. It has earned a worldwide reputation in the field of liquid heating and cooling systems (chillers & heat pumps) through about 20 years experience in HVAC industry.

In 2007, Blueway established its subsidiary manufacturer in Shunde, Foshan of China, utilizing the manufacturing advantages here and supplying chillers and heat pumps worldwide

History

HISTORY

2007

Establish Blueway China Manufacturing base in Shunde, Foshan China

2008

Start Export Heat Pump products to EU countries, get  clients good reputation

2011

Become official partner for Universiade Shenzhen; Become Hilton qualified partner for indoor pool AHU, Pool Heat pump supplier

2013

BLUEWAY R32 EVI +Inverter heat pump Get ErP A++ Certificate from TUV

2020

BLUEWAY Expand our production line to AHU, Fresh Air units, VRF and other HVAC related products



Certifications









Our Advantages

EXPERIENCE

28 Years experience in HVAC Industry

ADVANTAGES

SERVICE

We promise to response within 24 Hours

TEAM

More than 30 staff R&D Team, which enable us to provide package solution for clients

QUALITY

    Blueway have got ISO9001 and ISO14001 Certificate from SGS.

Certificate

Blueway have got CE, ErP A+ and A++ certificate from TUV.

Related Products

Hot sales

1

24 hours Constant temperature DC Inverter swimming pool hot water heat pump heater

2

Household Split Air To Water Heat Pump Hot Water Heaters

3

Multi-functions indoor swimming pool heat pump heater & chiller & dehumidifier

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–99 set: US $6370 / set
  • 100+ set: US $6175 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this swimming pool heat pump?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
