And Heating Water Chiller, R-404A

And heating water chiller — refrigerant R-404A/R507C. The complete factory specification follows. Made by LNEYA Thermo Refrigeration Co., Ltd. (16 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This And Heating Water Chiller

• Heating Power: 2.5~15KW
• Refrigerant: R-404A/R507C
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China
• Connect Size: G1/2~G1
• Weight (Kg): 235

Technical Specifications

Product Details

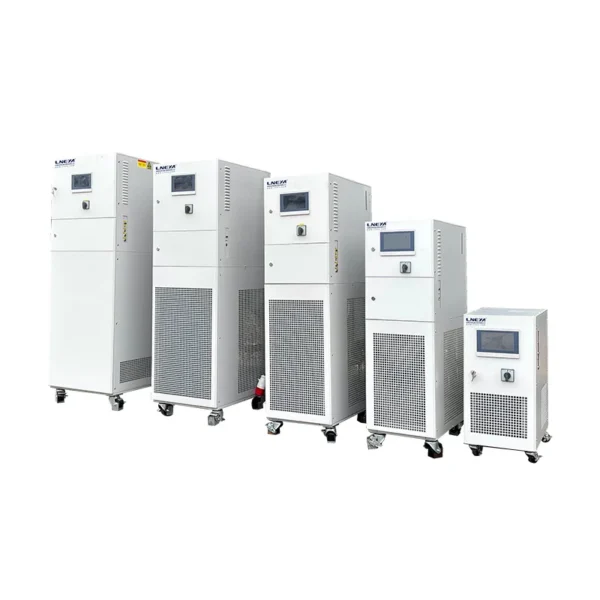

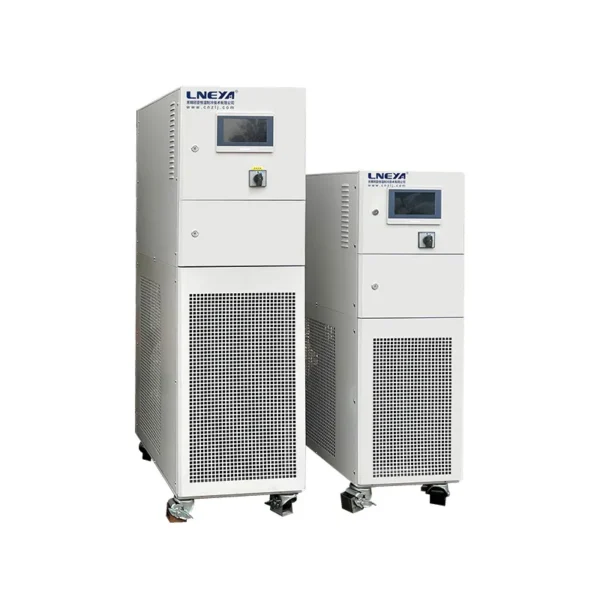

Refrigeration and Heating Water Chiller and Heater Combo

Products Description

Customized products

We support customization services, pls click to consult us for details.

Product Paramenters

Model			SUNDI- 125(W)	SUNDI- 135(W)	SUNDI- 155(W)	SUNDI- 175(W)	SUNDI-1A10(W)	SUNDI- 1A15(W)
Temp range			-10 ~ +200 ℃ (optional: -120 ~ 350℃)
Medium temp. acccuracy			±0.5℃
Material temp. accuracy			±1℃
Heating power (KW)			2.5	3.5	5.5	7.5	10	15
Cooling capacity (KW) AT	200℃	2.5	3.5	5.5	7.5	10	15
		20℃	2.5	3.5	5.5	7.5	10	15
		-5℃	1.5	2.1	3.3	4.2	6	9
Circulation pump max L/min  bar			20	35	35	50	50	75
				2	2	2	2	2	2.5
Compressor			Mitsubishi			Emerson copeland vortex flexible
Expansion valve			Emerson thermal expansion valve/danfoss thermal expansion valve
Evaporator			DANFOSS/KAORI Plate heat exchanger
Refrigerant			R-404A/R507C
Connection size			G1/2	G3/4	G3/4	G1	G1	G1
Dimension cm			45*65 *120	50*85 *130	55*100 *175	55*100 *175	70*100 *175	70*100 *175
Weight kg			115	165	185	235	280	300
Power max 380V 50HZ			AC220V 3.6KW	5.6KW	7.5KW	10KW	13KW	20KW

Customized Solutions For Your Process Needs. Contact Us Now!

Why Choose Us

Structural design principles and functional advantages

When the temperature is high, there is no evaporation of heat conducting medium, and the continuous temperature control of -90~195℃，-70~220℃，-55~250℃ and -25~300℃ can be realized without pressure. Adopt the design of fully closed pipeline, reduce the demand of heat-transfer fluid, improve the heat utilization rate of the system, and achieve rapid temperature rise and fall. The heat conducting medium in the expansion vessel does not participate in the circulation, which can reduce the risk of moisture absorption and volatilization during the operation of the heat conducting medium.

Company Profile

Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products offer temperature control solutions for applications from -152 to +350℃.

Exhibition

LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.

Certifications

So far, LNEYA has 11 patents of utility model authorized certificate.

As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.

FAQ

Q: How many years have your factory been established？ Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.

Q: Are you a trader or a manufacturer？ We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.

Q: How long is the warranty? One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.

Q: Do you provide customized services? Of course, you only need to send your specific requirements, and we will provide you with the products you want.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–4 unit: US $8500 / unit
  • 5–9 unit: US $6300 / unit
  • 10+ unit: US $4600 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this and heating water chiller?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by LNEYA Thermo Refrigeration Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full LNEYA Thermo Refrigeration Co., Ltd. range on HVACR Nexus.
