The system steel bare panel listed here carries material Steel, model number OA600-B-37, documented exactly as the manufacturer publishes it. Made by Jiangsu Jiachen Intelligent Flooring Technology CO., LTD. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This System Steel Bare Panel
- Model Number: OA600-B-37
- Material: Steel
- Panel Material: Metal
- Finish Material: Steel with cement inside
- Warranty: 2 Years
- Place Of Origin: Jiangsu, China
Technical Specifications
| Feature | Water Resistant, Fire Resistant |
|---|---|
| Application | roof, Exterior Wall, prefab house, Hotel, cold room |
| Length | 200 mm |
| Material | Steel |
| Panel Material | Metal |
| Warranty | 2 Years |
| After-Sale Service | Online Technical Support, Onsite Training, Onsite Inspection, Onsite Installation |
| Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
| Design Style | Modern |
| Eco-Friendly | Eco-Friendly |
| Model Number | OA600-B-37 |
| Place Of Origin | Jiangsu, China |
| Brand Name | Jiachen |
| Product Name | bare panel manufacturers |
| Finish Material | Steel with cement inside |
| Size | 600mm*600mm |
| Thickness | 33mm |
| Covering | OEM |
| Floor Accessories | stringer ,pedestal and screw |
| Features | High stability,Noise reduction,Fire prevention |
| Business Type | Manufacturer (30 years) |
| Certificate | CE, EN12825, ISO9001, ISO14001, ISO1800, etc. |
| Selling Units | Single item |
| Single Package Size | 62X62X15 cm |
| Single Gross Weight | 50.0 kg |
Product Details

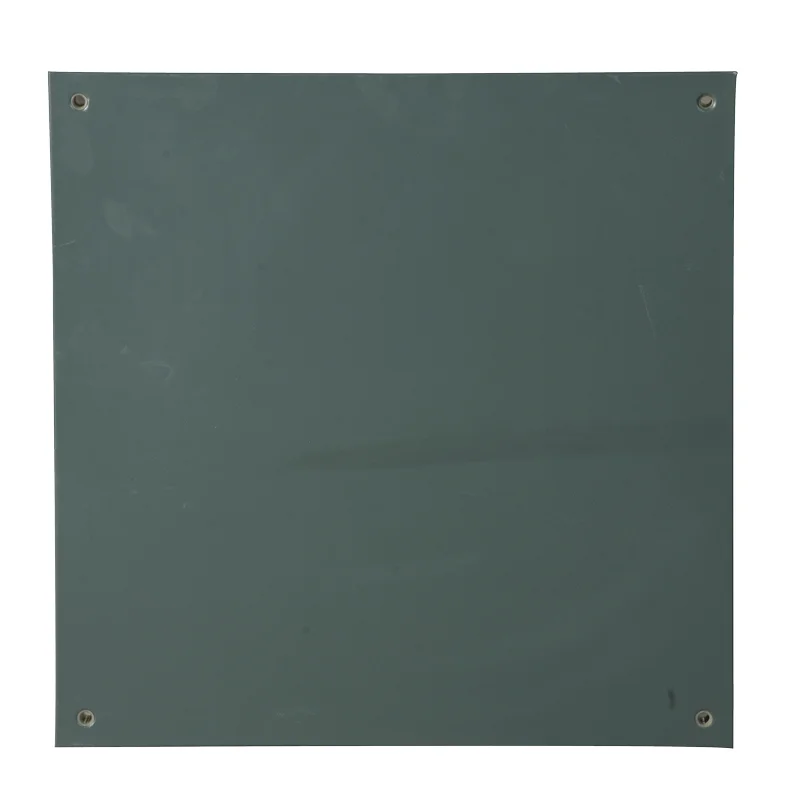

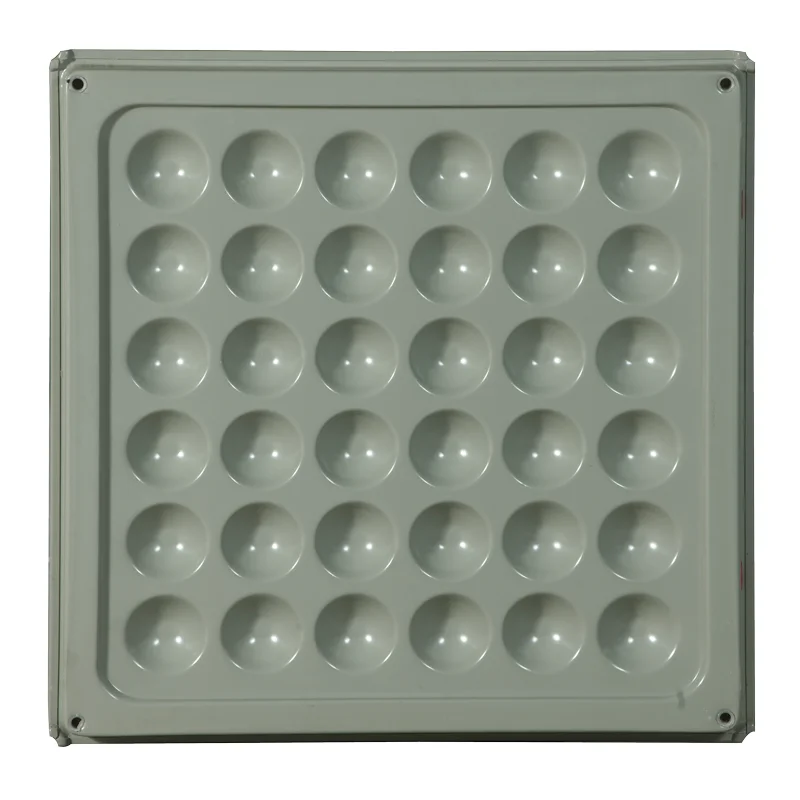

Product Structure
It uses choice cold-rolled steel sheets, after spot weld forming by stretching and phosphorization, it is sprayed on the surface and filled with foaming cement in the middle. There are also holes of corner locks on four corners.
Features
1. It uses choice steel sheets with enough thickness, and regulates after stamping and welding to assure flatness of the floor.
2. It uses choice tensile steel sheets to stretch vertically, and filled with high strength foaming cement, making corners of raised floor extremely solid and having strong carrying capacity which can transmit to supports system effectively.
3. It is strong in carrying capacity and good in fire prevention and corrosion resistance due to all-steel combination and compression molding forming.
4. It is good in interchangeability, easy to assemble and fast to repair because of modular design.
Configuration
The final flooring can employ square carpets, rolled carpets or PVC veneers and solid wood blocks.

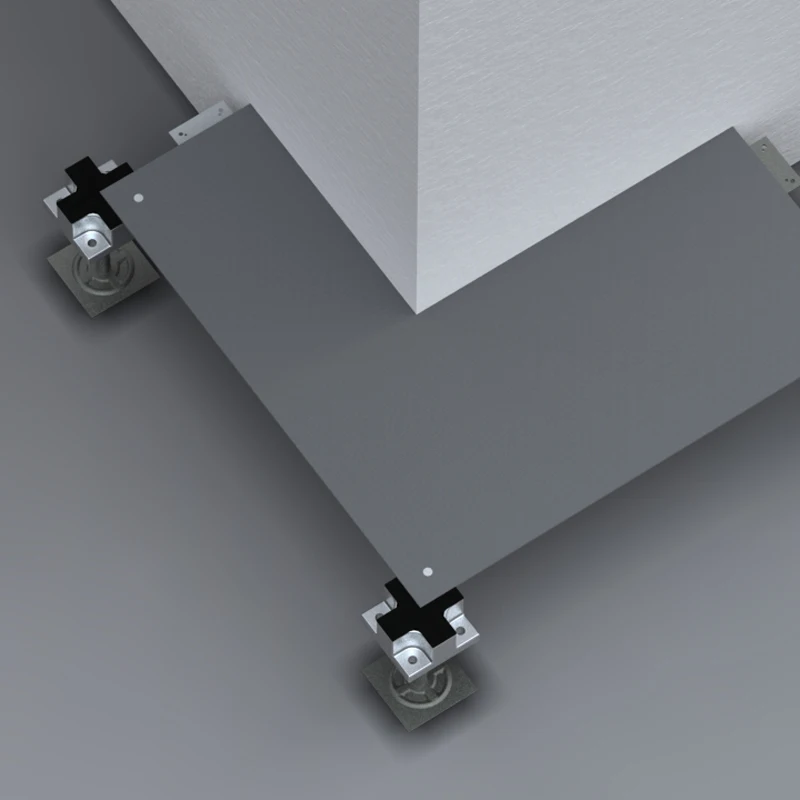

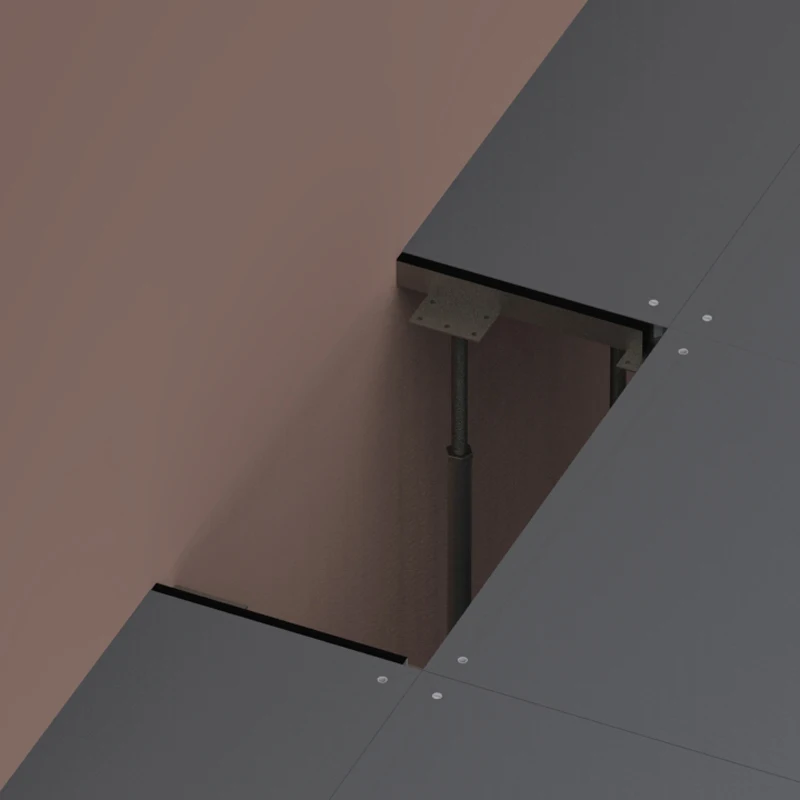

Supports System
Provided with corner locks and the adjustable four-corner supports, as well as one bracket support for four floors.
Applicability
Widely used in 5A intelligent office buildings, meeting rooms, audio-visual classrooms and other dust-proof and water-proof spaces. It can employ carpets, rolled carpets on the surface.

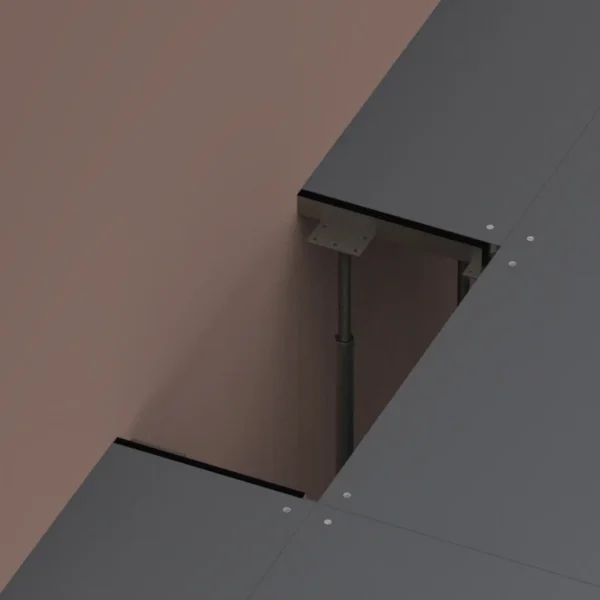

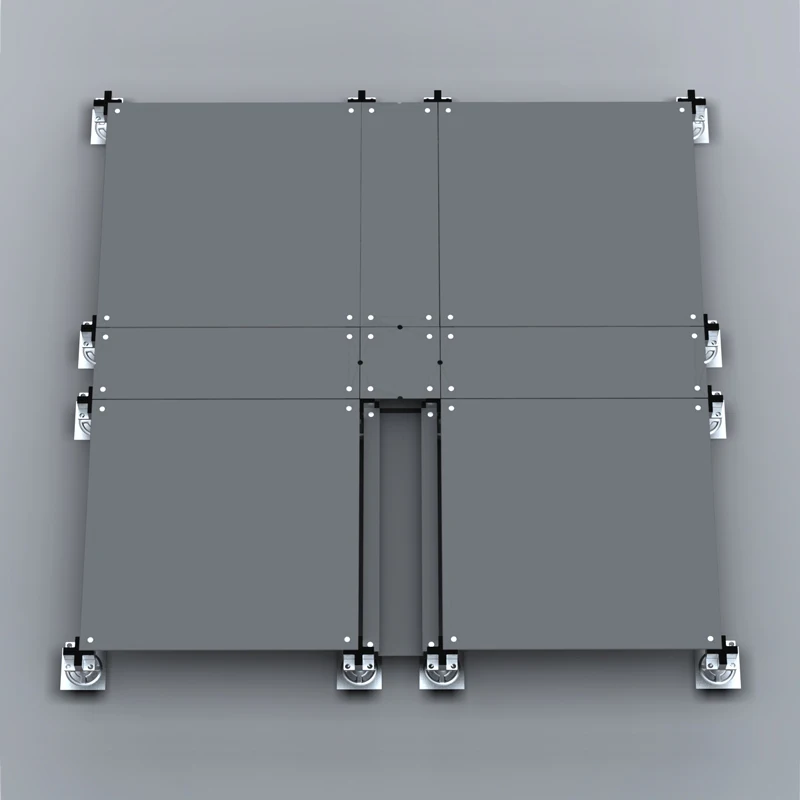

1. OA600 Access floor panels
2. Galvanized steel sheet
3. Gasket
4. Alu-pedestal head
5. Hexagonal nut
6. Galvanized steel tube
7. Pedestal based plate glued to the raw floor.
Advantage
1. Green product: Using non-toxic cement, no pollution, no radiation, and environment-friendly.
2. Fire prevention: Made of galvanized steel plate, it has characteristic of high bearing strength and good in fire prevention, can increase fire escape time.
3. High stability: With unique corner lock function, of which height can be adjusted, increasing steadiness, and it is convenient for maintaining.

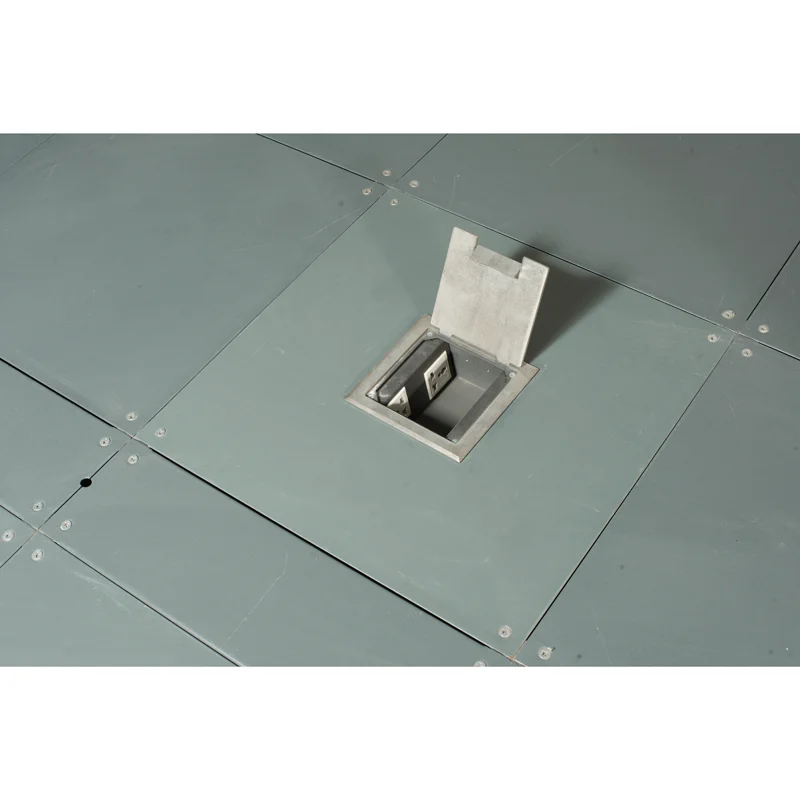

4. Multi-function applicability: Supply enough space for cables, wiring, and air conditioning. Can make office more clean and tidy, comfortable and beautiful.
5. Noise reduction: The surface can be pasted with carpet tile or rolled vinyl, etc. Easy to clean and can reduce noise of interoffice.
Ordering and Pricing
- Minimum order quantity: 1 square meter
- Volume pricing:
- 1–499 square meter: US $18 / square meter
- 500+ square meter: US $14.5 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this system steel bare panel?
The standard minimum order quantity is 1 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this system steel bare panel carry?
It is supplied with CE, EN12825, ISO9001, ISO14001, ISO1800, etc. documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

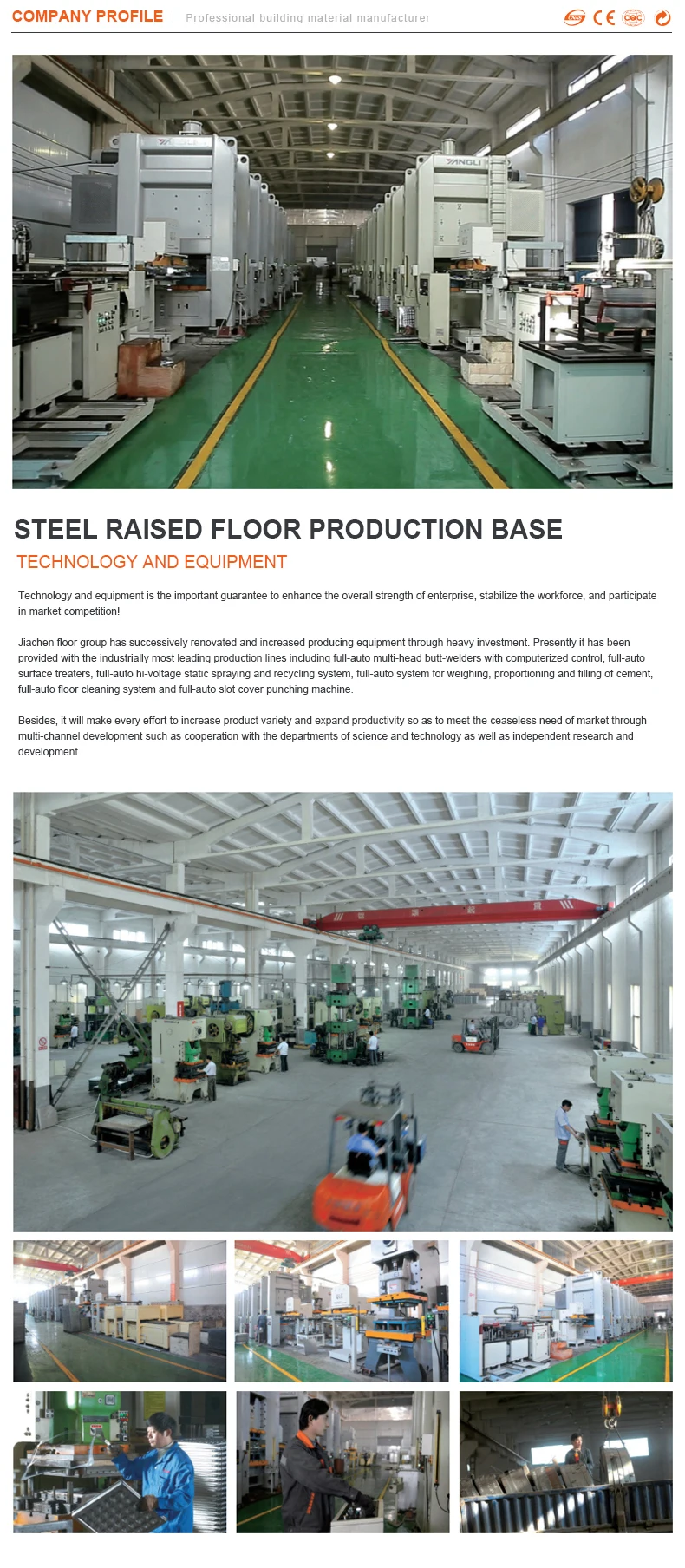

About the Manufacturer
