Key specification for this tangential cross flow blower: voltage 12 VDC, 42.37 CFM / 72 m3/H. Everything below is reproduced from the factory data sheet. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Tangential Cross Flow Blower
- Model Number: PC30B12300B
- Voltage: 12 VDC
- Air Flow: 42.37 CFM / 72 m3/H
- Blade Material: Aluminium alloy
- Warranty: 5 year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 12 VDC |
|---|---|
| Mounting | Free Standing |
| Blade Material | Aluminium alloy |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 5 year |
| Place Of Origin | Jiangsu, China |
| Brand Name | PBM |
| Model Number | PC30B12300B |
| Insulation Class | Class B |
| Input Current | 0.18 A |
| Acoustical Noise | 33 dB(A) |
| Direction Of Rotation | Clockwise seen on motor |

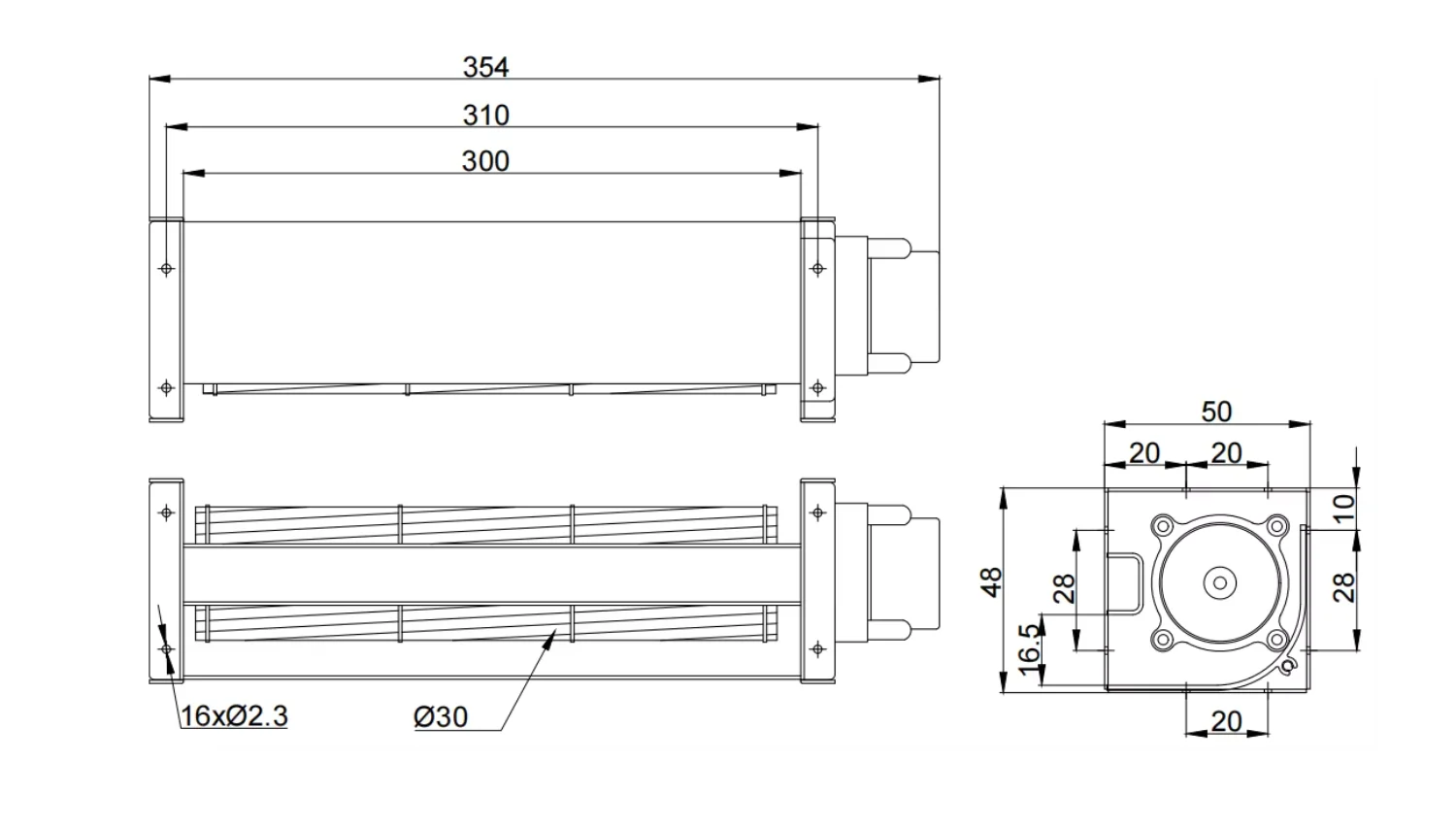

| Dimension | 48x50x354 (see dimension drawing) |
| Air Flow | 42.37 CFM / 72 m3/H |

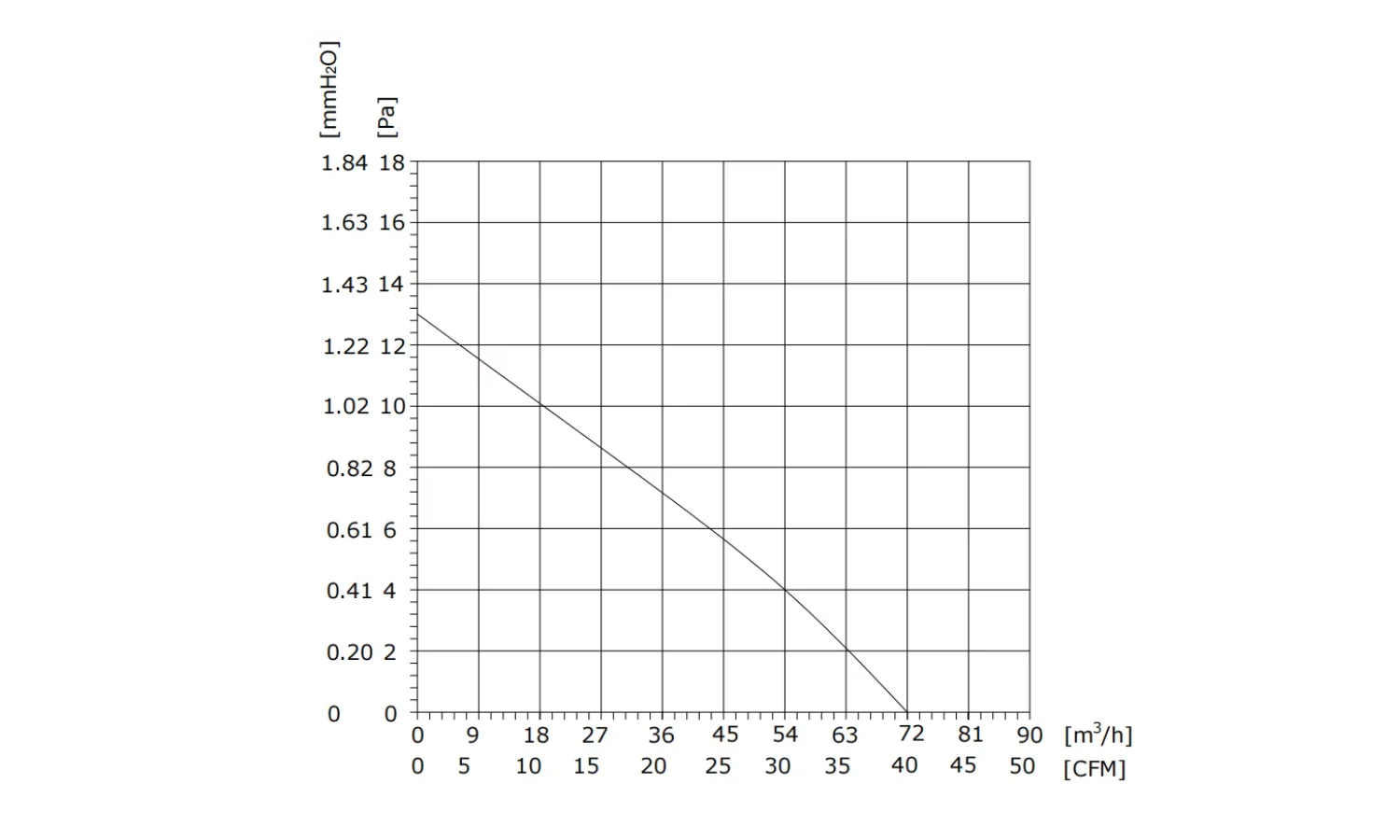

| Static Pressure | 1.33 mmH2O / 13 Pa |
| Operating Temperature | -25℃ to 60℃ |
| Storage Temperature | -40℃ to 75℃ |
| RoHS | All the material meets RoHS standard. |
| Selling Units | Single item |
Product Details

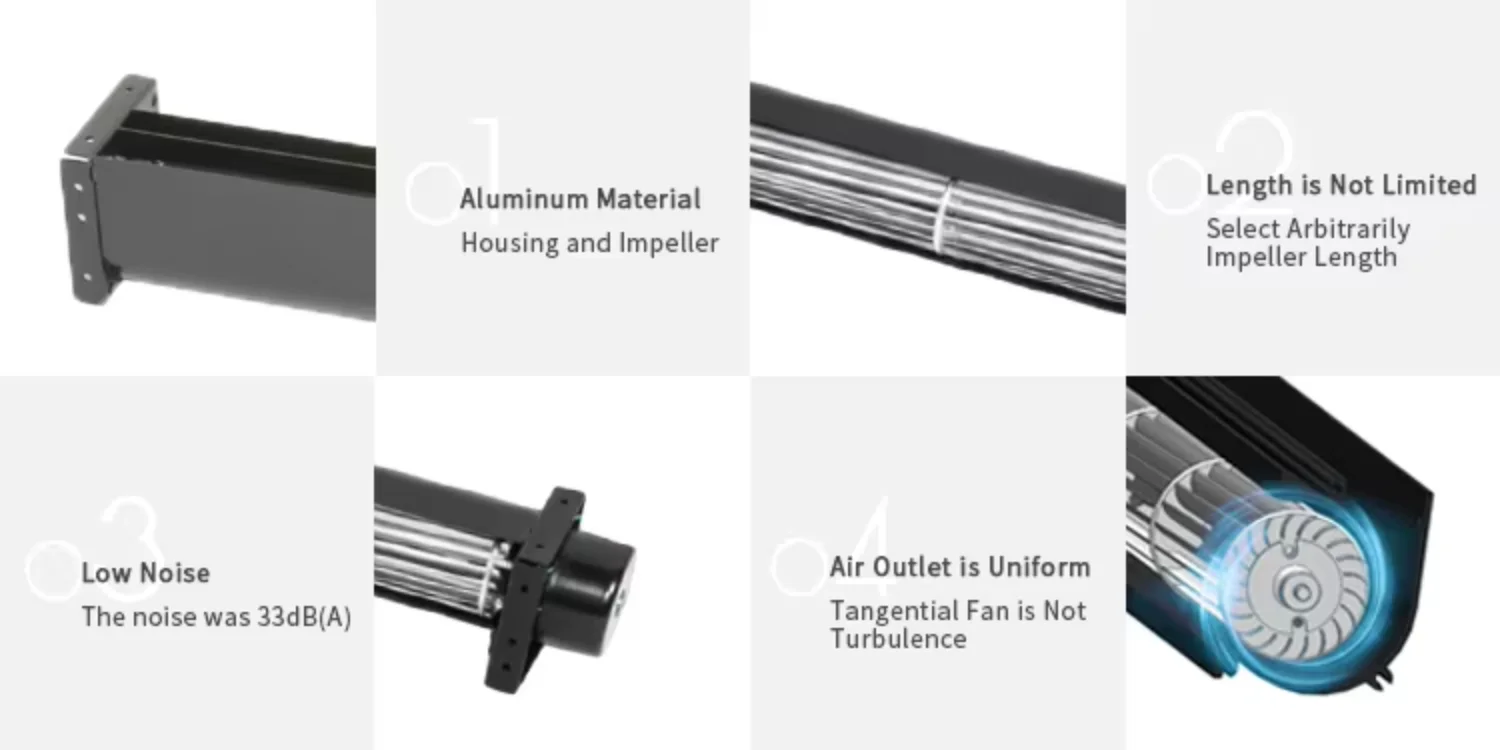

- PBM: Your Reliable Cross Flow Fan Manfacturer
- Customizable AC,DC,and EC cross-flow fans are ideal choices for HVACR,air curtains,and precision electronics coolings.
- Impeller Sizes: From 30mm to 80mm diameter;
- Sound Level:From 32dBA to maximum 48dBA according different rotation speed;
- Airflow: Maximum to 600CMH, Cubic Meter per Hour, equal to approx. 353CFM , Cubic Feet per Minute;
- Air Pressure:Maxim to 80Pa, equal to 8.16mm H2O and to 0.32 inches H2O;
- Power: Maximum motor input power goes to 100W motor diameter 80mm.
Rated Voltage | 12 VDC | Life Expectance | 30,000 Hours |
Frequency | 50 Hz | Direction of Rotation | Clockwise seen on rotor |
Rated Speed | 2500 RPM | Dimension | See dimension drawing |
Input Current | 0.18 A | Material of Impeller | Aluminum alloy |
Input Power | 2.16 W | Air Flow | 42.37 CFM / 72 m3/H |
Acoustical Noise | 33 dB(A) | Static Pressure | 1.33 mmH2O / 13 Pa |
Operating Temperature | -20℃ to 70℃ | Storage Temperature | -40℃ to 80℃ |
Model | Rated Voltage | Air Flow | Air Pressure | Rated Speed | Sound Level | Total Length |
Part No. | VAC | m3/H | Pa | RPM | dB(A) | mm |
PC30B1A98B | 115 | 25 | 11 | 3300 | 31 | 158 |
PC30B2A98B | 230 | 20 | 10 | 2700 | 31 | 158 |
PC30B1A160B | 115 | 48 | 11 | 3200 | 32 | 222 |
PC30B2A160B | 230 | 41 | 10 | 2700 | 32 | 222 |
PC30B1A198B | 115 | 60 | 13 | 3100 | 32 | 258 |
PC30B2A198B | 230 | 50 | 10 | 2600 | 32 | 258 |
PC30B1A248B | 115 | 76 | 14 | 3000 | 32 | 308 |
PC30B2A248B | 230 | 62 | 10 | 2500 | 32 | 308 |
PC30B1A300B | 115 | 90 | 15 | 2900 | 34 | 360 |
PC30B2A300B | 230 | 81 | 13 | 2500 | 33 | 360 |
PC30B1A352B | 115 | 106 | 15 | 2780 | 35 | 412 |
PC30B2A352B | 230 | 96 | 14 | 2500 | 35 | 412 |
PC30B1A420B | 115 | 110 | 15 | 2500 | 36 | 480 |
PC30B2A420B | 230 | 110 | 15 | 2500 | 36 | 480 |
air curtains, air conditioners, and heaters.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $13.86 / piece
- 500–999 piece: US $13.09 / piece
- 1000+ piece: US $12.74 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential cross flow blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the tangential cross flow blower be supplied for my local voltage?
The standard configuration is 12 VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Pbm Motor And Fan(suzhou) Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Pbm Motor And Fan(suzhou) Co., Ltd. range on HVACR Nexus.
