This tangential fan is published with the manufacturer’s full specification — voltage 12 VDC, 29.43 CFM / 50 m3/H. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.

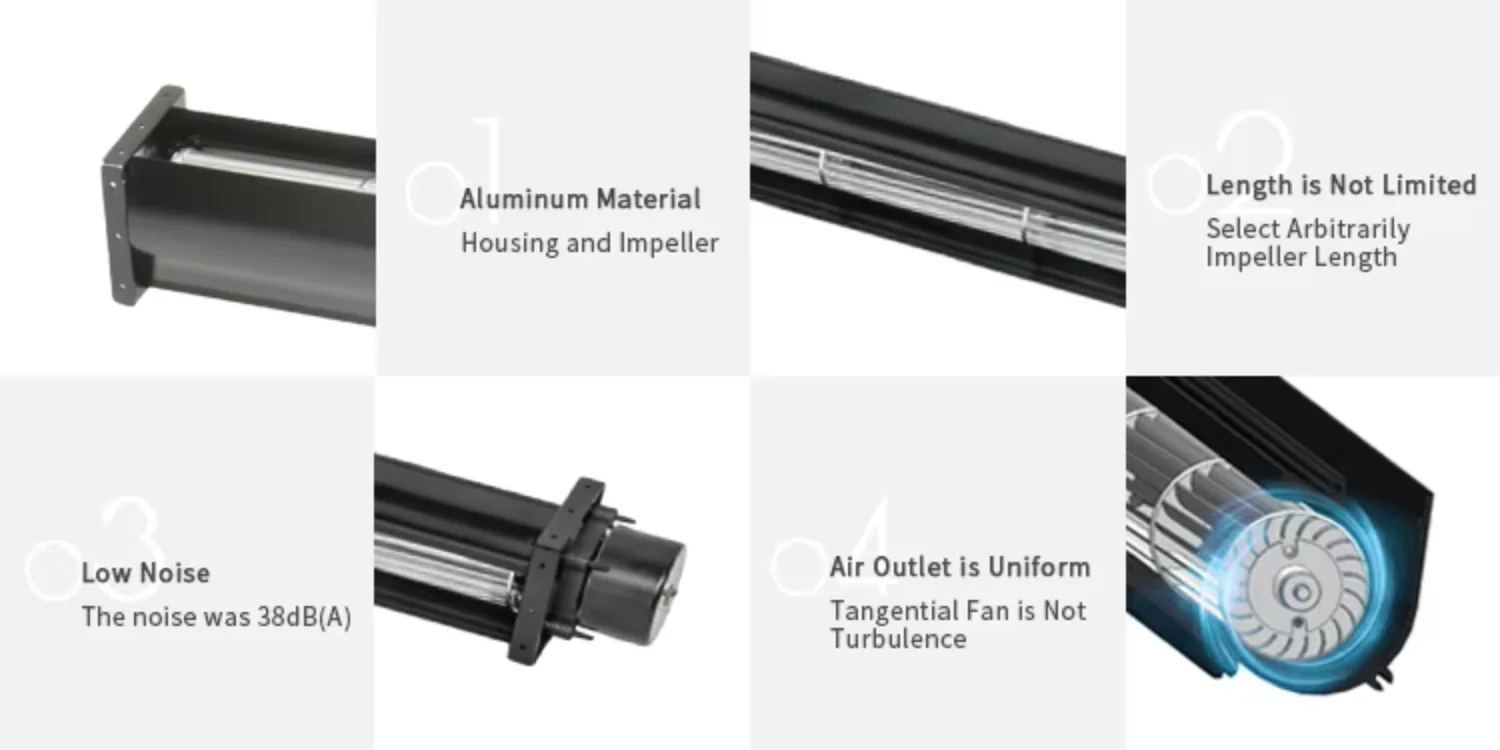

Key Features of This Tangential Fan
- Model Number: PC50B12100A
- Voltage: 12 VDC
- Air Flow: 29.43 CFM / 50 m3/H
- Blade Material: Aluminium alloy
- Material: Aluminum Alloy
- Warranty: 5 year
Technical Specifications
| Voltage | 12 VDC |
|---|---|
| Mounting | Free Standing |
| Blade Material | Aluminium alloy |
| Material | Aluminum Alloy |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Online support |
| Warranty | 5 year |
| Place Of Origin | Jiangsu, China |
| Brand Name | PBM |
| Model Number | PC50B12100A |
| Insulation Class | Class B |
| Input Current | 0.16 A |
| Acoustical Noise | 38 dB(A) |
| Direction Of Rotation | Clockwise seen on motor |
| Dimension | 65x67x155 (see dimension drawing) |
| Air Flow | 29.43 CFM / 50 m3/H |

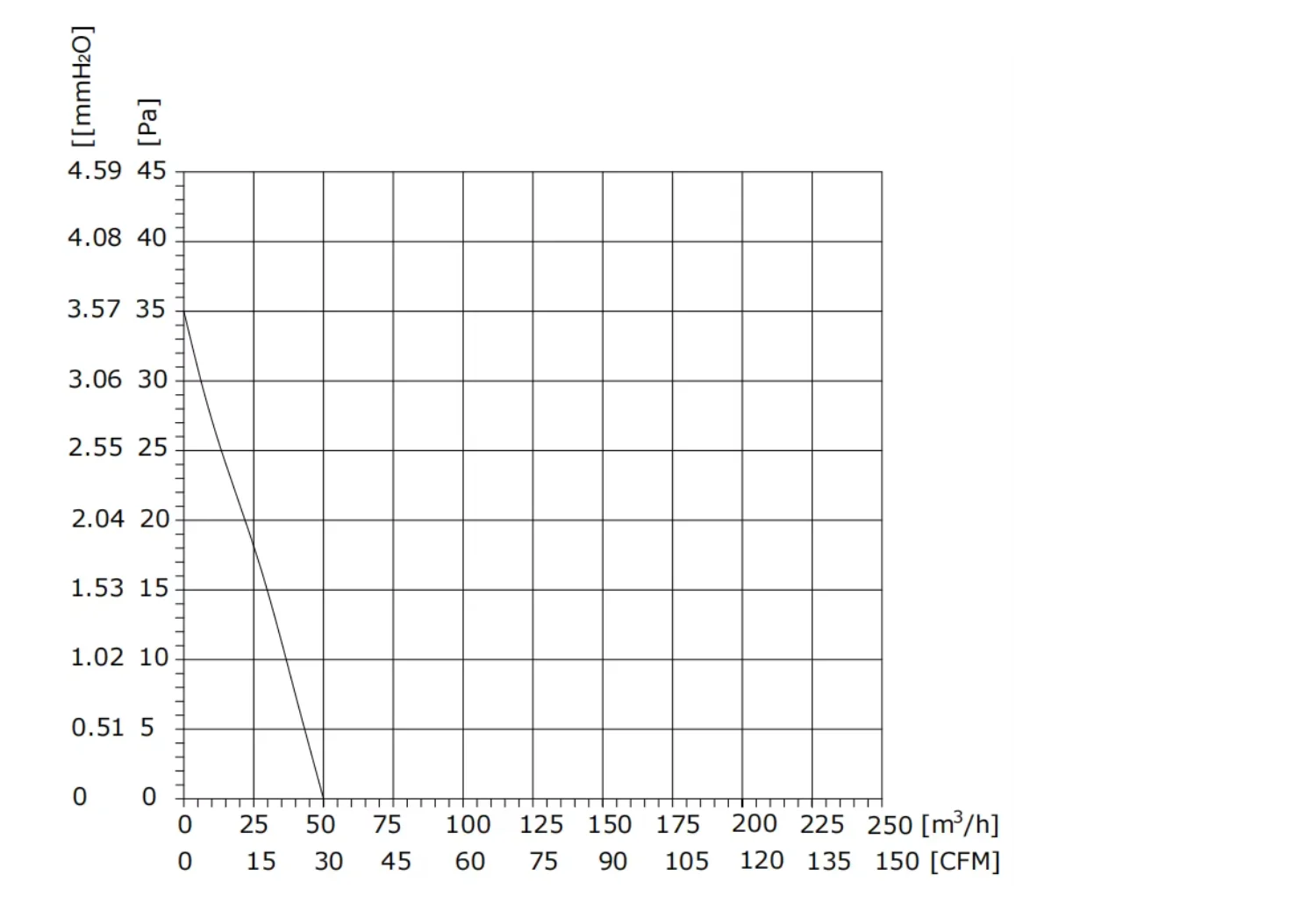

| Static Pressure | 3.57 mmH2O / 35 Pa |
| Operating Temperature | -25℃ to 60℃ |
| Storage Temperature | -40℃ to 75℃ |
| RoHS | All the material meets RoHS standard |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 1.300 kg |
Product Details
Rated Voltage | 12 VDC | Insulation Class | Class B |
Operating Voltage | 9 ~ 15 VDC | Static Pressure | 3.57 mmH2O / 35 Pa |
Rated Speed | 2400 RPM | Input Power | 1.92 W |
Input Current | 0.16 A | Speed Control | Control input 0~10VDC |
Acoustical Noise | 38 dB(A) | Air Flow | 29.43 CFM / 50 m3/H |
Life Expectance | 50,000Hours(L10) At 40℃ room, humidity 15%~65%RH | Motor Protection | Locked rotor protection Polarity protection Automatic restart capability |
Direction of Rotation | Clockwise seen on motor | Protection Type | IP44 |
Dimension | 65x67x155 (see dimension drawing) | Bearing System | NMB ball bearing |
Material of Impeller | Aluminum alloy | Lead Wire | Red , Black, White AWG22# |
Number of Blades | 22 | Package | Standard |
Model | Rated Voltage | Air Flow | Air Pressure | Rated Speed | Sound Level | Total Length |
Part No. | VDC | m3/H | Pa | RPM | dB(A) | mm |
PC50B12100A | 12 | 50 | 35 | 2400 | 38 | 155 |
PC50B12160A | 12 | 90 | 39 | 2400 | 39 | 215 |
PC50B12200A | 12 | 120 | 42 | 2400 | 41 | 256 |
PC50B12250A | 12 | 150 | 42 | 2400 | 42 | 302 |
PC50B12300A | 12 | 180 | 42 | 2400 | 43 | 340 |
PC50B12360A | 12 | 210 | 42 | 2400 | 44 | 410 |
PC50B12420A | 12 | 250 | 42 | 2400 | 46 | 475 |
PC50B24100A | 24 | 50 | 35 | 2400 | 38 | 155 |
PC50B24160A | 24 | 90 | 39 | 2400 | 39 | 215 |
PC50B24200A | 24 | 120 | 42 | 2400 | 41 | 256 |
PC50B24250A | 24 | 150 | 42 | 2400 | 42 | 302 |
PC50B24300A | 24 | 180 | 42 | 2400 | 43 | 340 |
air curtains, air conditioners, and heaters.
Q:How about the delivery time ?
A:Within 25 days after we receive the order.
Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $12.83 / piece
- 500–999 piece: US $12.12 / piece
- 1000+ piece: US $11.79 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the tangential fan be supplied for my local voltage?
The standard configuration is 12 VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Pbm Motor And Fan(suzhou) Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Pbm Motor And Fan(suzhou) Co., Ltd. range on HVACR Nexus.
