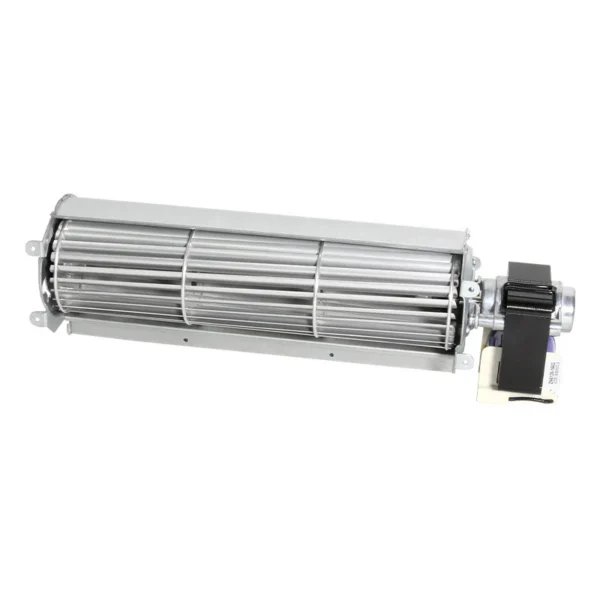

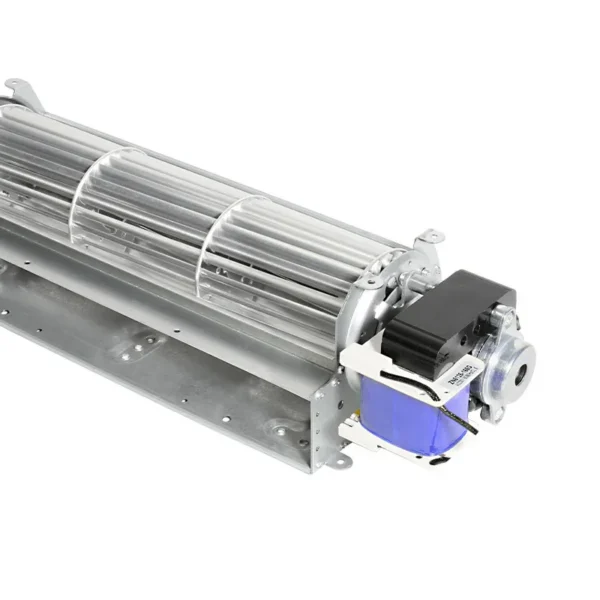

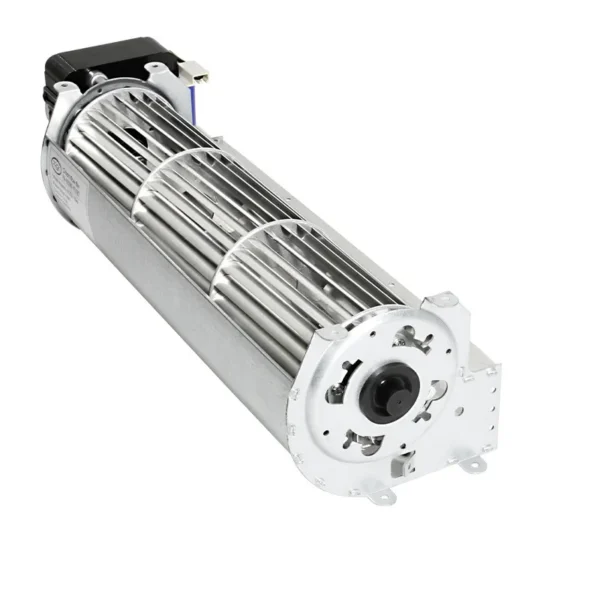

Tangential Fan, 60mm, 220V

The tangential fan listed here carries 10V 12V 24V, air flow (DC 30-2000) (EC 30-5000), documented exactly as the manufacturer publishes it. Made by Suzhou Fanova Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Tangential Fan

• Power: (DC 10-500) (EC 10-500)
• Voltage: 10V 12V 24V
• Air Flow: (DC 30-2000) (EC 30-5000)
• Blade Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy
• Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy
• Impeller Material: Plastic/Stainless Steel/Cast lron/Aluminum Alloy

Technical Specifications

Product Details

Products Description

Model	Size (mm)					Voltage	Rated	Speed	Pressure	Maximun	Noise
										Frequency		Current			Air Flow
		A	B	C	V	A	r.p.m	Pa	m³/h	dB
LZ-60240AC	321	268	250	220/50	24	2600	25	159	45
LZ-60300AC	381	328	310	220/50	25	2500	26	208	45
LZ-60360AC	421	368	350	220/50	26	2400	24	234	45
LZ-60420AC	496	443	425	220/50	27	2300	24	276	44
LZ-60520AC	596	538	520	220/50	31	2400	25	315	44
LZ-60610AC	686	628	610	220/50	32	2300	23	355	43
LZ-60750AC	831	768	750	220/50	34	2300	24	405	43
LZ-60870AC	951	888	870	220/50	35	2100	20	475	42
LZ-60920AC	1003	938	920	220/50	46	2500	23	557	44
LZ-601080AC	1163	1098	1080	220/50	50	2300	24	650	44
LZ-601300AC	1383	1318	1300	220/50	52	2200	24	720	45
PH-60270DAC	365	365	270	220/50	0.22	2600	39	423	40
PH-60300DAC	395	395	300	220/50	0.2	2400	41	391	44
PH-60350DAC	445	445	350	220/50	0.2	2450	48	437	50
LF-60520AC	600	535	520	220/50	0.17	1900	50	360	43
LF-60610AC	690	625	610	220/50	0.19	1900	50	420	43
LF-60640AC	720	655	640	220/50	0.19	1900	50	440	43
LF-60700AC	780	715	700	220/50	0.2	1800	48	450	42
LF-60750AC	830	765	750	220/50	0.21	1700	46	455	42
LF-60870AC	950	885	870	220/50	0.21	1500	46	490	40
LL-60520AC	600	535	520	220/50	0.17	1900	50	360	43
LL-60610AC	690	625	610	220/50	0.19	1900	50	420	43
LL-60640AC	720	655	640	220/50	0.19	1900	50	440	43
LL-60700AC	780	715	700	220/50	0.2	1800	48	450	42
LL-60750AC	830	765	750	220/50	0.21	1700	46	455	42
LL-60870AC	950	885	870	220/50	0.21	1500	46	490	40
PA-60120AC	191	134	123	220/50	0.15	2400	50	105	40
PA-60180AC	259	193	181	220/50	0.34	2400	54	170	40
PA-60240AC	335	265	242	220/50	0.34	2200	51	210	42
PA-60300AC	397	315	304	220/50	0.32	1800	48	250	42
PA-60350AC	446	365	353	220/50	0.34	1600	45	220	40
PA-60420AC	511	430	418	220/50	0.34	1300	42	190	38
PA-60240AC	319	252	242	220/50	0.25	1800	51	210	42
PAA-60240AC	588	254	578	220/50	0.36	1700	47	335	40
PAA-60300AC	720	315	710	220/50	0.36	1550	49	382	42
PAA-60350AC	820	365	810	220/50	0.36	1300	58	355	45
PAA-60420AC	950	430	940	220/50	0.37	1100	48	368	48
P5F60300AC	398	321	306	230/50	0.47	2500	54	280	46
PF-60120AC	190	138	123	120/60	0.47	3000	47	141	40
								230/50	0.24	2700	40	125	40
PF-60180AC	251	199	184	120/60	0.54	2600	52	180	47
								230/50	0.25	2500	50	166	47
PF-60240AC	312	260	245	120/60	0.57	2000	42	200	41
								230/50	0.27	2300	45	230	44
PF-60300AC	378	321	306	120/60	0.99	2400	47	270	46
								230/50	0.47	2300	46	280	46
PF-60360AC	440	382	368	120/60	1.01	1900	41	280	43
								230/50	0.49	1950	42	280	43
PF-60420AC	501	444	429	120/60	1.01	1600	26	290	43
								230/50	0.41	1800	32	310	44
PF-60180DAC	285	199	184	220/50	0.24	2800	58	203	46
PF-60240DAC	345	260	245	220/50	0.13	2700	58	239	45
PF-60300DAC	405	321	306	220/50	0.15	2700	59	331	47
PF-60360DAC	468	383	368	220/50	0.16	2600	49	337	49
PF-60420DAC	530	444	429	220/50	0.17	2500	40	417	50

Cross flow fan
Special flat structure design, the air direction is more concentrated in a columnar shape, the wind direction can be changed, high air volume, low static pressure, low noise, especially suitable for special narrow scenes

Specification	EC	DC
Dimension	30-150	30-150
Voltage	115/230	24/48/85/115/310
Air flow	30-5000	30-2000
Static pressure	5-500	5-300
Power	10-500	10-500
Rotation speed	400-2900	400-2900
Control	PWM/0-10/Modbus	PWM/0-10/Modbus

Voltage Output	Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.)
Dielectric Resistance	10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal
Life Expectance	50,000 Hours(L10)
Leakage Current	≤3.5mA (Max. )
Direction of Air Flow	Straight forward from air outlet
Motor	External rotor EC motor
Technical features	Motor current limitation
		Soft starting Protection
		Under/Over voltage detection
		Thermal overload protection for electronics/motor
		Line undervoltage detection
		Locked-rotor Protection
		Reverse Polarity Protection
Operating Temperature	-25ºC (Min. )	60ºC (Max. )
		Heat sink of IC	115ºC (Max. )
		Other electronic parts	85ºC (Max. )
		Ball bering	80ºC (Max. )
		Lead Wire	120ºC (Max. )
Storage Temperature	-40ºC to 75ºC
Operating Humidity	5% to 90% RH
Storage Humidity	5% to 95% RH
Electronics housing material	Die-cast aluminum
Operation Mode	S1
Motor bearing	Ball bearing
Valid For Approval/Standard	CE,RoHS,ErP2015

1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.

2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.

3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.

5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.

Product Drawing / Aerodynamic Performance Charts / Connection Diagram

Contact us for detailed specifications

Applications

HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.

Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.

Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.

Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.

Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.

Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.

Product packaging

Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.

Related Products

Company Profile

Fanova (Suzhou) Motor Technology Co., LTD is a specialized research, design, and production enterprise focusing on AC fans, DC motors, centrifugal fans, axial fans, and cross-flow fans. Established in 2003, the company has evolved into a prominent player in the motor and fan industry, providing customers with high-quality products and outstanding services. It has established a strong influence in the market and earned a reputation for its commitment to innovation, reliability, and customer satisfaction. As a professional EC fan manufacturer, we possess advanced production equipment and a skilled technical team dedicated to providing comprehensive solutions to our customers. Our products are widely used in various industries, including industrial, commercial, and residential sectors, covering applications such as purification equipment, HVAC equipment, ventilation equipment, transportation facilities, medical facilities, household appliances, and machinery. We aim to provide customers with efficient and energy-saving solutions for airflow power needs. The company boasts a professional R&D team, dedicated to driving continuous innovation and technological breakthroughs in product development. Our R&D efforts focus on exploring new plastic materials, enhancing motor and fan designs, improving manufacturing processes to stay at the forefront of industry trends. Our products have passed multiple international certifications, including CE, UL, ROHS, providing customers with reliable assurance and meeting the diverse needs of different application areas.

FAQ

Q1:What kind of payments do you support? A1: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment Q2.Will you provide samples? A2: Yes, samples can be delivered within 10days on request. Q3:How can I place the order? A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure and usually quote you within 24 hours after we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods. Q4:About transportation A4: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive. Q5:After-sales service A5: We will provide professional after-sales service, patiently answer customers' various problems to ensure the normal operation of products .

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $22.6 / piece
  • 50–99 piece: US $16.95 / piece
  • 100+ piece: US $11.07 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this tangential fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this tangential fan carry?

It is supplied with EAC, TUV, GOST, ISO9001, ROHS, CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the tangential fan be supplied for my local voltage?

The standard configuration is 10V 12V 24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
