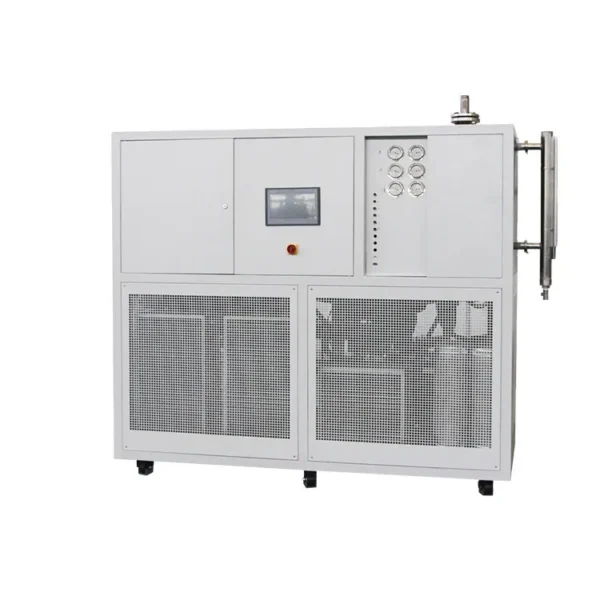

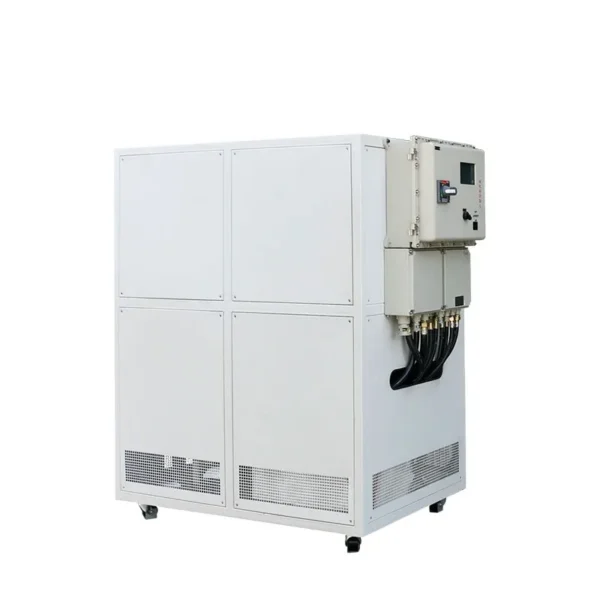

This temperature industrial water chiller is published with the manufacturer’s full specification — 380V 50HZ,or customization, cooling capacity @-55c 6 ~ 180kW 5160~154800Kcal/h. Made by LNEYA Thermo Refrigeration Co., Ltd. (16 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Temperature Industrial Water Chiller
- Power: custom
- Voltage: 380V 50HZ,or customization
- Cooling Capacity @-55C: 6 ~ 180kW 5160~154800Kcal/h
- Refrigerant: R-404A / R23
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 380V 50HZ,or customization |
|---|---|
| Power | custom |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 300 |
| Brand Name | LNEYA |
| Dimension(L*W*H) | 100*150*185 ~ 650*200*225cm |
| Working Temperature Range | -60 ~ -10℃ (optional: -150 ~ -5℃) |
| Product Name | Ultra Low Temperature Industrial Water Chiller Machines |
| Temperature Range ℃ | -60 ~ -10℃ (optional: -150 ~ -5℃) |
| Refrigerant | R-404A / R23 |
| Cooling Capacity @-55C | 6 ~ 180kW 5160~154800Kcal/h |
| Circulation Pump | 6.6 ~ 25m³ /h 2.5bar |
| Cold Storage Tank | 200~1500L |
| Expansion Tank | 100~750L |
| Compressor | Copeland/Danfoss/Emerson/TECUMSEH |
| Weight | 850~5600kg |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

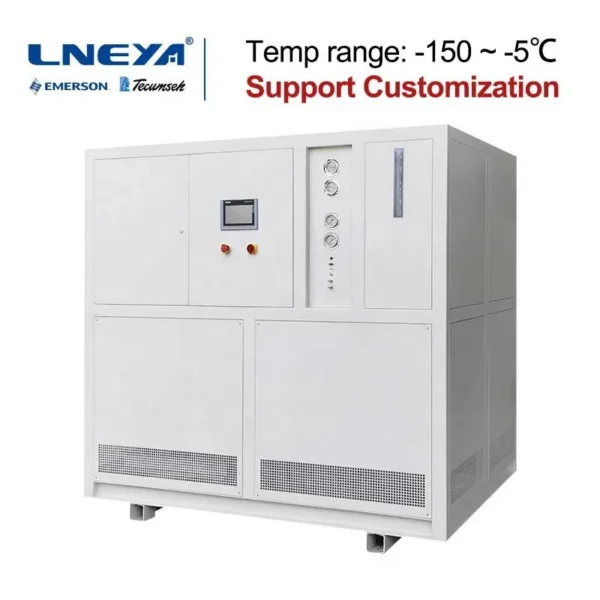

LNEYA specializes in the production of single-fluid cryogenic chillers. The refrigeration temperature ranges from -150°C to -5°C, which can meet the needs of different refrigeration temperatures. The company developed a direct-cooled ultra-low temperature chiller, using international brand compressors Carrier, using automatic cascade refrigeration mode and mixed refrigerants, within 3 minutes can be refrigerated to minus 120°C.
Features of ultra low temperature chiller:
* Temperature range: – 150 ~ – 5 ℃, which can meet different temperature requirements.
* Secondary subcooling technology is adopted, with fast refrigeration speed.
* Imported semi closed piston compressor, semi closed piston two-stage compressor and semi closed screw compressor are adopted. The evaporator adopts high force plate heat exchanger, which has small volume and high efficiency.
* A full set of imported cold controls (Danfoss pressure controller, balance valve, expansion valve, solenoid valve, drying filter, Emerson oil separator, alco sight glass, check valve, etc.) are adopted.
* The cooling water circuit adopts intermediate heat exchanger to improve the safety and reliability of the system.
* Danfoss electronic expansion valve is adopted with high control accuracy.
* Siemens PLC S7-200 / 300 controller, LNEYA touch screen display, automatic control and operation, temperature curve display, temperature record can be exported to USB flash disk, fault alarm record and other functions are adopted.
* The large refrigerating capacity equipment adopts semi closed screw compressor with economizer operation, which is combined with electronic expansion valve to ensure high efficiency and energy saving.
* The equipment is installed in the whole machine. The system has been tested in the factory. Users only need to install the refrigerant pipeline and cooling water pipeline to run.
* Factory test: the load test of each equipment in the factory shall not be less than 12 hours.
* Secondary subcooling technology is adopted, with fast refrigeration speed.
* Imported semi closed piston compressor, semi closed piston two-stage compressor and semi closed screw compressor are adopted. The evaporator adopts high force plate heat exchanger, which has small volume and high efficiency.
* A full set of imported cold controls (Danfoss pressure controller, balance valve, expansion valve, solenoid valve, drying filter, Emerson oil separator, alco sight glass, check valve, etc.) are adopted.
* The cooling water circuit adopts intermediate heat exchanger to improve the safety and reliability of the system.
* Danfoss electronic expansion valve is adopted with high control accuracy.
* Siemens PLC S7-200 / 300 controller, LNEYA touch screen display, automatic control and operation, temperature curve display, temperature record can be exported to USB flash disk, fault alarm record and other functions are adopted.
* The large refrigerating capacity equipment adopts semi closed screw compressor with economizer operation, which is combined with electronic expansion valve to ensure high efficiency and energy saving.
* The equipment is installed in the whole machine. The system has been tested in the factory. Users only need to install the refrigerant pipeline and cooling water pipeline to run.
* Factory test: the load test of each equipment in the factory shall not be less than 12 hours.

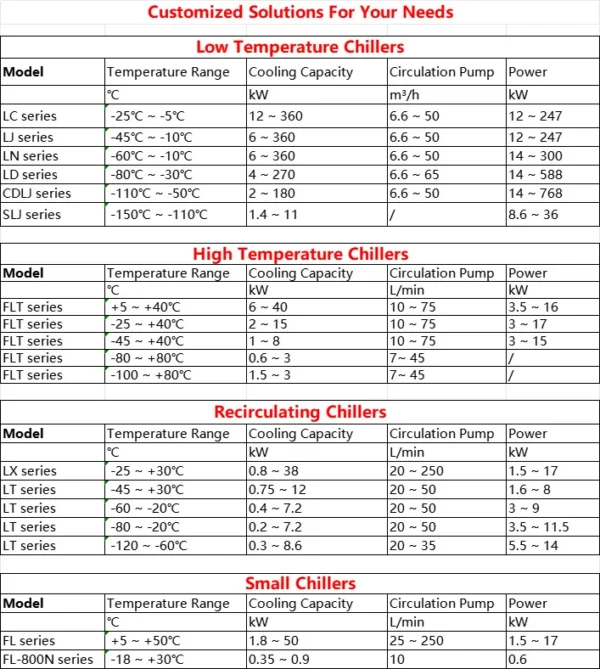

Customized products
We support customization services, pls click to consult us for details.
Product Paramenters
Why Choose Us
Our advantages
LNEYA has several high-quality designers with rich experience in ultra-low temperature and high-low temperature development. At present, the company is at the advanced level of its peers in the R & D of refrigeration technology, at the international advanced level in the research of high and low temperature rapid temperature rise and fall technology, and at the advanced level in the research of single medium temperature control of reactor.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？ Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment. Q: Are you a trader or a manufacturer？ We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India. Q: How long is the warranty? One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs. Q: Do you provide customized services? Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $10800 / set
- 5–9 set: US $9500 / set
- 10+ set: US $8300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this temperature industrial water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the temperature industrial water chiller be supplied for my local voltage?
The standard configuration is 380V 50HZ,or customization. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by LNEYA Thermo Refrigeration Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full LNEYA Thermo Refrigeration Co., Ltd. range on HVACR Nexus.
