Temperature recirculating cooling chiller — 110v,220v, 500w. The complete factory specification follows. Made by Shenzhen Haocheng Instrument Co., Ltd. (10 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Temperature Recirculating Cooling Chiller
- Model Number: HC3/20
- Power: 500 W
- Voltage: 110v,220v
- Cooling Capacity: 500w
- Warranty: 2 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 110v,220v |
|---|---|
| Power | 500 W |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Long Service Life |
| Core Components | PLC |
| Model Number | HC3/20 |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 35 |
| Brand Name | haocheng |
| Dimension(L*W*H) | 415x223x497mm |
| Working Temperature Range | 0°C/32°F |
| Product Name | USA Hotsale 3L low temperature recirculating cooling chiller |
| Application | Industrial Cooling Solutions |
| Cooling Capacity | 500w |
| Temperature Range | -20 to 20 |
| Weight | 35KG |
| Compressor | Imported |
| Dimensions(WxHxD) | 415x533x497mm |
| Manufacturer | yes |
| Selling Units | Single item |
| Single Package Size | 50X30X70 cm |
| Single Gross Weight | 35.000 kg |
Product Details
Feature
◎ Used imported famous cooling compressors Brand — Embraco compressors and can work for a long time
◎ Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility.

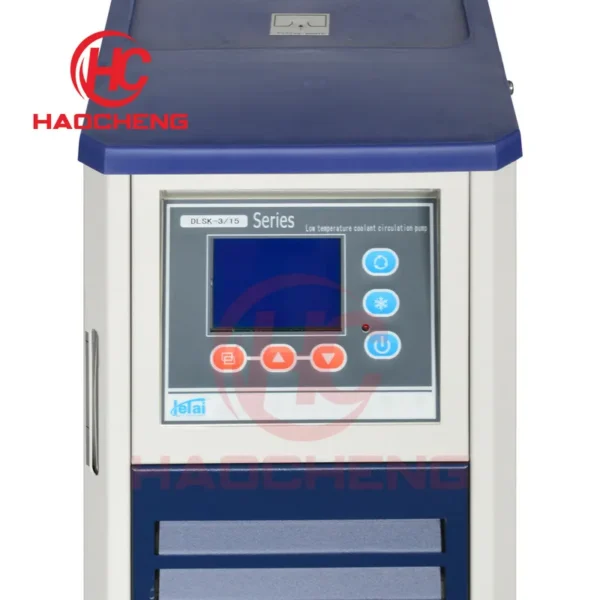

◎ Digital LCD display make the temperature setting simple and reasonable design and delicate figure to save space

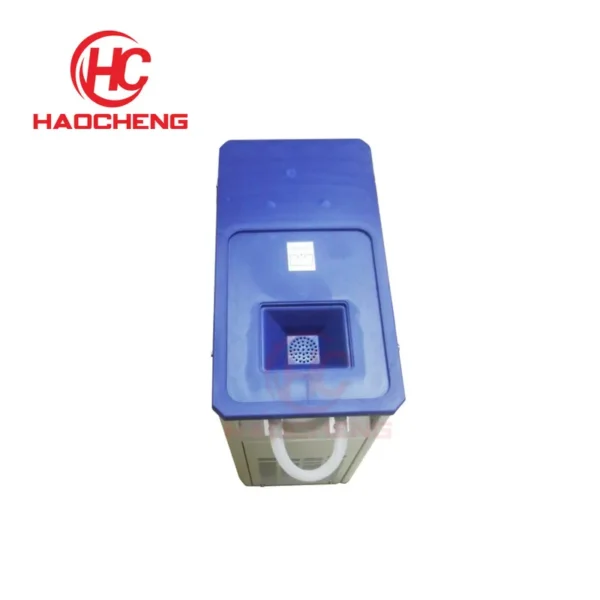

◎ Stainless steel reservoir facilitate user friendly operation and simple maintenance
Specification | ||||||
Model | HC3/10 | HC3/15 | HC3/20 | |||
Compressor | Make: Embraco Refrigerant: R404A Cooling capacity at 0°C/32°F: 350 W | Make: Embraco Refrigerant: R404A Cooling capacity at 0°C/32°F: 400 W | Make: Embraco Refrigerant: R404A Cooling capacity at 0°C/32°F: 400 W | |||
Recirculating Pump | Output: 15 watts Pumping speed: 17 L/min or 4.5 gallon/min | |||||
Overall Power(W) | 450 | 500 | 500 | |||
Temperature Controller | Digital Microprocessor PID Controlled,Temperature Accuracy: +/- 2°C | |||||
Temperature Range(°C) | -10 to 20 | -15 to 20 | -20 to 20 | |||
Reservoir | Capacity: 3 liters or 0.8 gallons | |||||
Temperature Sensor Type | Pt100 | |||||
Voltage | 220V/110 Optional | |||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $772 / set
- 3+ set: US $735 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this temperature recirculating cooling chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the temperature recirculating cooling chiller be supplied for my local voltage?
The standard configuration is 110v,220v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Haocheng Instrument Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Haocheng Instrument Co., Ltd. range on HVACR Nexus.
